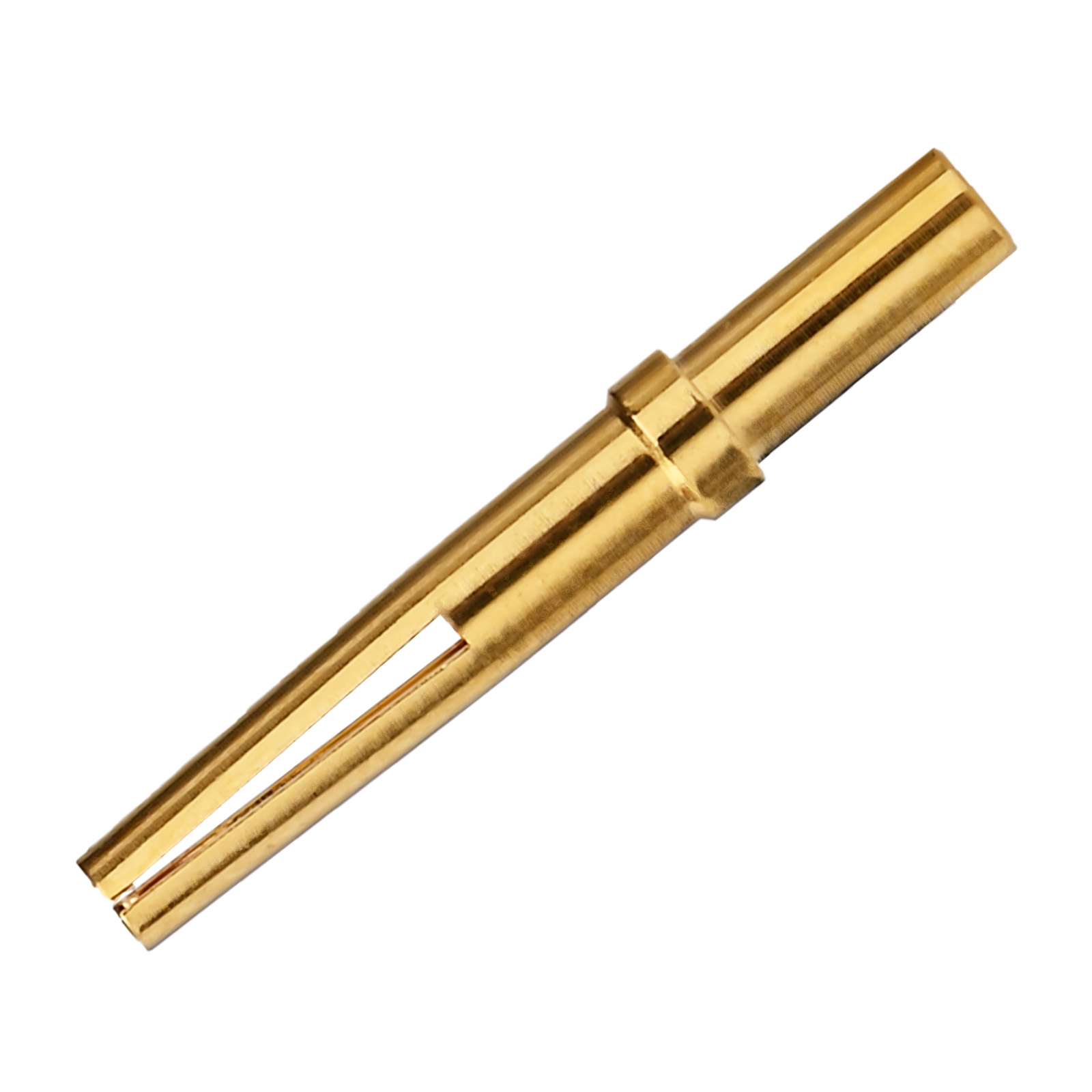

JRready DB9-1SS-G-01 Terminal
1. Wire Range: 24-20AWG (0.2-0.56mm)
2. Mating Pin: DB9-1PS-G
3. Brass, Gold-Plated
4. Rated Current: 7.5A
2. Mating Pin: DB9-1PS-G
3. Brass, Gold-Plated
4. Rated Current: 7.5A
| Brand | JRready | Part Number | DB9-1SS-G-01 |
| Category | DB9 Series | Colour | Gold |

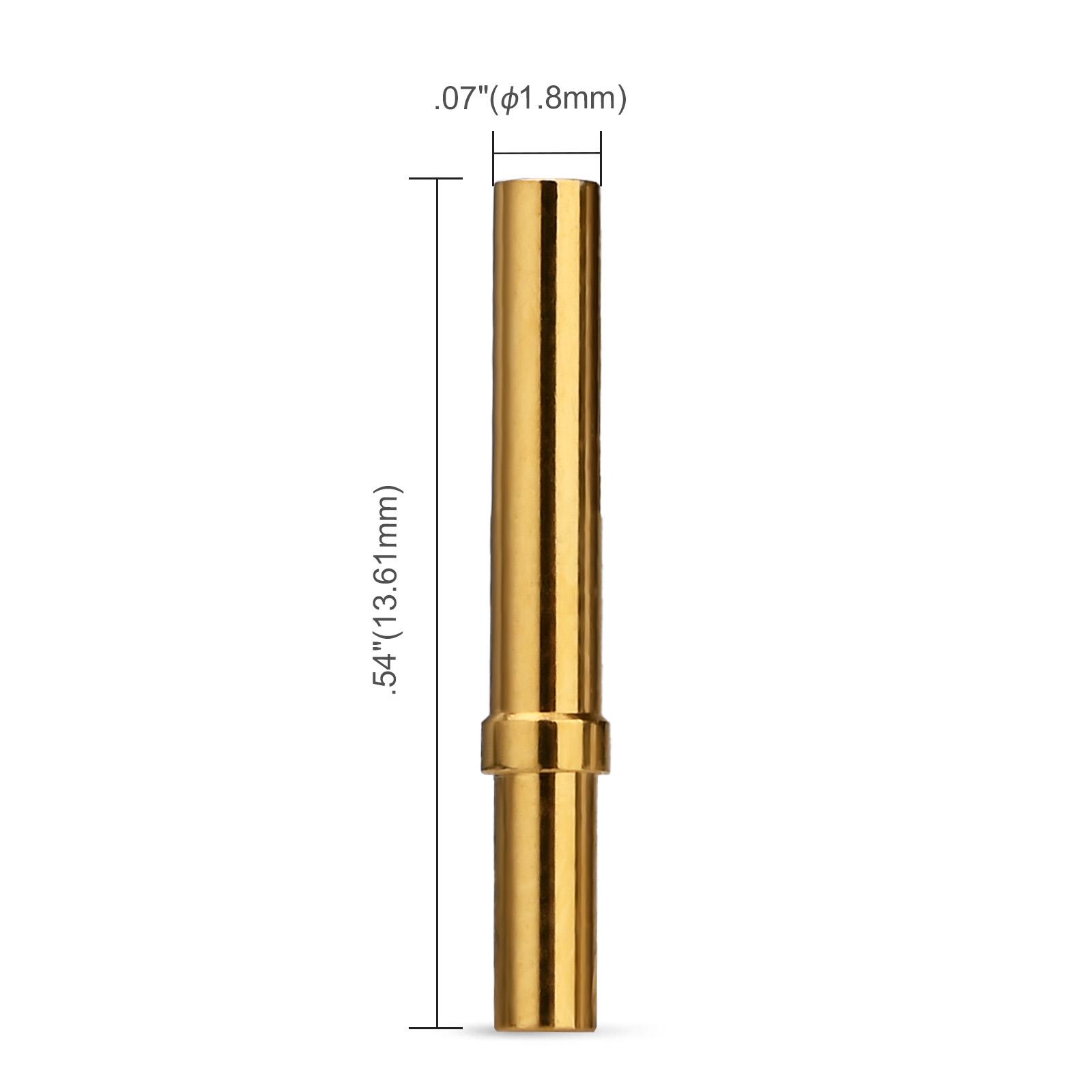

| Material | Gold-Plated Brass | Dimension | Dimensions: 13.61mm (L) × 1.8mm (D) |
| Country of Origin | China | Weight | 0.17g |
| Application | Suitable for communication, instrument connection, industrial automation connection and other fields | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | / | Rated Current | 7.5A |
