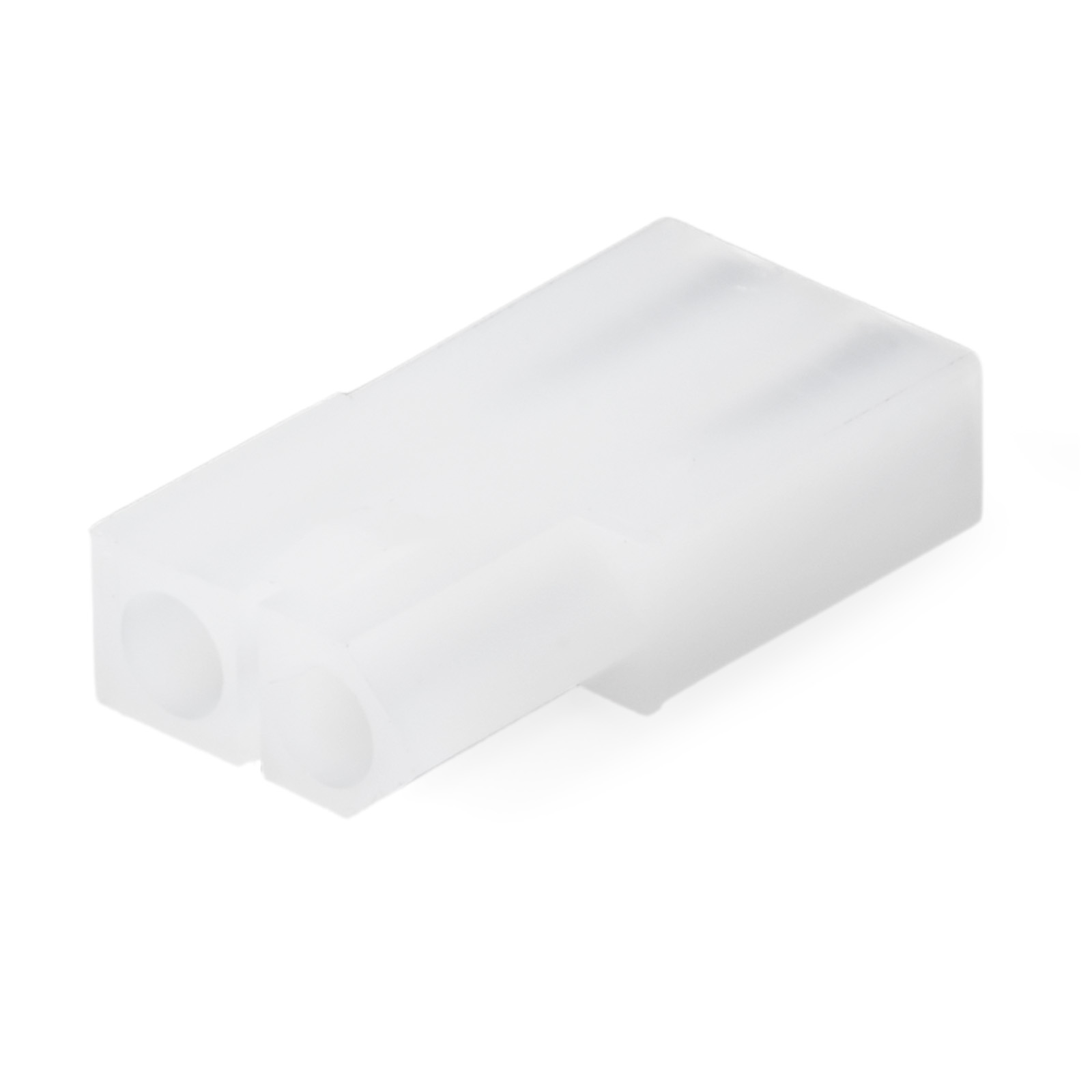

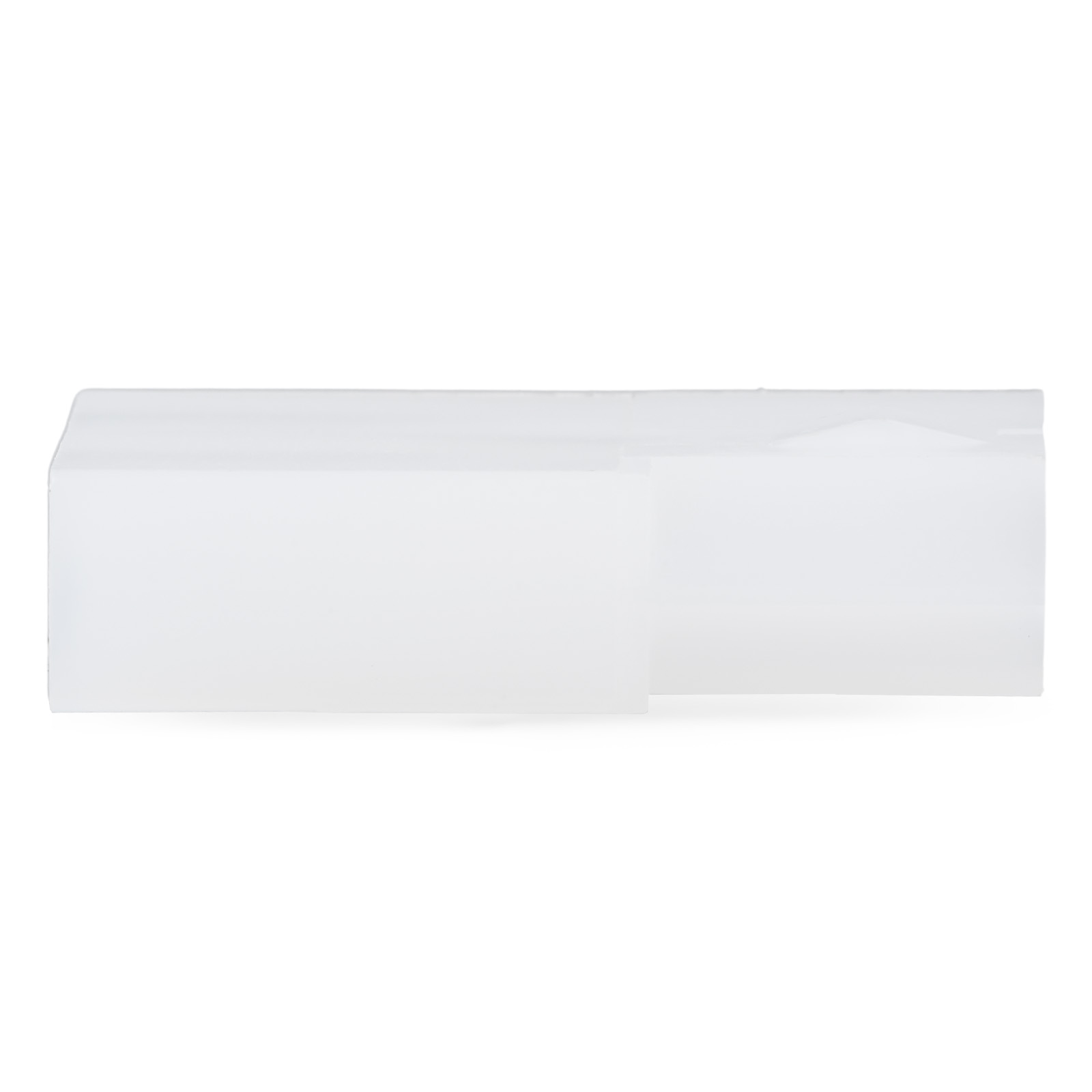

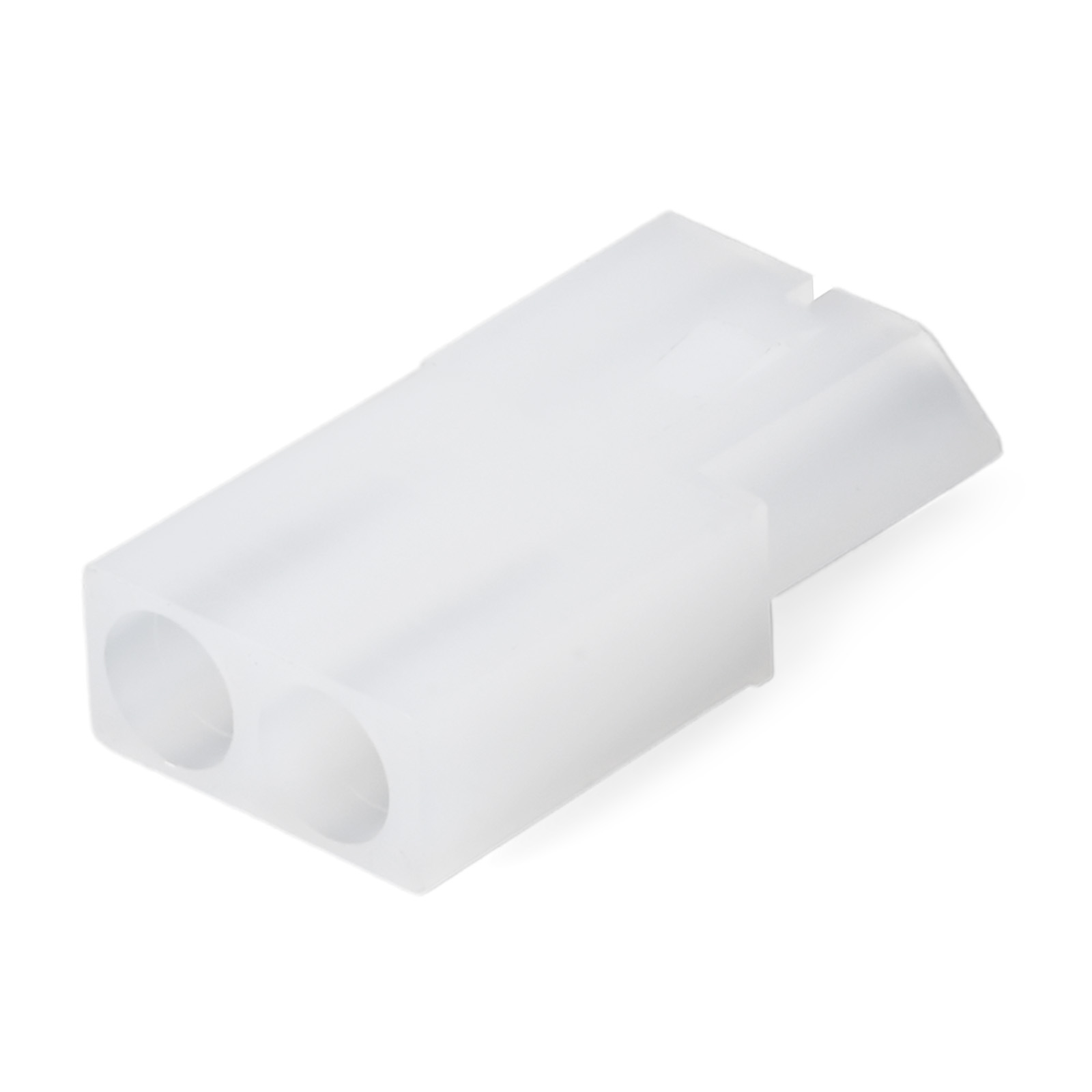

JRready JRN003-HFA-02P Connector
1.Compatible wire range: 18-30AWG
2.Compatible with stamped sockets
3.Connection types: Wire-to-wire, wire-to-board
4.Number of positions: 2-pin
5.Rated voltage: 250V AC/DC, rated current: 5A
6.Compatible with market-standard products of same specifications
2.Compatible with stamped sockets
3.Connection types: Wire-to-wire, wire-to-board
4.Number of positions: 2-pin
5.Rated voltage: 250V AC/DC, rated current: 5A
6.Compatible with market-standard products of same specifications
| Brand | JRready | Part Number | JRN003-HFA-02P |
| Category | JRN003 (3.68) Series | Colour | White |

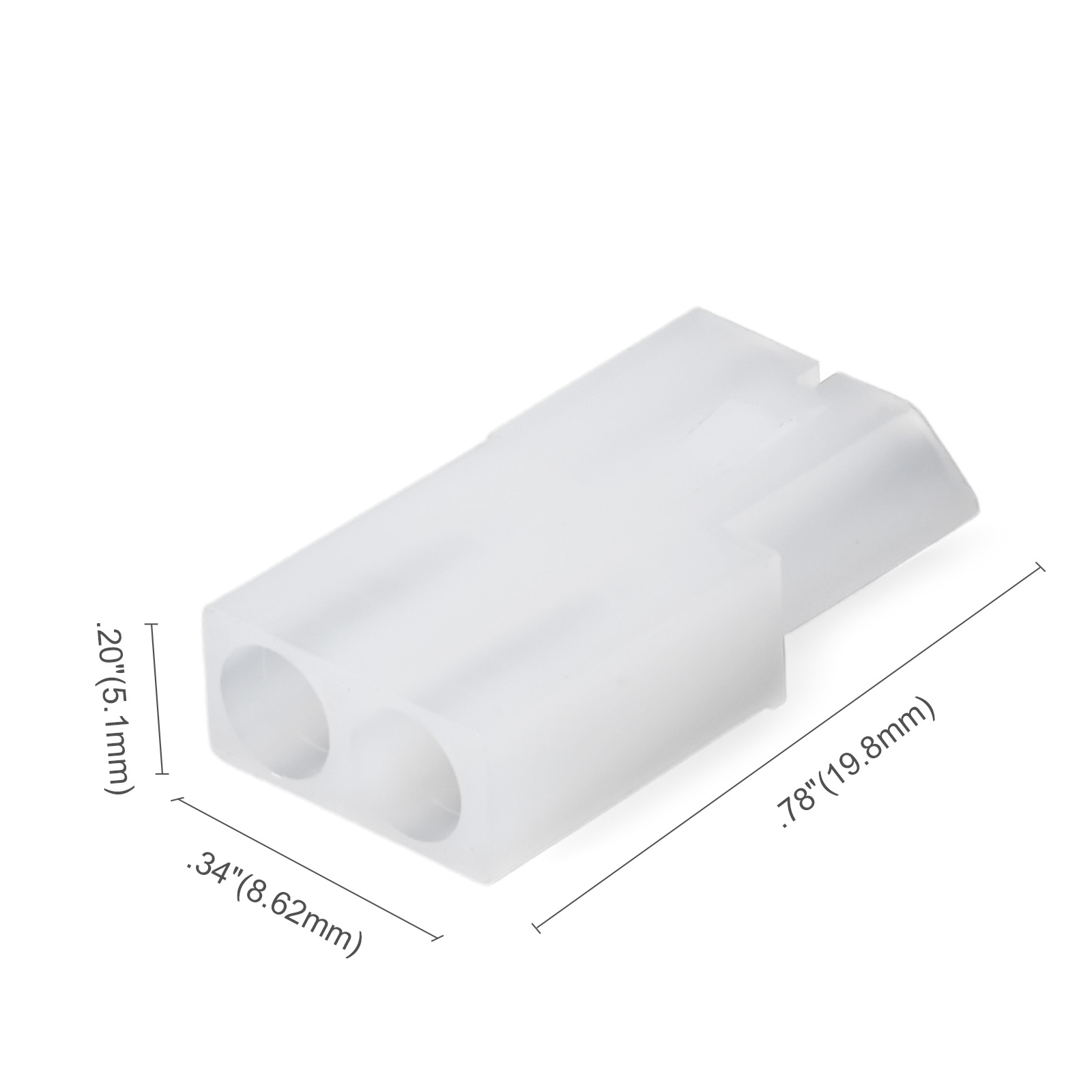

| Material | PA66 | Dimension | 19.8*8.62*5.1mm |
| Country of Origin | China | Weight | 0.68g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 5A |
