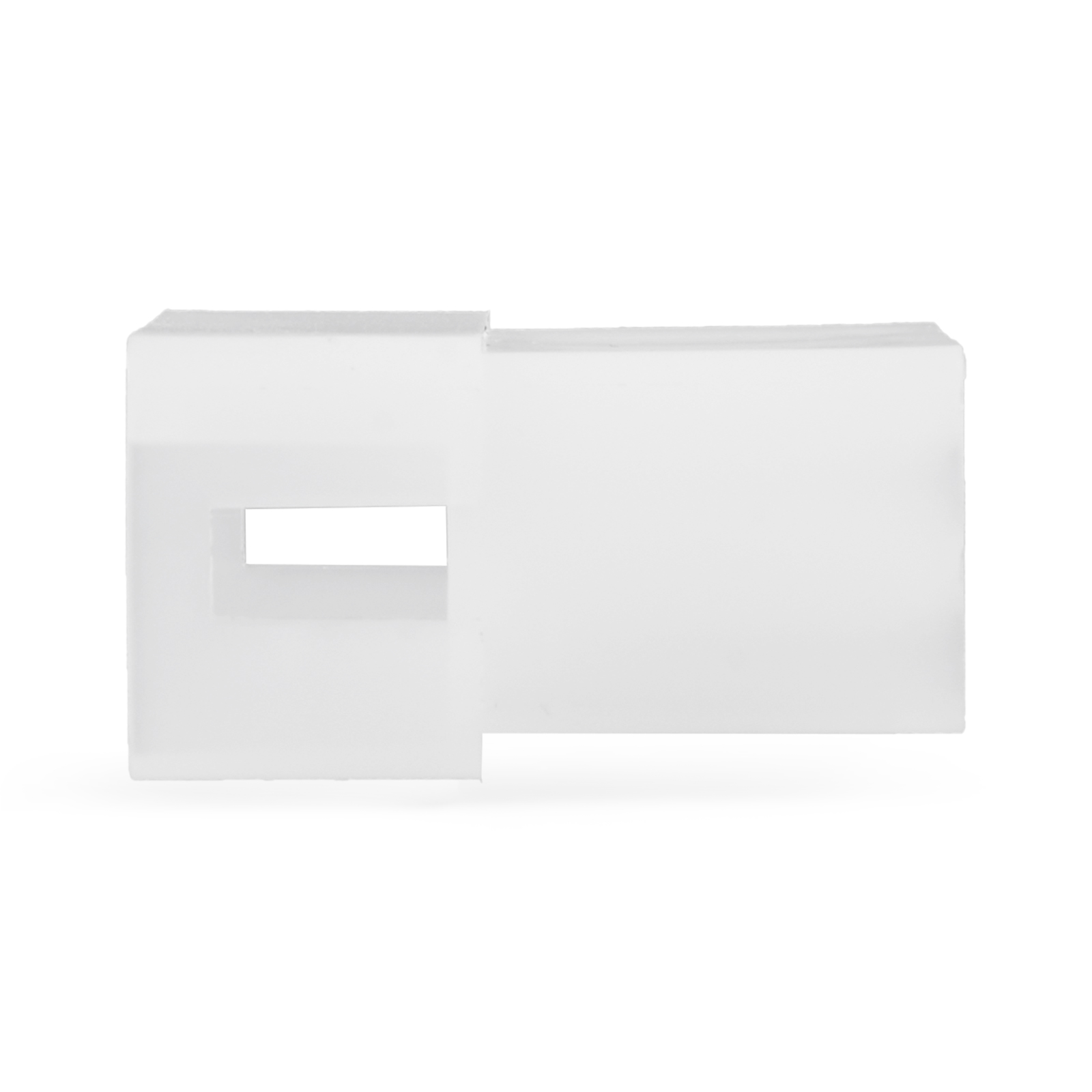

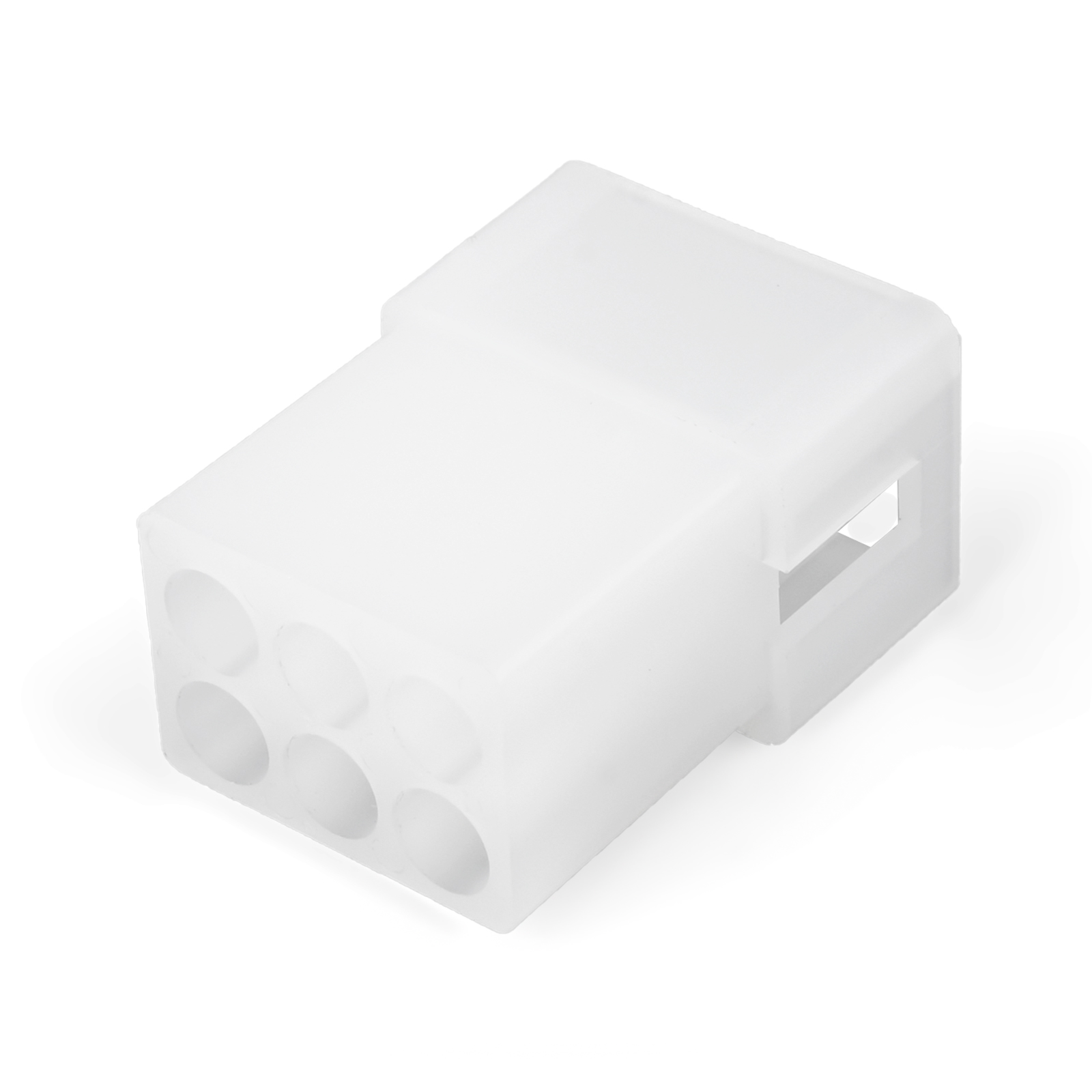

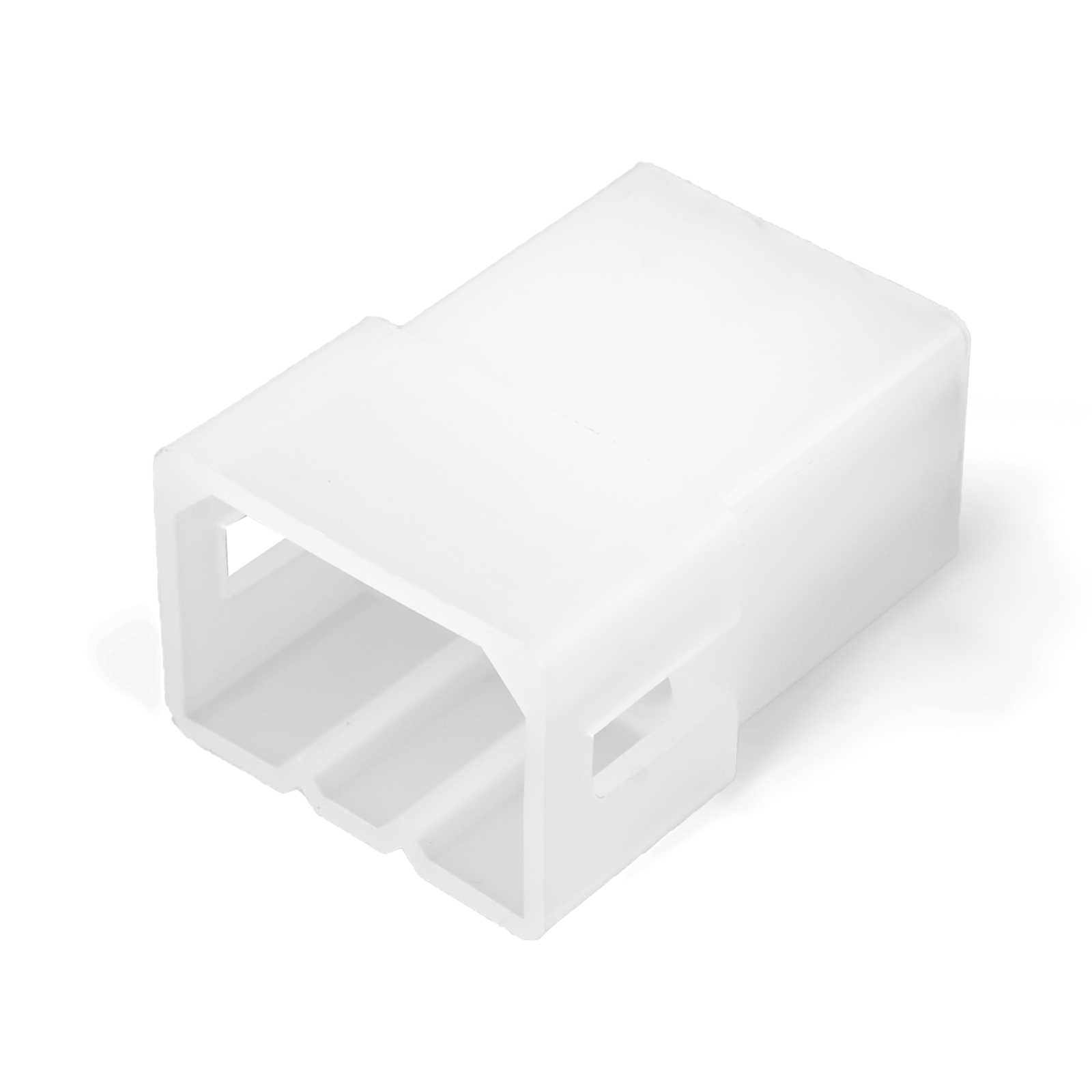

JRready JRN002-HMA-3x02P Connector
1. Wire Compatibility: 14-24AWG;
2. Terminal Type: Compatible with stamped pins
3. Connection Types: Wire-to-wire, wire-to-board;
4. Number of Positions: 6-pin;
5. Rated Voltage: 250V AC/DC, rated current: 12A;
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Terminal Type: Compatible with stamped pins
3. Connection Types: Wire-to-wire, wire-to-board;
4. Number of Positions: 6-pin;
5. Rated Voltage: 250V AC/DC, rated current: 12A;
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | JRN002-HMA-3x02P |
| Category | JRN002 (5.03) Series | Colour | White |

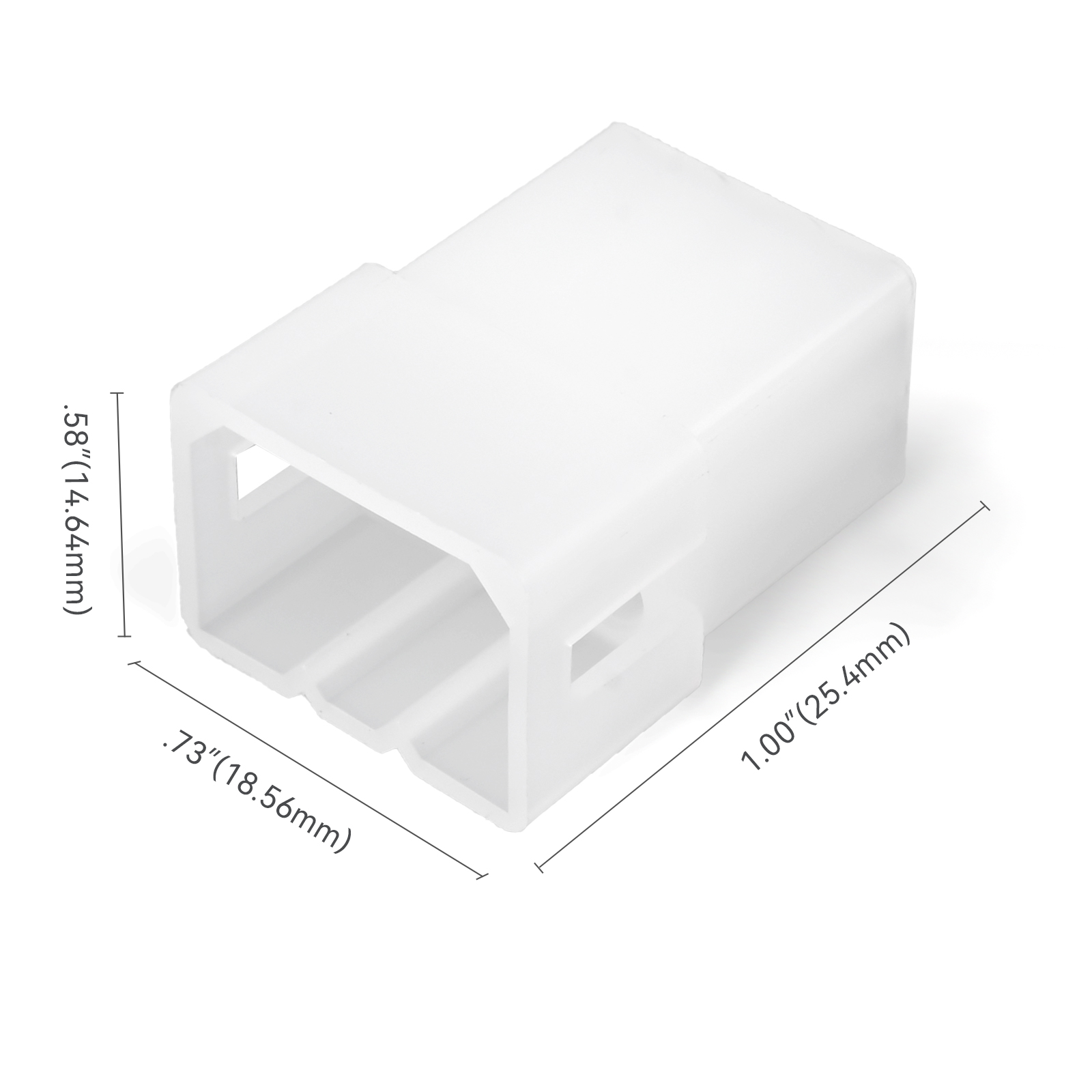

| Material | PA66 | Dimension | 25.4*18.56*14.64mm |
| Country of Origin | China | Weight | 2.75g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 12A |
