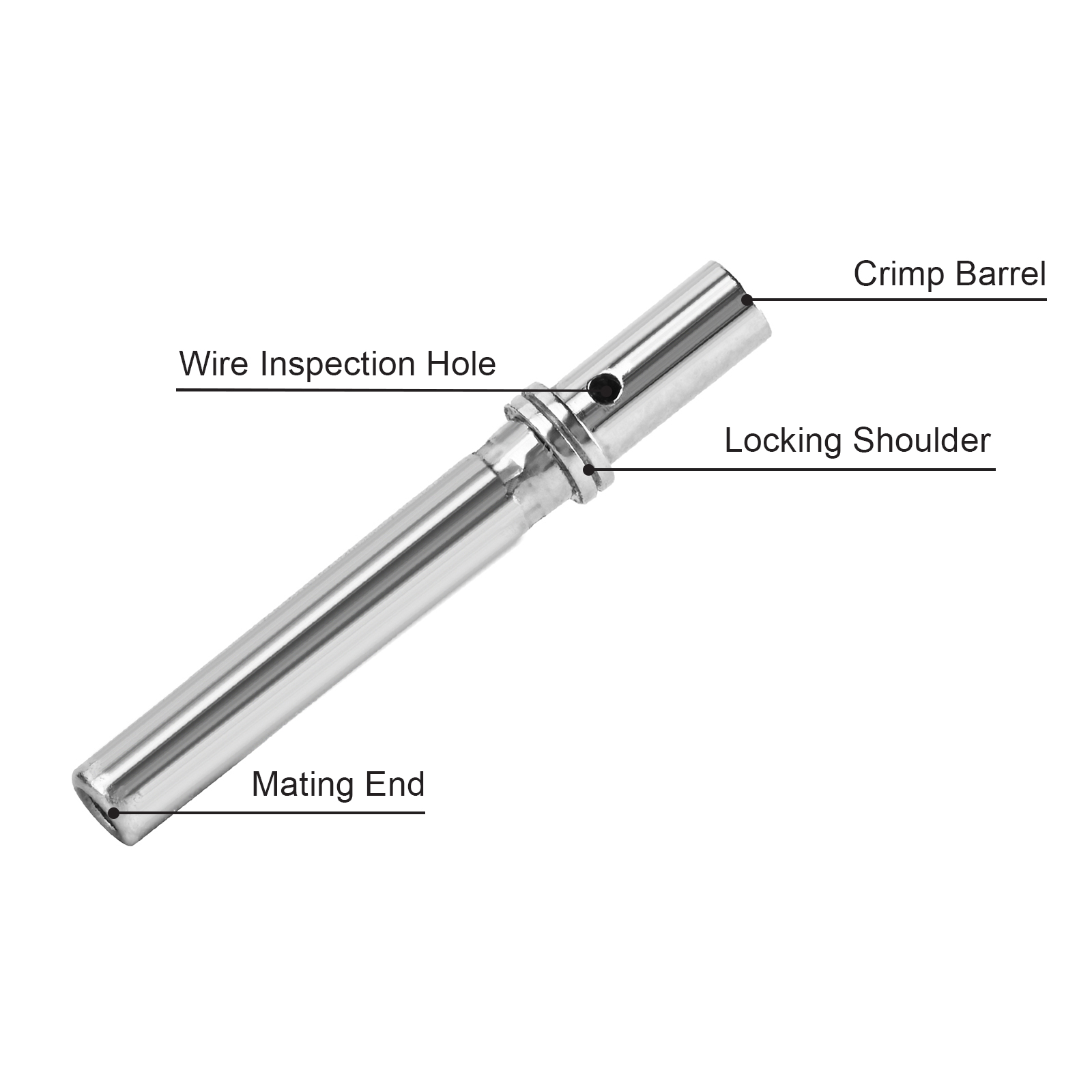

JRready 0462-201-20141 ​ ​20# Socket Terminal​

​1. Wire Range: 20-22 AWG (0.5-0.35 mm²)
2. ​​Mates with Machined pin 0460-202-20141​
3. ​Full Nickel Plating​
4. ​Rated Current: 7.5A
Contact Us
Brand JRready Part Number 0462-201-20141
Category DT Series  Colour ​Silver
Material ​Tin Bronze  Dimension Length: 17.14 mm, Diameter: ⌀1.98mm
Country of Origin China Weight 0.3g
Application Compatible with DTM, HDP20, HD30, DRC Series connectors
Working Temperature -40-125℃ Working Pressure /
Rated Voltage 250V Rated Current 7.5A
