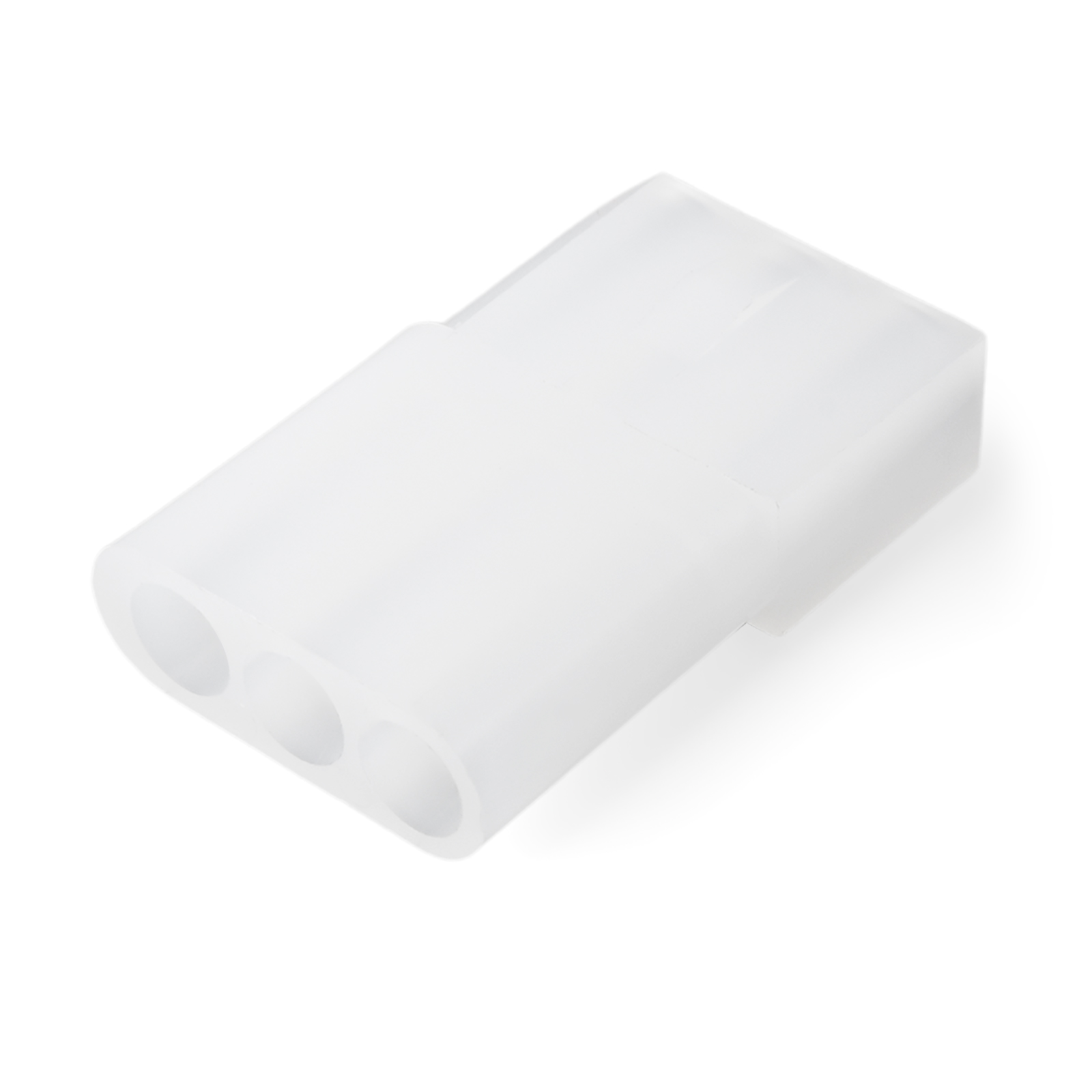

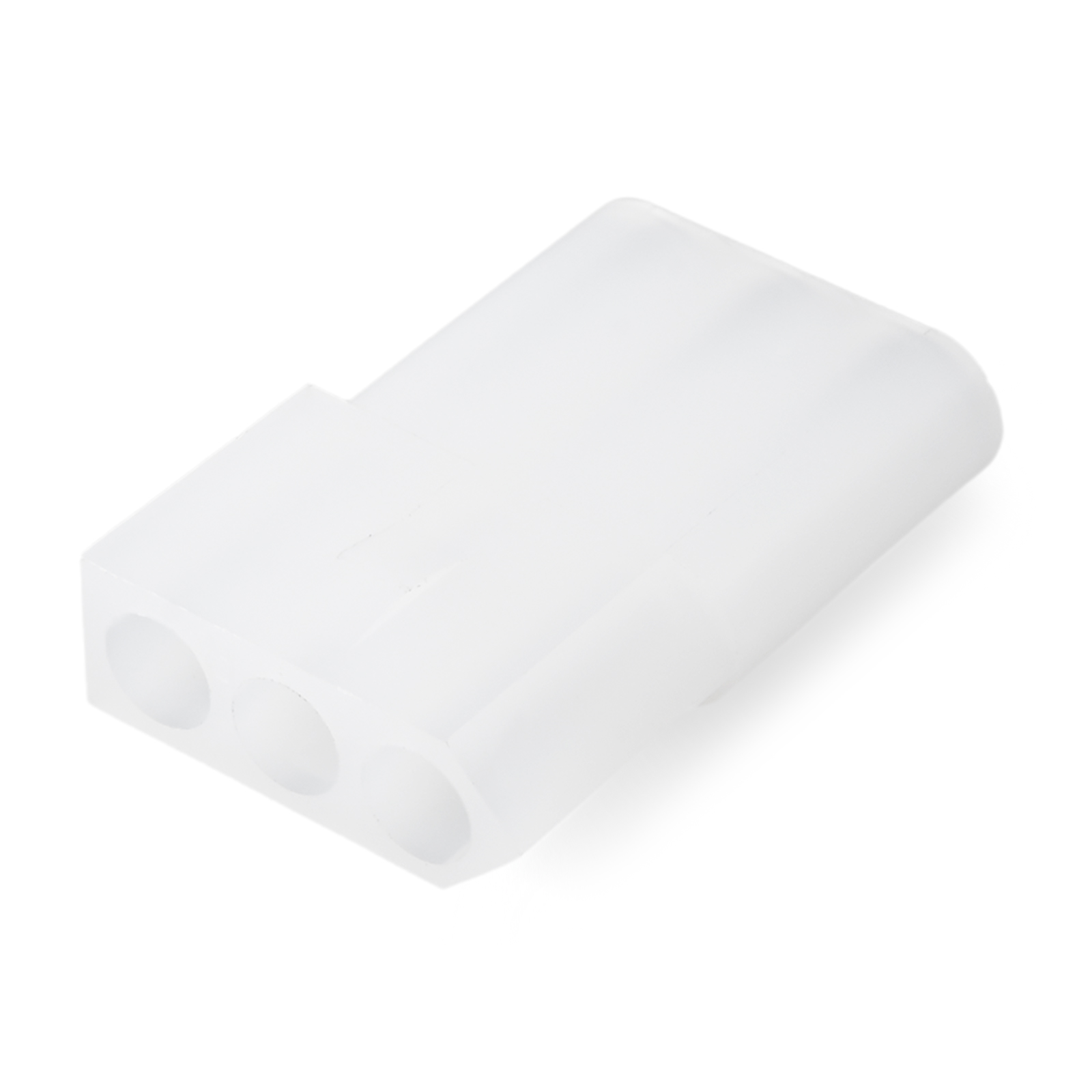

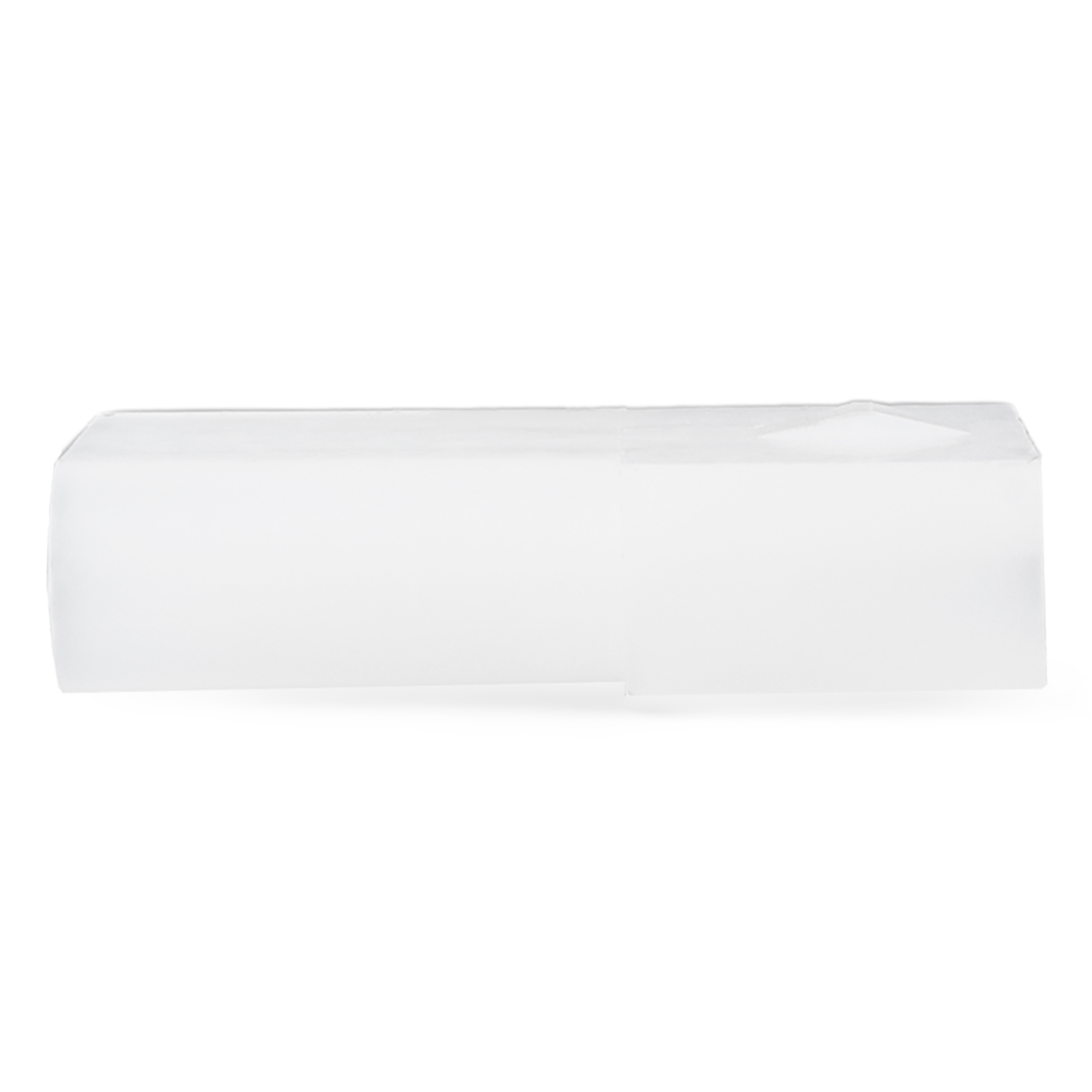

JRready JRN002-HFA-03P Connector
1. Wire Compatibility: 12-24 AWG
2. Terminal Type: Compatible with stamped sockets

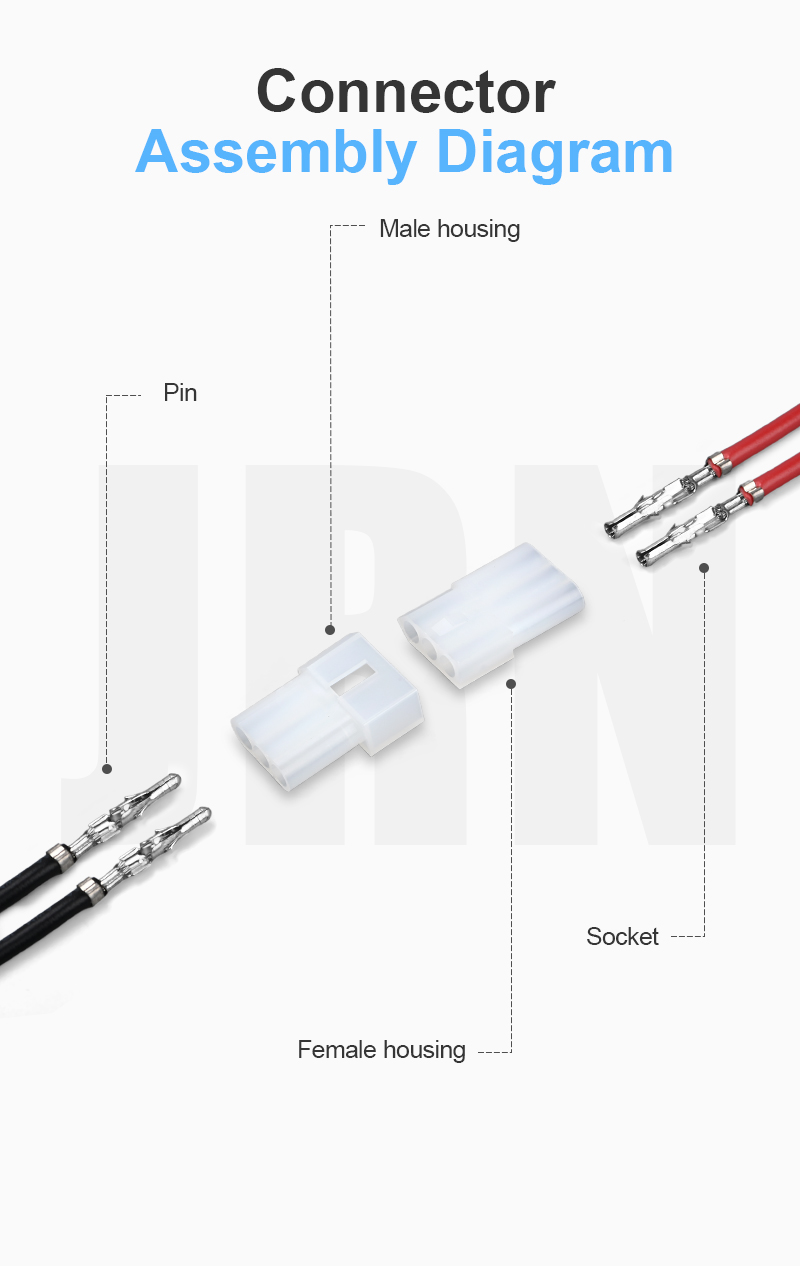

3. Connection Method: Wire-to-wire and wire-to-board
4. Number of Positions: 3-pin
5. Rated Voltage: 250V AC/DC; Rated Current: 12A
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Terminal Type: Compatible with stamped sockets
3. Connection Method: Wire-to-wire and wire-to-board
4. Number of Positions: 3-pin
5. Rated Voltage: 250V AC/DC; Rated Current: 12A
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | JRN002-HFA-03P |

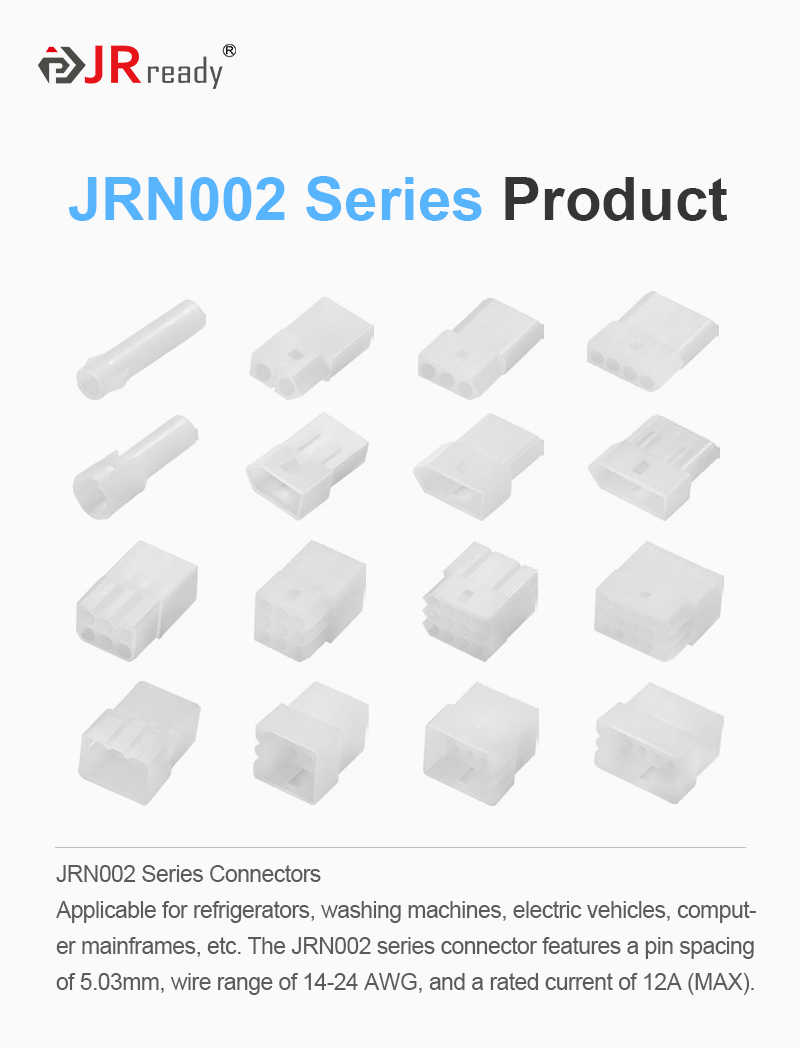

| Category | JRN002 (5.03) Series | Colour | White |

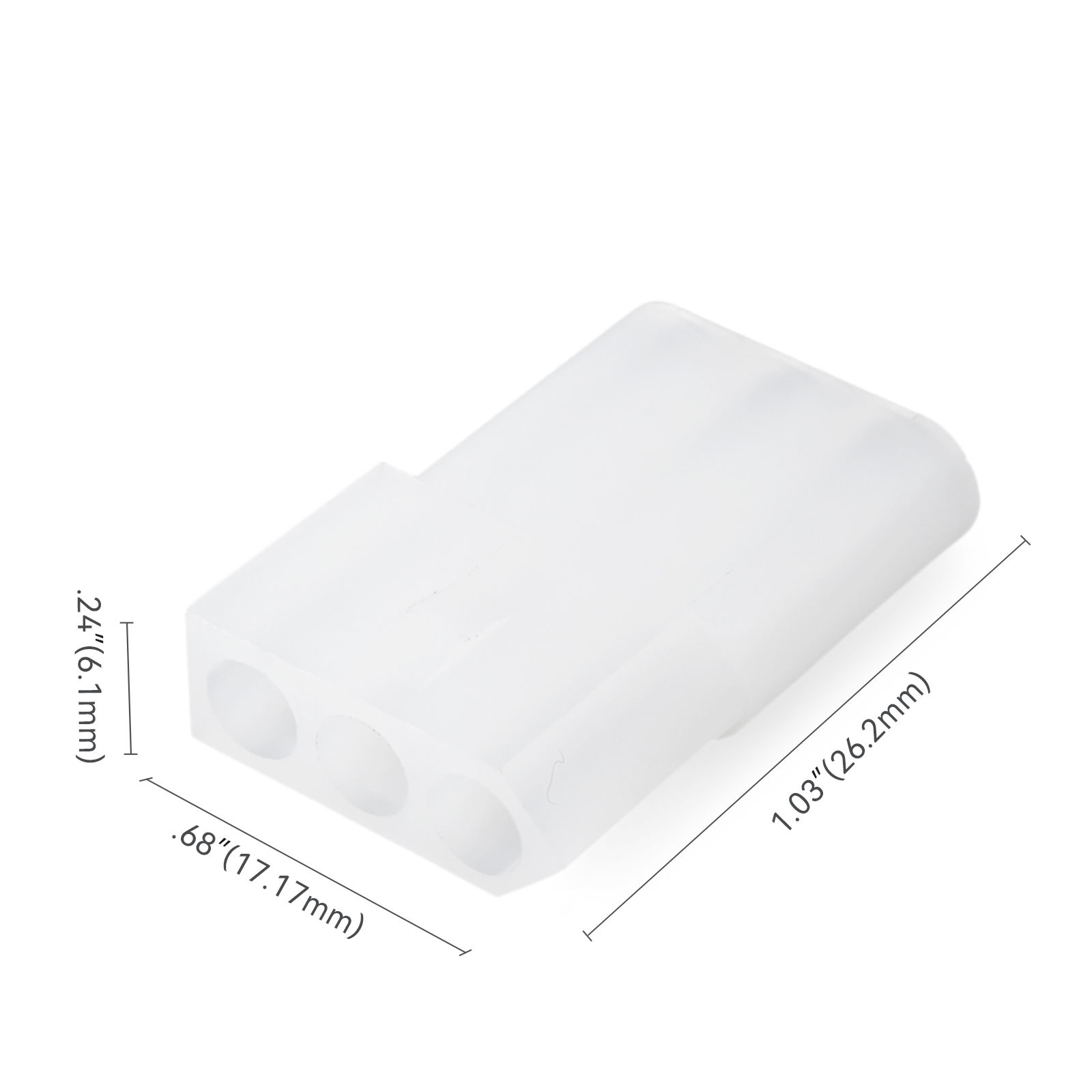

| Material | PA66 | Dimension | 26.2*17.17*6.1mm |
| Country of Origin | China | Weight | 1.75g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||

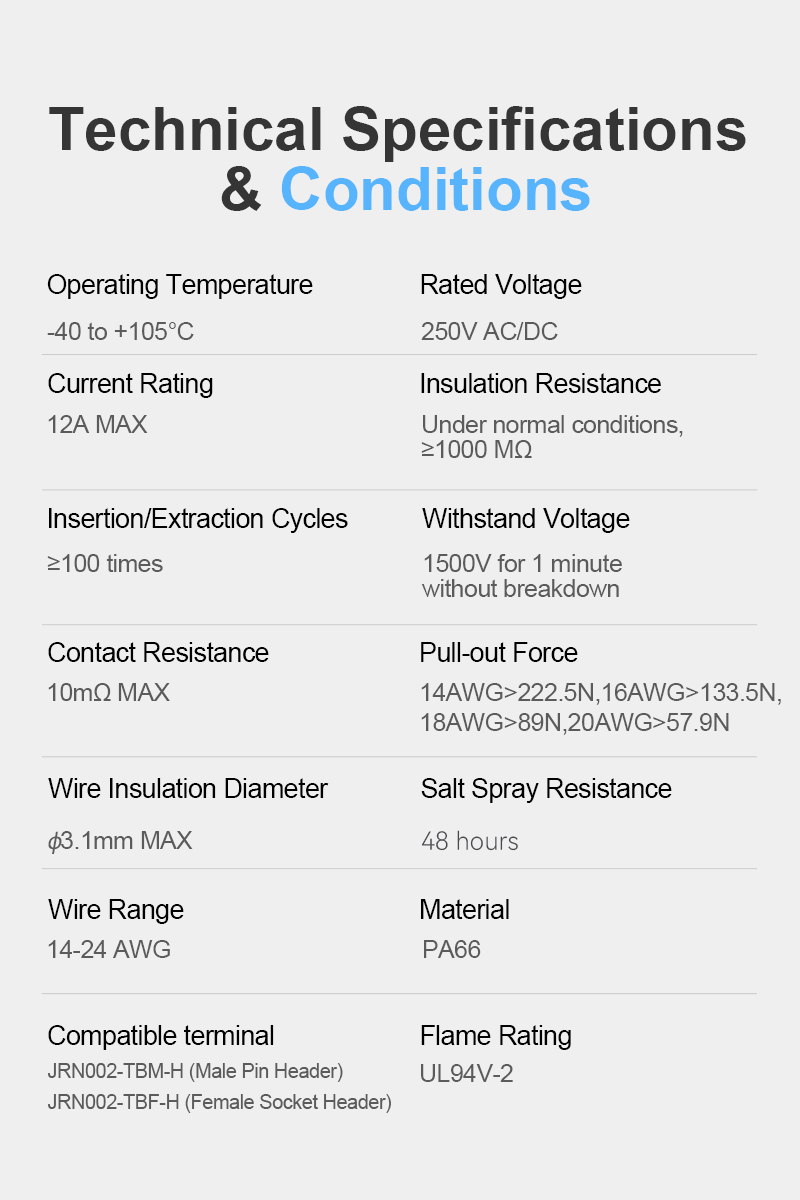

| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 12A |
