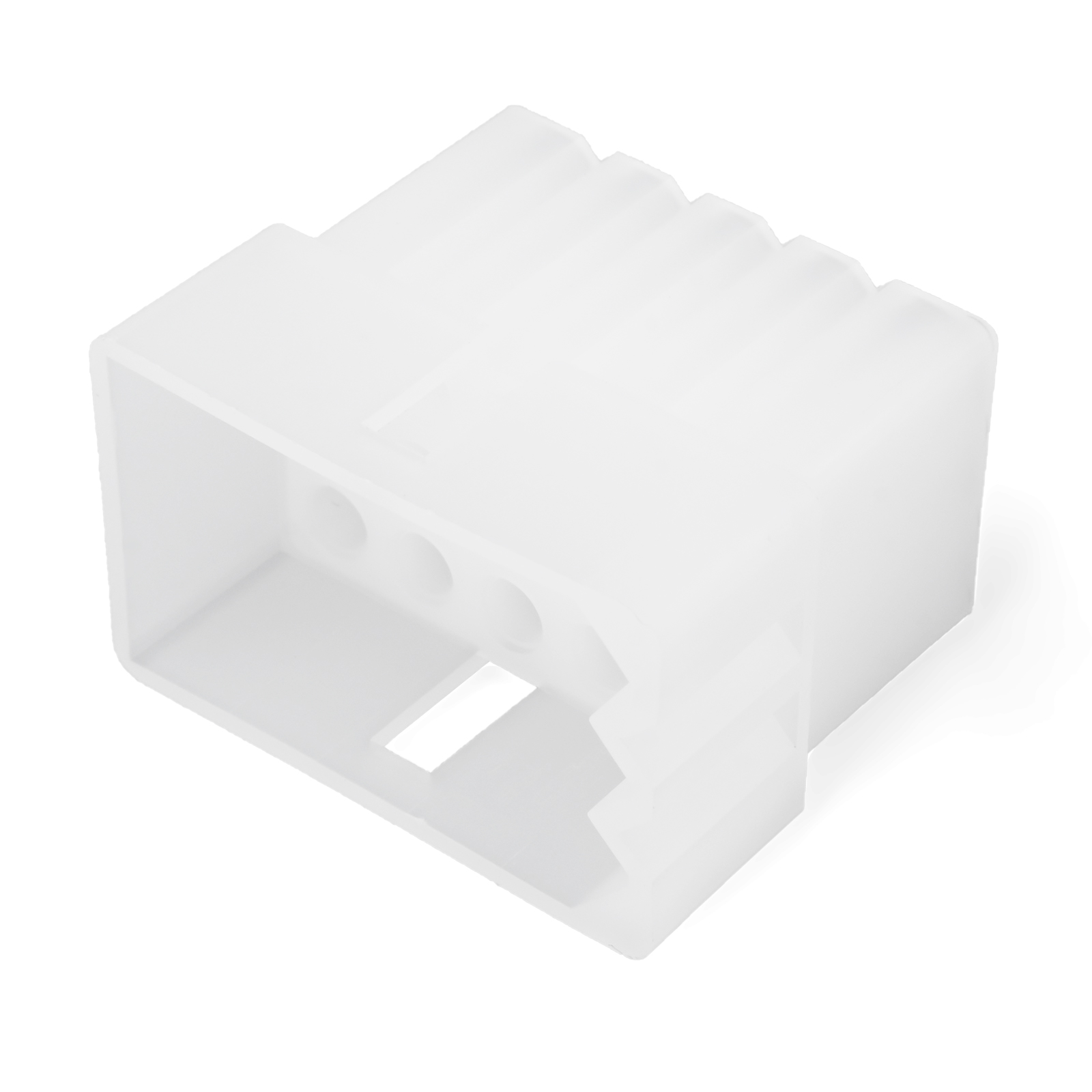

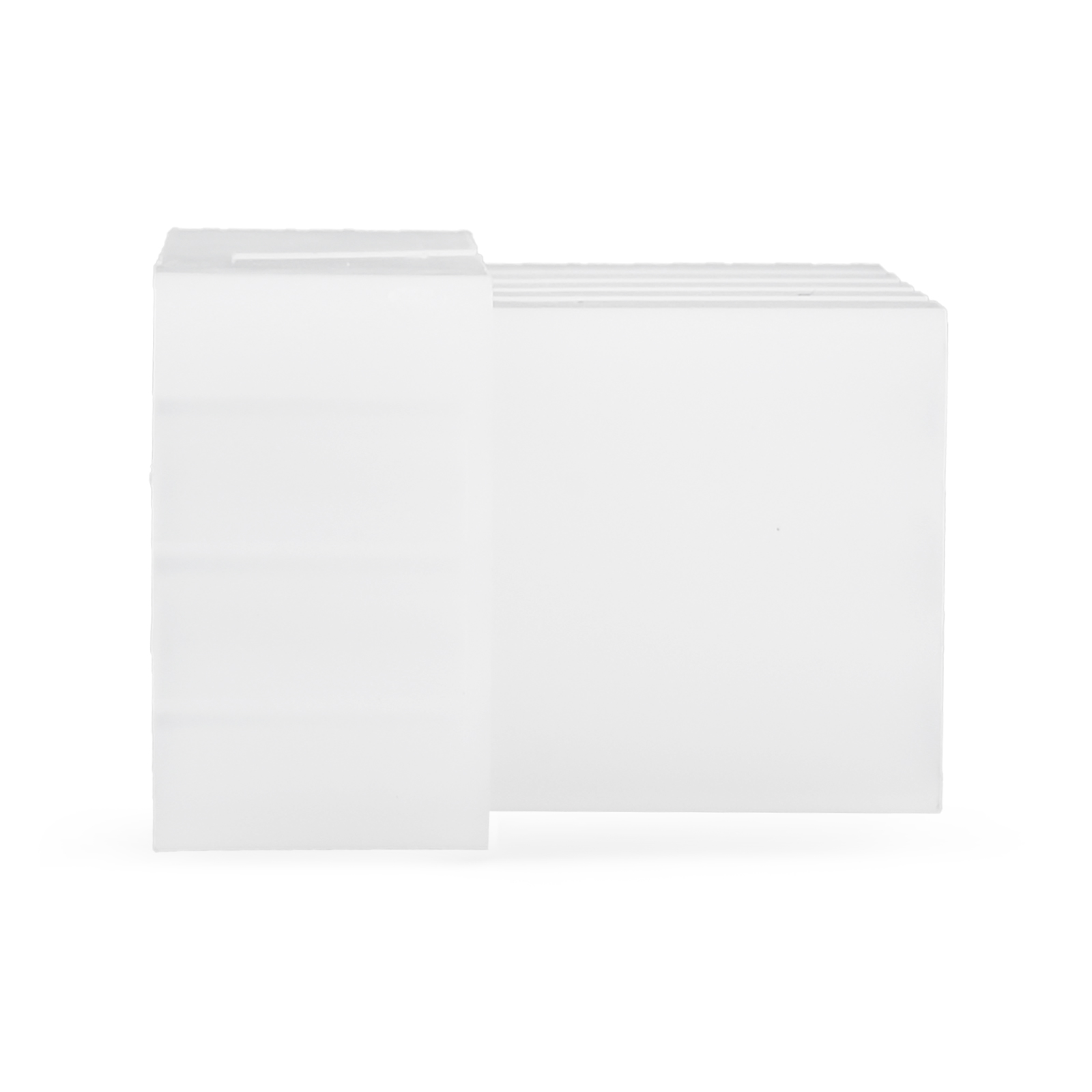

JRready JRN002-HMA-3x05P Connector
1. Wire Compatibility: 14-24 AWG
2. Terminal Type: Compatible with stamped pin
3. Connection Method: Wire-to-wire and wire-to-board

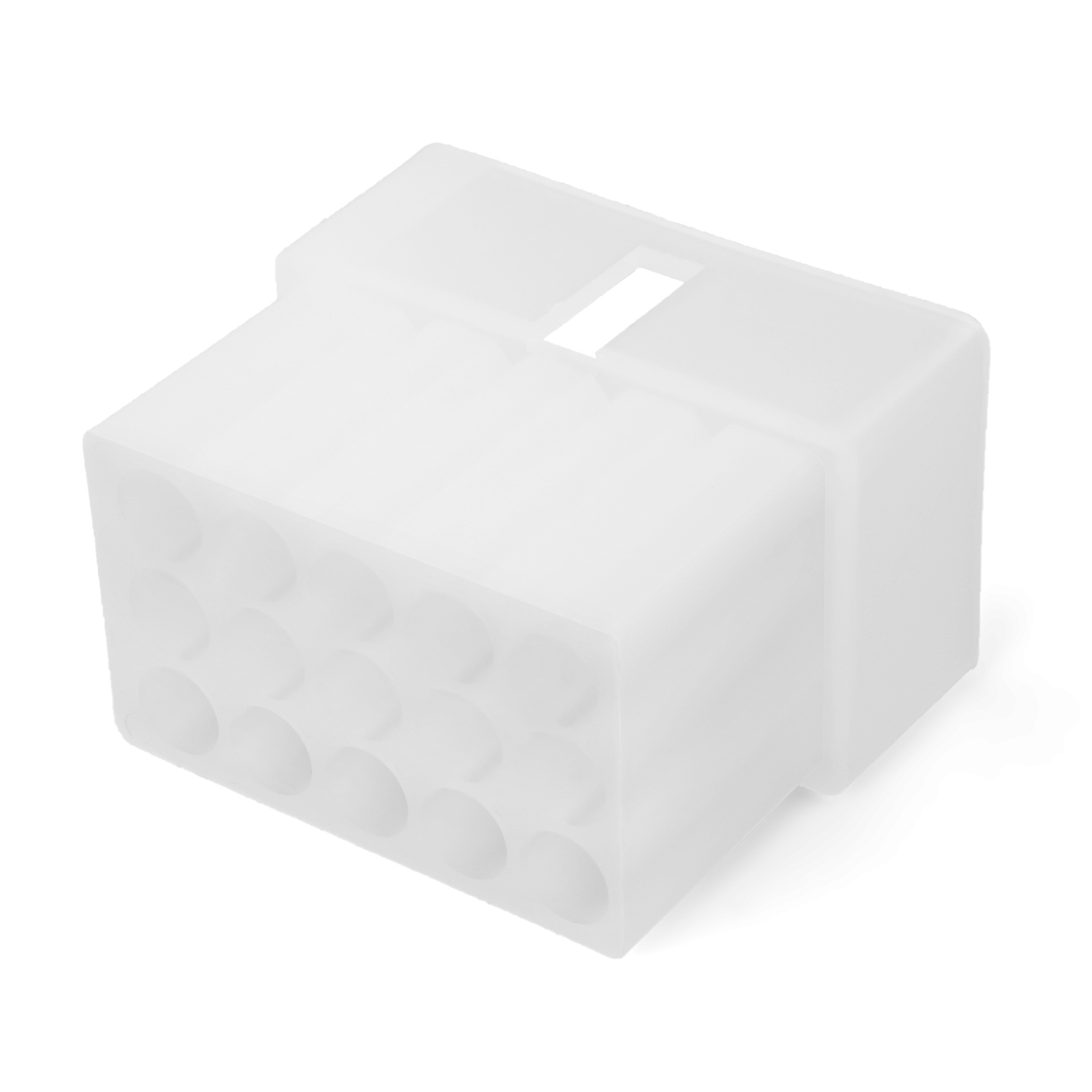

4. Number of Positions: 15-pin
5. Rated Voltage: 250V AC/DC,Rated Current: 12A
6. Market Compatibility: Compatible with products of the same specifications on the market.
2. Terminal Type: Compatible with stamped pin
3. Connection Method: Wire-to-wire and wire-to-board
4. Number of Positions: 15-pin
5. Rated Voltage: 250V AC/DC,Rated Current: 12A
6. Market Compatibility: Compatible with products of the same specifications on the market.
| Brand | JRready | Part Number | JRN002-HMA-3x05P |

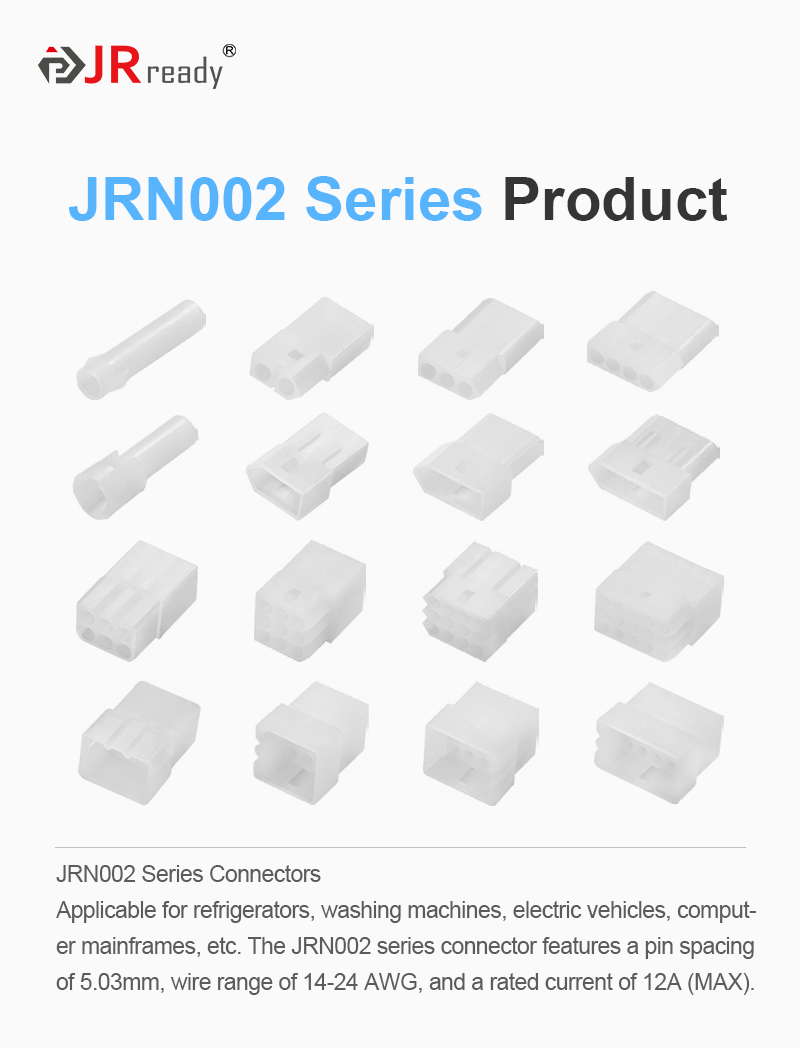

| Category | JRN002（5.03) Series | Colour | White |

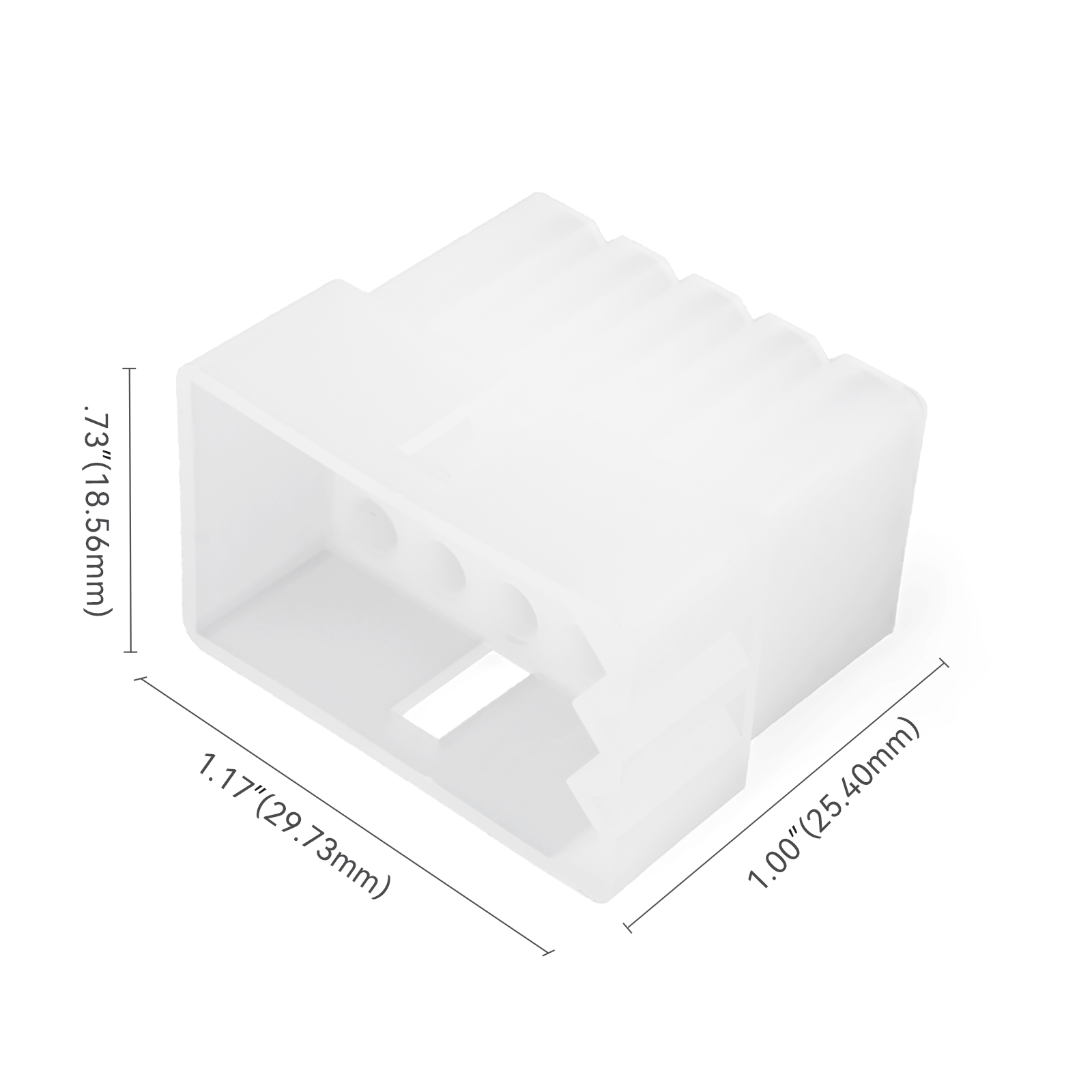

| Material | PA66 | Dimension | 25.4*29.73*18.56mm |
| Country of Origin | China | Weight | 5.5g |
| Application | Suitable for use in refrigerators, washing machines, electric vehicles, computer mainframes, etc. | ||

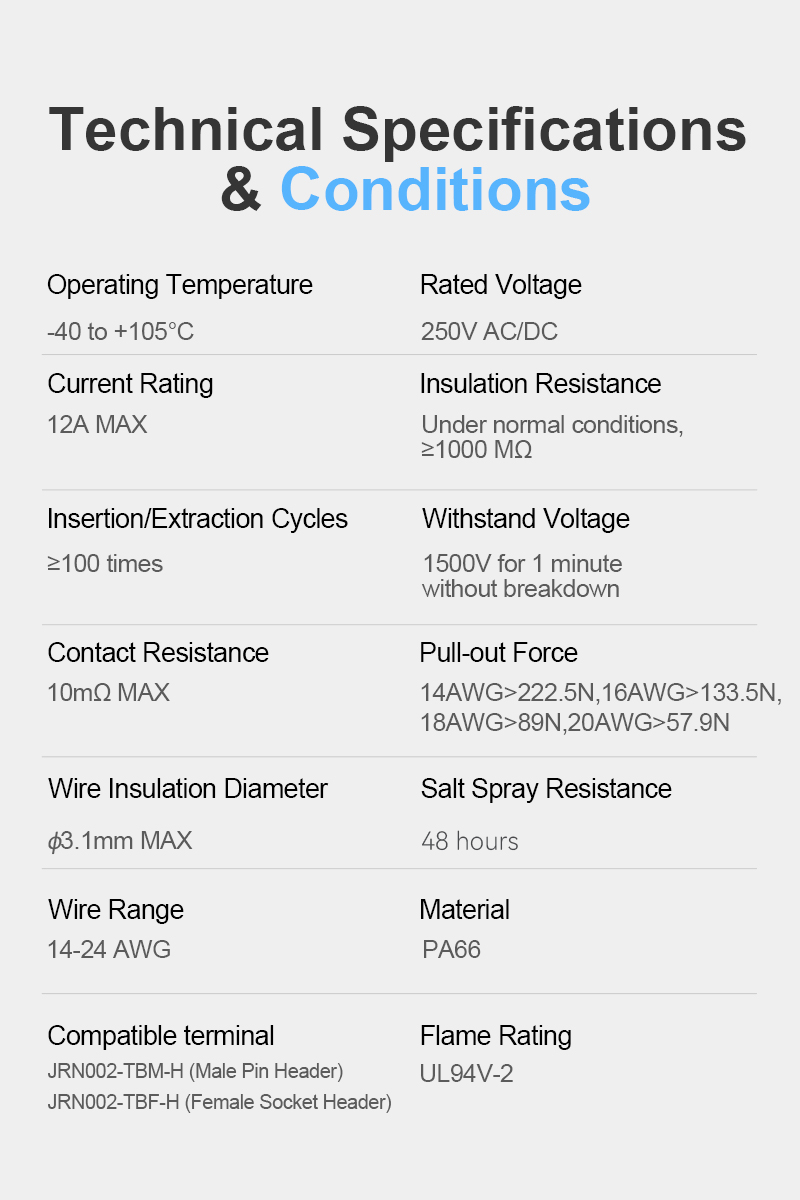

| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 12A |
