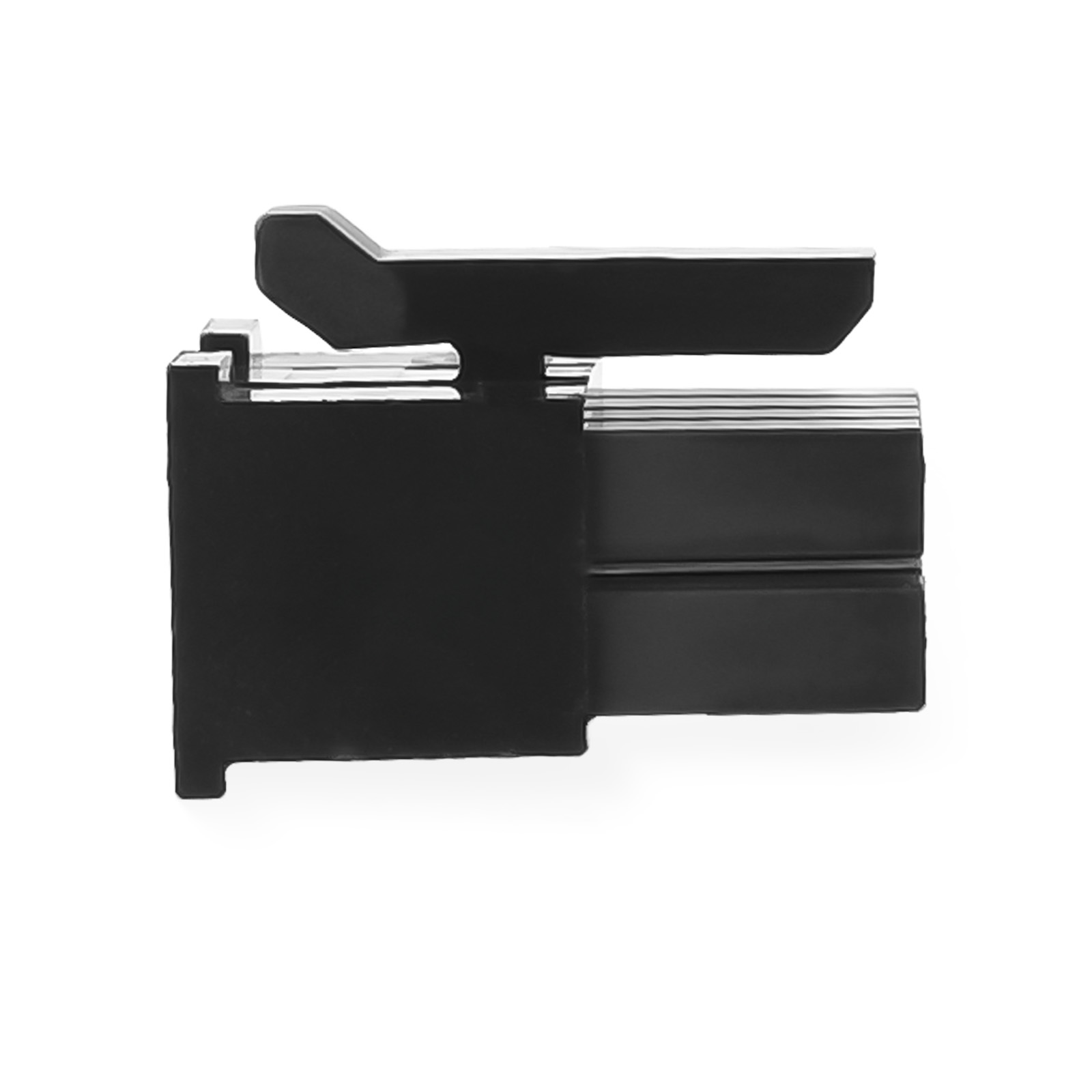

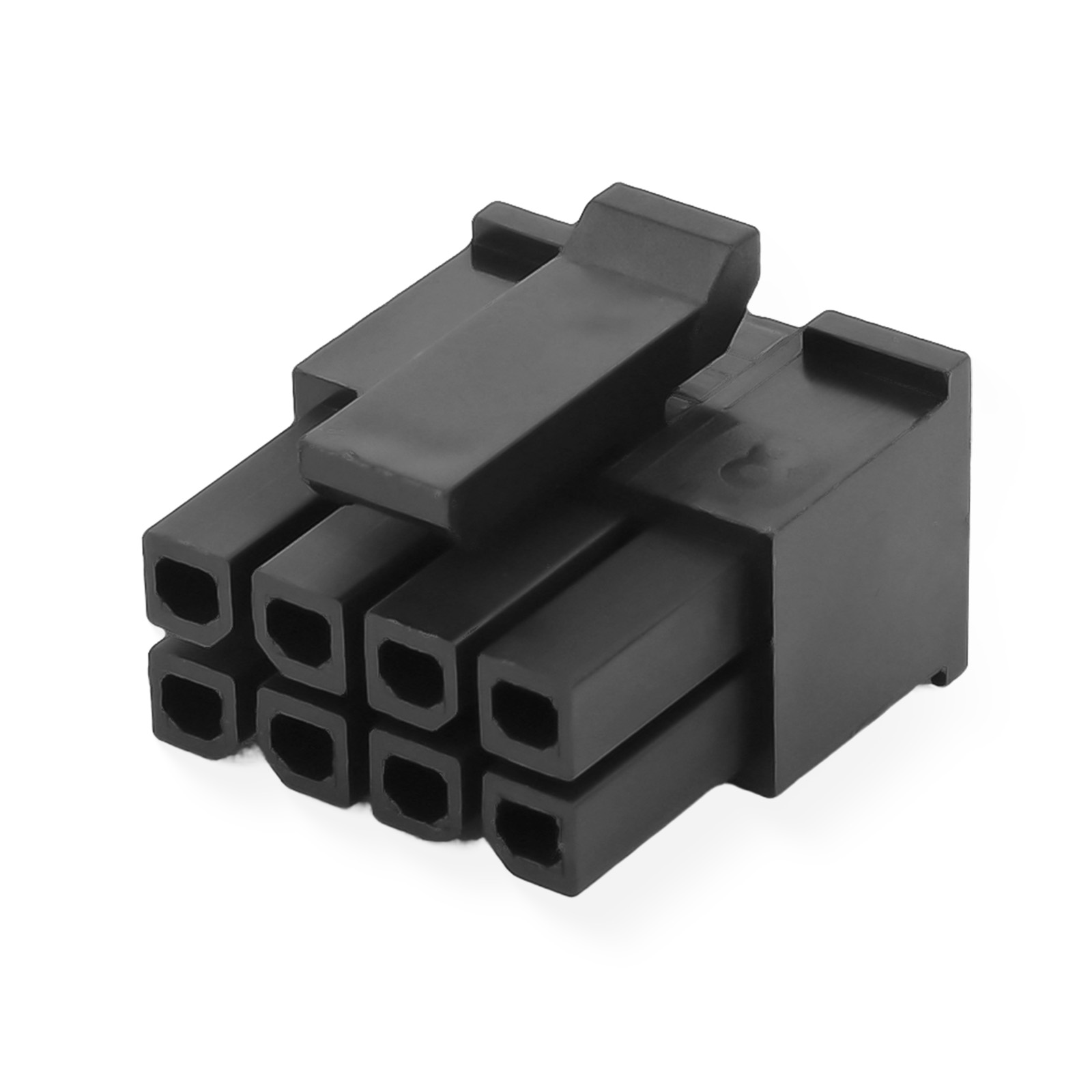

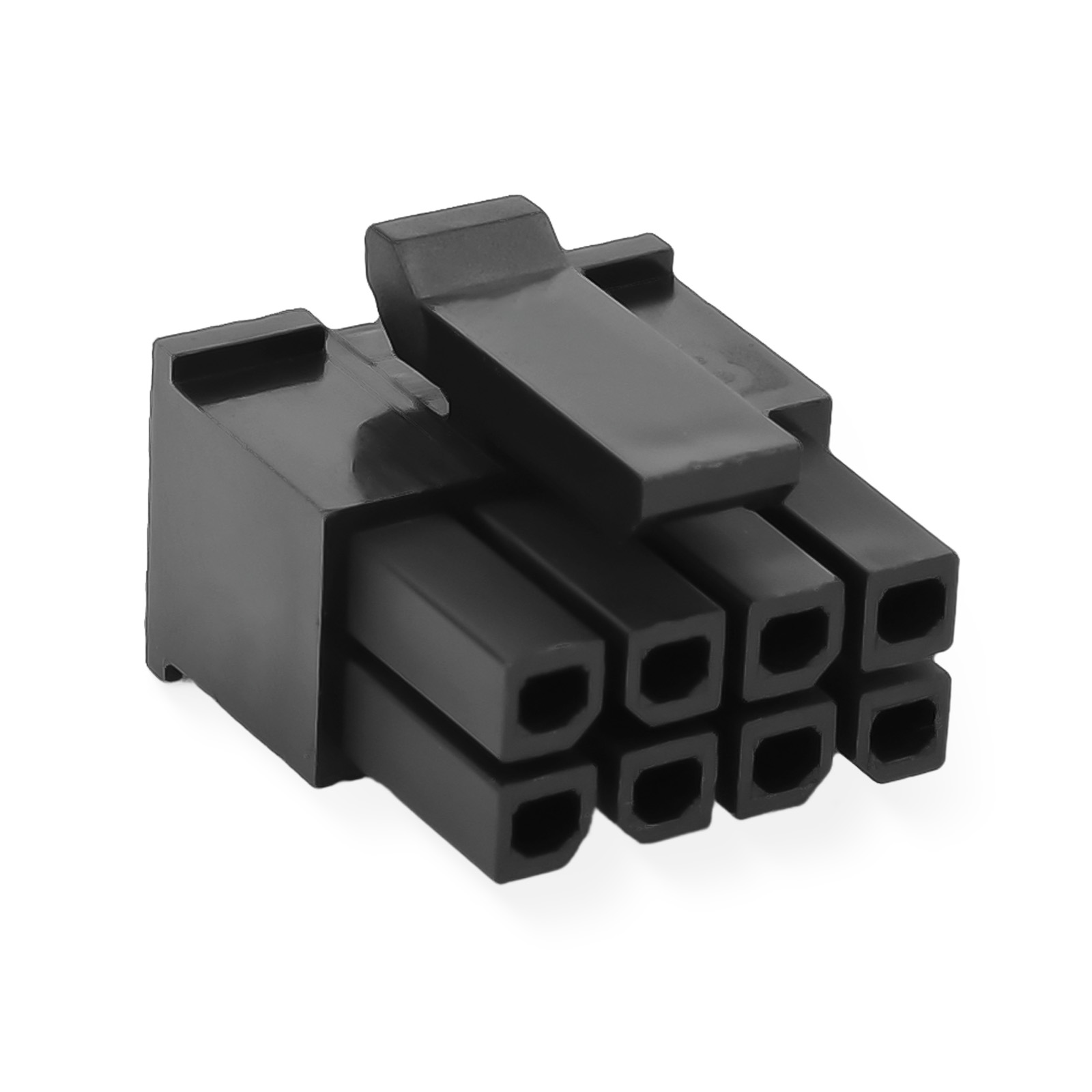

JRready JRN009-HF-2x04P-V0 Connector
1. Compatible wire range: 20-30AWG
2. Supports stamped sockets
3. Connection type: Wire-to-wire
4. Number of positions: 8-pin
5. Rated voltage: 250V AC/DC, rated current: 7A
6. Compatible with products of the same specifications on the market.
2. Supports stamped sockets
3. Connection type: Wire-to-wire
4. Number of positions: 8-pin
5. Rated voltage: 250V AC/DC, rated current: 7A
6. Compatible with products of the same specifications on the market.

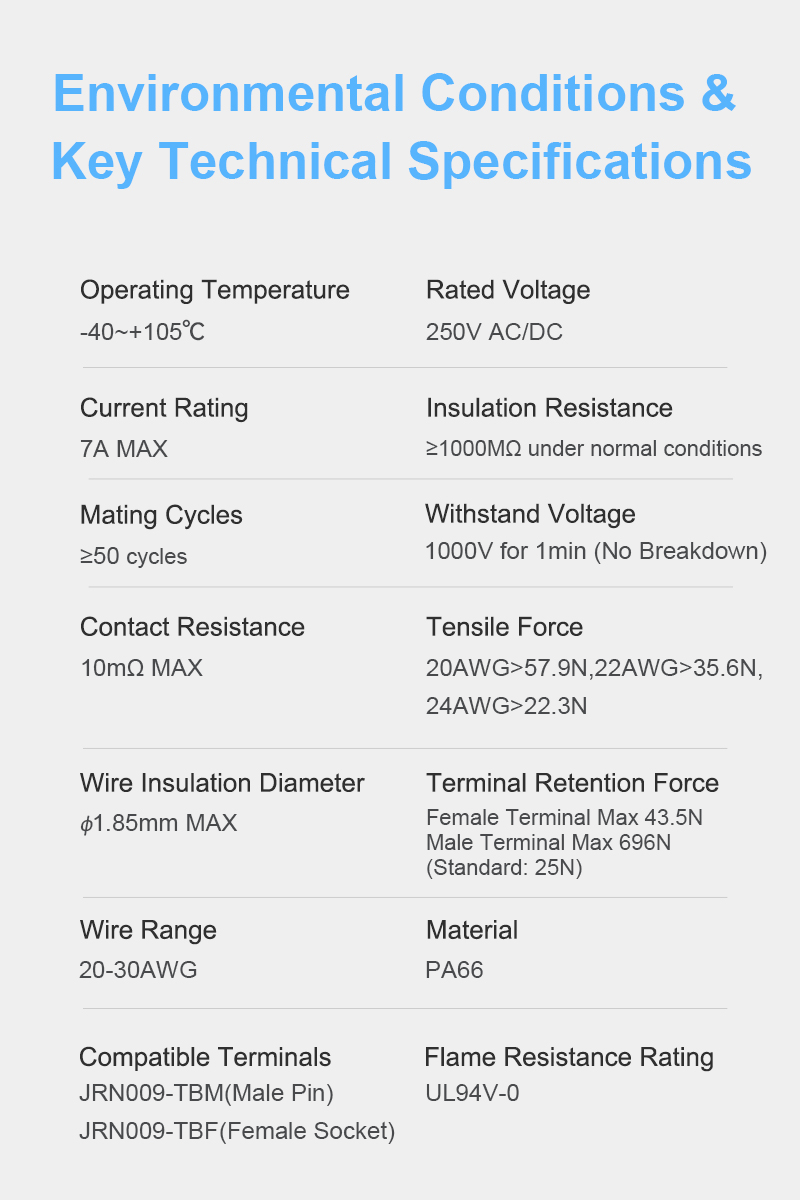

| Brand | JRready | Part Number | JRN009-HF-2X04P-V0 |

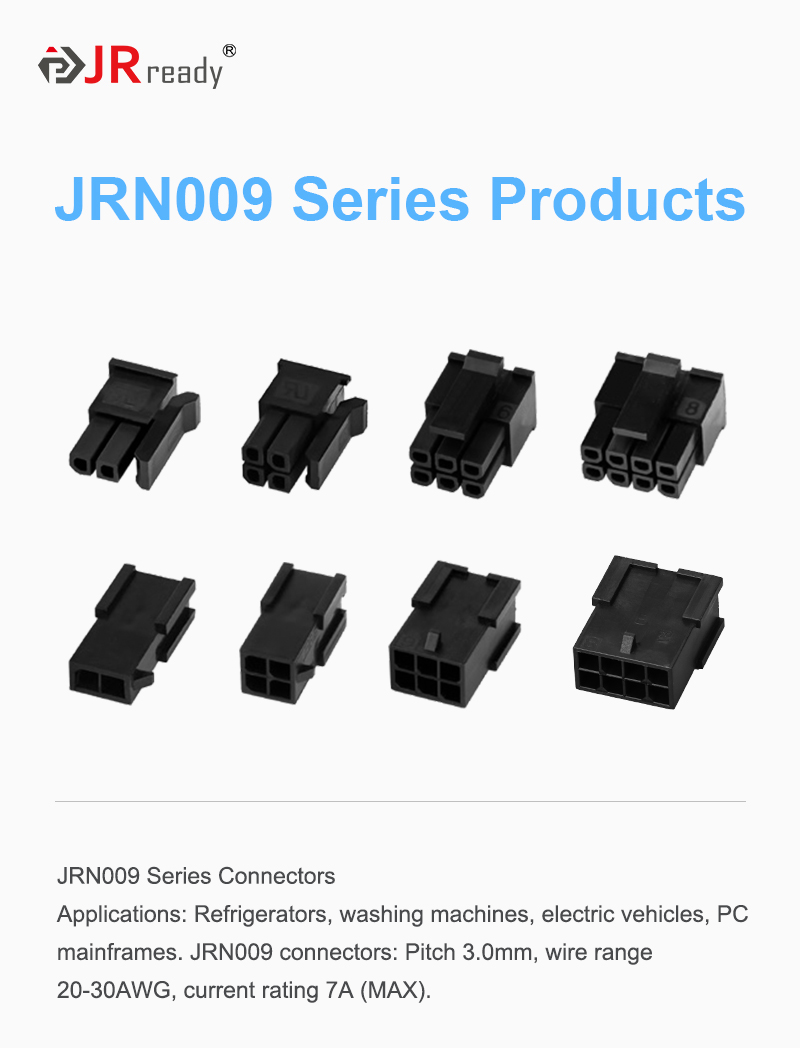

| Category | JRN009(3.0) Series | Colour | Black |

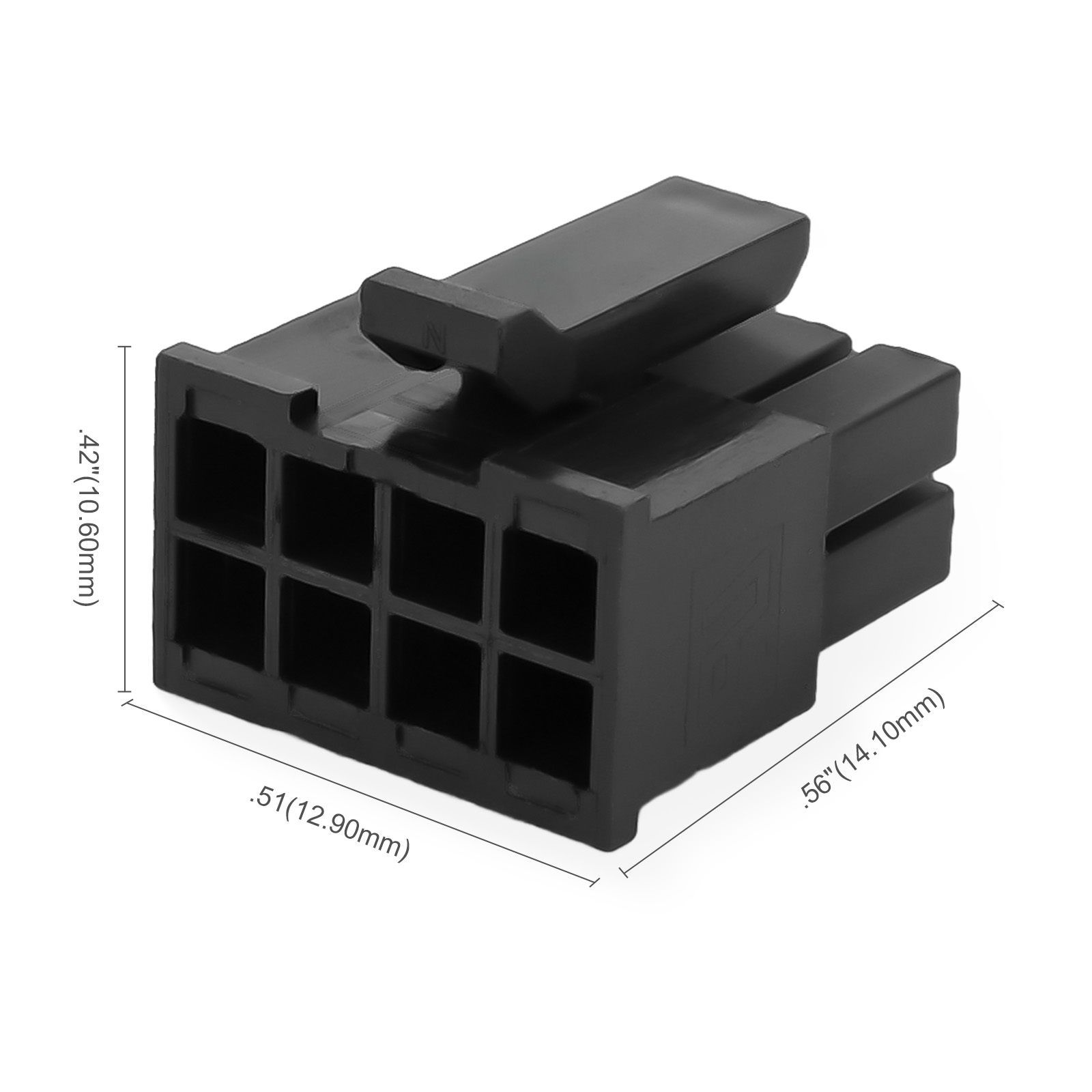

| Material | PA66 | Dimension | 14.1*12.9*10.6mm |
| Country of Origin | China | Weight | 0.72g |
| Application | Suitable for refrigerators, washing machines, electric vehicles, computer mainframes, and other applications. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 7A |
