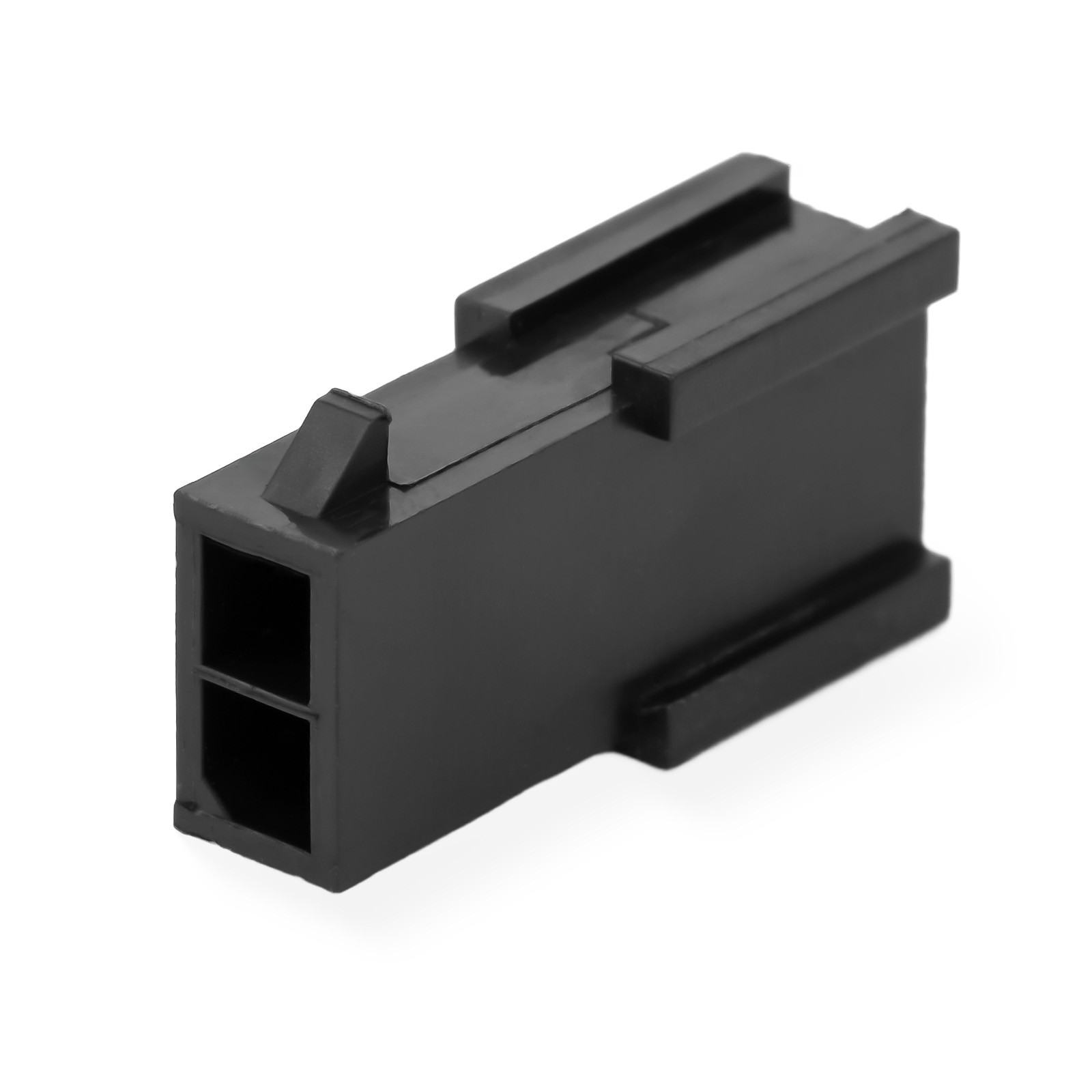

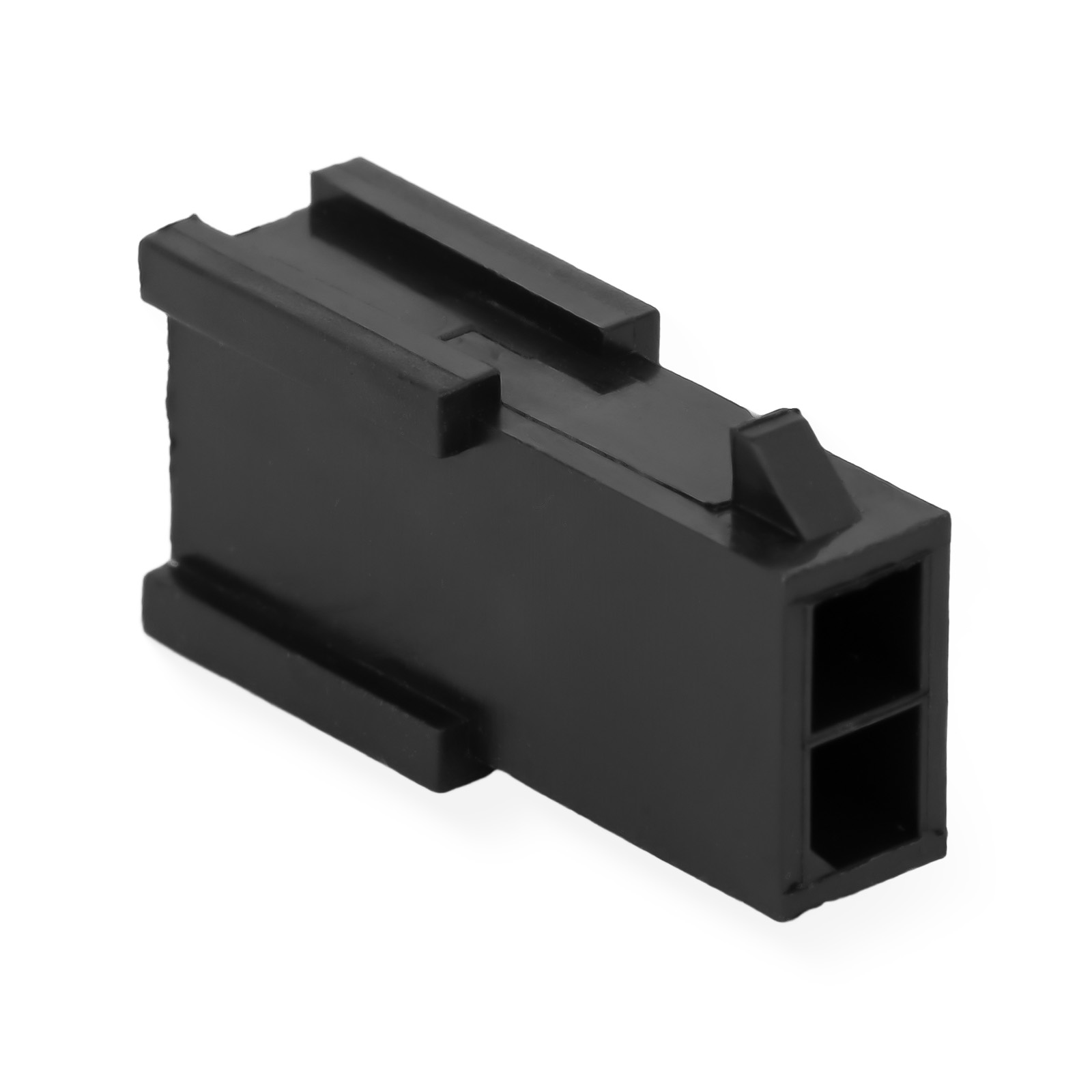

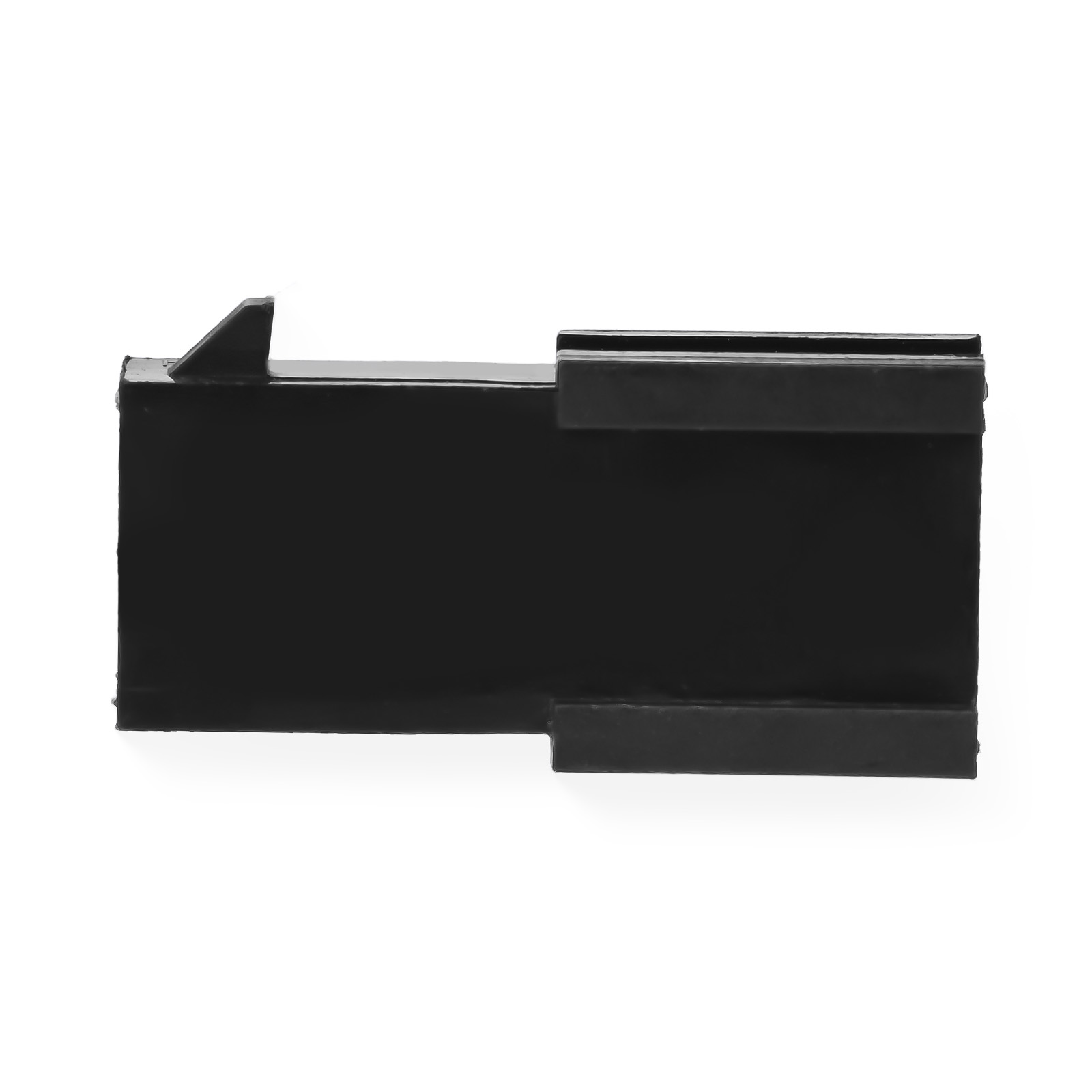

JRready JRN009-HMA-2X01P-V0 Connector
1. Compatible Wire Range: 20-30 AWG
2. Supports Stamped Pins
3. Connection Type: Wire-to-Wire
4. Connector Positions: 2-Pin
5. Rated Voltage: 250V AC/DC, Rated Current: 7A
6. Compatible with products of the same specifications on the market.
2. Supports Stamped Pins
3. Connection Type: Wire-to-Wire
4. Connector Positions: 2-Pin
5. Rated Voltage: 250V AC/DC, Rated Current: 7A
6. Compatible with products of the same specifications on the market.

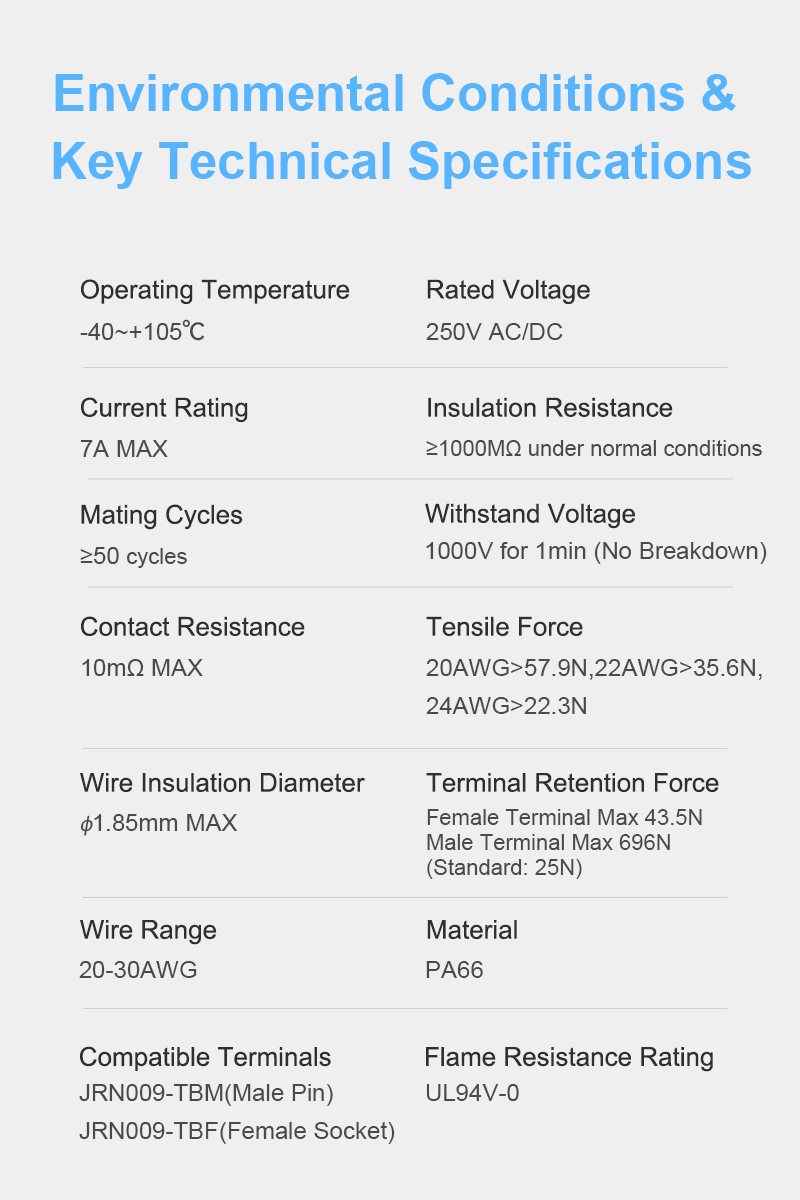

| Brand | JRready | Part Number | JRN009-HMA-2X01P-V0 |

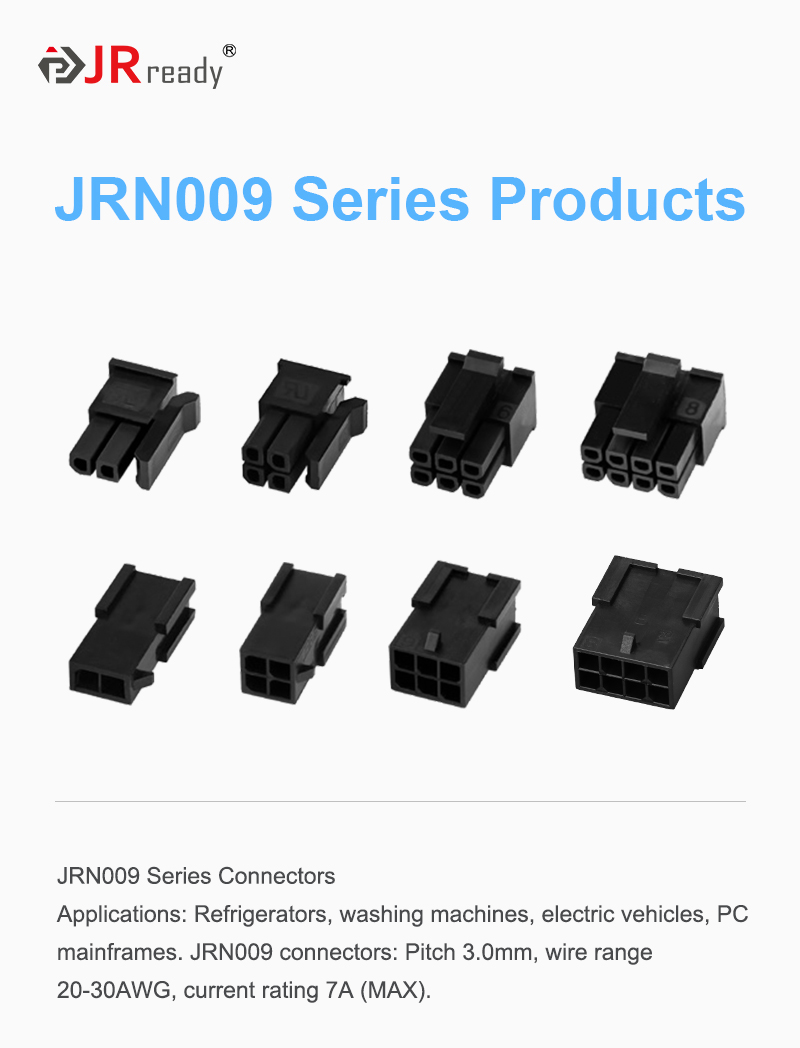

| Category | JRN009(3.0) Series | Colour | Black |

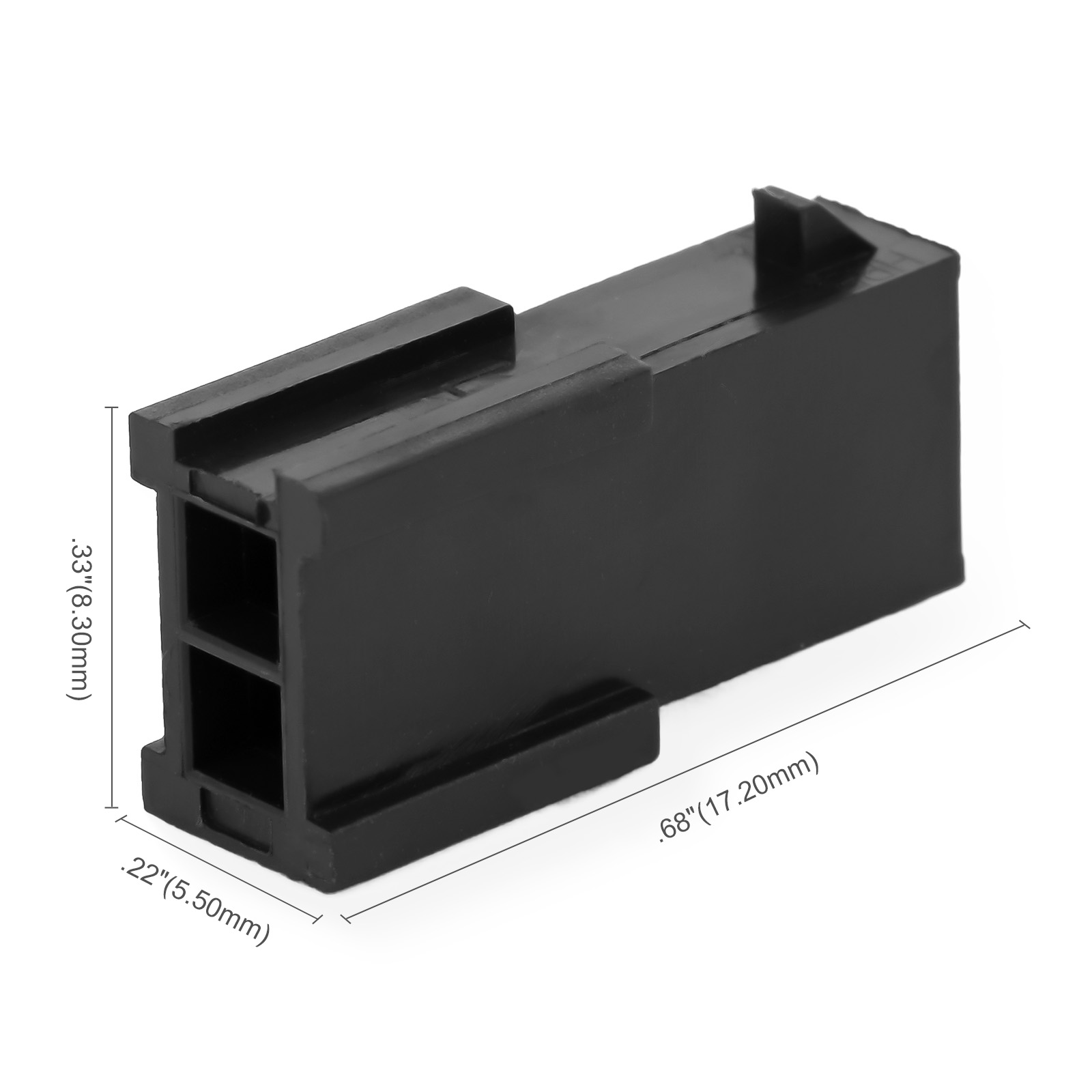

| Material | PA66 | Dimension | 17.2*13.3*5.5mm |
| Country of Origin | China | Weight | 0.39g |
| Application | Suitable for refrigerators, washing machines, electric vehicles, computer mainframes, and other applications. | ||
| Working Temperature | -40-105℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current |
7A |
