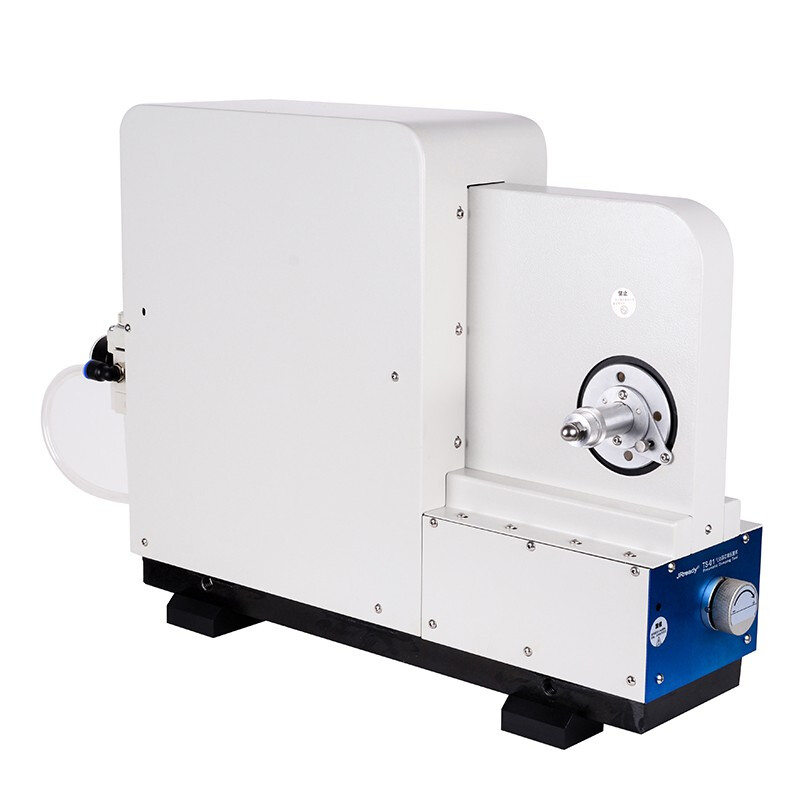

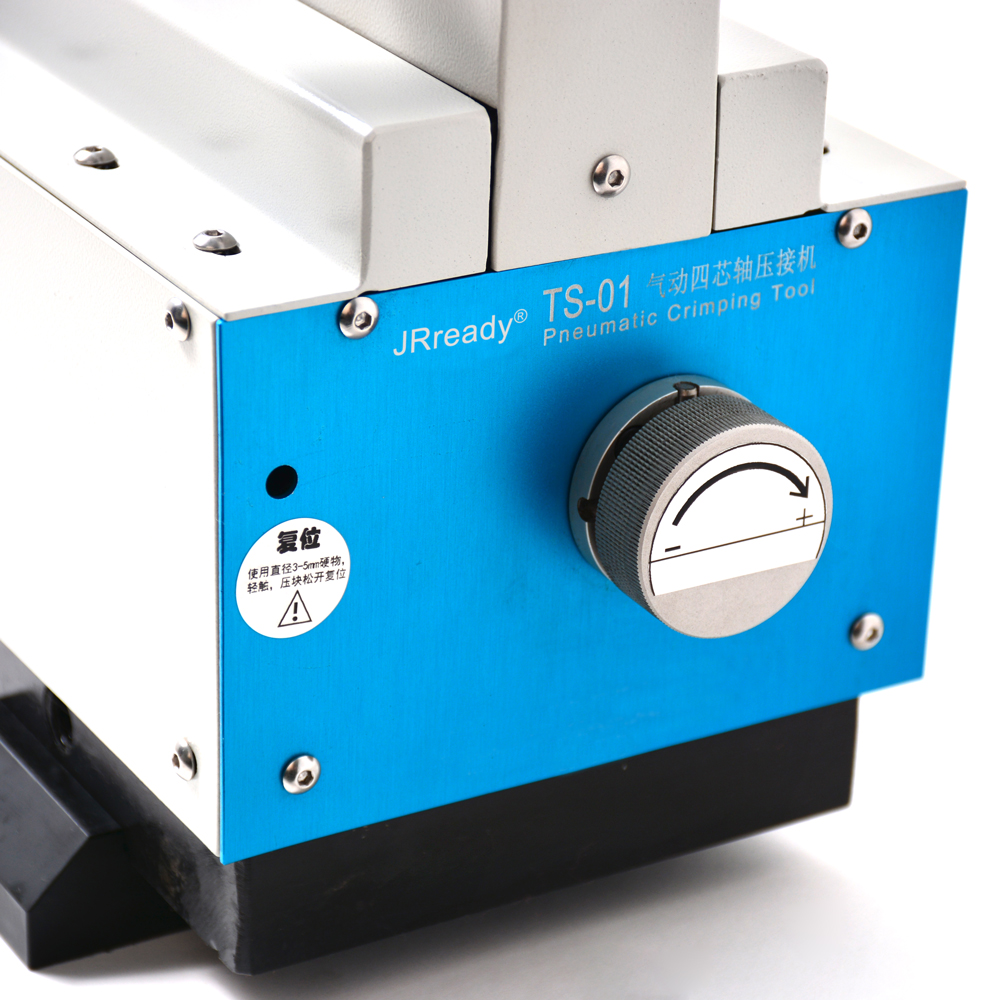

JRready TS-01 Pneumatic Four-axis Crimping Machine
1. Applicable to the crimping of large square cables of new energy charging piles and charging guns;
2. Applicable to the crimping of DT and DTG series copper noses;
3. Applicable to the crimping of US military standard 4# and 8# round terminals;
4. Applicable to the crimping of 4# and 8# round terminals in DT connectors;
5. Applicable crimping range 3.0-35mm²;
6. Standard TS-T screw adjustable positioner.
2. Applicable to the crimping of DT and DTG series copper noses;
3. Applicable to the crimping of US military standard 4# and 8# round terminals;
4. Applicable to the crimping of 4# and 8# round terminals in DT connectors;
5. Applicable crimping range 3.0-35mm²;
6. Standard TS-T screw adjustable positioner.
| Brand | JRready | Part Number | TS-01 |
| Category | Pneumatic four-axis crimping tool | Colour | White |

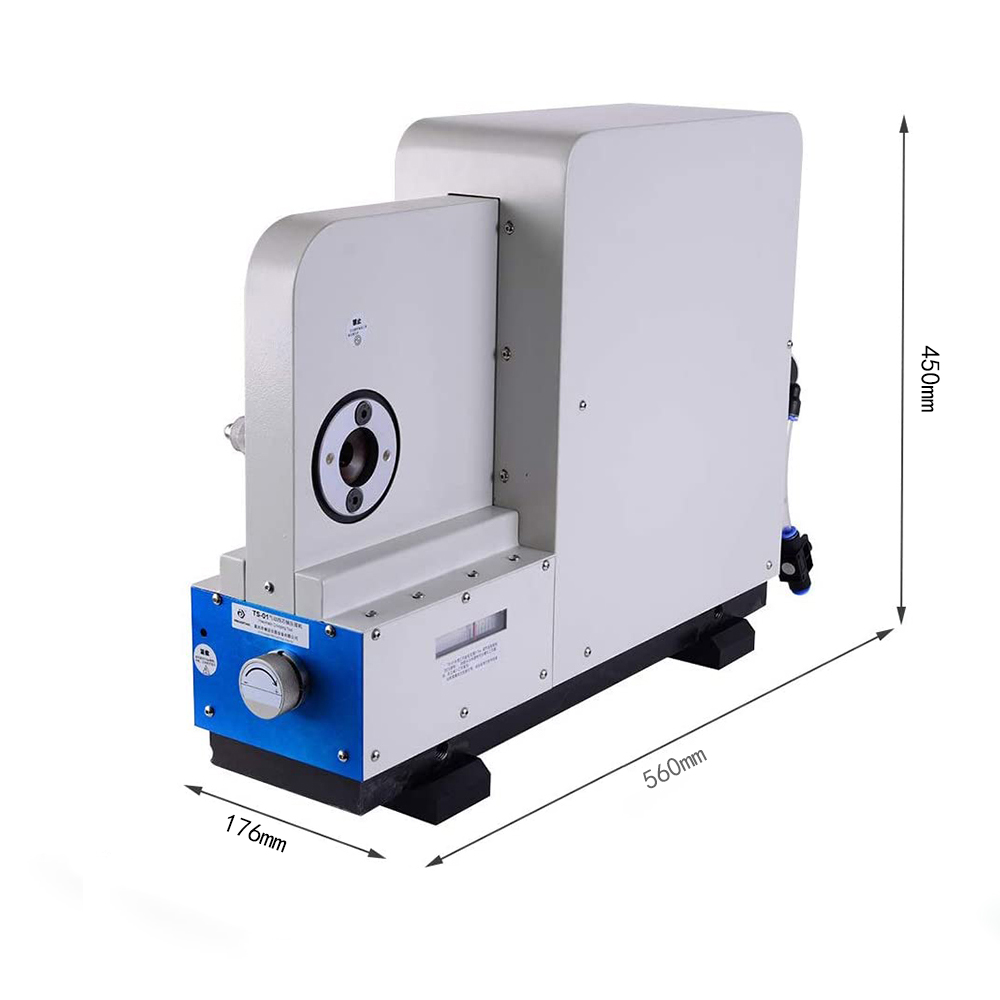

| Material | Mold Steel | Dimension | 560*176*450mm |
| Country of Origin | China | Weight | 75000g |
| Application | Suitable for crimping large square cables of new energy charging piles and charging guns; crimping of DT and DTG series copper noses; crimping of US military standard 4# and 8# round terminals; crimping of 4# and 8# round terminals in DT connectors; | ||
| Working Temperature | 0 | Working Pressure | 5.5-8.3Bar |
| Rated Voltage | 0 | Rated Current | 0 |
