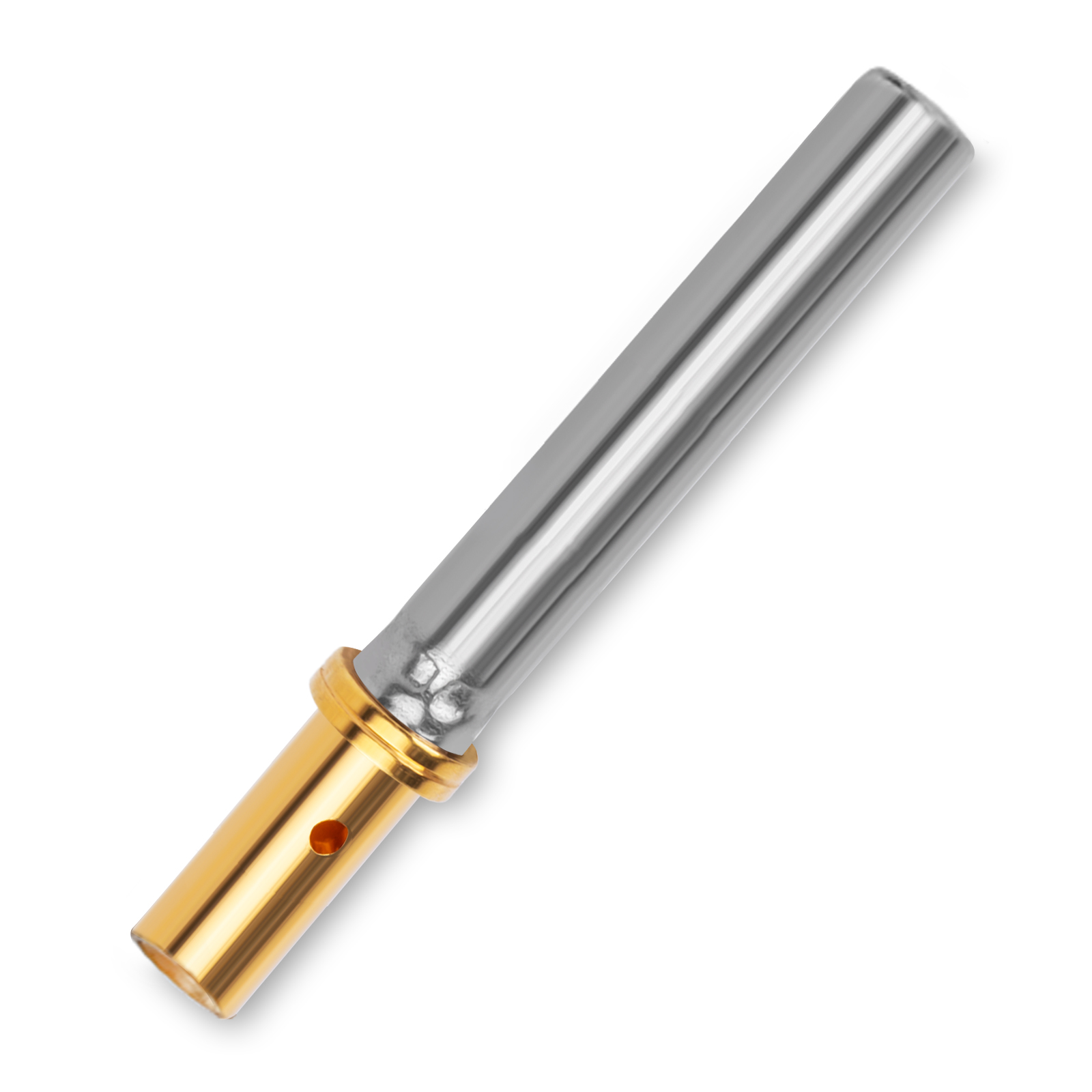

JRready 20# Socket Terminal 0462-201-2031
1. Compatible with wire range 20-22AWG(0.50-0.35mm²)；
2. Mating Machined Pin 0460-202-2031
3. Fully Gold-Plated
4. Rated Current: 7.5A
2. Mating Machined Pin 0460-202-2031
3. Fully Gold-Plated
4. Rated Current: 7.5A
| Brand | JRready | Part Number | 0462-201-2031 |
| Category | DT Series | Colour | Gold |

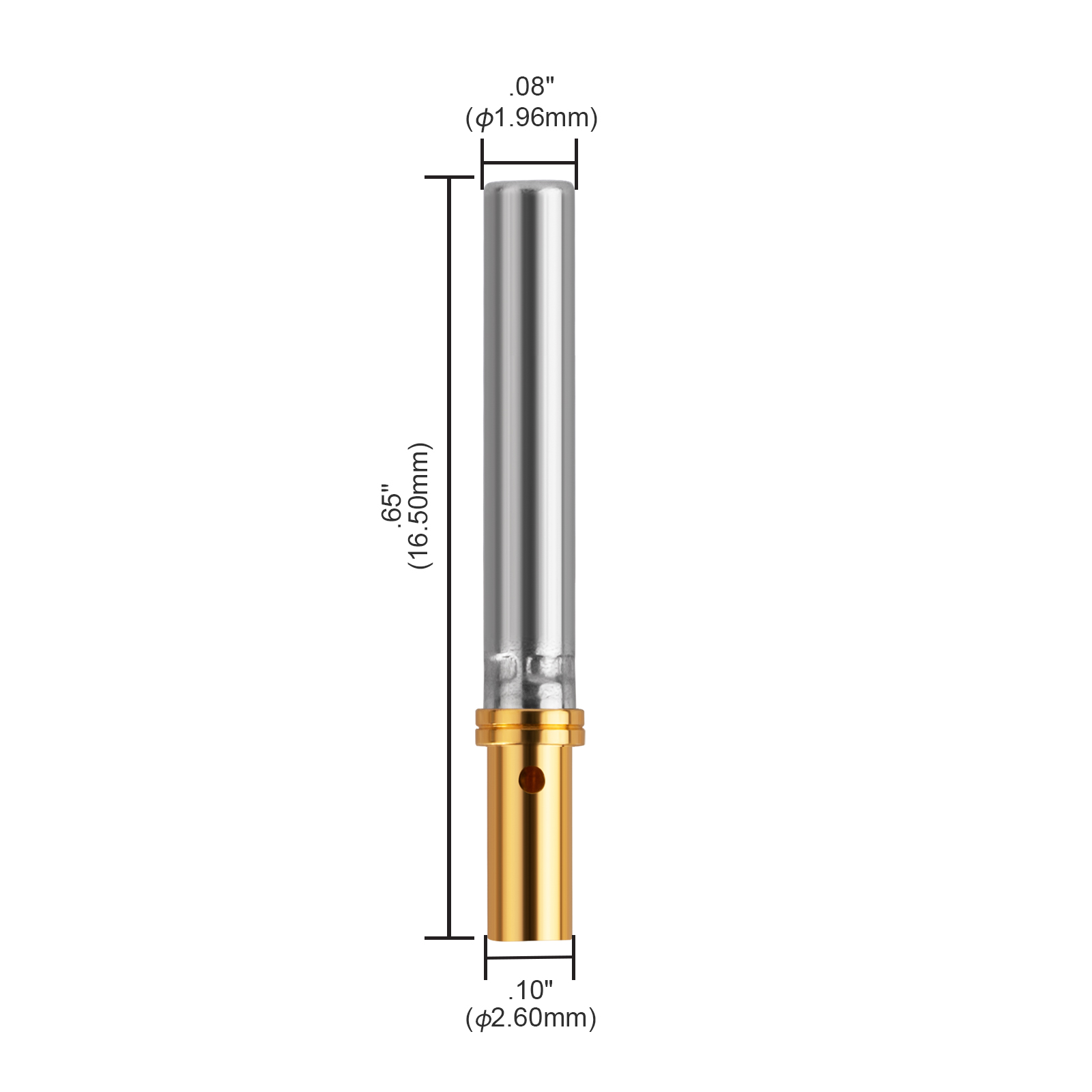

| Material | Tin Bronze | Dimension | 16.50*2.60*1.96mm |
| Country of Origin | China | Weight | 0.27g |
| Application | Compatible with DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series connectors | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 7.5A |
