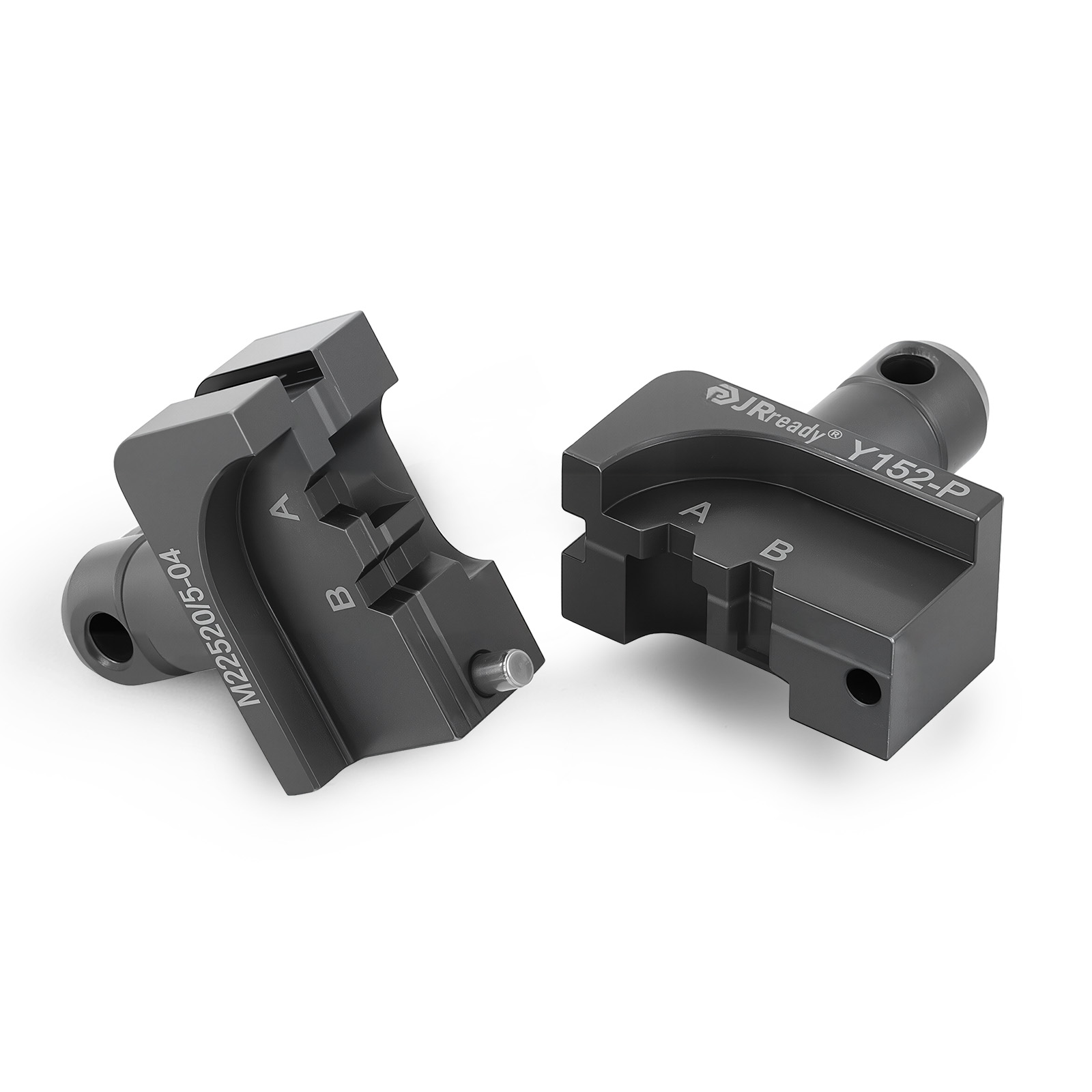

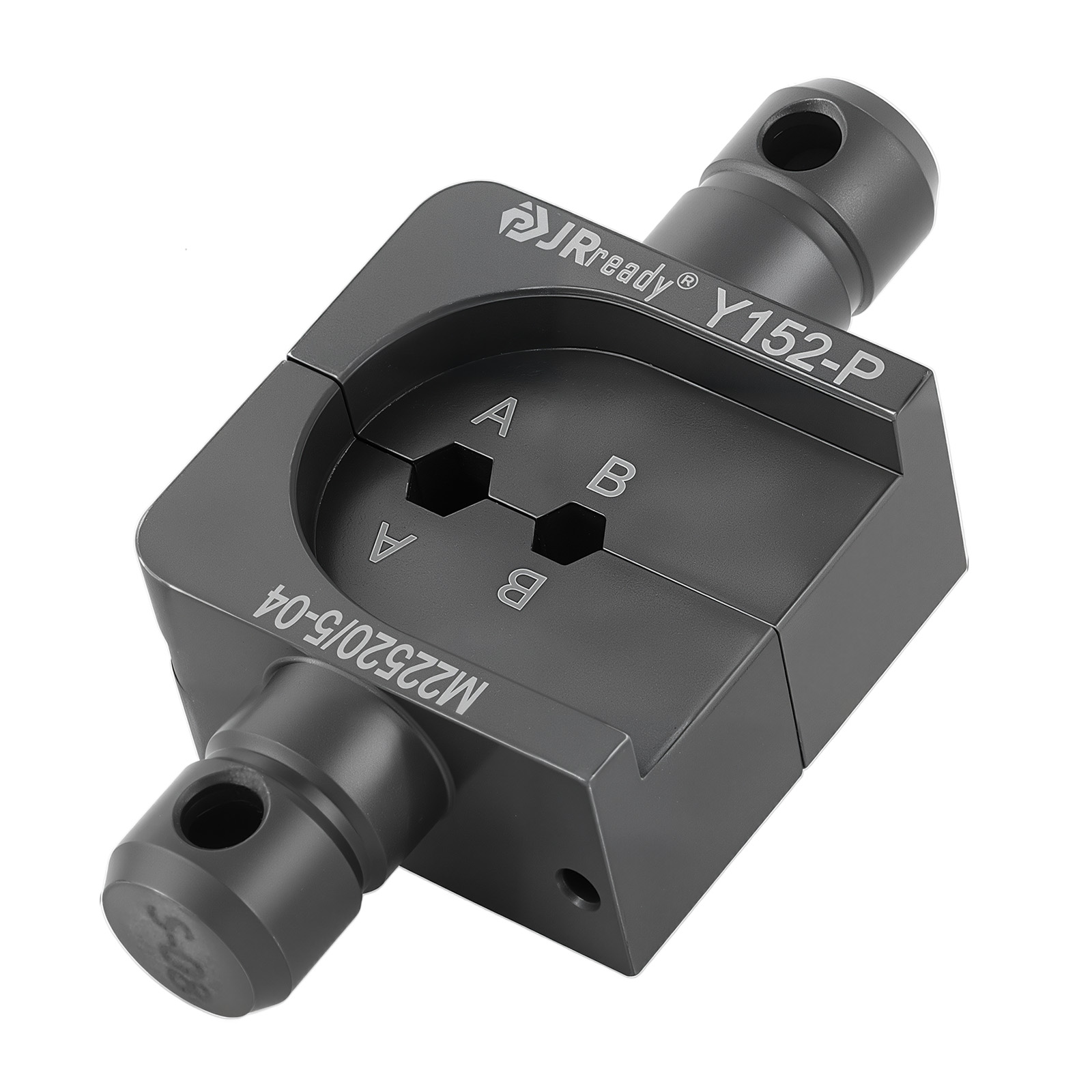

JRready Y152-P(M22520/5-04) Crimp Die

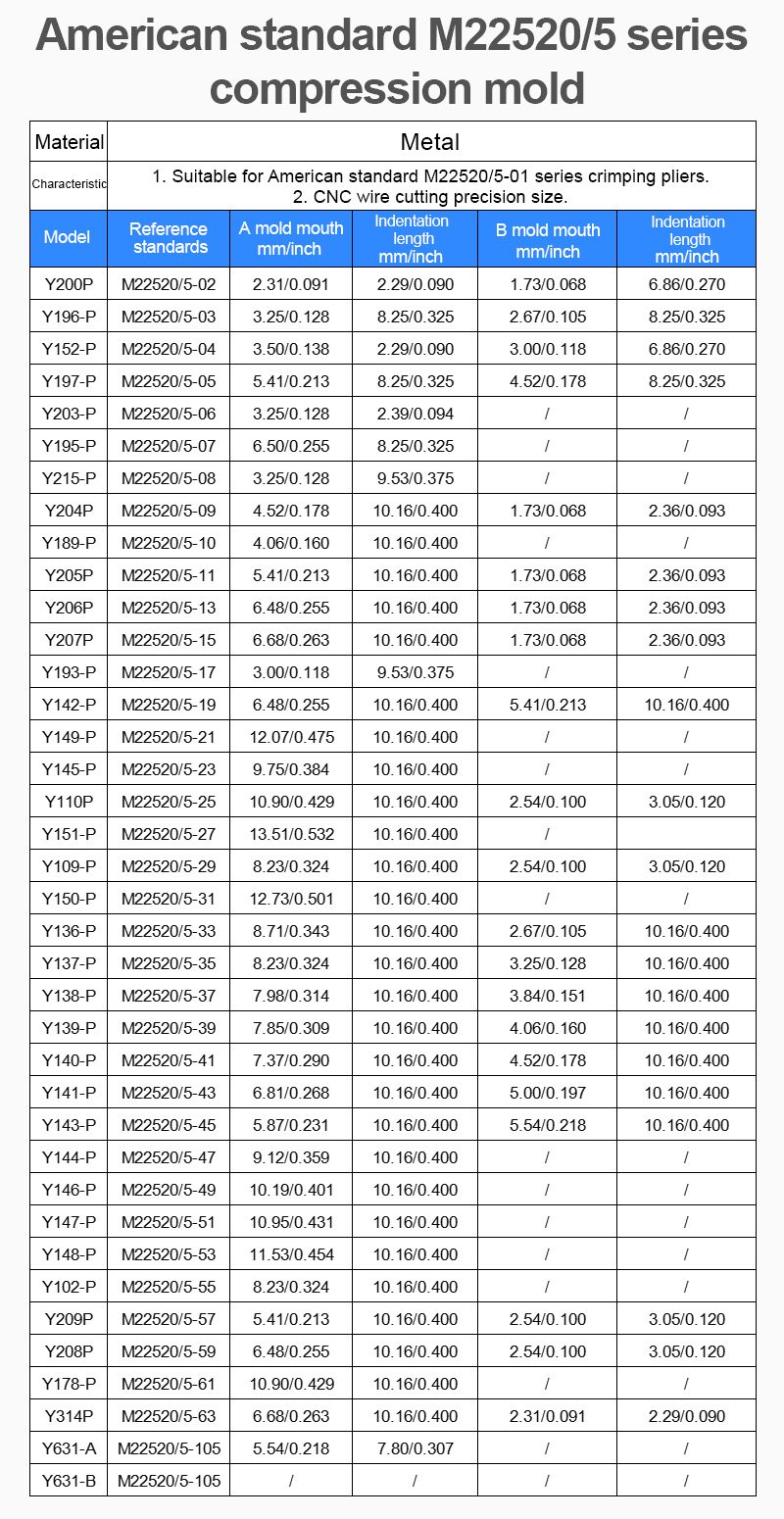

1. Designed according to U.S. Military StandardM22520/5-04;

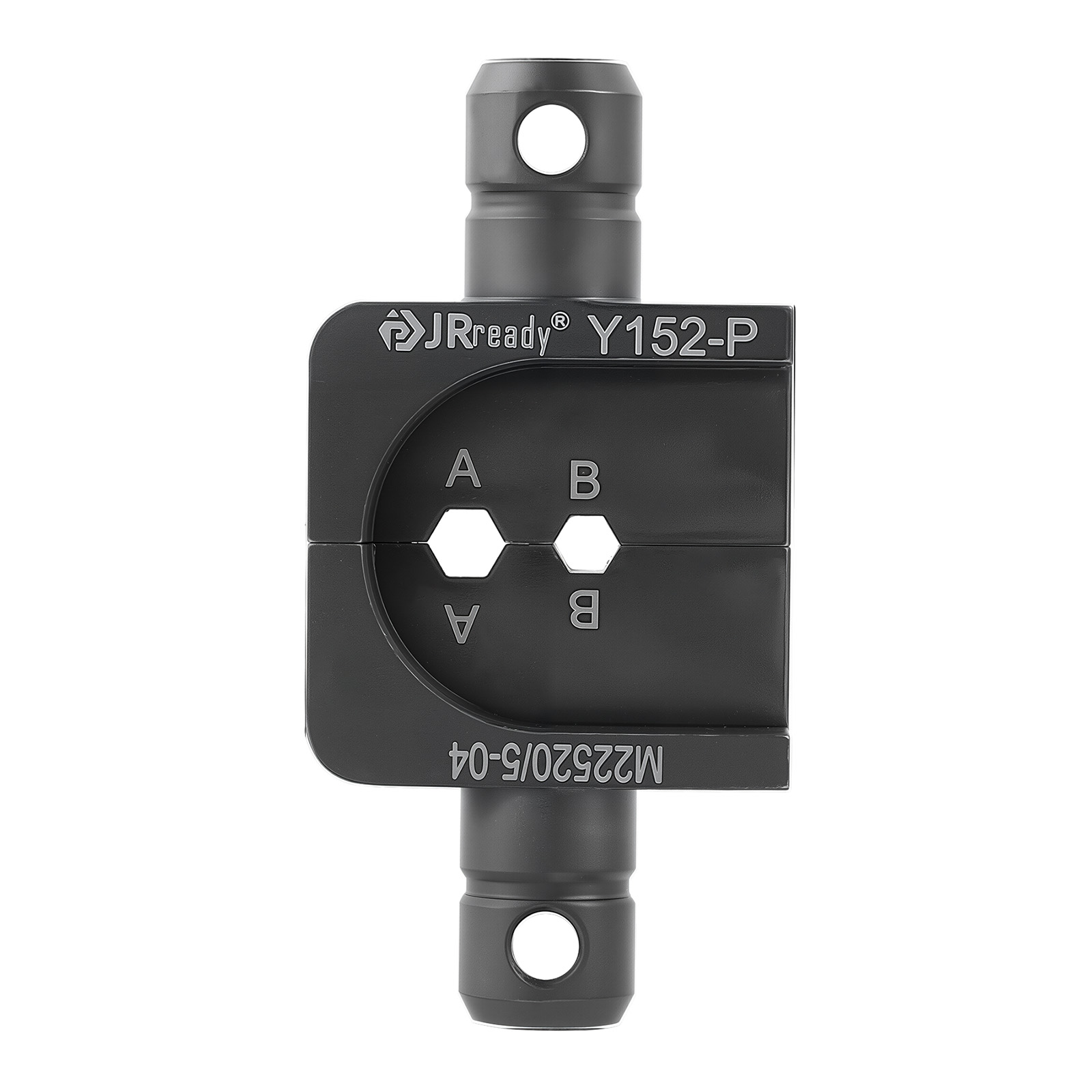

2. Cavity A: 3.50mm opening, 2.29mm indentation length; Cavity B: 3.00mm opening, 6.86mm indentation length;
3. Equipped with guiding pins to ensure consistent alignment during die closure;

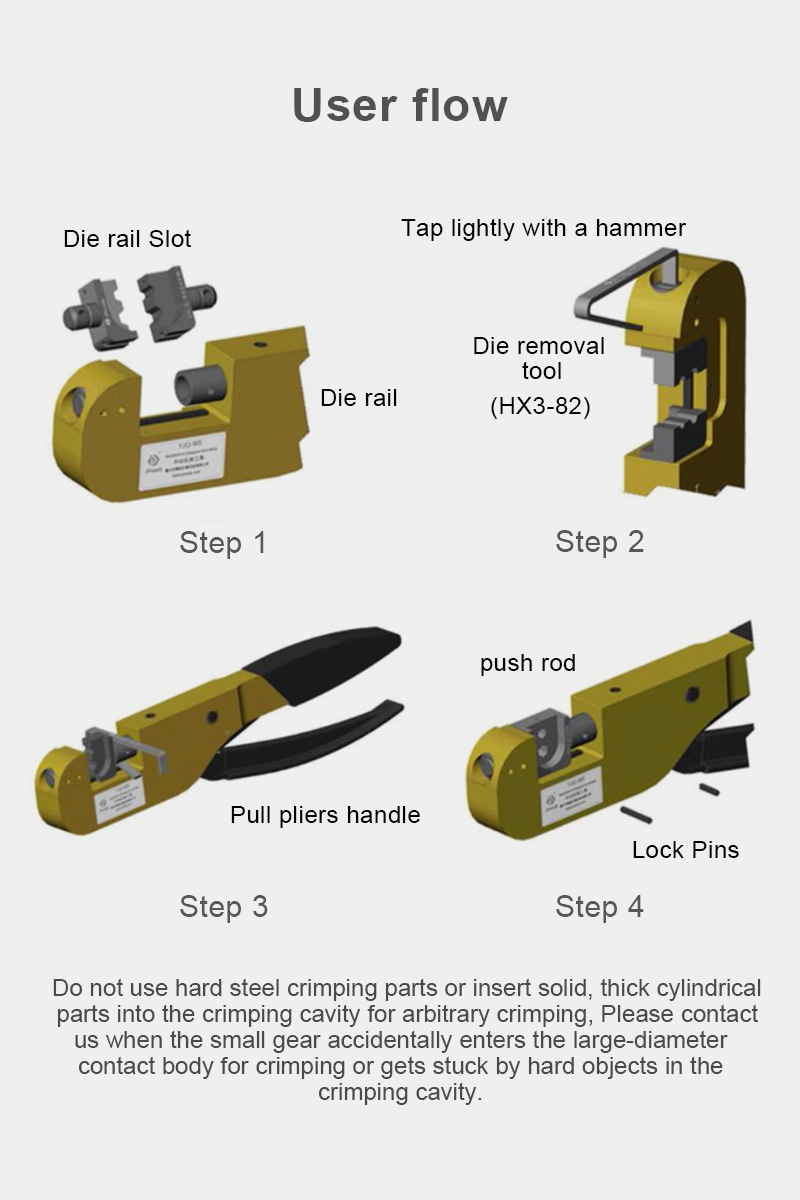

4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
2. Cavity A: 3.50mm opening, 2.29mm indentation length; Cavity B: 3.00mm opening, 6.86mm indentation length;
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
| Brand | JRready | Part Number | Y152-P |
| Category | MIL-Spec Positioner & Crimp Die | Colour | Black |

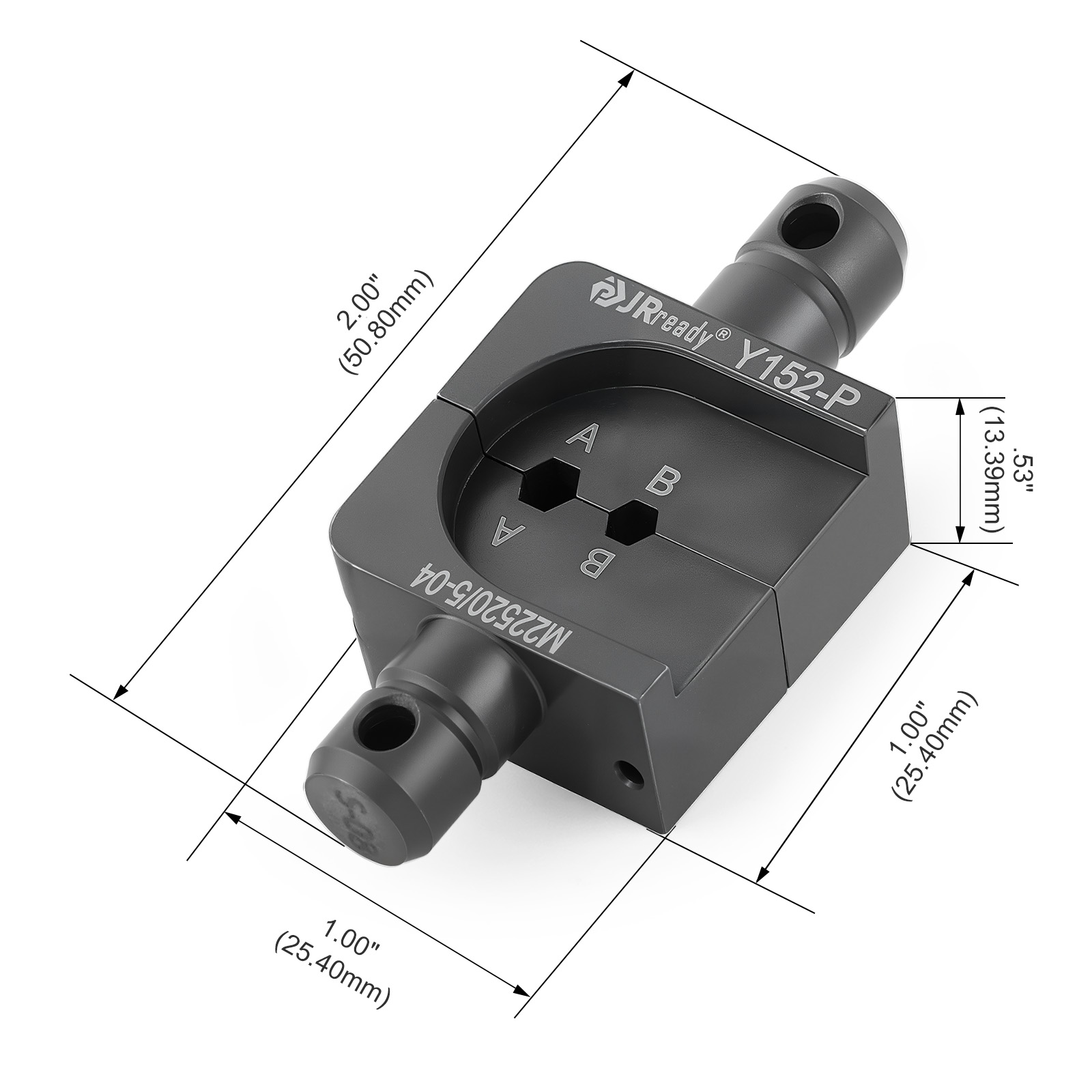

| Material | Mold Steel | Dimension | 25.4*50.8*13.4mm |
| Country of Origin | China | Weight | 60g |
| Application | Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath | ||
