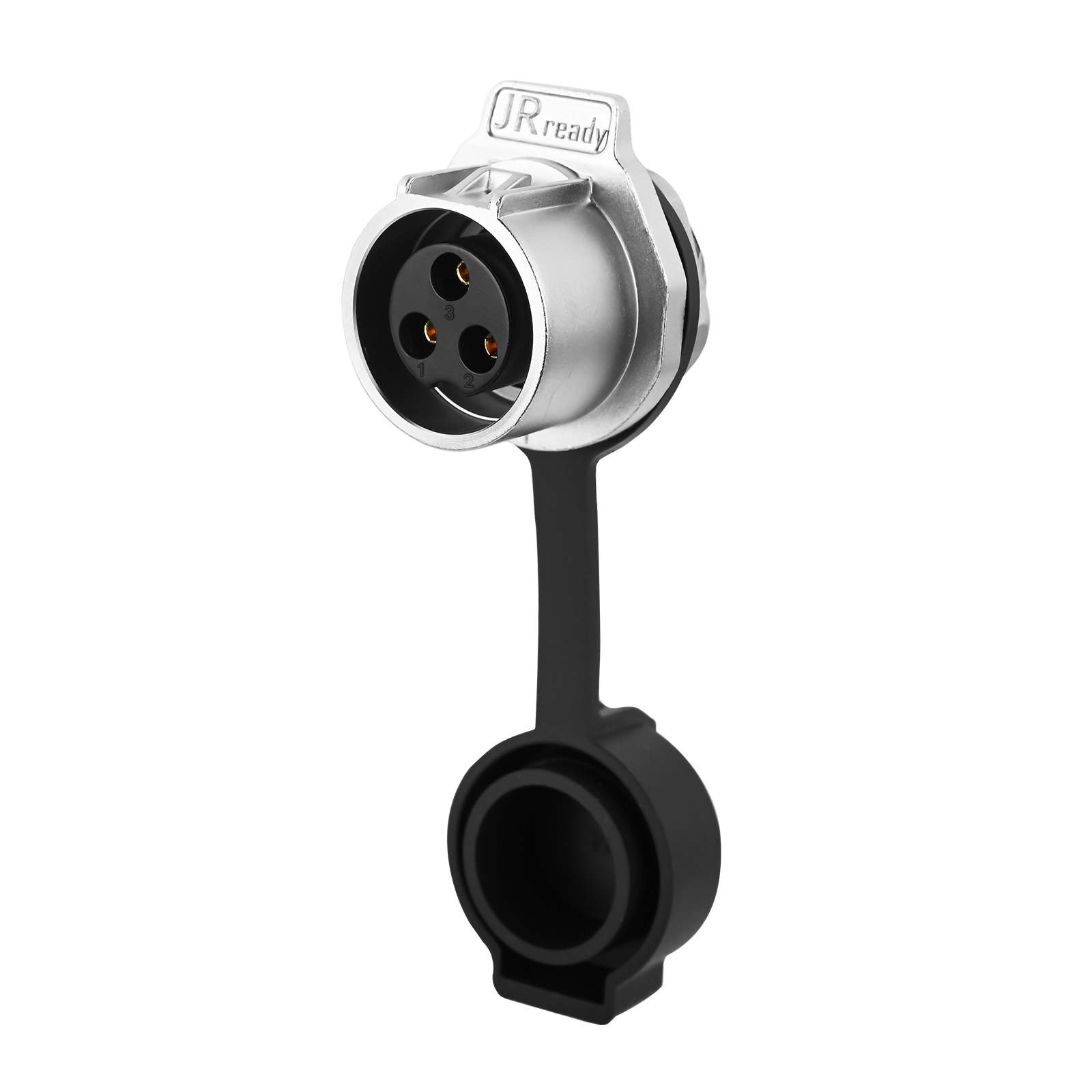

JRready JRSSW-CP20 3-Pin Crimping Female Single Mounting Hole Receptacle, Industrial Waterproof Connector
1. Wire Range: 14-18AWG (0.75-2.5mm²);
2. Termination Method: Crimping;

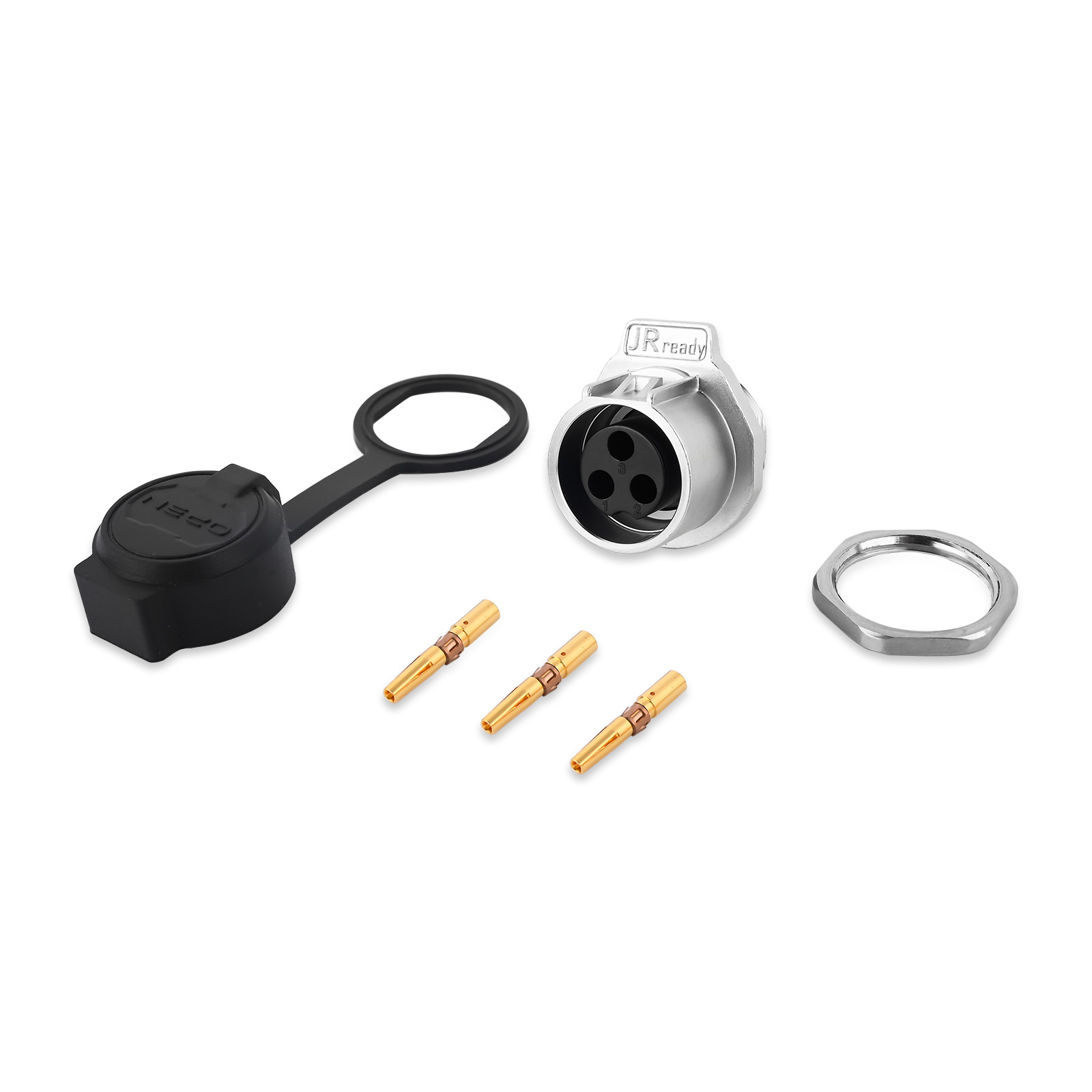

3. Removable Contacts;
4. Rated Current: 16A Max / Voltage: 500V AC;
5. Waterproof Rating: IP68 (Mated State);
6. Salt Spray Test: 72 hours;
7. Flammability Rating: UL94 V-0.
2. Termination Method: Crimping;
3. Removable Contacts;
4. Rated Current: 16A Max / Voltage: 500V AC;
5. Waterproof Rating: IP68 (Mated State);
6. Salt Spray Test: 72 hours;
7. Flammability Rating: UL94 V-0.
| Brand | JRready | Part Number | JRSSW-CP20-FM03-S1-SCN0005 |
| Category | JRSSW Series Connector | Colour | Chrome Plating (Silvery White) |

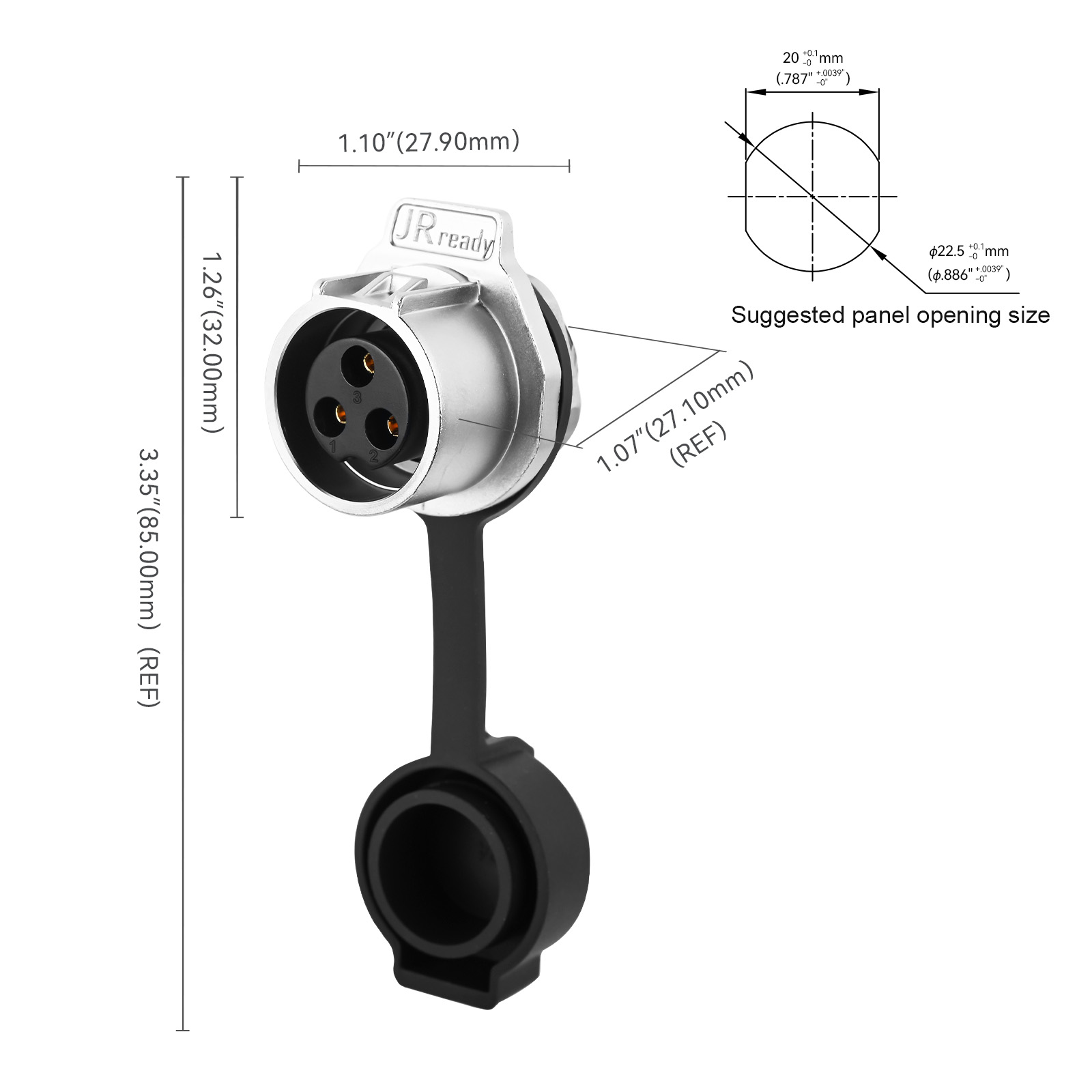

| Material | Zinc Alloy Housing (Pearl Chrome) | Dimension | 85*29.6*27.1（mm） |
| Country of Origin | CHINA | Weight | 43.1g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
