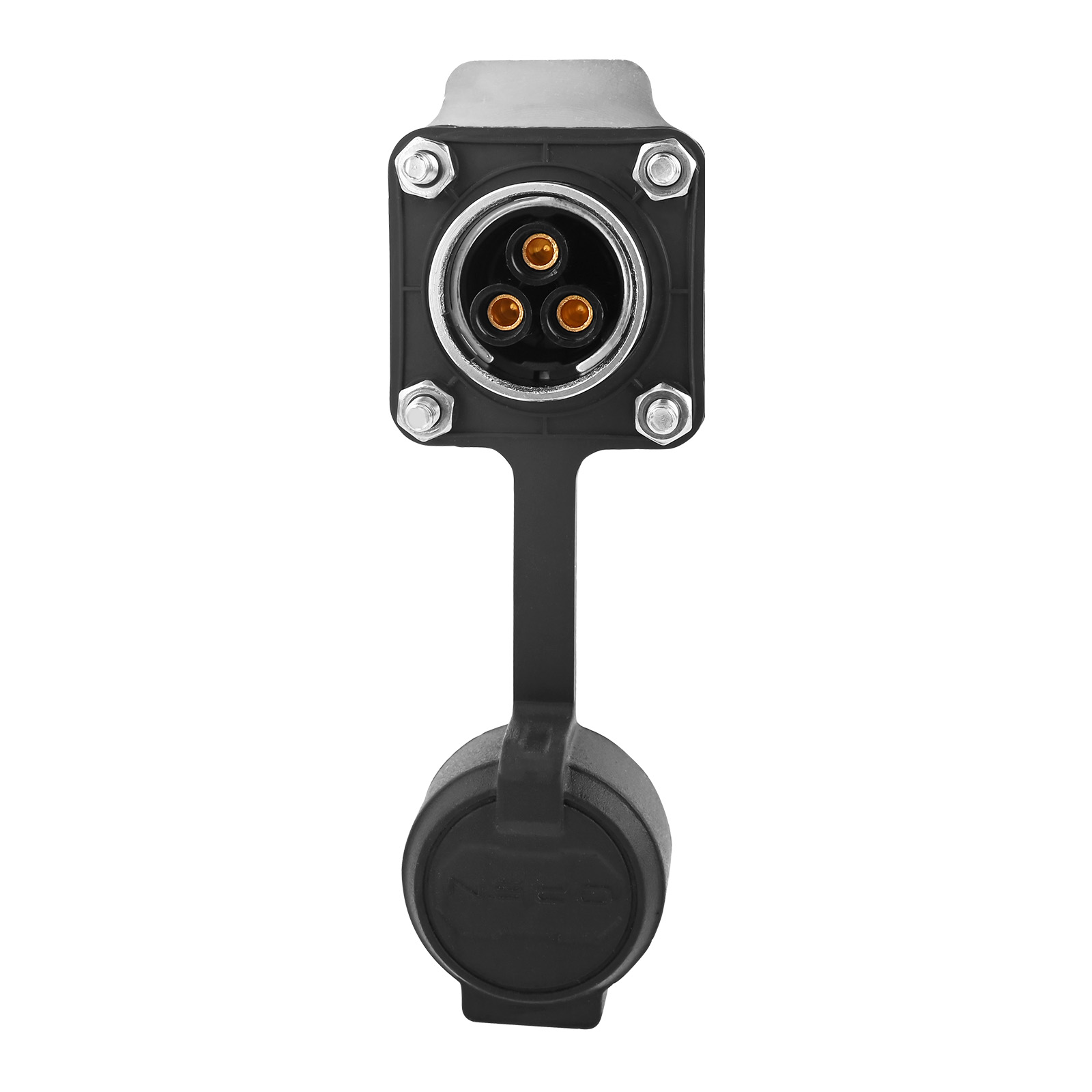

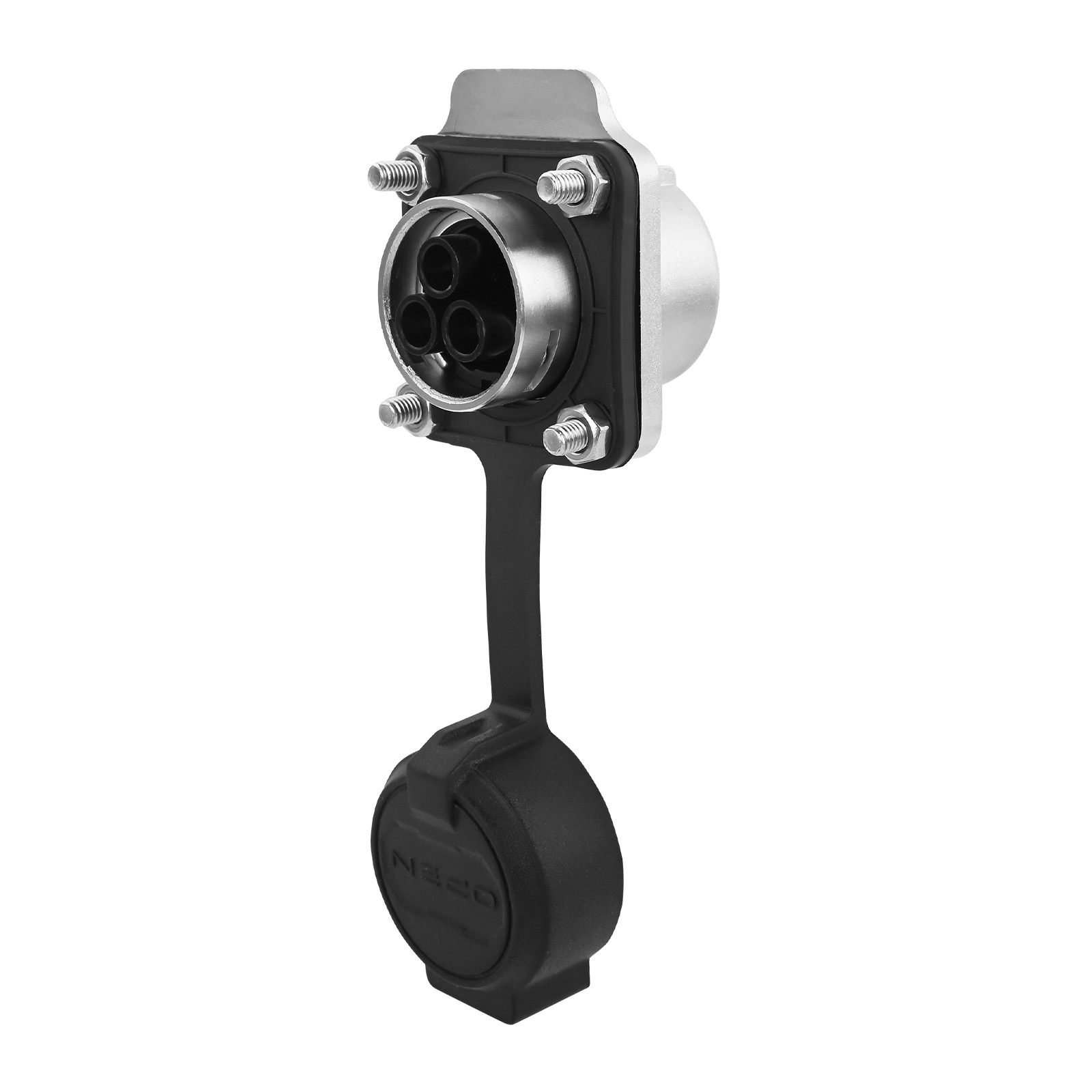

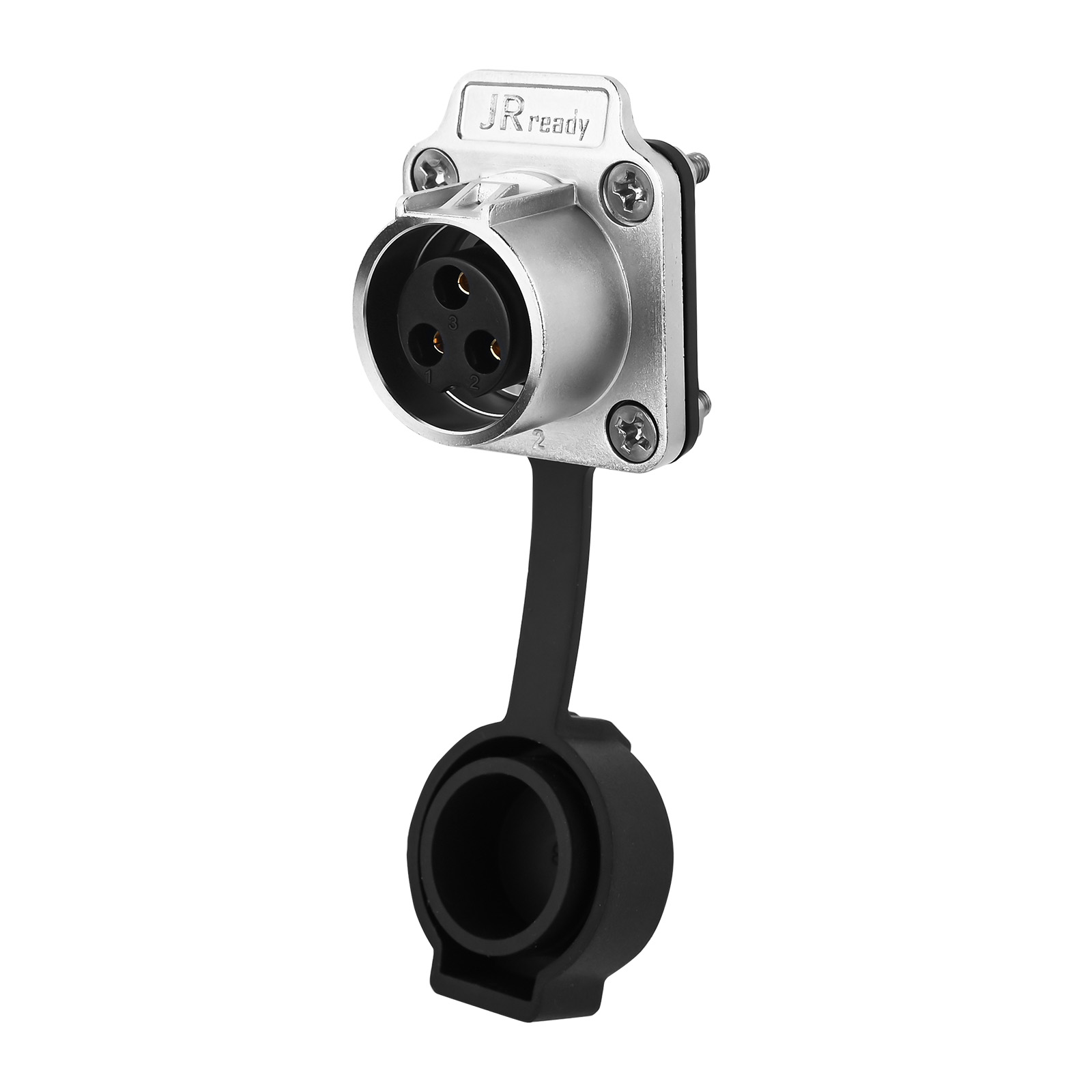

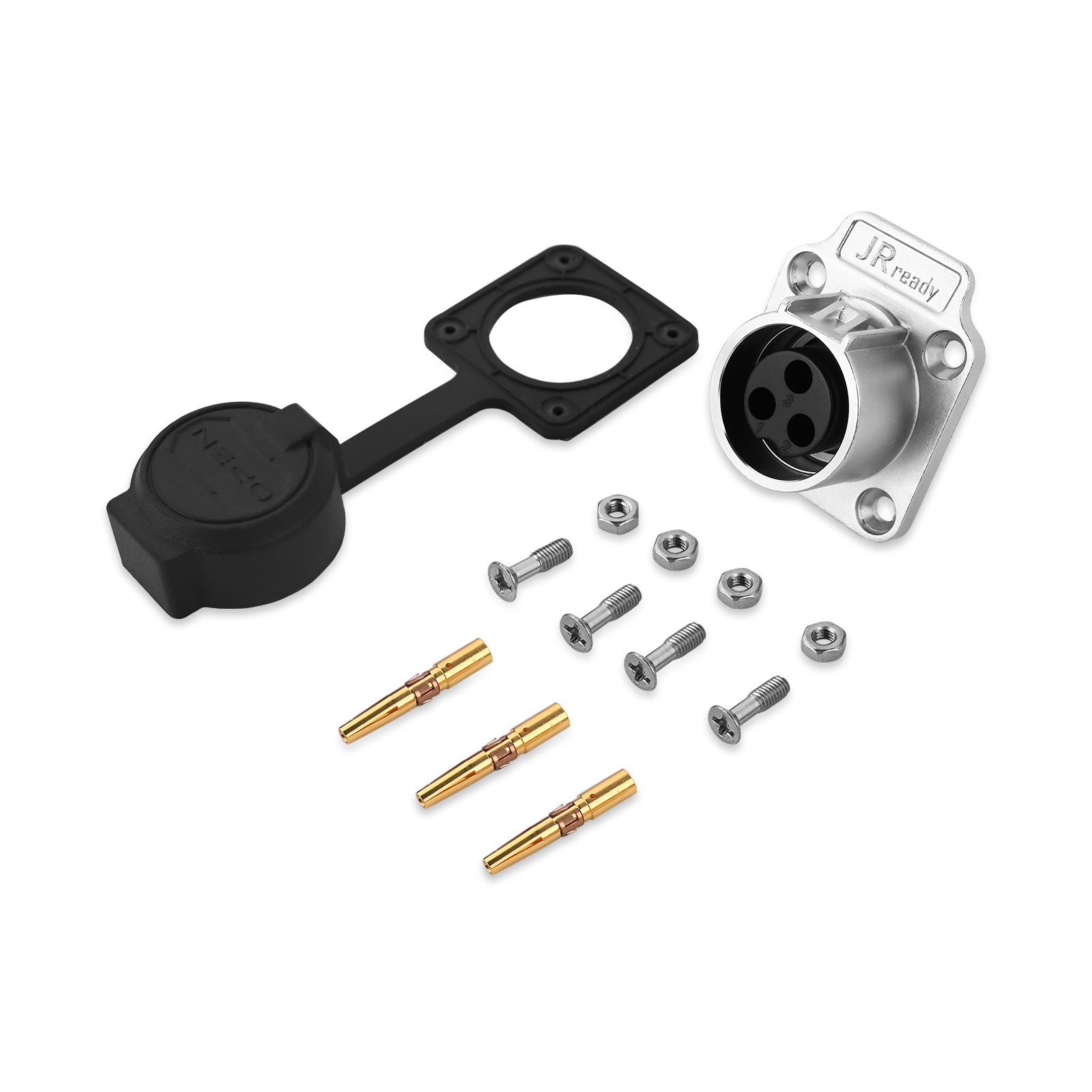

JRready JRSSW-CP20 3-Pin Crimping Female Four Mounting Hole Flange Receptacle, Industrial Waterproof Connector
1. Wire Range:14-18AWG(0.75-2.5mm²);
2. Termination Method:Crimping;
3. Removable Contacts;
4. Rated Current:16AMax/Voltage:500VAC;
5. Waterproof Rating:IP68;
6. Salt Spray Test:72hours;
7. Flammability Rating: UL94 V-0.
2. Termination Method:Crimping;
3. Removable Contacts;
4. Rated Current:16AMax/Voltage:500VAC;
5. Waterproof Rating:IP68;
6. Salt Spray Test:72hours;
7. Flammability Rating: UL94 V-0.
| Brand | JRready | Part Number | JRSSW-CP20-FM03-S4-SCN0011 |
| Category | JRSSW Series Connector | Colour | Chrome Plating (Silvery White) |

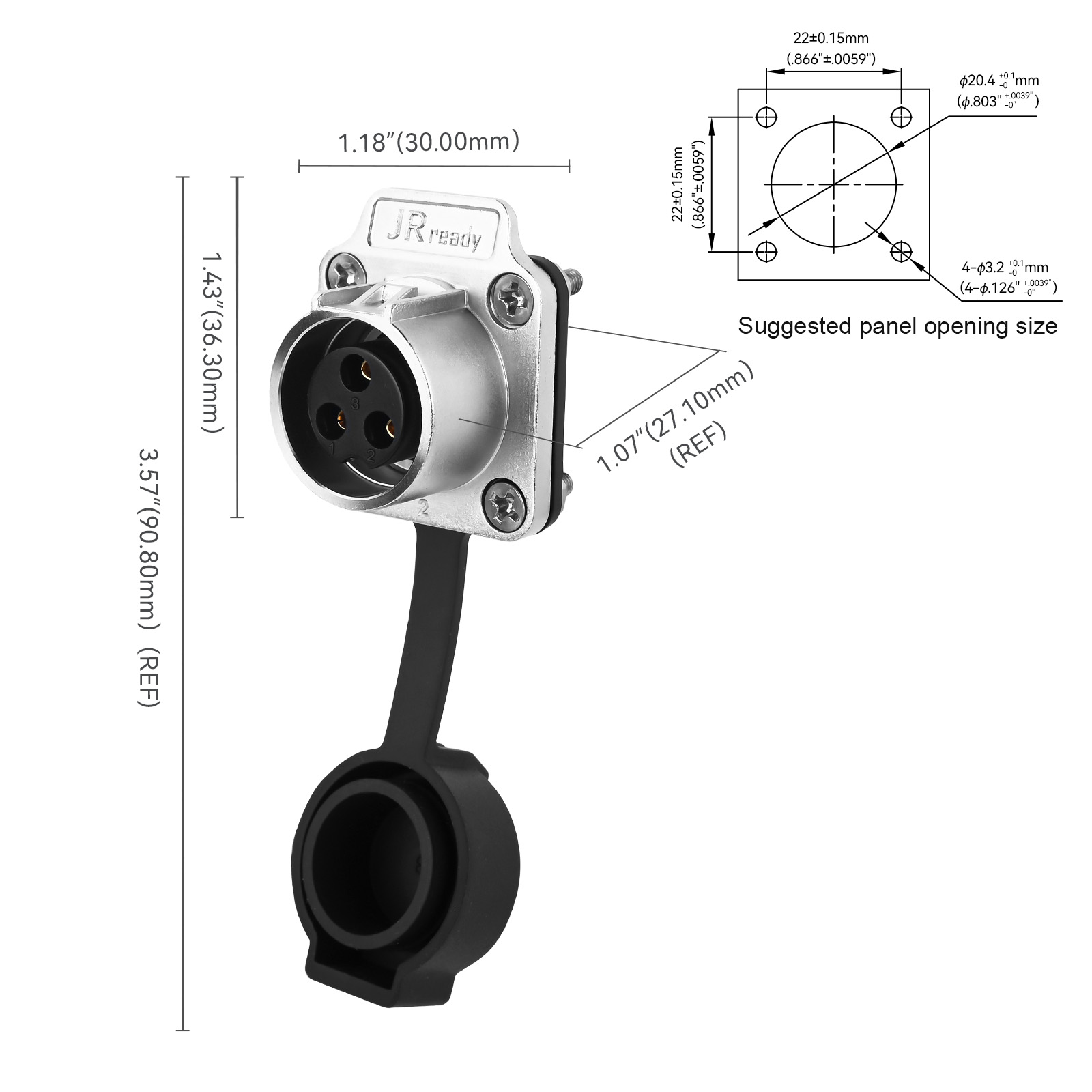

| Material | Zinc Alloy Housing (Pearl Chrome) | Dimension | 89.7*27.1*30（mm） |
| Country of Origin | CHINA | Weight | 46.3g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
