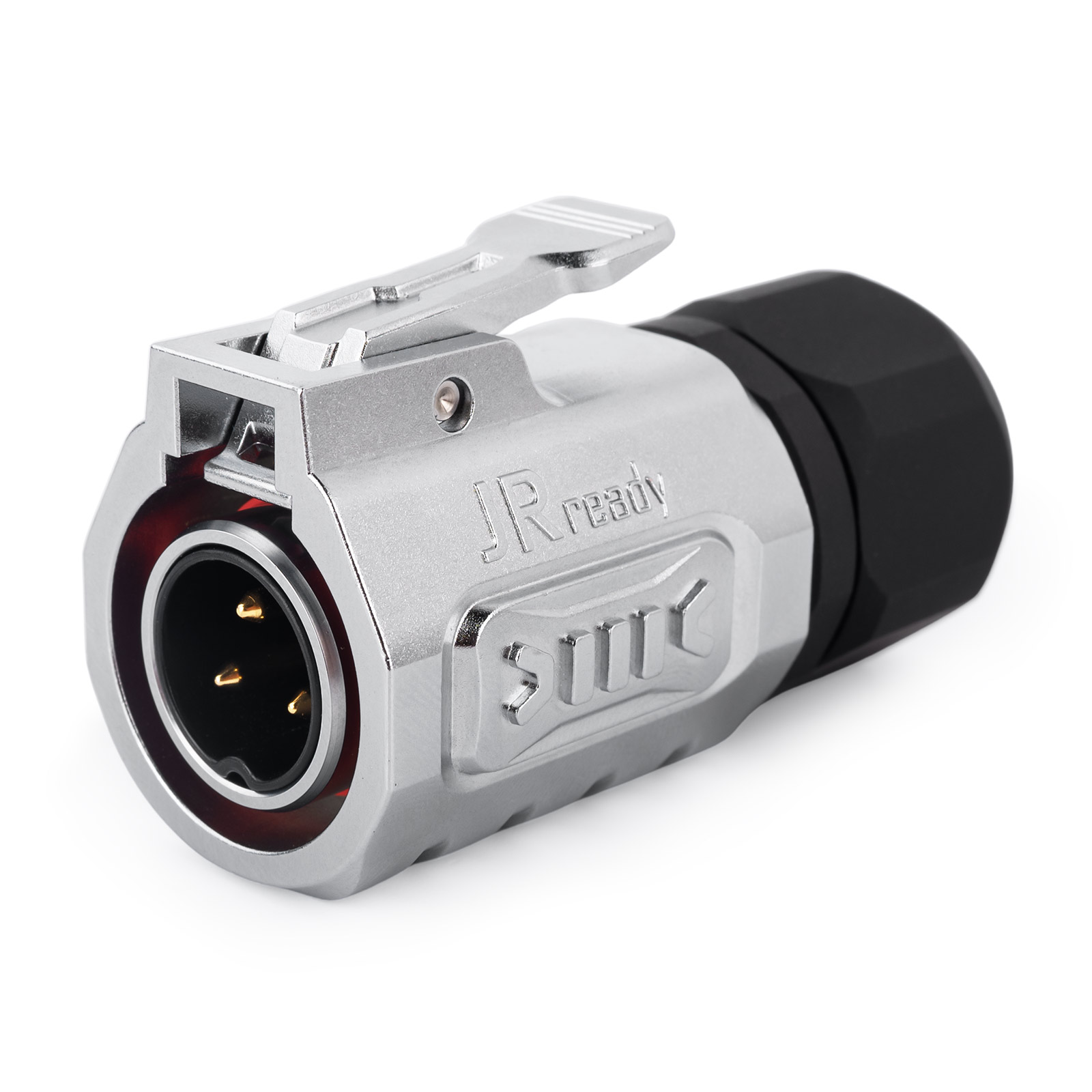

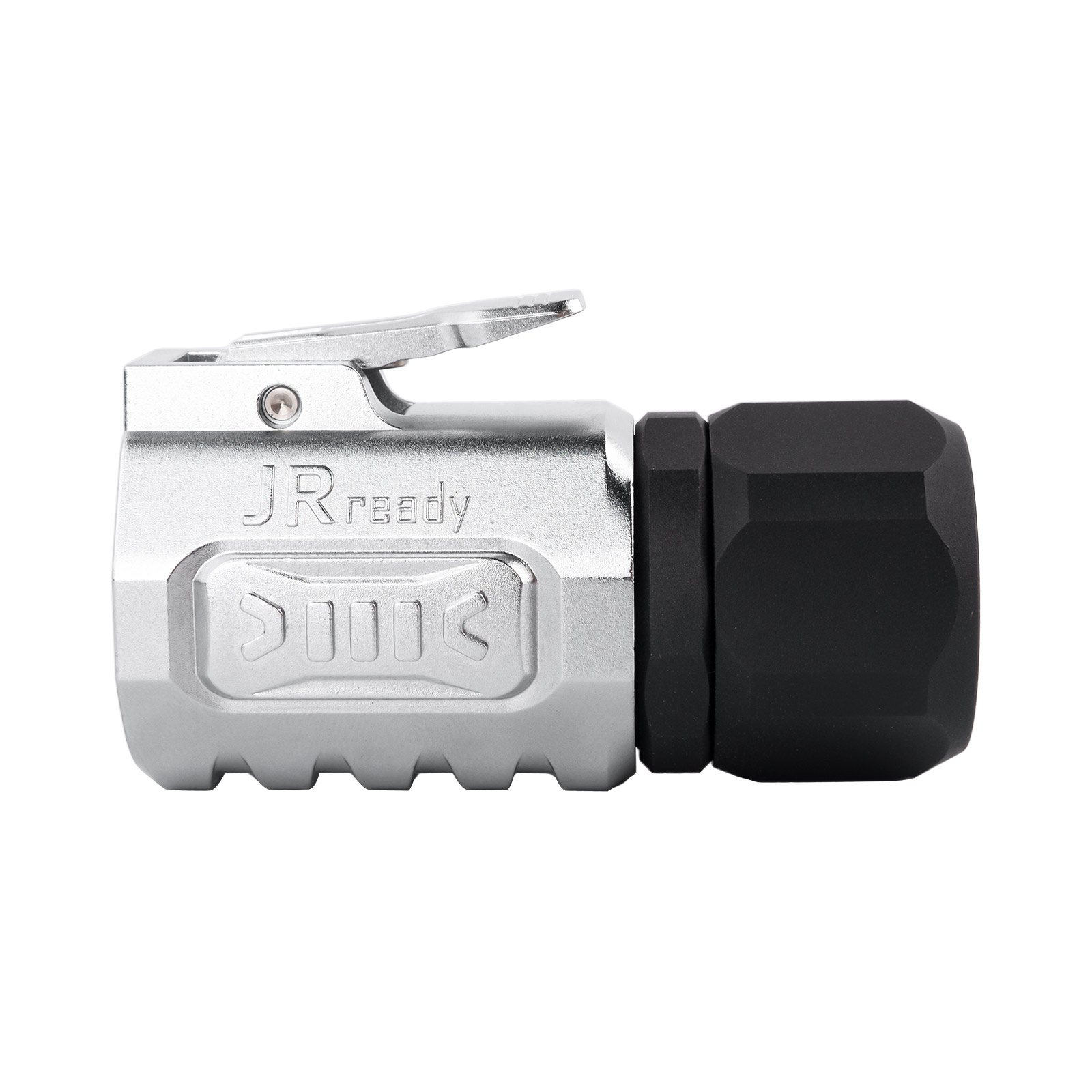

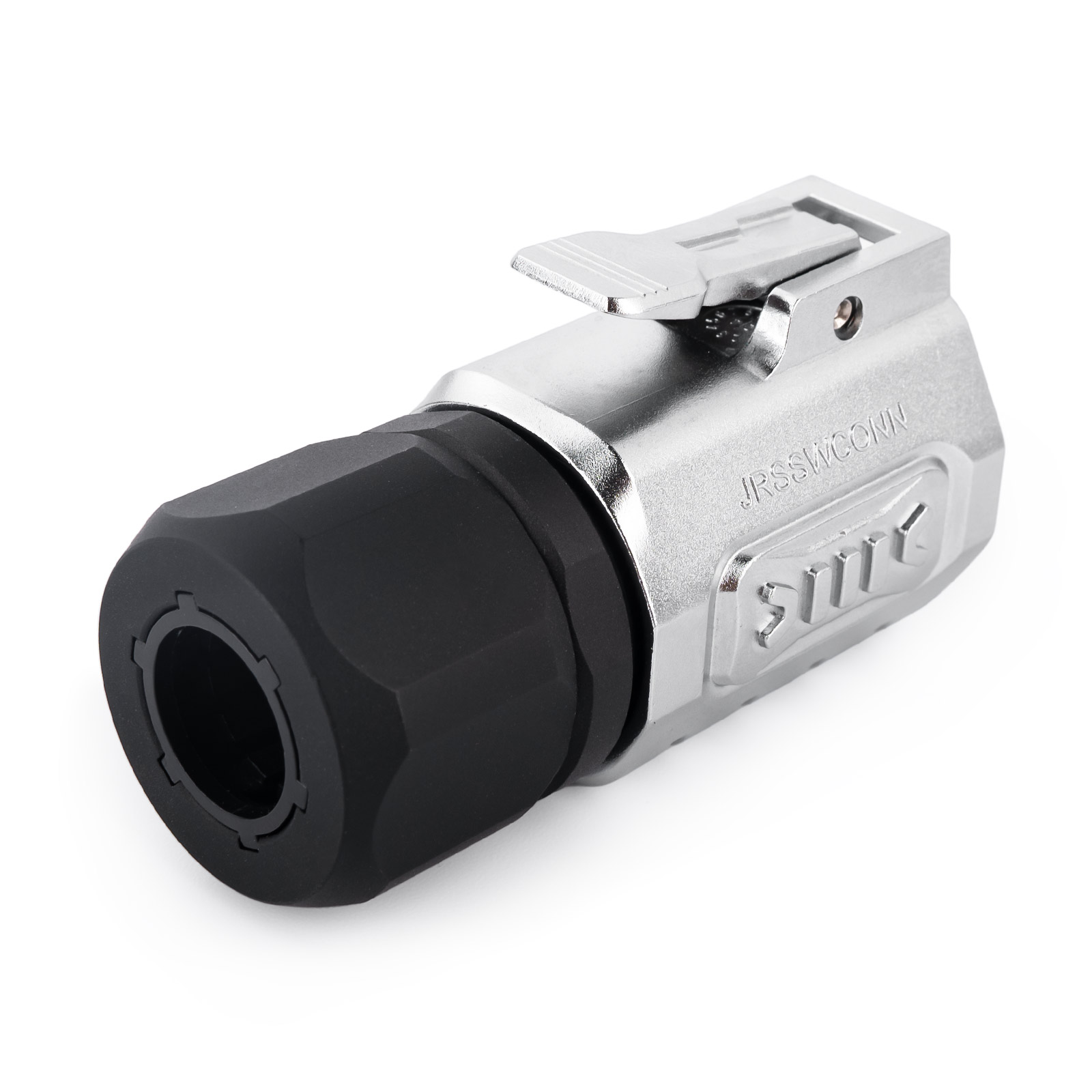

JRready JRSSW-CP20 3-pin Soldering Male Metal Plug, Industrial Waterproof Connector
1. Wire Range: 14AWG~18AWG (0.75~2.5mm²);
2. Compatible Cable OD: φ5.5mm~φ12mm;
3. Termination Method: Sodering;

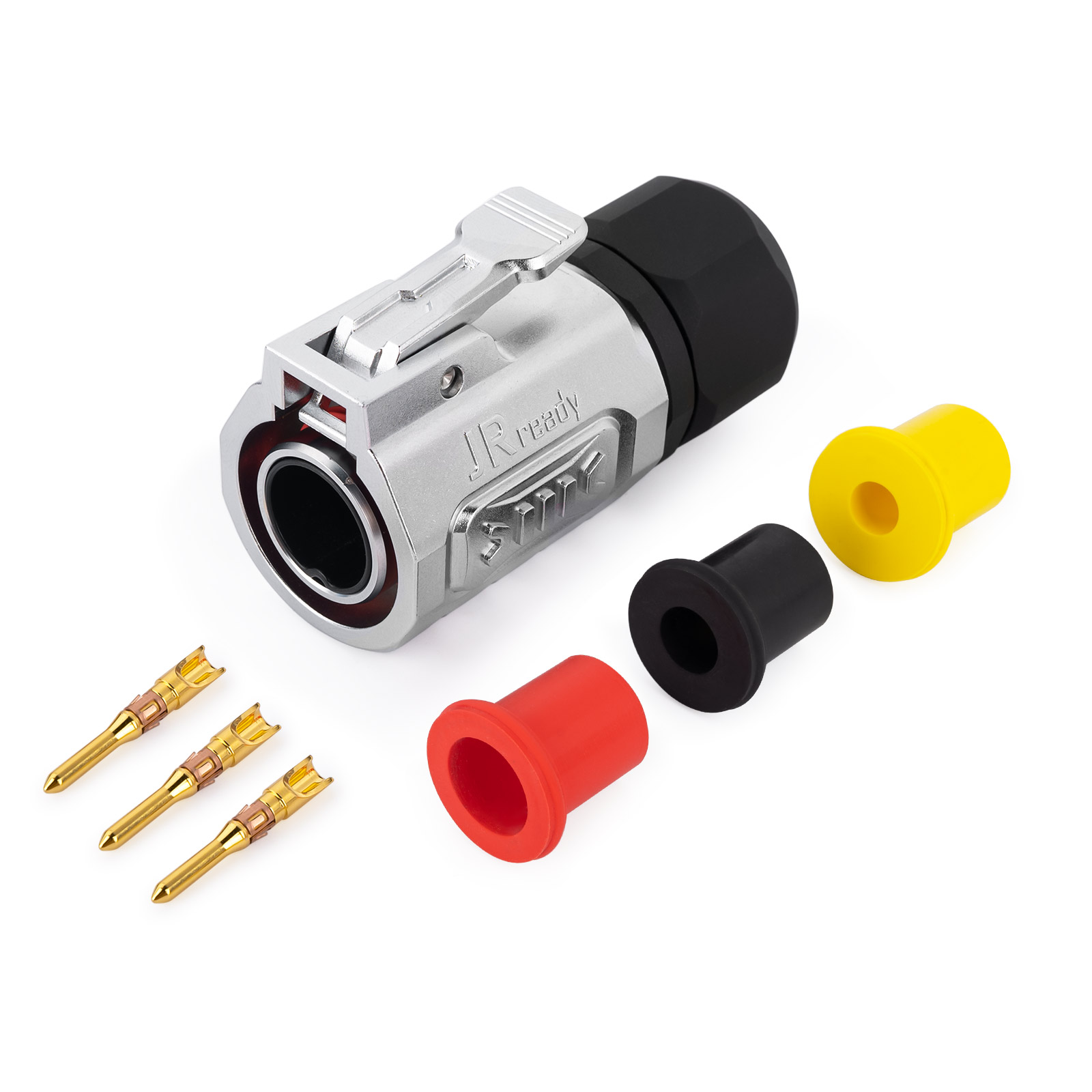

4. Removable Terminal(s);
5. Rated Current: 16A Max / Voltage: 500V AC;
6. Waterproof Rating: IP68 (Mated State) ;
7. Salt Spray Test: 72 hours;
8. Flammability Rating: UL94 V-0.
2. Compatible Cable OD: φ5.5mm~φ12mm;
3. Termination Method: Sodering;
4. Removable Terminal(s);
5. Rated Current: 16A Max / Voltage: 500V AC;
6. Waterproof Rating: IP68 (Mated State) ;
7. Salt Spray Test: 72 hours;
8. Flammability Rating: UL94 V-0.
| Brand | JRready | Part Number | JRSSW-CP20-MM03-P0-SWN0053 |
| Category | JRSSW Series Connectors | Colour | Chrome Plating (Silvery White) + Black Housing |

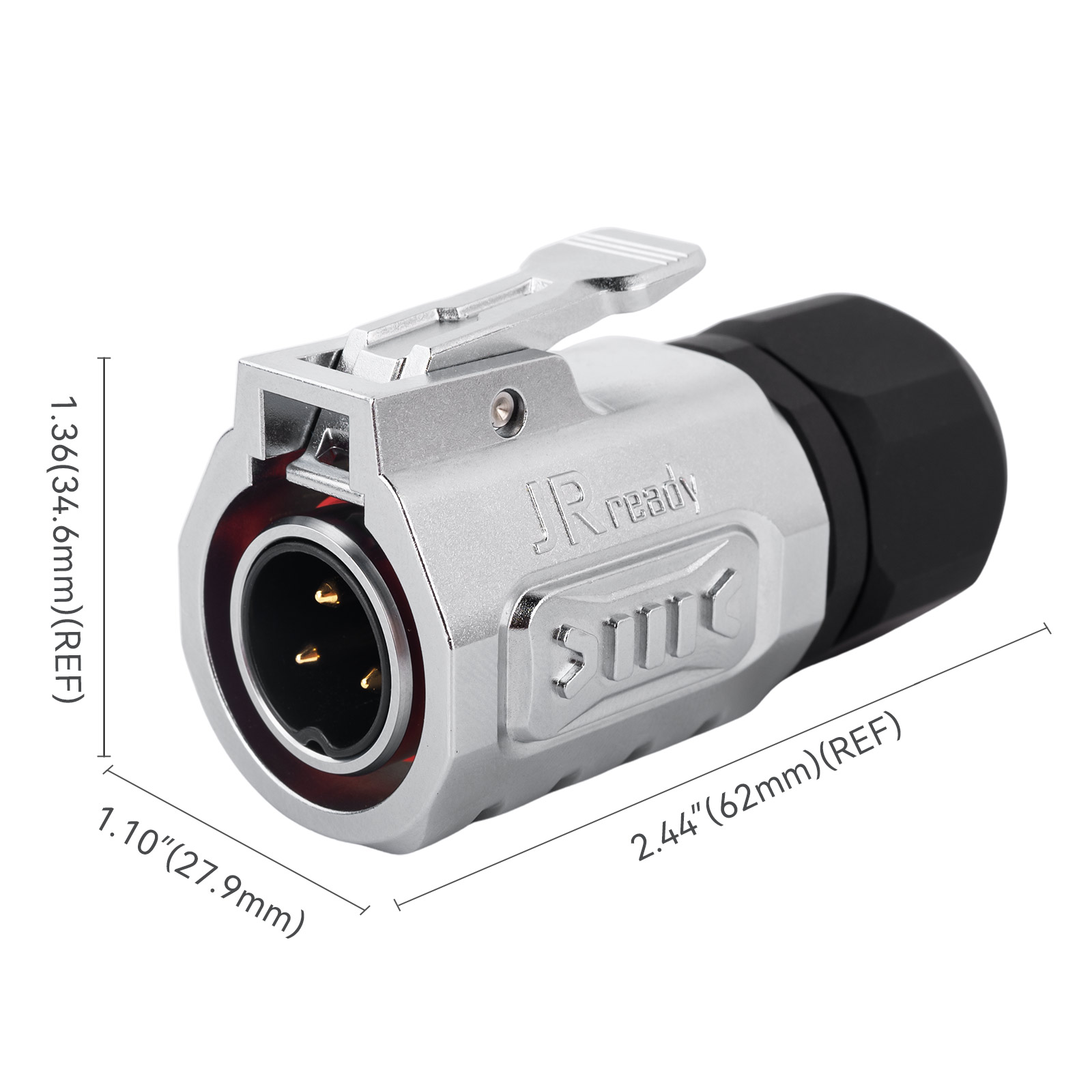

| Material | Zinc Alloy Housing (Pearl Chrome)+Aluminum Nut (Black Anodized) | Dimension | 62*27.9*34.5（mm） |
| Country of Origin | CHINA | Weight | 121.8g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
