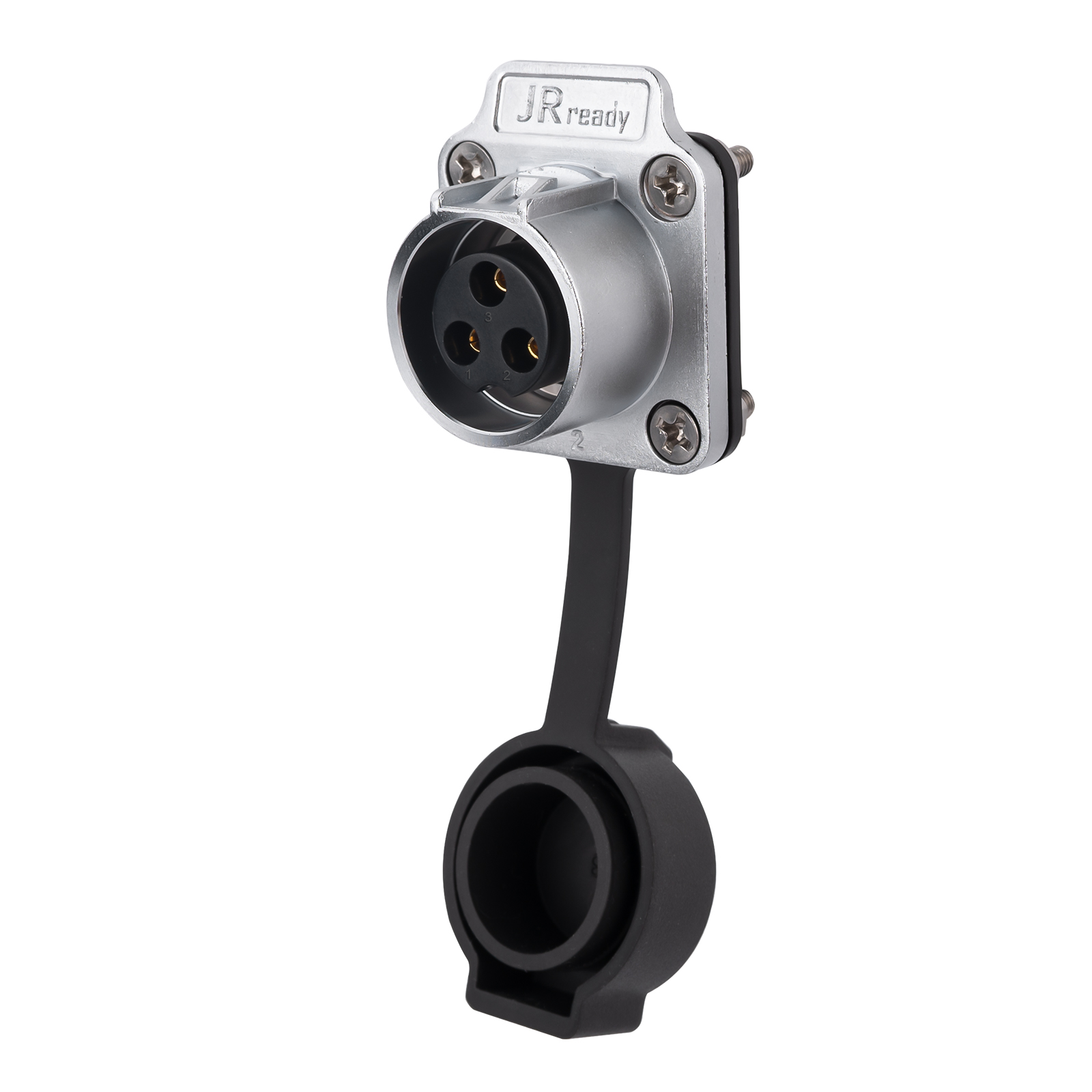

JRready JRSSW-CP20 3-pin Four Mounting Hole Soldering Female Socket, Industrial Waterproof Connector
1. Wire Range:14-18AWG(0.75-2.5mm²)；
2.Termination Method:Soldering；
3. Removable Contacts；
4. Rated Current:16A Max/Voltage:500VAC;
5. Waterproof Rating: IP68;
6. Salt Spray Test:72hours;
7. Flammability Rating: UL94 V-0.
2.Termination Method:Soldering；
3. Removable Contacts；
4. Rated Current:16A Max/Voltage:500VAC;
5. Waterproof Rating: IP68;
6. Salt Spray Test:72hours;
7. Flammability Rating: UL94 V-0.
| Brand | JRready | Part Number | JRSSW-CP20-FM03-S4-SWN0047 |
| Category | JRSSW Series Connectors | Colour | Chrome Plating (Silvery White) |
| Material | Zinc Alloy Housing (Pearl Chrome) | Dimension | 89.7*27.1*30（mm） |
| Country of Origin | CHINA | Weight | 45.6g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
