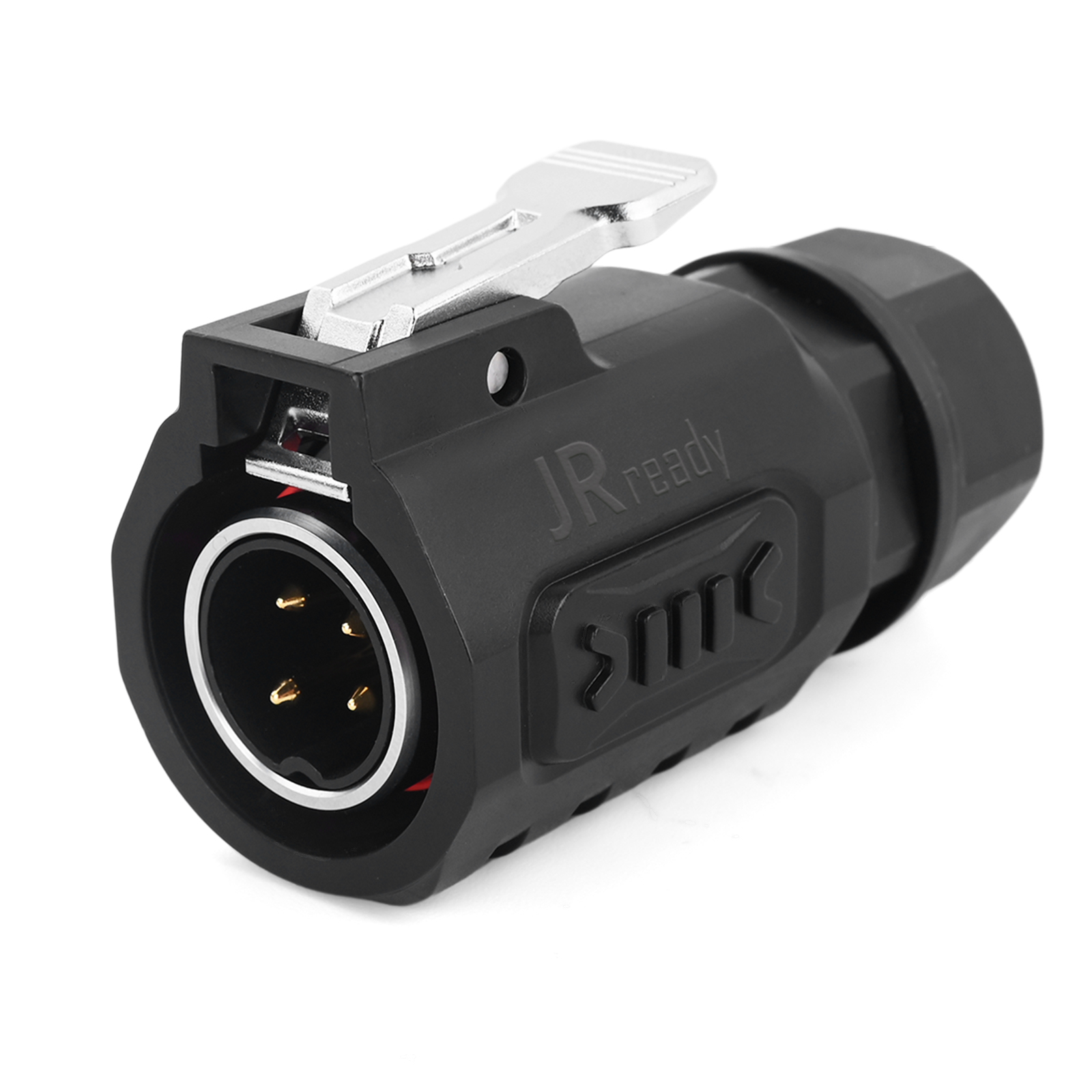

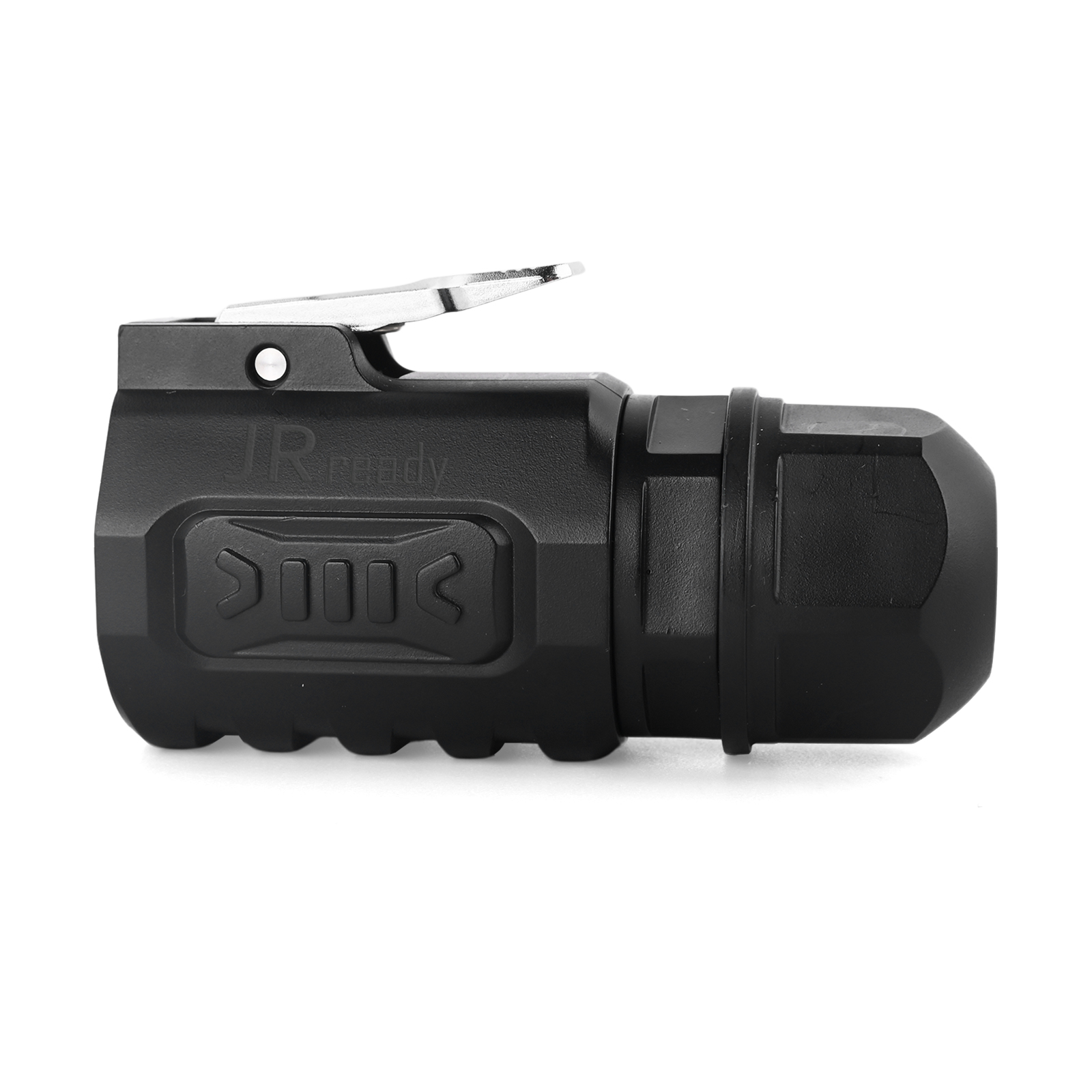

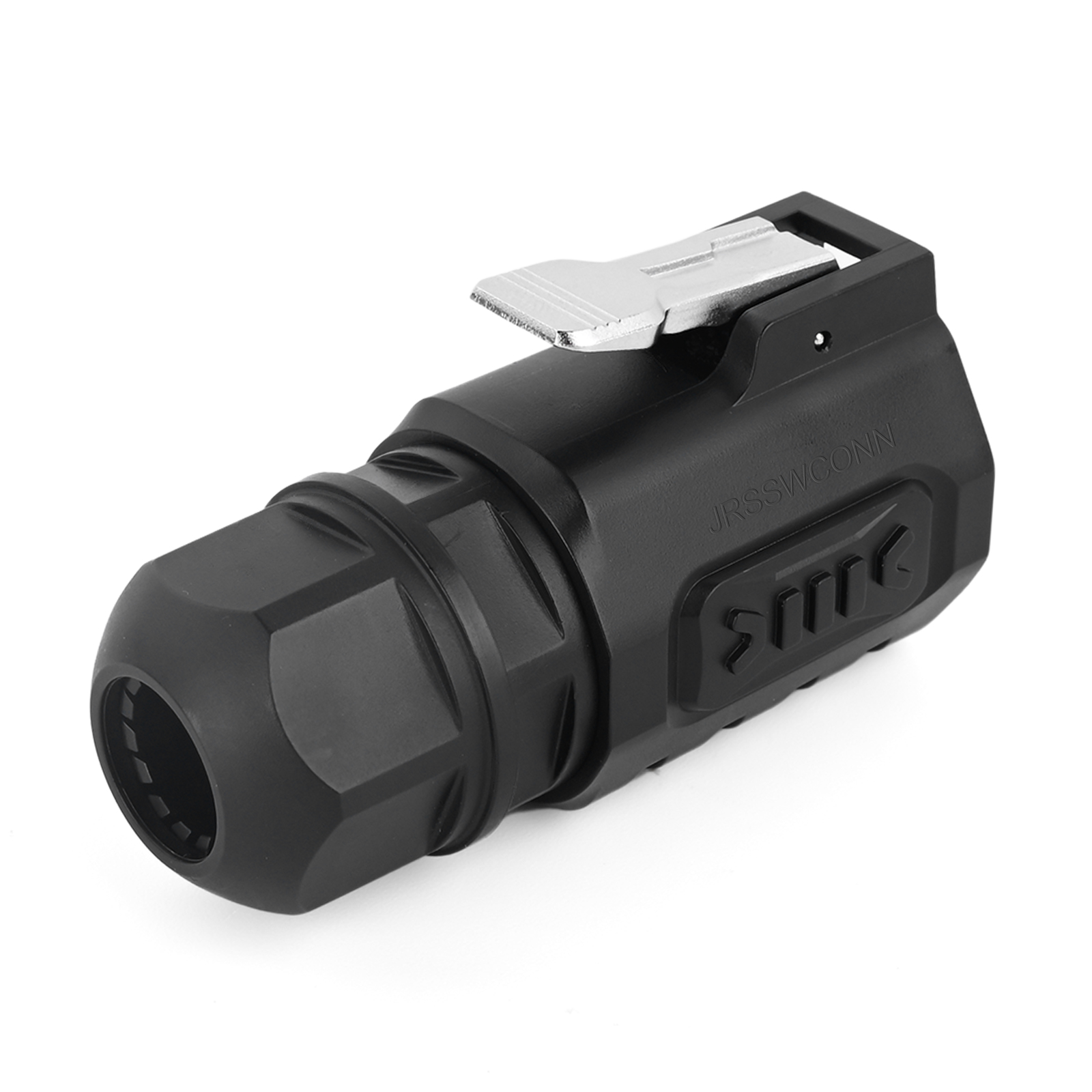

JRready JRSSW-CP20 4-pin solder male plastic plug, industrial waterproof connector
1. Wire Range: 14-18AWG (0.75-2.5mm²)；
2. Compatible Cable OD: Ø5.5-12mm;
3.Termination Method: Soldering；

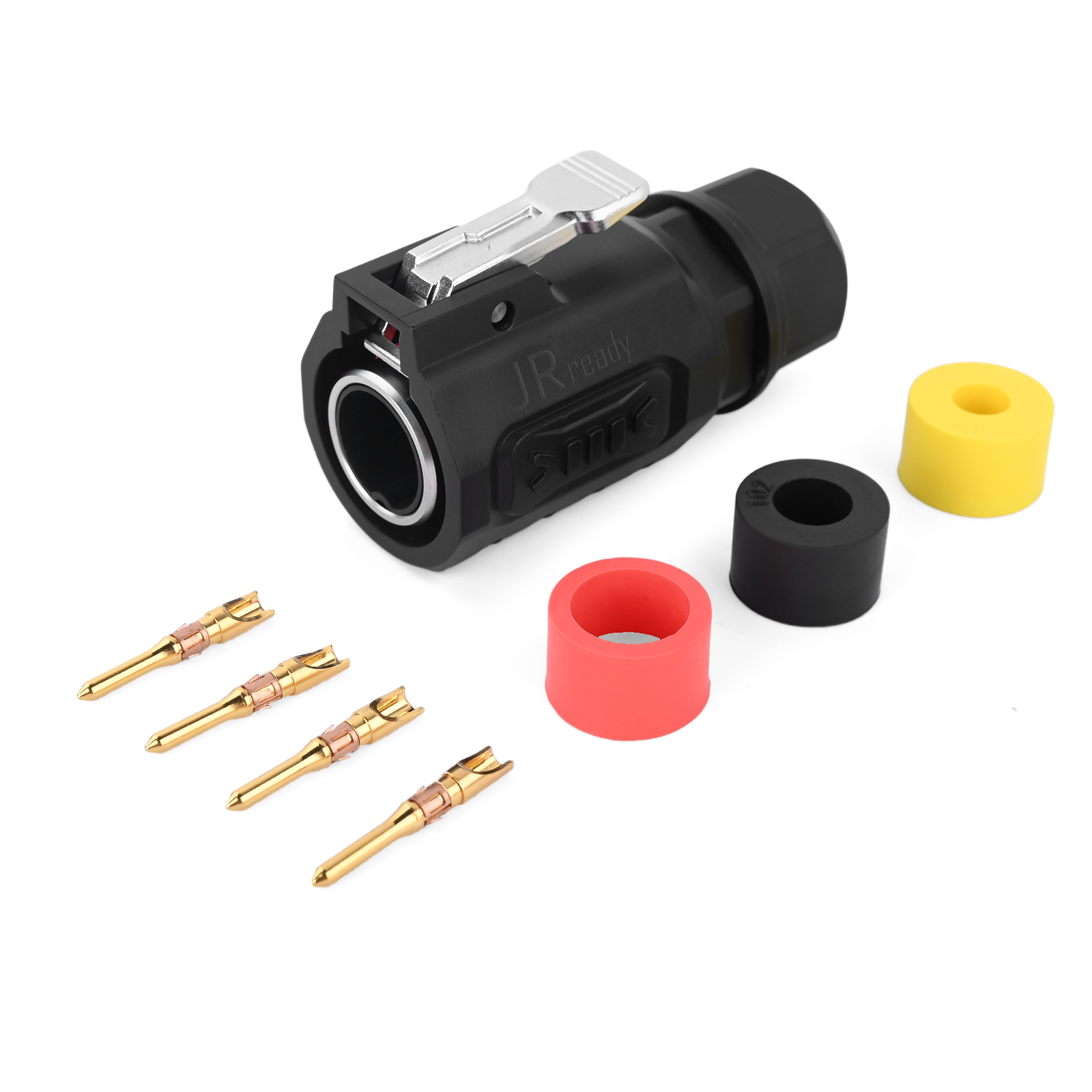

4. Removable Contacts；
5. Rated Current/Voltage: 16A Max / 500V AC;
6. Waterproof Rating: IP68 (Mated State)；
2. Compatible Cable OD: Ø5.5-12mm;
3.Termination Method: Soldering；
4. Removable Contacts；
5. Rated Current/Voltage: 16A Max / 500V AC;
6. Waterproof Rating: IP68 (Mated State)；
| Brand | JRready | Part Number | JRSSW-CP20-MP04-P0-SWN0039 |
| Category | JRSSW Series Connector | Colour | Black |

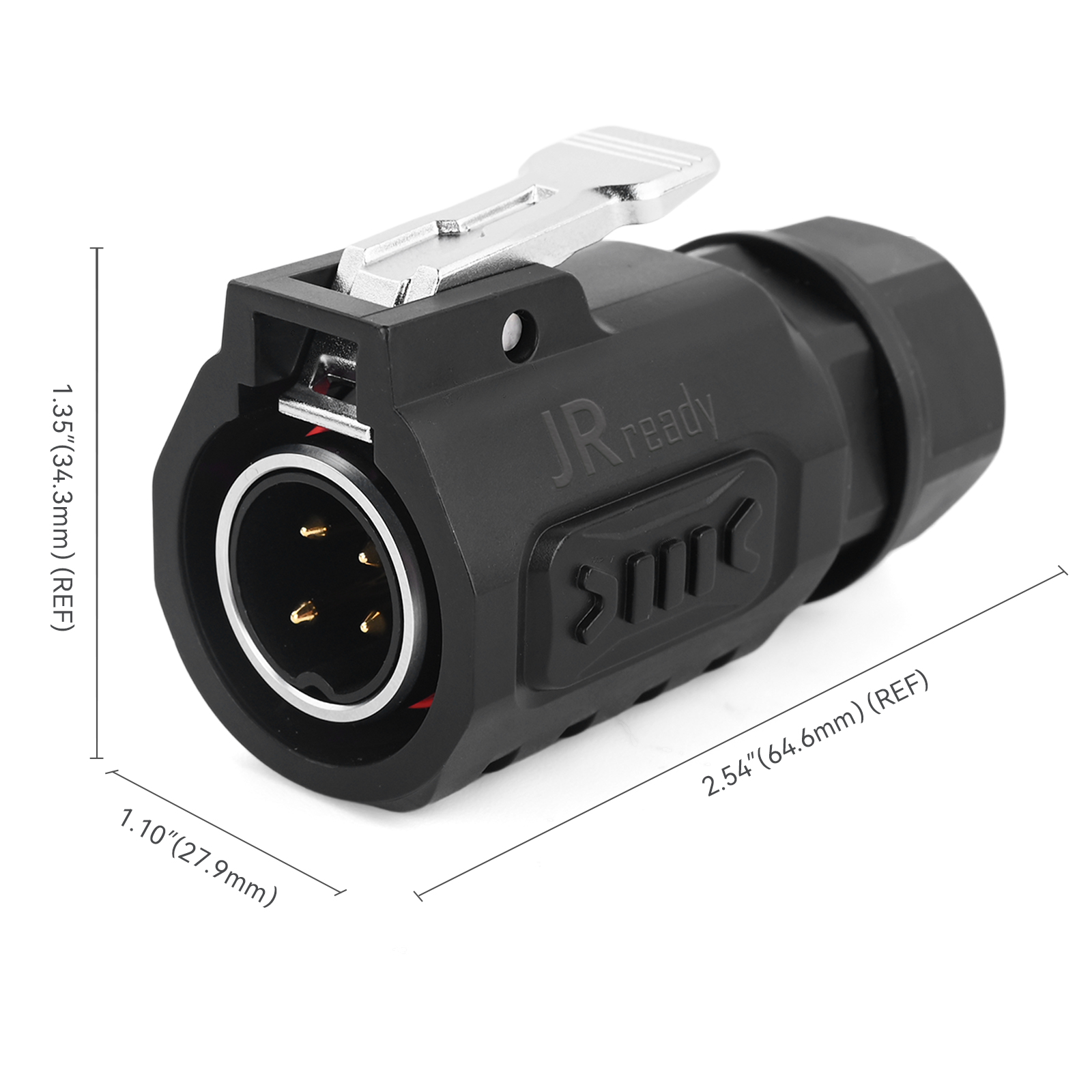

| Material | PBT+PC | Dimension | 64.6*34.3*27.9（mm） |
| Country of Origin | CHINA | Weight | 56g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
