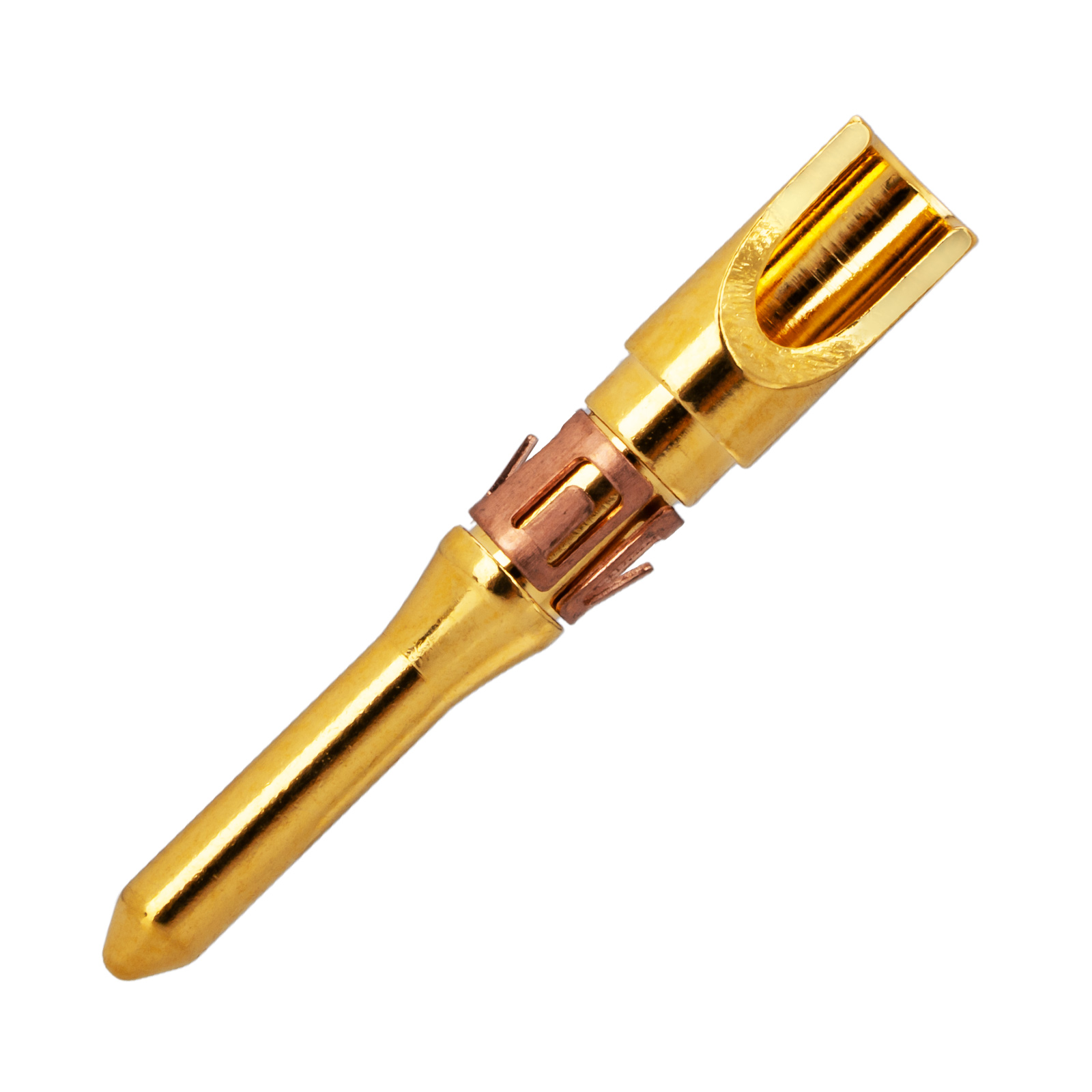

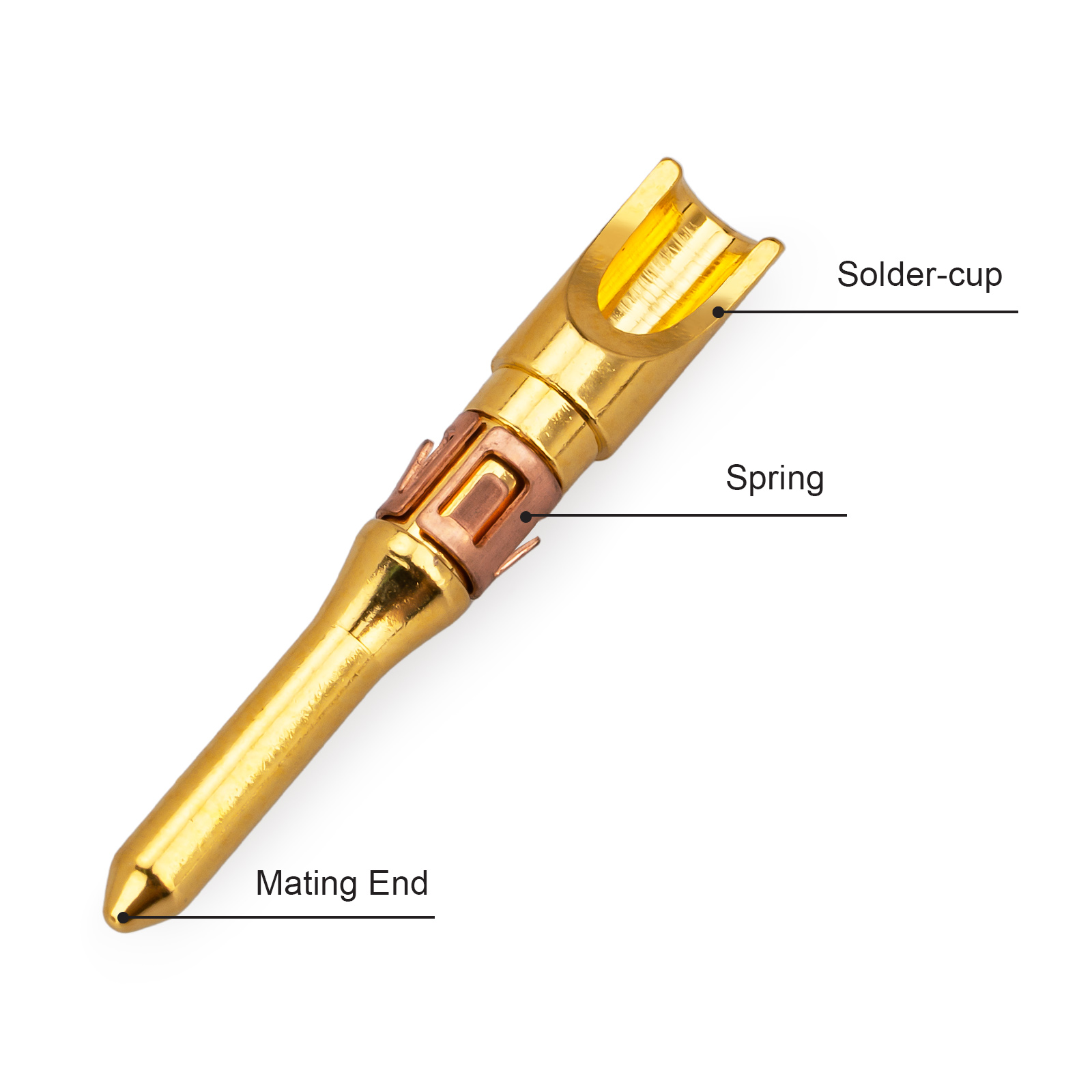

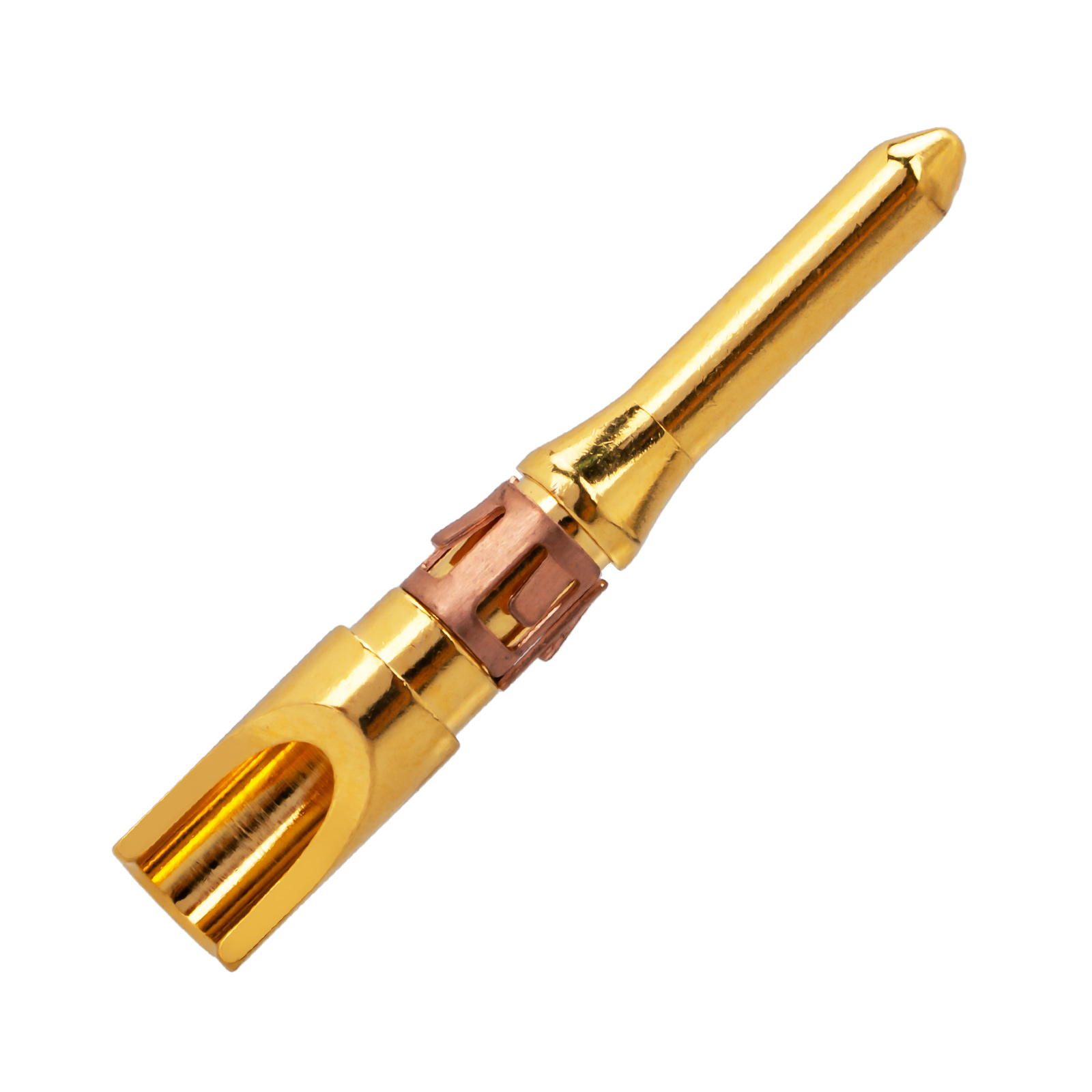

JRready JRSSW-CP20-2.0 Machined Soldering Male Terminal
1. Contact Material: Gold-Plated Copper Alloy (CuNiSi)
2. Salt Spray Test: 72 hours
3. Termination Method: Soldering
4. Wire Gauge Range: 14AWG~18AWG (0.75~2.5mm²)
5. Rated Current: 16A Max
2. Salt Spray Test: 72 hours
3. Termination Method: Soldering
4. Wire Gauge Range: 14AWG~18AWG (0.75~2.5mm²)
5. Rated Current: 16A Max
| Brand | JRready | Part Number | JRSSW-CP20-MP03-S0038 |
| Category | JRSSW Series - Terminals | Colour | Gold-Plated |

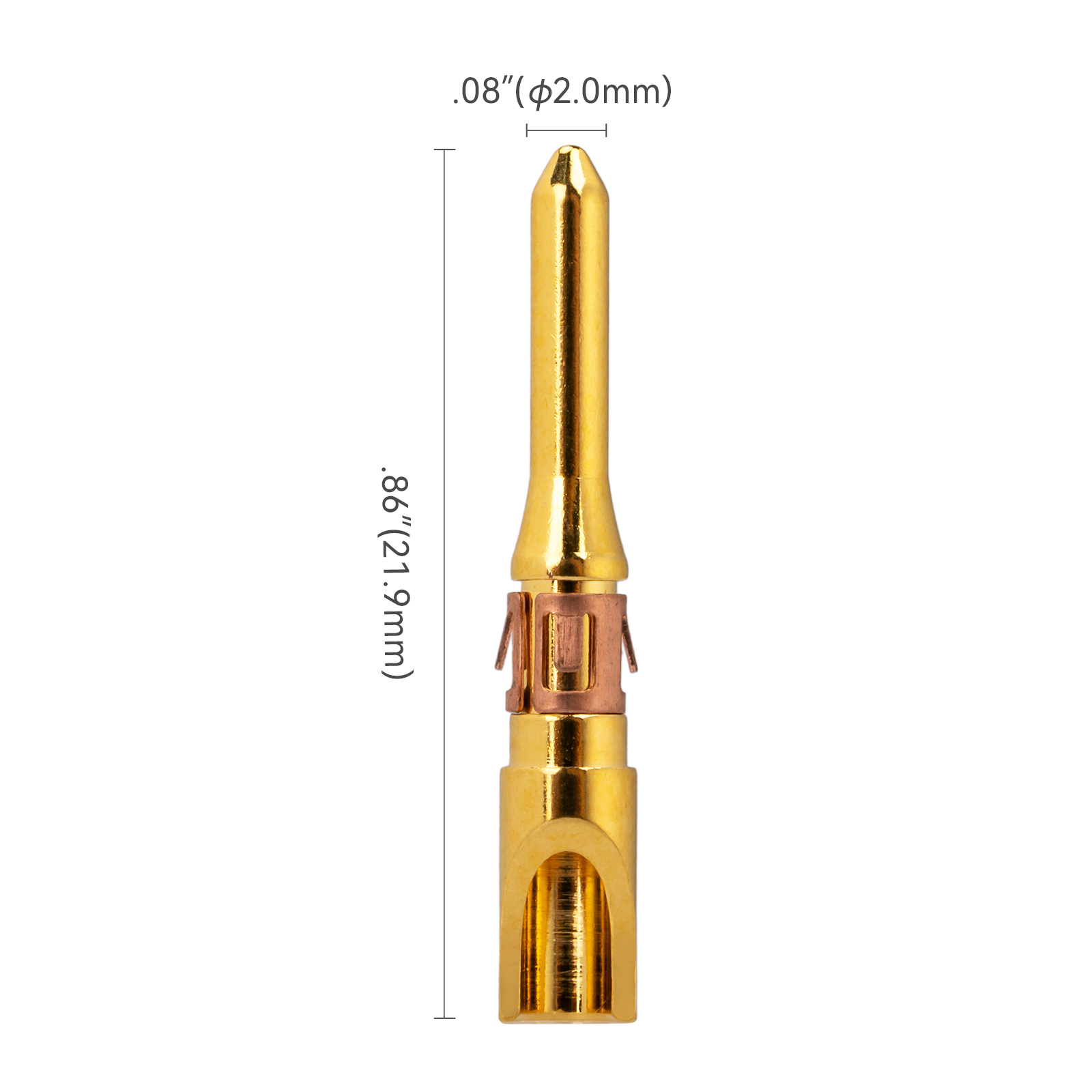

| Material | Gold-Plated Copper Alloy | Dimension | φ3.5*21.9mm |
| Country of Origin | CHINA | Weight | 0.8g |
| Application | JRSSW-CP20 Industrial Waterproof Connector | ||
