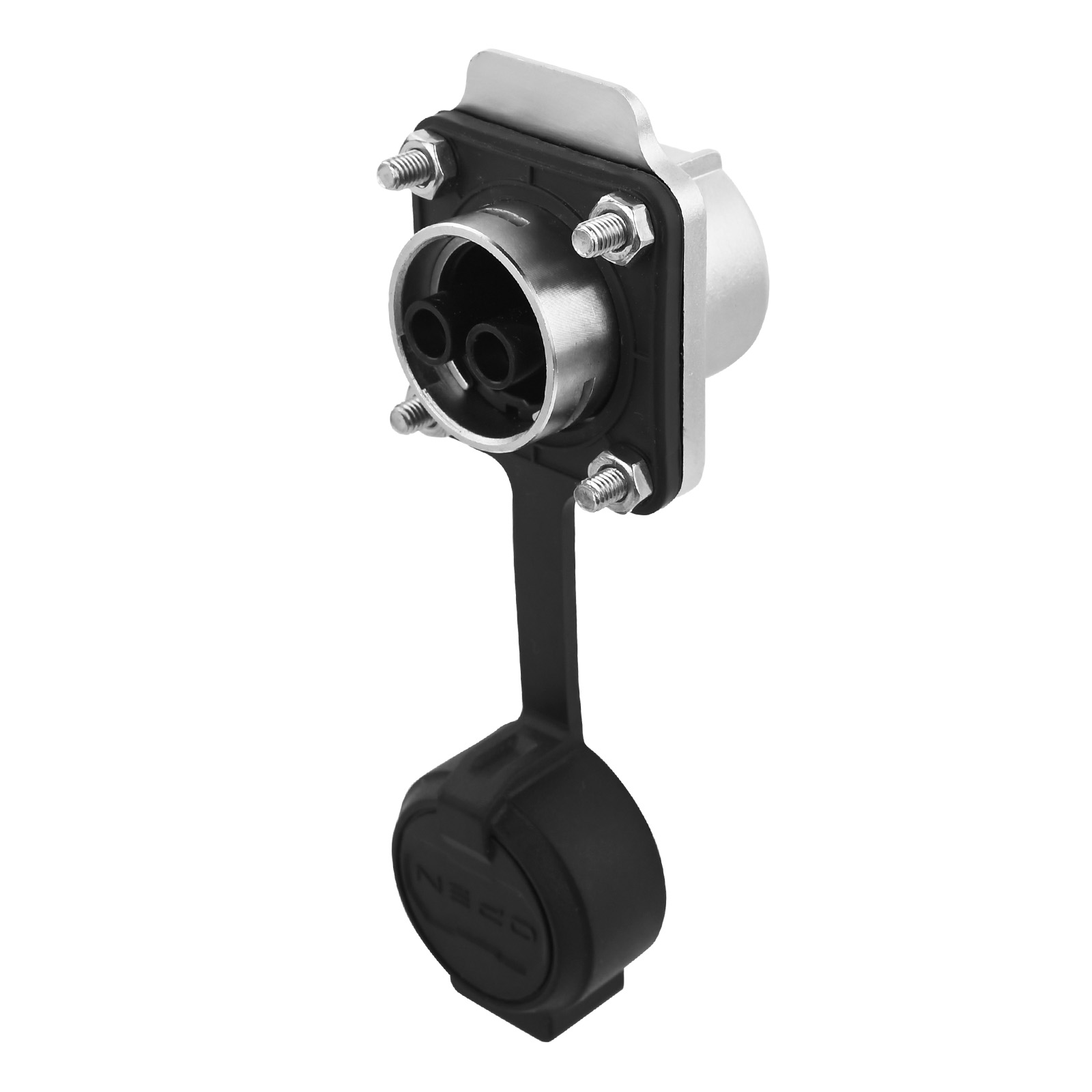

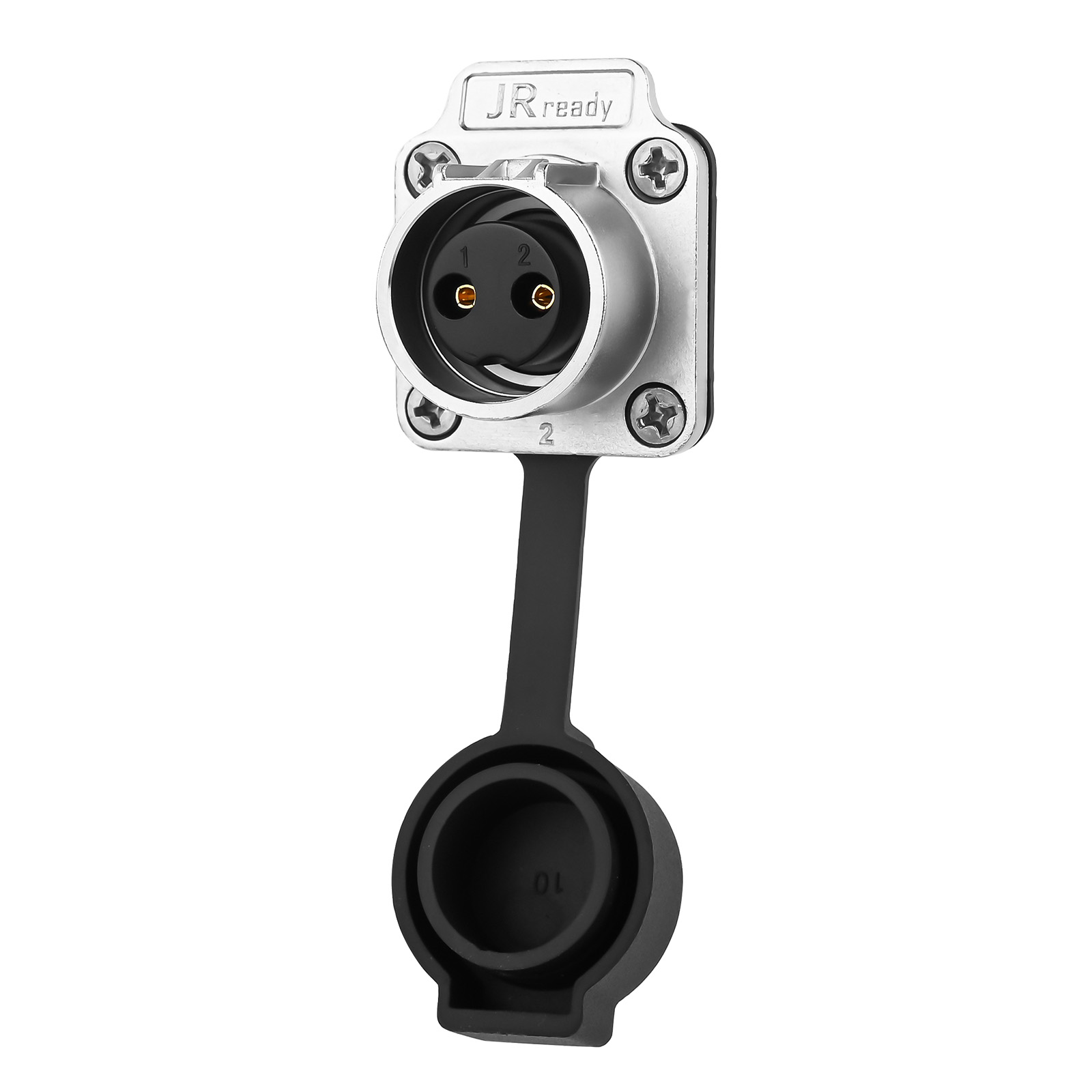

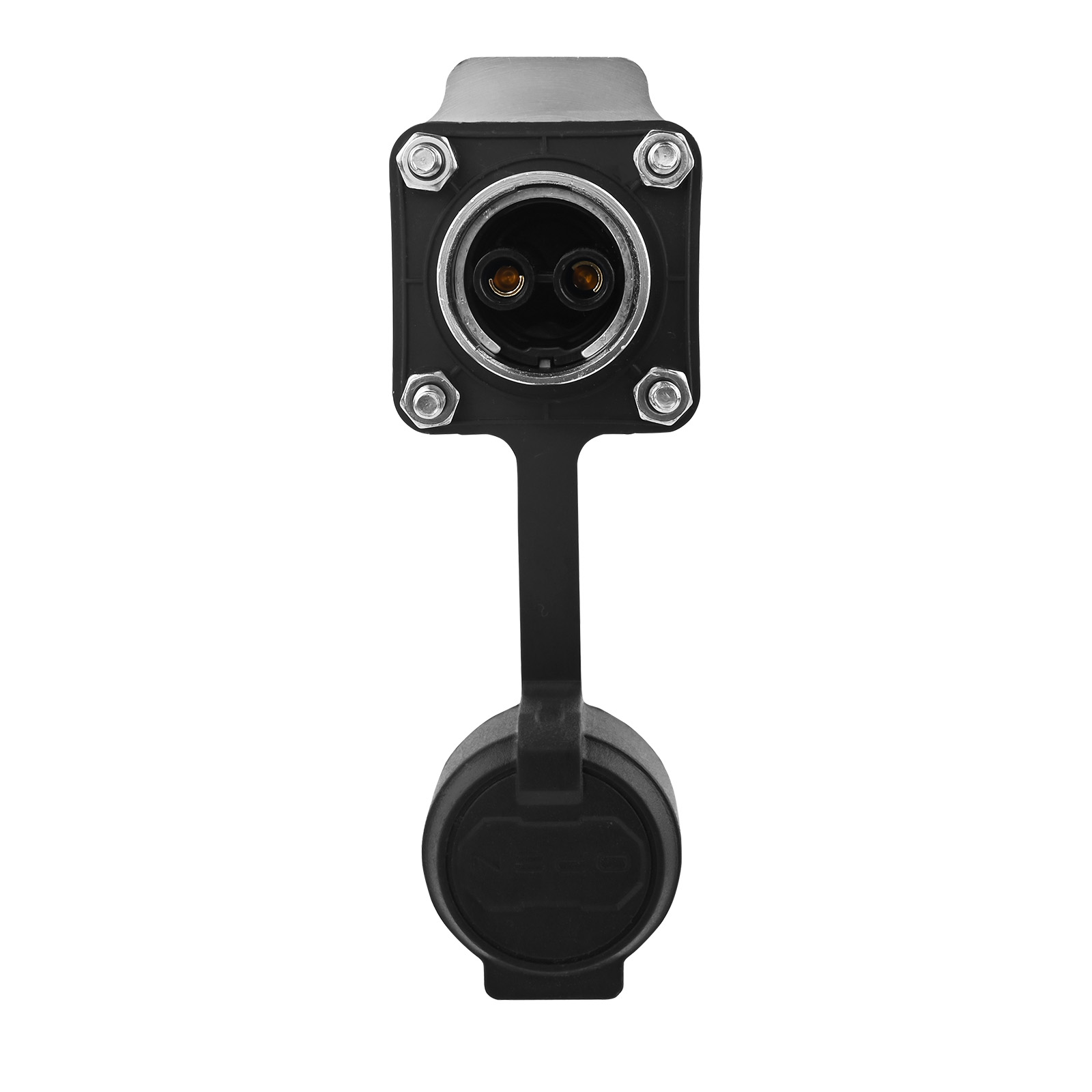

JRready JRSSW-CP20 Industrial Waterproof Connector, 2-Pin Soldering Female Receptacle with 4-Hole Flange Mount
1. Wire Range: 14AWG~18AWG (0.75~2.5mm²) ;
2. Termination Method: Soldering;

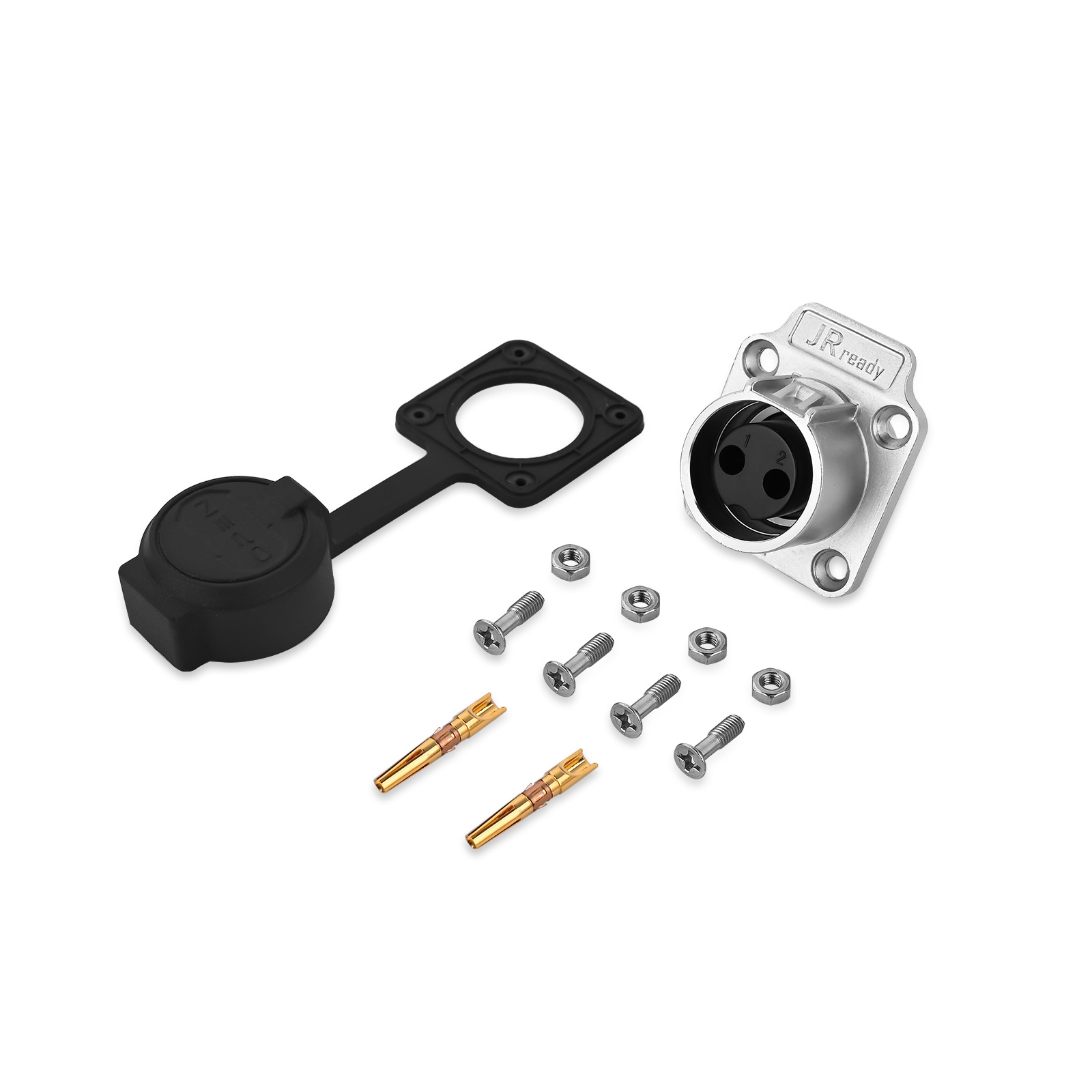

3. Removable Terminals;
4. Rated Current/Voltage: 16A Max / 500V AC;
5. Waterproof Rating: IP68 (Mated State) ;
6. Salt Spray Test: 72 hours;
7. Flammability Rating: UL94 V-0.
2. Termination Method: Soldering;
3. Removable Terminals;
4. Rated Current/Voltage: 16A Max / 500V AC;
5. Waterproof Rating: IP68 (Mated State) ;
6. Salt Spray Test: 72 hours;
7. Flammability Rating: UL94 V-0.
| Brand | JRready | Part Number | JRSSW-CP20-FM02-S4-SWN0046 |
| Category | JRSSW Series Connector | Colour | White |

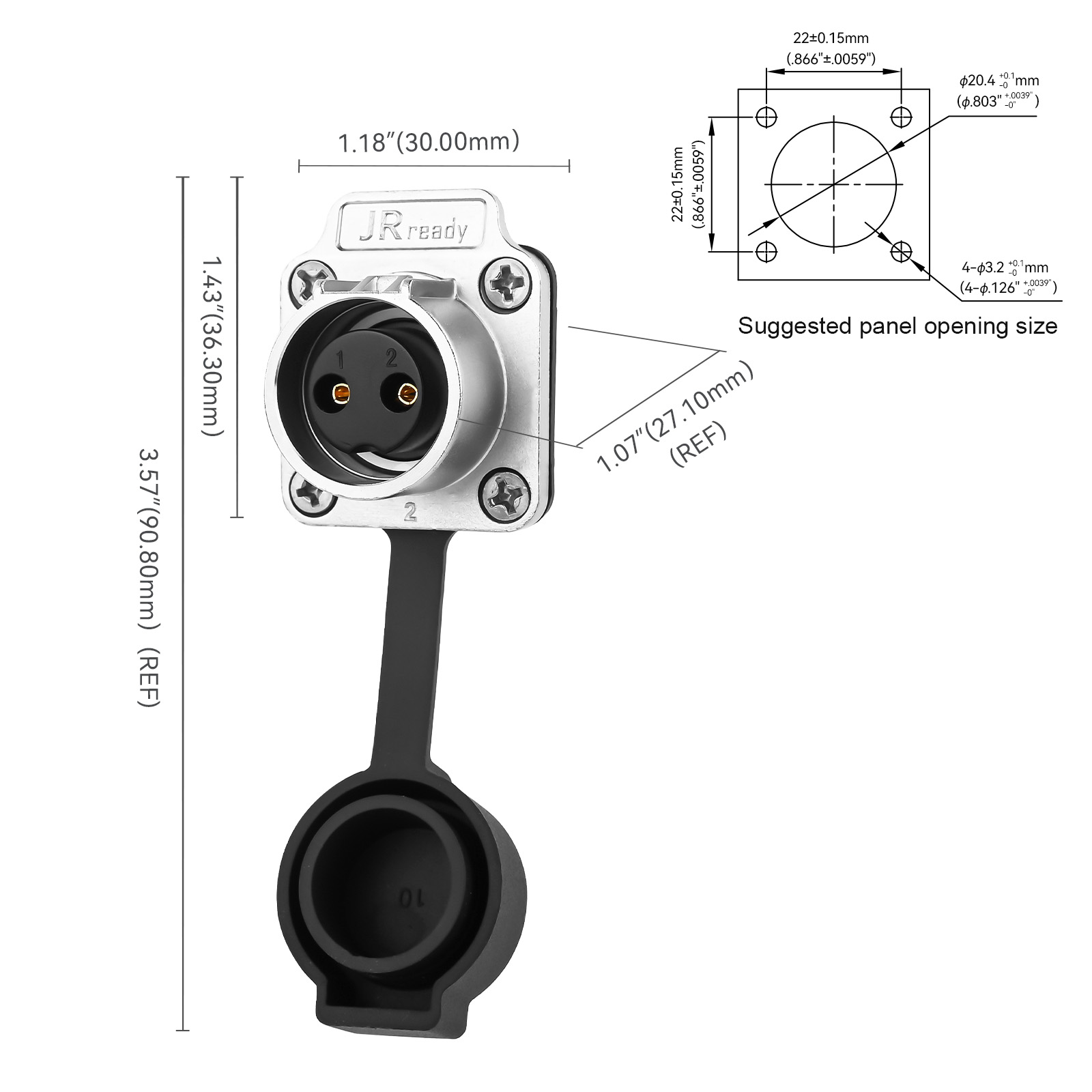

| Material | Zinc Alloy Housing with Pearl Chrome Plating | Dimension | 89.7*27.1*30（mm） |
| Country of Origin | CHINA | Weight | 45.2g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
