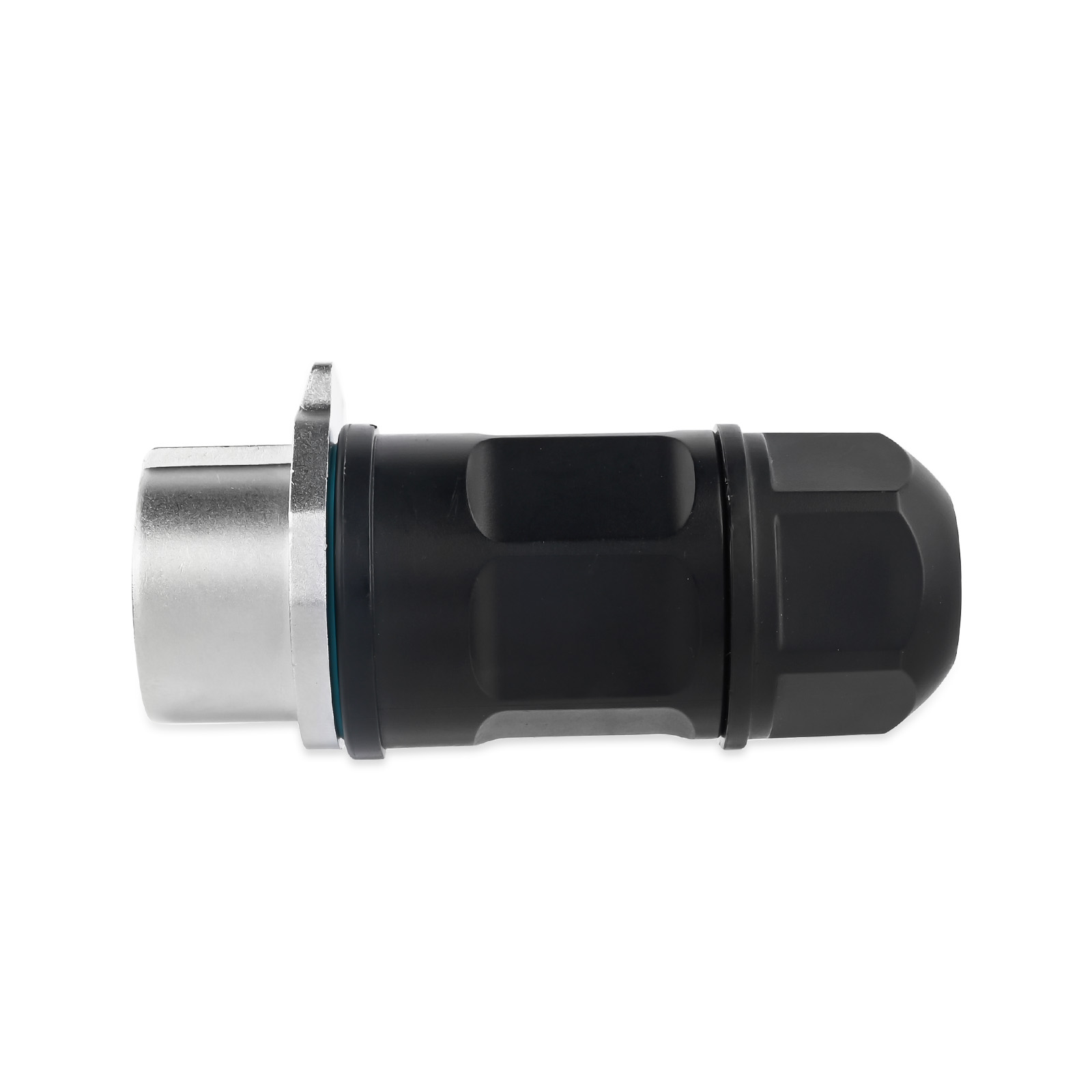

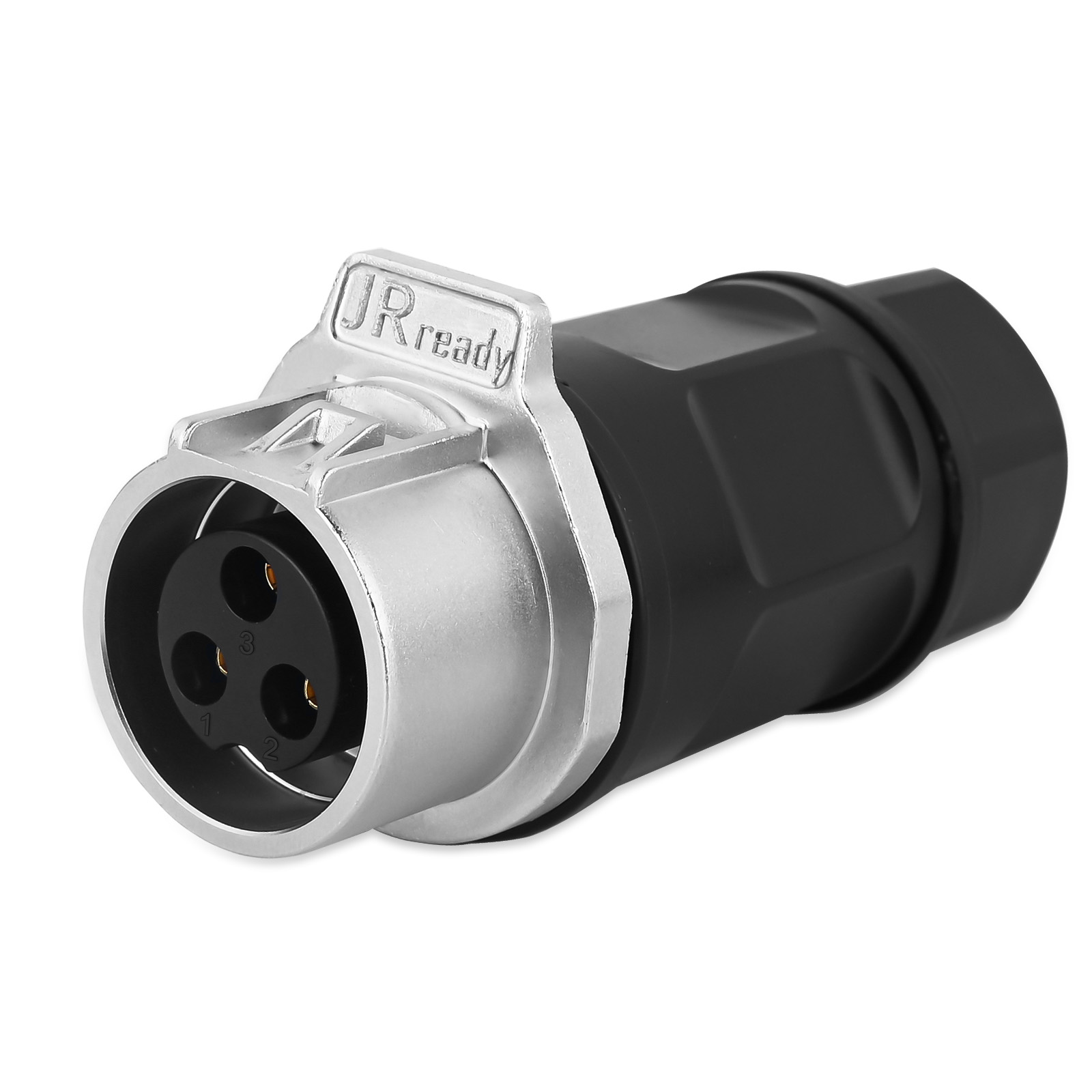

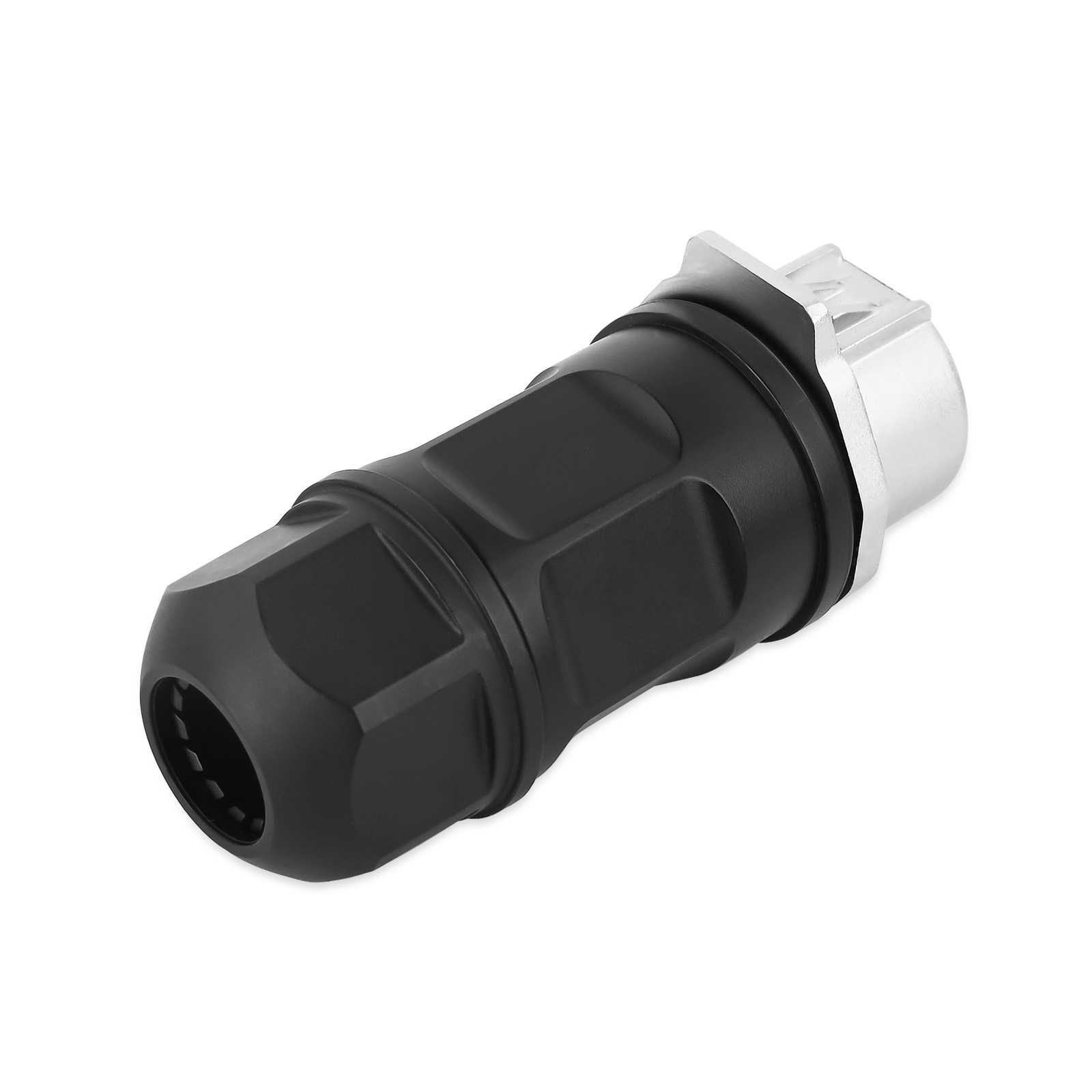

JRready JRSSW-CP20 3-Pin Crimping Female Plug Industrial Waterproof Connector
1. Wire Range: 14AWG~18AWG (0.75~2.5mm²);
2. Compatible Cable OD: φ5.5mm~φ12mm;
3. Termination Method: Crimping;

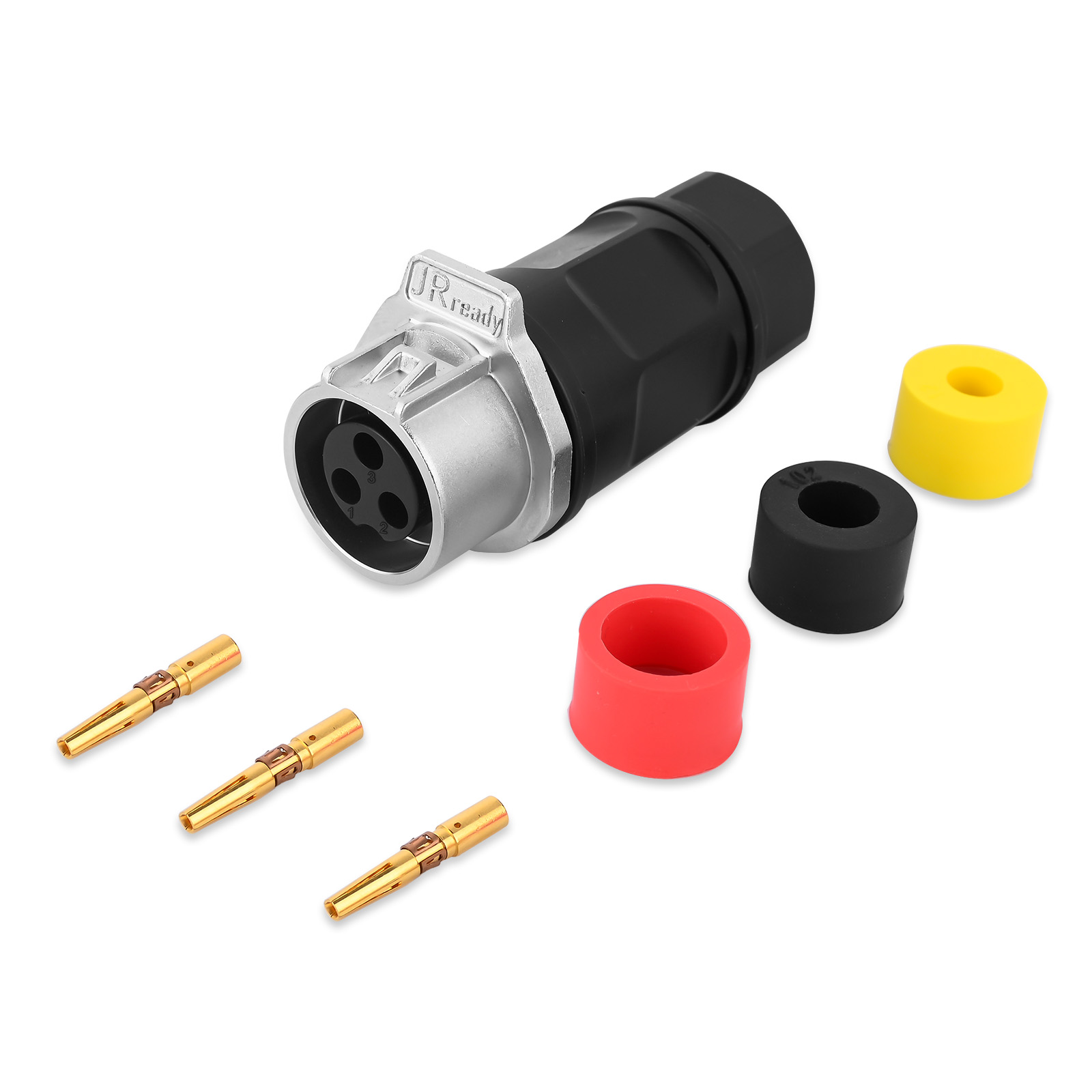

4. Removable Terminal(s);
5. Rated Current: 16A Max / Voltage: 500V AC;
6. Waterproof Rating: IP68 (Mated State) ;
7. Salt Spray Test: 72 hours;
8. Flammability Rating: UL94 V-0.
2. Compatible Cable OD: φ5.5mm~φ12mm;
3. Termination Method: Crimping;
4. Removable Terminal(s);
5. Rated Current: 16A Max / Voltage: 500V AC;
6. Waterproof Rating: IP68 (Mated State) ;
7. Salt Spray Test: 72 hours;
8. Flammability Rating: UL94 V-0.
| Brand | JRready | Part Number | JRSSW-CP20-FP03-A0-SCN0014 |
| Category | JRSSW Series Connector | Colour | Chrome Plating (Silvery White) + Black Housing |

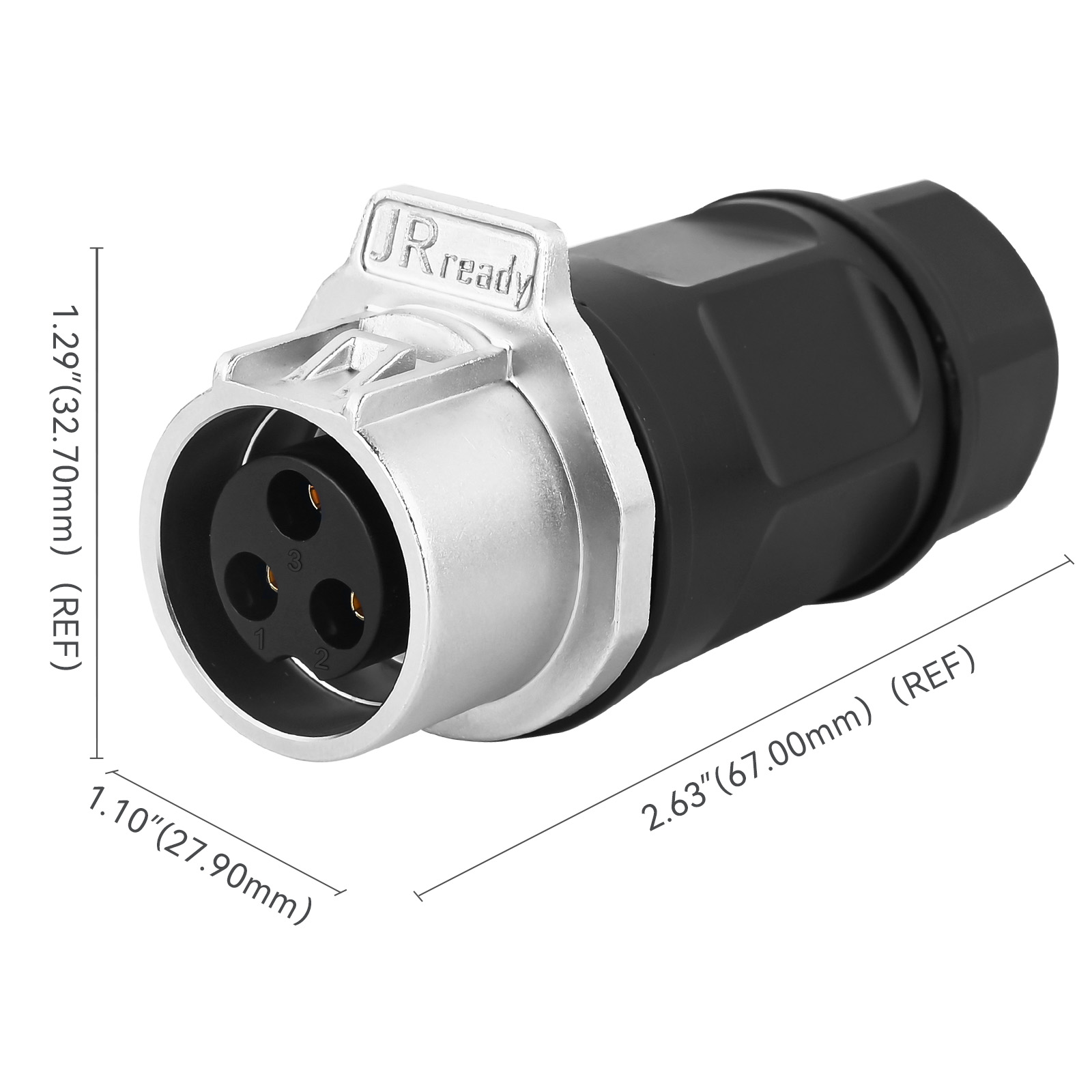

| Material | Zinc Alloy (Single Mounting Hole Socket), PBT+PC Blend (Plastic Mating Housing) | Dimension | 67*32.7*27.9（mm） |
| Country of Origin | CHINA | Weight | 53.1g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
