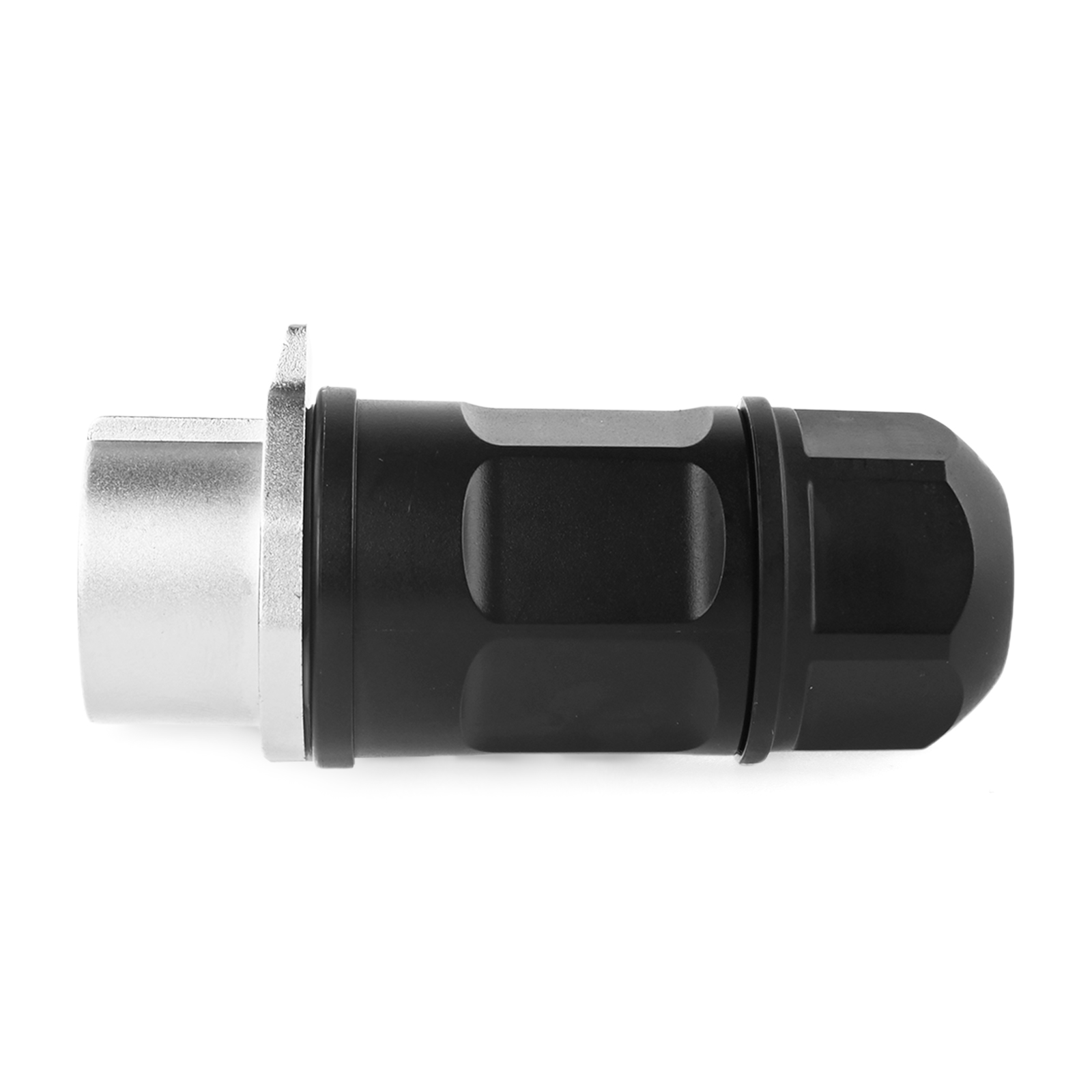

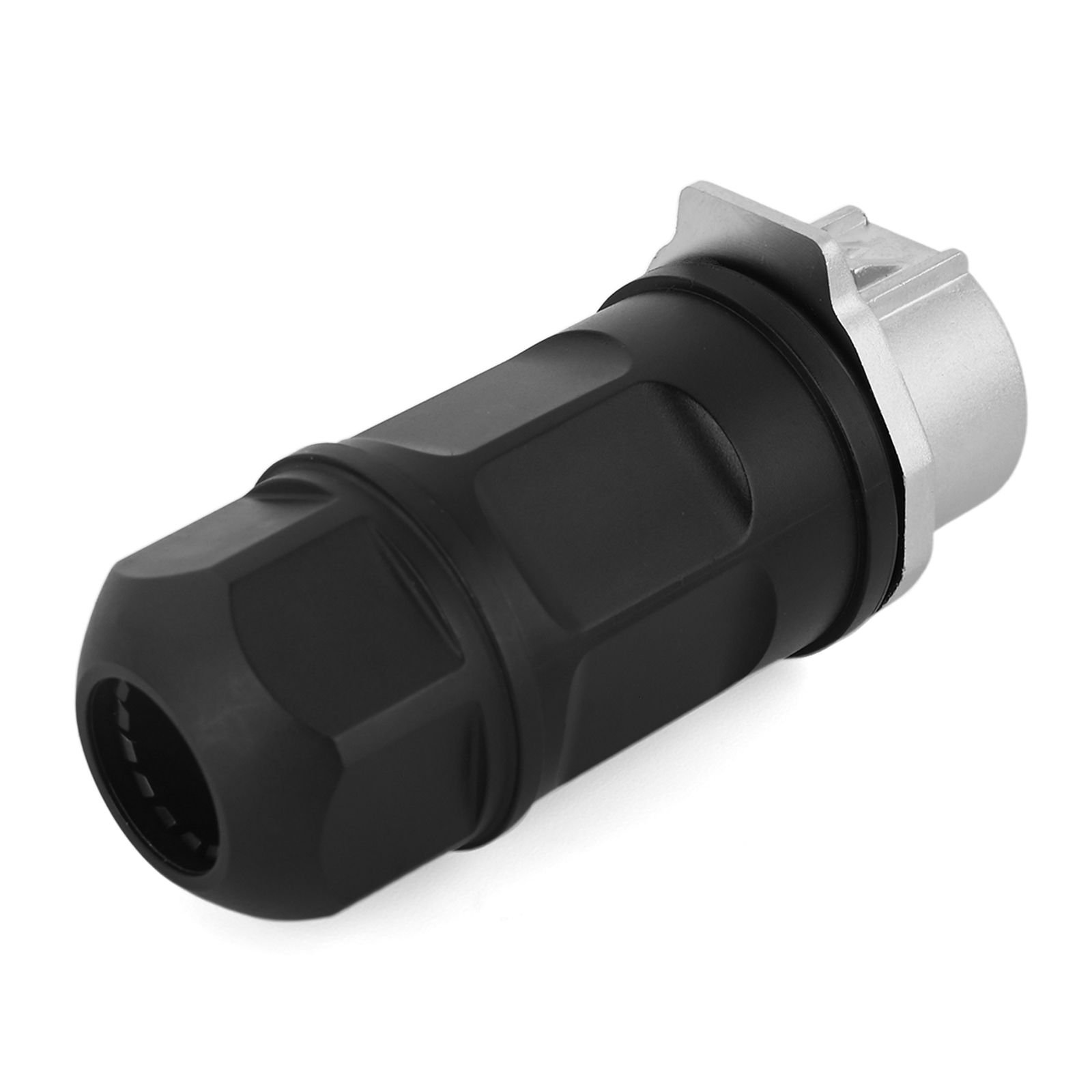

JRready JRSSW-CP20 2-Pin Soldering Female Mating Plug Industrial Waterproof Connector
1. Wire Range: 14-18AWG (0.75-2.5mm²);
2. Compatible Cable OD: Ø5.5-12mm ;
3.Termination Method: Soldering;
4. Removable Contacts;
5. Rated Current: 16A Max / Voltage: 500V AC;
6. Waterproof Rating: IP68 (Mated State) ;
7. Salt Spray Test: 72 hours;
8. Flammability Rating: UL94 V-0;
2. Compatible Cable OD: Ø5.5-12mm ;
3.Termination Method: Soldering;
4. Removable Contacts;
5. Rated Current: 16A Max / Voltage: 500V AC;
6. Waterproof Rating: IP68 (Mated State) ;
7. Salt Spray Test: 72 hours;
8. Flammability Rating: UL94 V-0;
| Brand | JRready | Part Number | JRSSW-CP20-FP02-A0-SWN0049 |
| Category | JRSSW Series Connectors | Colour | Chrome Plating (Silvery White) + Black Housing |

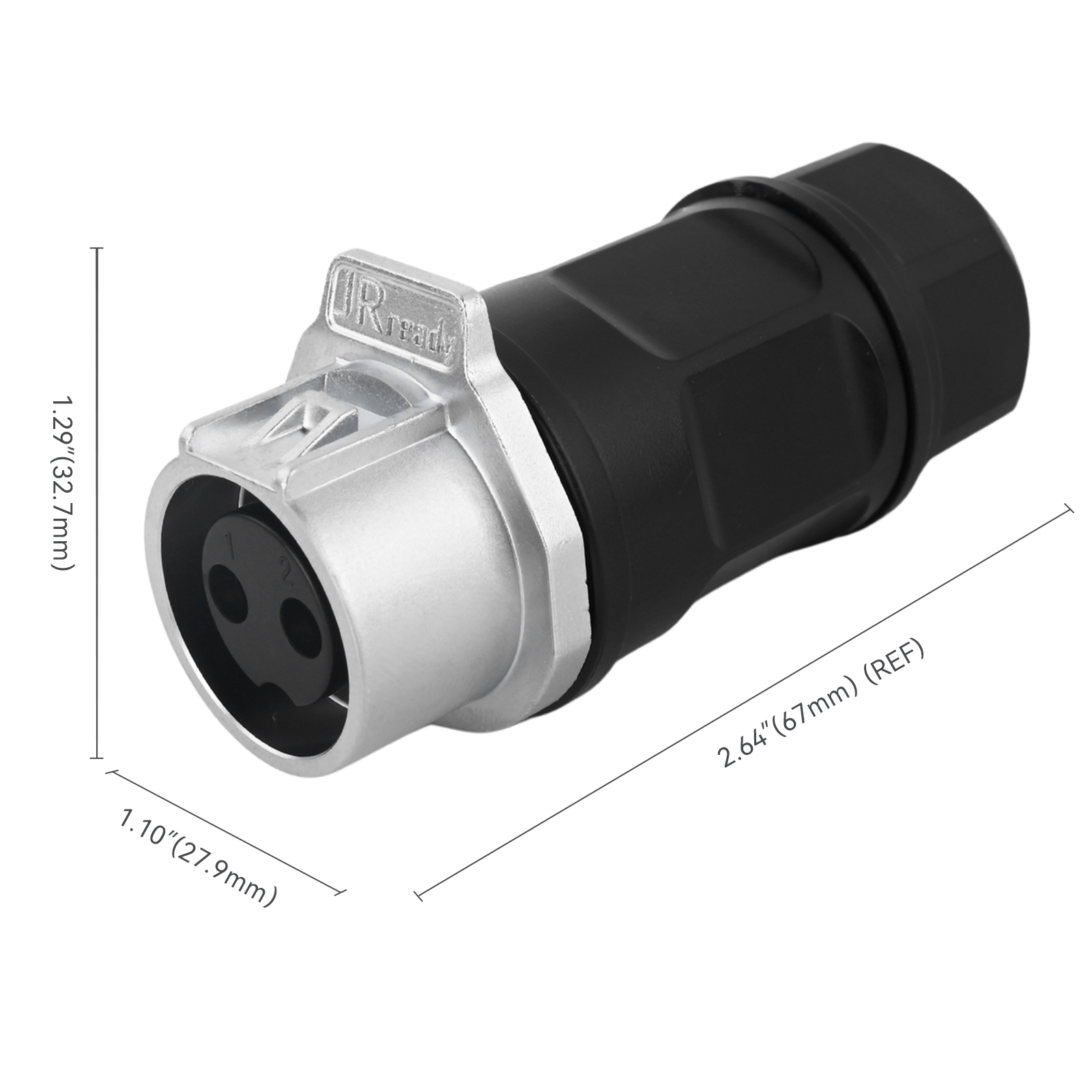

| Material | Zinc Alloy (Single Mounting hole Socket) 、PBT+PC (Plastic Mating Shell) | Dimension | 67*32.7*27.9（mm） |
| Country of Origin | CHINA | Weight | 51.7g |
| Application | Applied in industrial automation, marine systems, energy, and urban infrastructure sectors. | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | 0 |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
