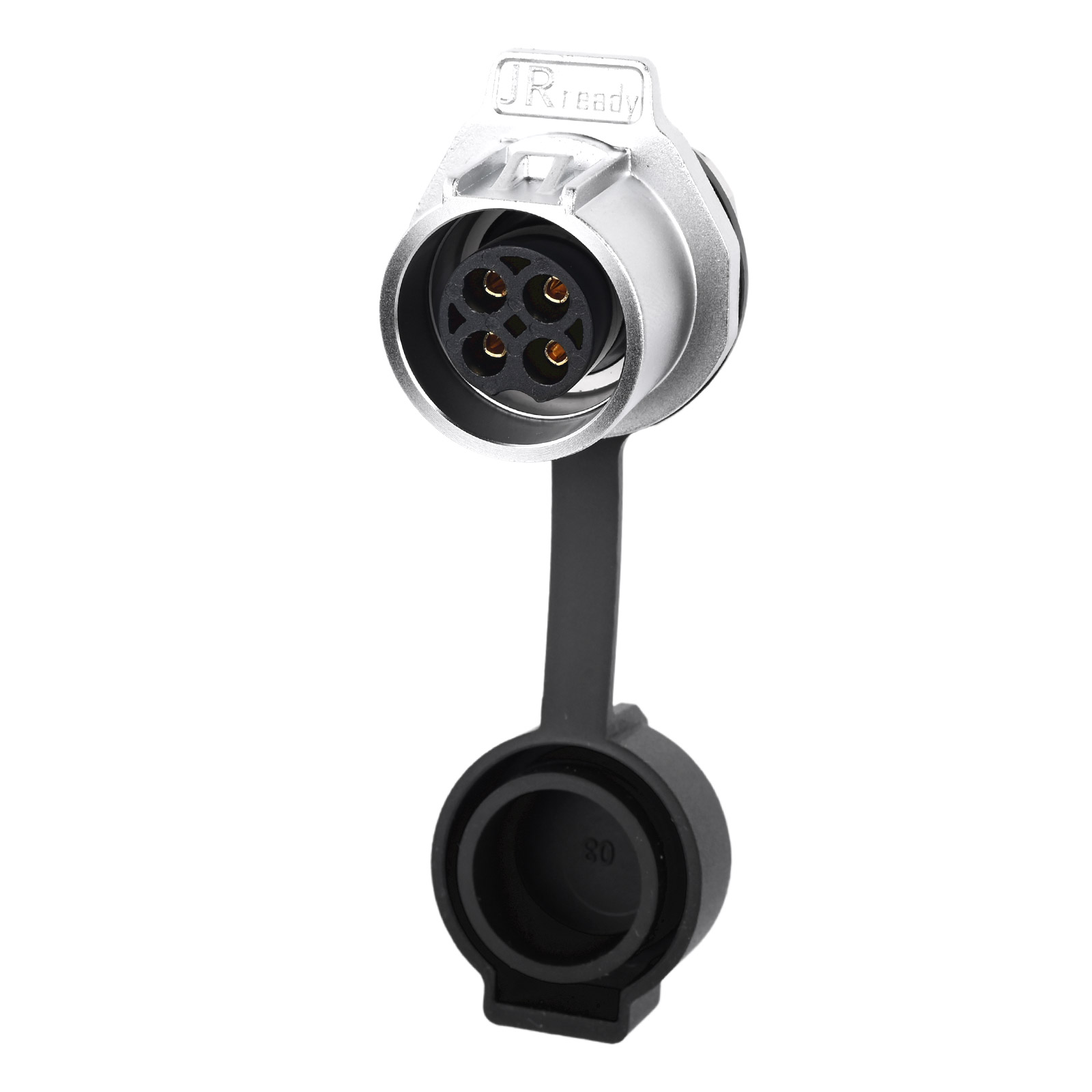

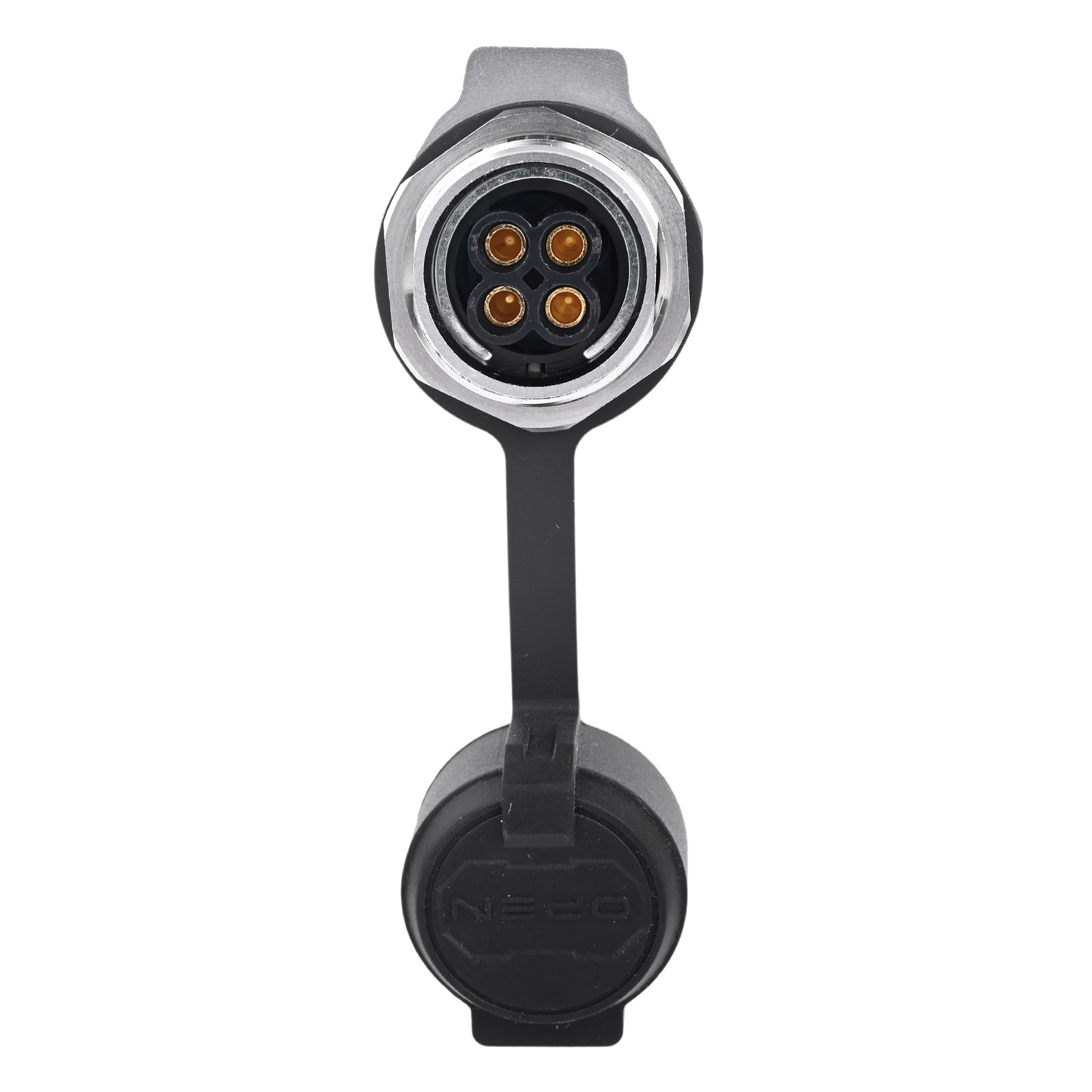

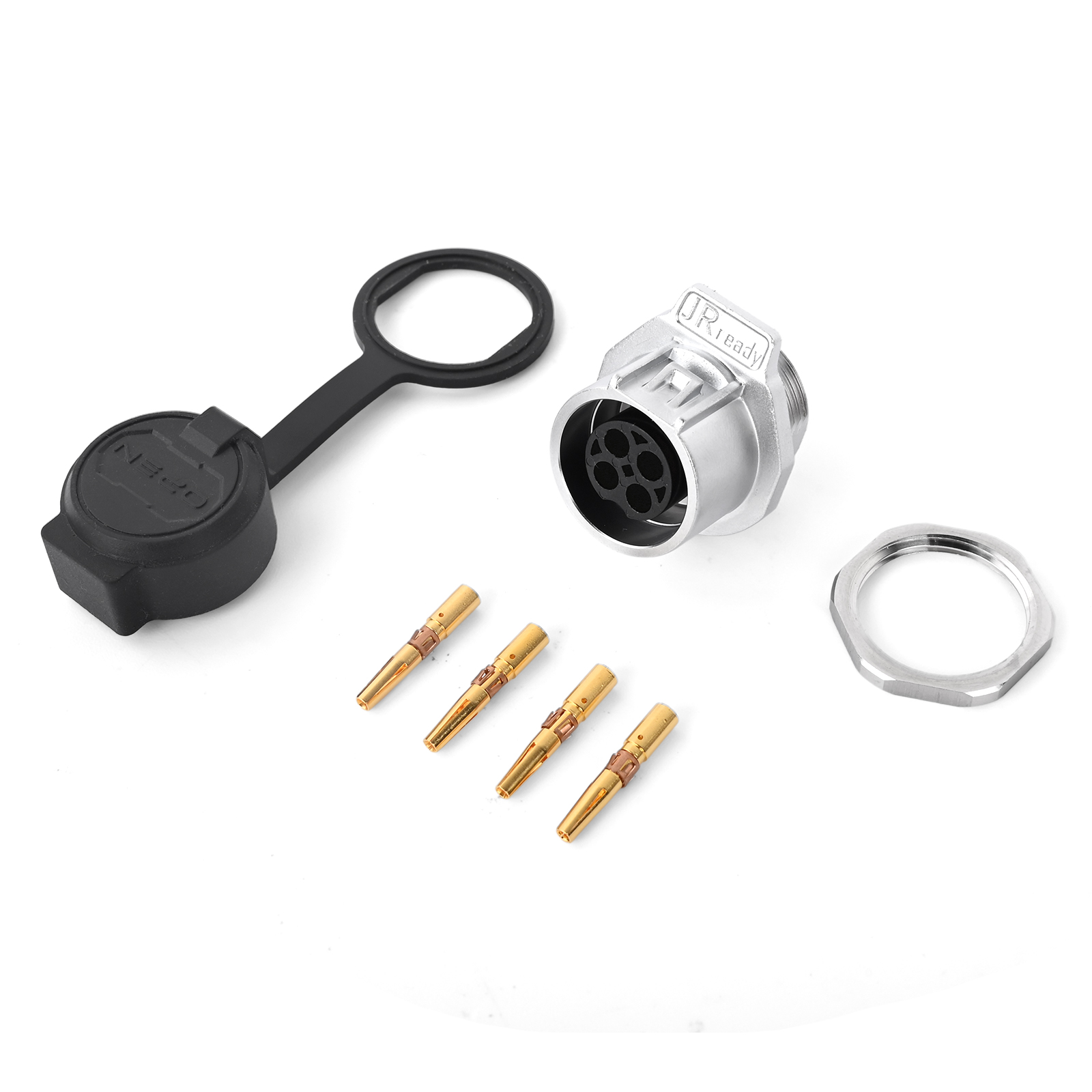

JRready JRSSW-CP20 4-Pin Single Mounting Hole Crimping Female Receptacle，Industrial Waterproof Connector
1. Wire Range: 14-18AWG (0.75-2.5mm²)；
2.Termination Method: Crimping；
3. Removable Contacts；
4. Rated Current: 16A Max / Voltage: 500V AC;
5. Waterproof Rating: IP68 (Mated State) ;
6. Salt Spray Test: 72 hours;
2.Termination Method: Crimping；
3. Removable Contacts；
4. Rated Current: 16A Max / Voltage: 500V AC;
5. Waterproof Rating: IP68 (Mated State) ;
6. Salt Spray Test: 72 hours;
| Brand | JRready | Part Number | JRSSW-CP20-FM04-S1-SCN0006 |
| Category | JRSSW Series Connectors | Colour | Chrome Plating (Silvery White) |
| Material | Zinc Alloy Housing (Pearl Chrome) | Dimension | 85*29.6*27.1（mm） |
| Country of Origin | China | Weight | 44.1g |
| Application | Applications: Industrial Automation, Marine, Energy, Urban Infrastructure | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
