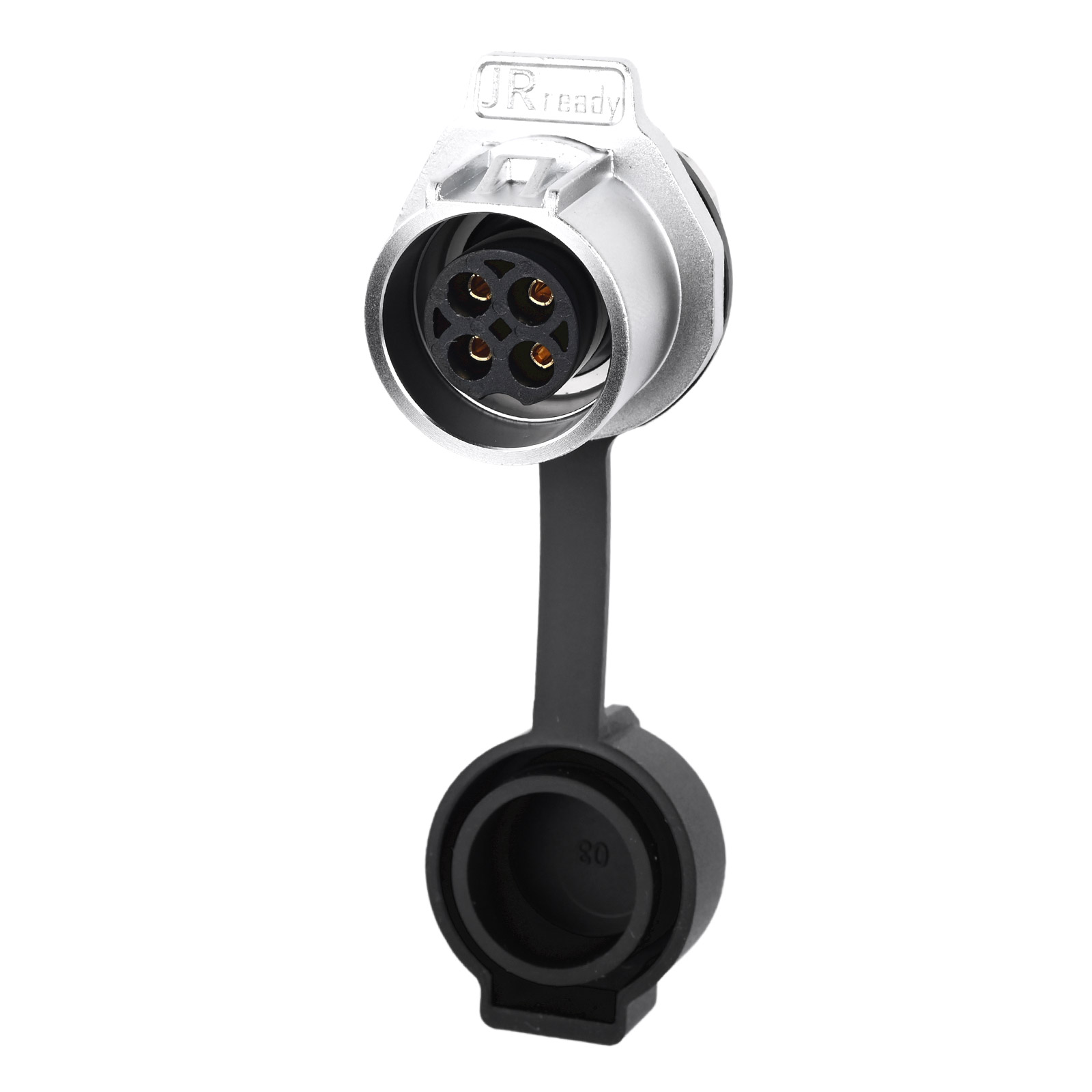

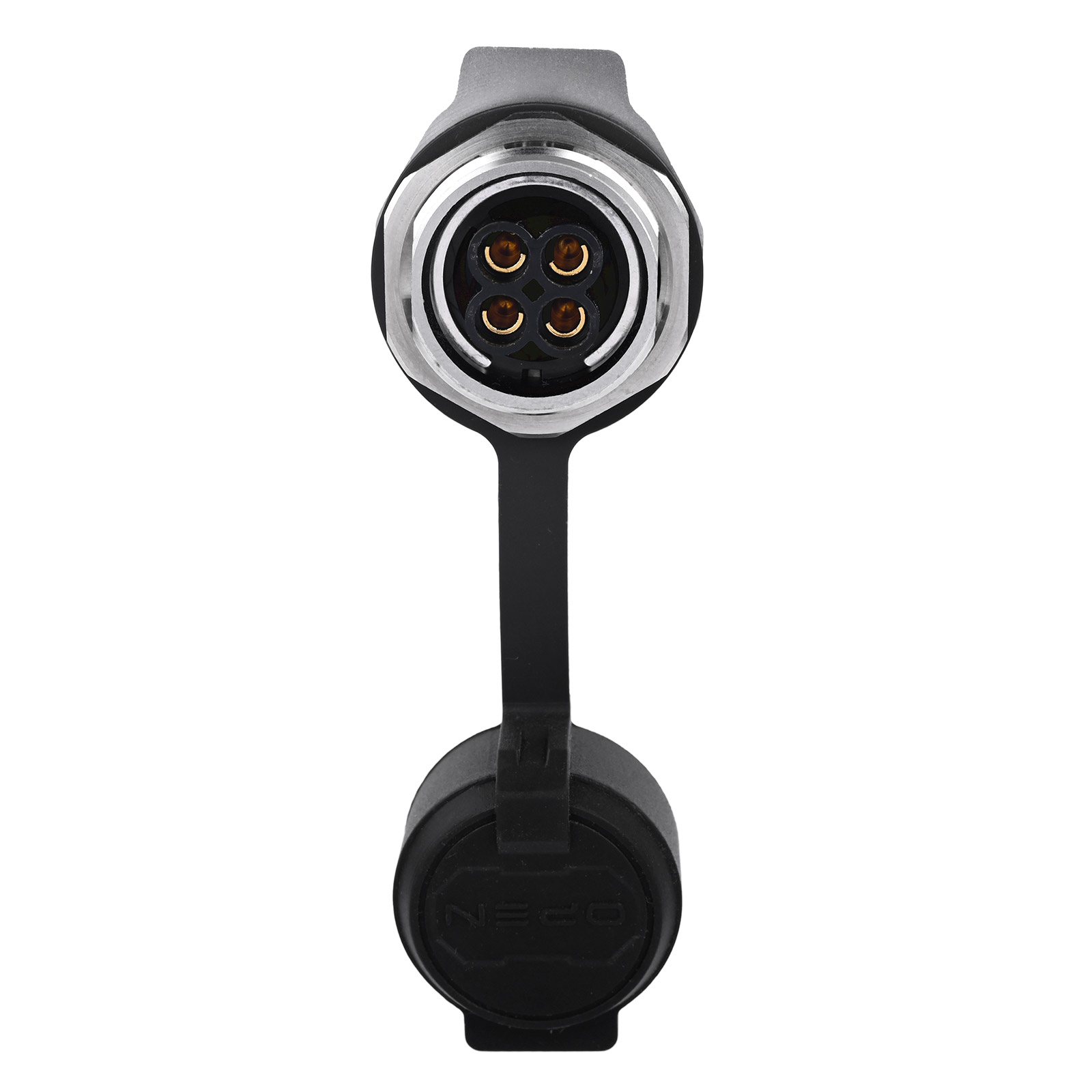

JRready JRSSW-CP20 4-Pin Single Mounting Hole Soldering Female Receptacle, Industrial Waterproof Connector
1. Wire Range: 14-18AWG (0.75-2.5mm²)；
2.Termination Method: Soldering；

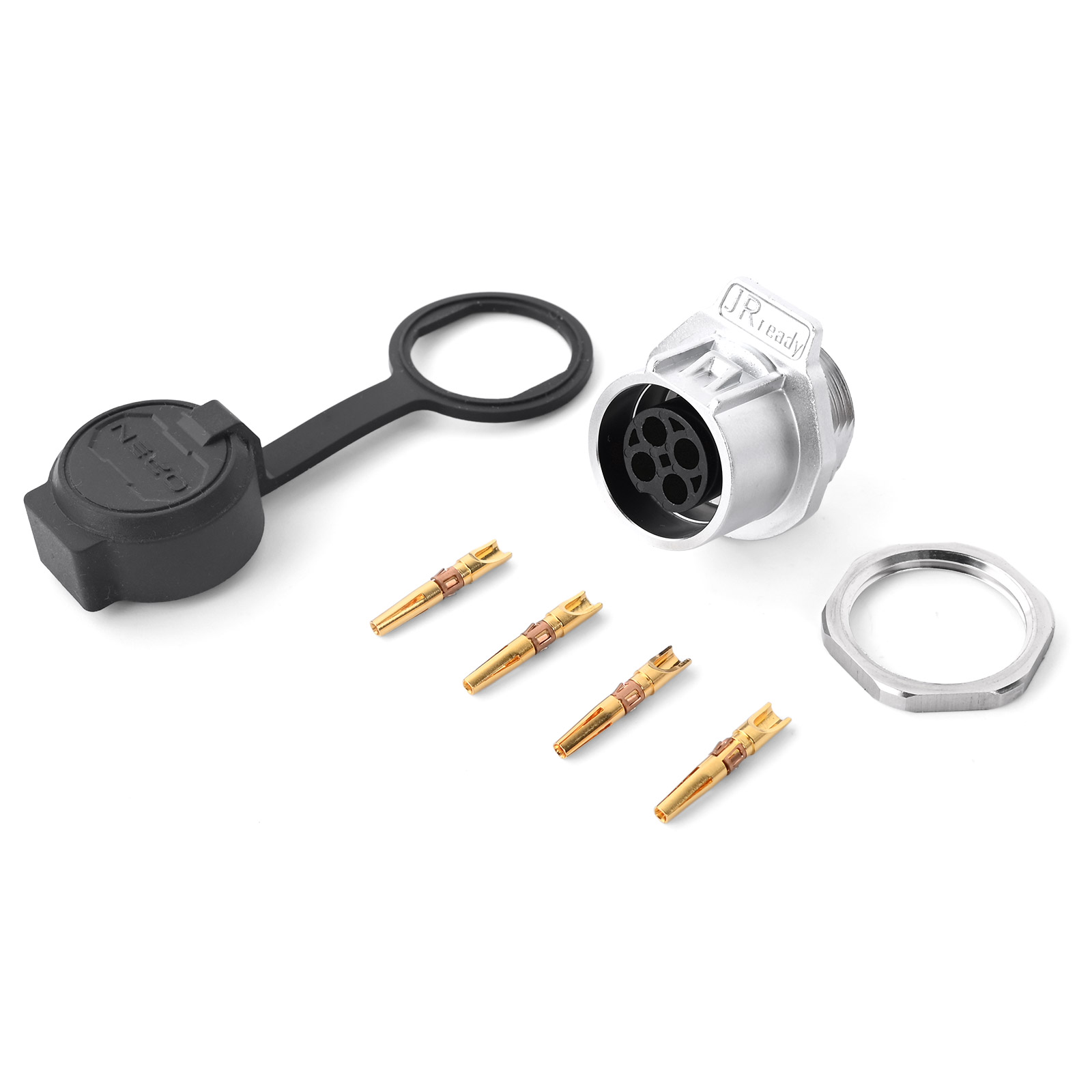

3. Removable Contacts；
4. Rated Current: 16A Max / Voltage: 500V AC;
5. Waterproof Rating: IP68 (Mated State) ;
6. Salt Spray Test: 72 hours;
7. Flammability Rating: UL94 V-0.
2.Termination Method: Soldering；
3. Removable Contacts；
4. Rated Current: 16A Max / Voltage: 500V AC;
5. Waterproof Rating: IP68 (Mated State) ;
6. Salt Spray Test: 72 hours;
7. Flammability Rating: UL94 V-0.
| Brand | JRready | Part Number | JRSSW-CP20-FM04-S1-SWN0042 |
| Category | JRSSW Series Connectors | Colour | Chrome Plating (Silvery White) |

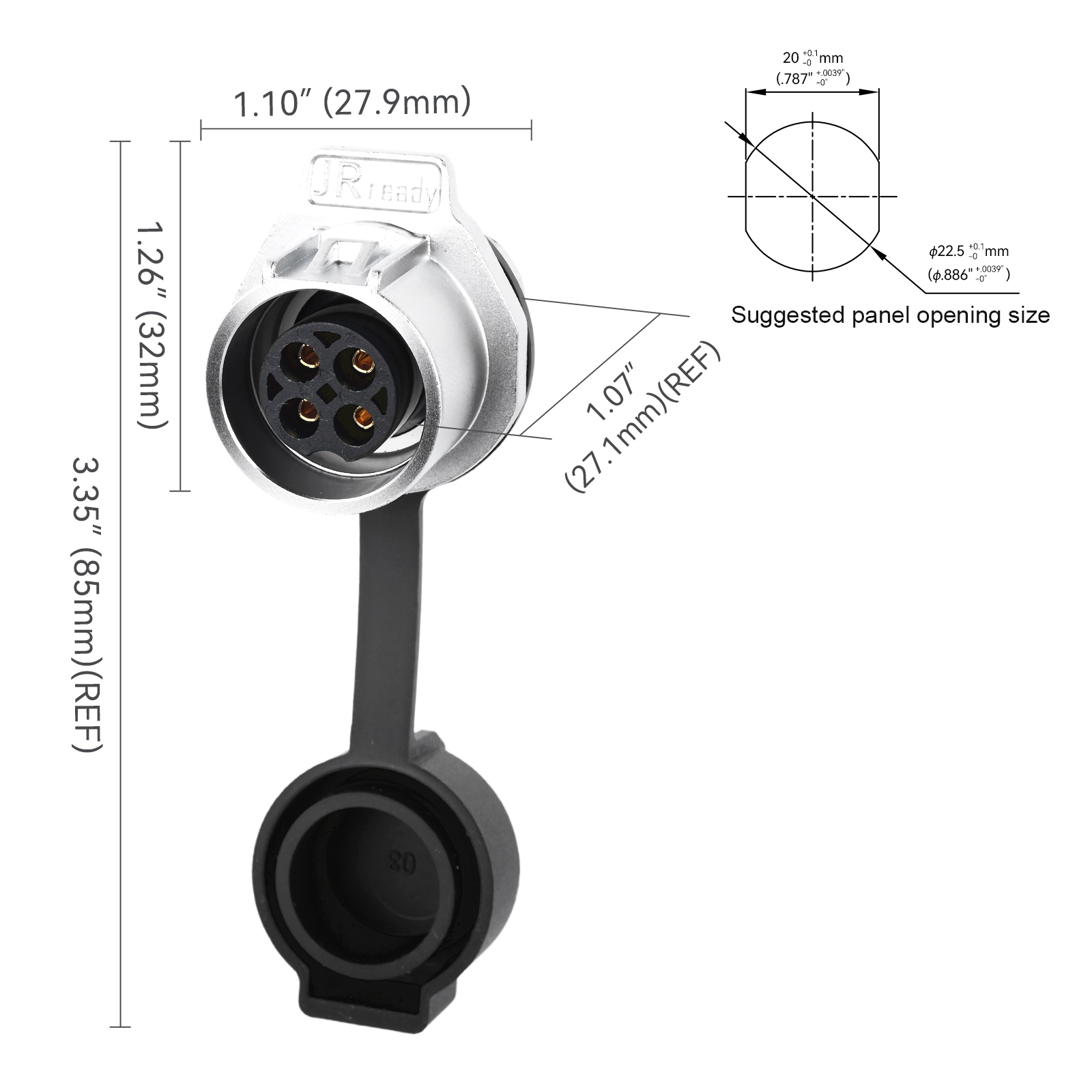

| Material | Zinc Alloy Housing (Pearl Chrome) | Dimension | 85*29.6*27.1（mm） |
| Country of Origin | China | Weight | 43.5g |
| Application | Applications: Industrial Automation, Marine, Energy, Urban Infrastructure | ||
| Working Temperature | -40℃~+80℃ | Working Pressure | / |
| Rated Voltage | 500V AC | Rated Current | 16A Max |
