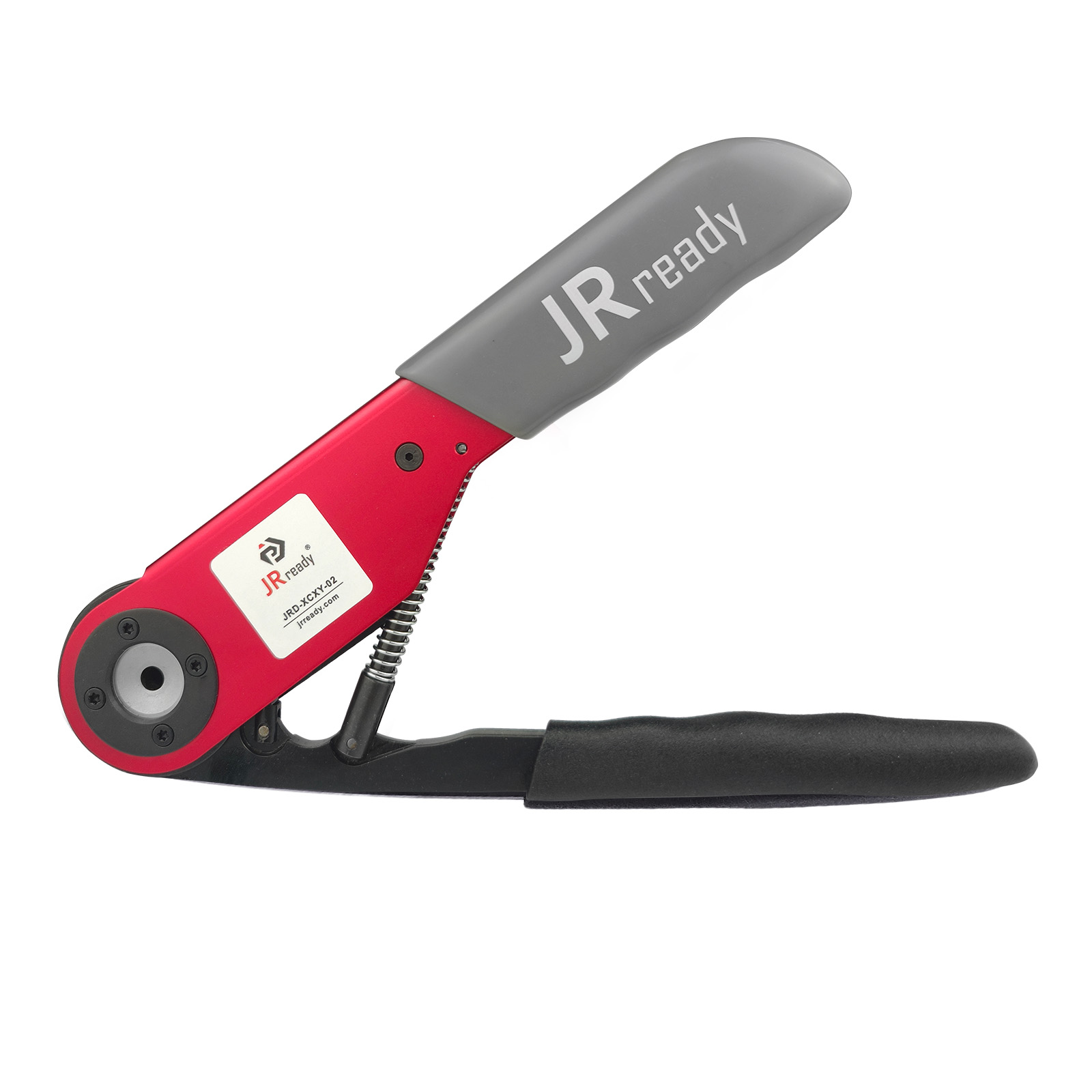

JRready JRD-XCXY-02 Four-way Indent Manual Crimping Tool
1、Manual four-indenter crimping tool, GJB-compliant model;
2、Suitable for crimping 12#, 16#, and 20# terminals in ZH8525 (GJB598) series, ZH83723 series, and JY27 (GJB599) series connectors;

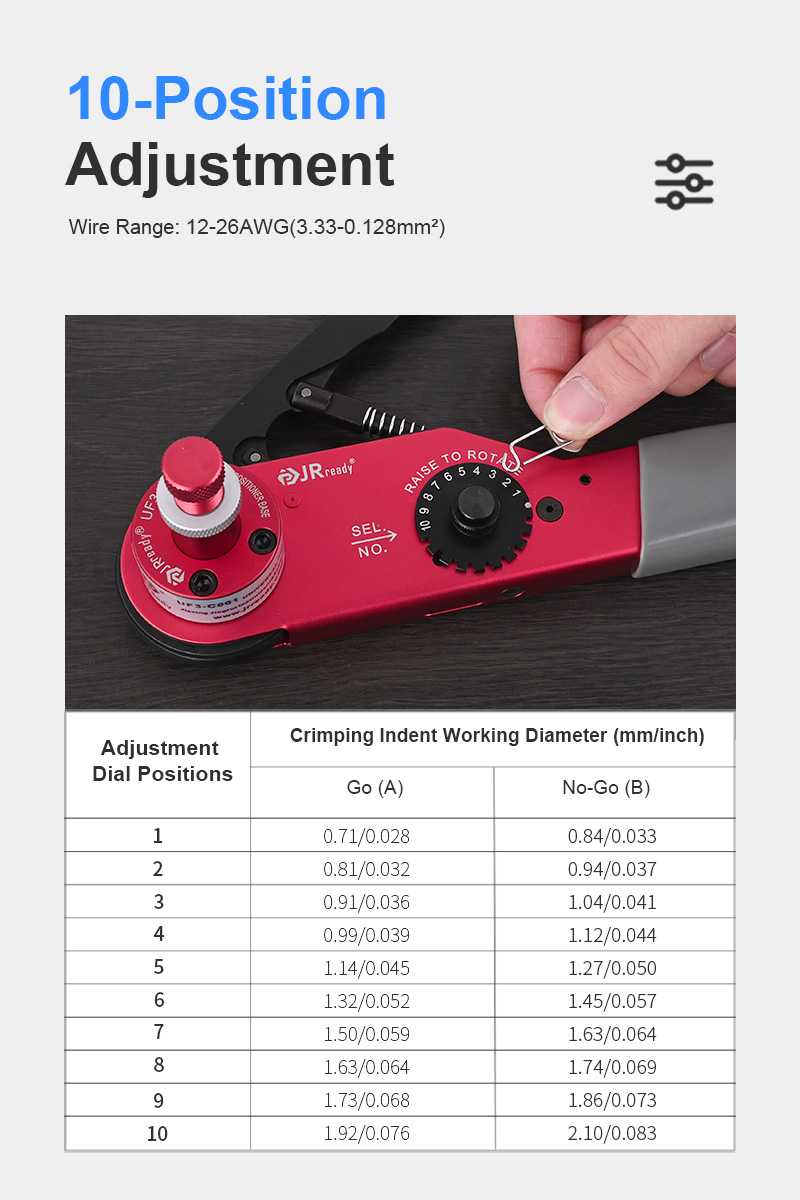

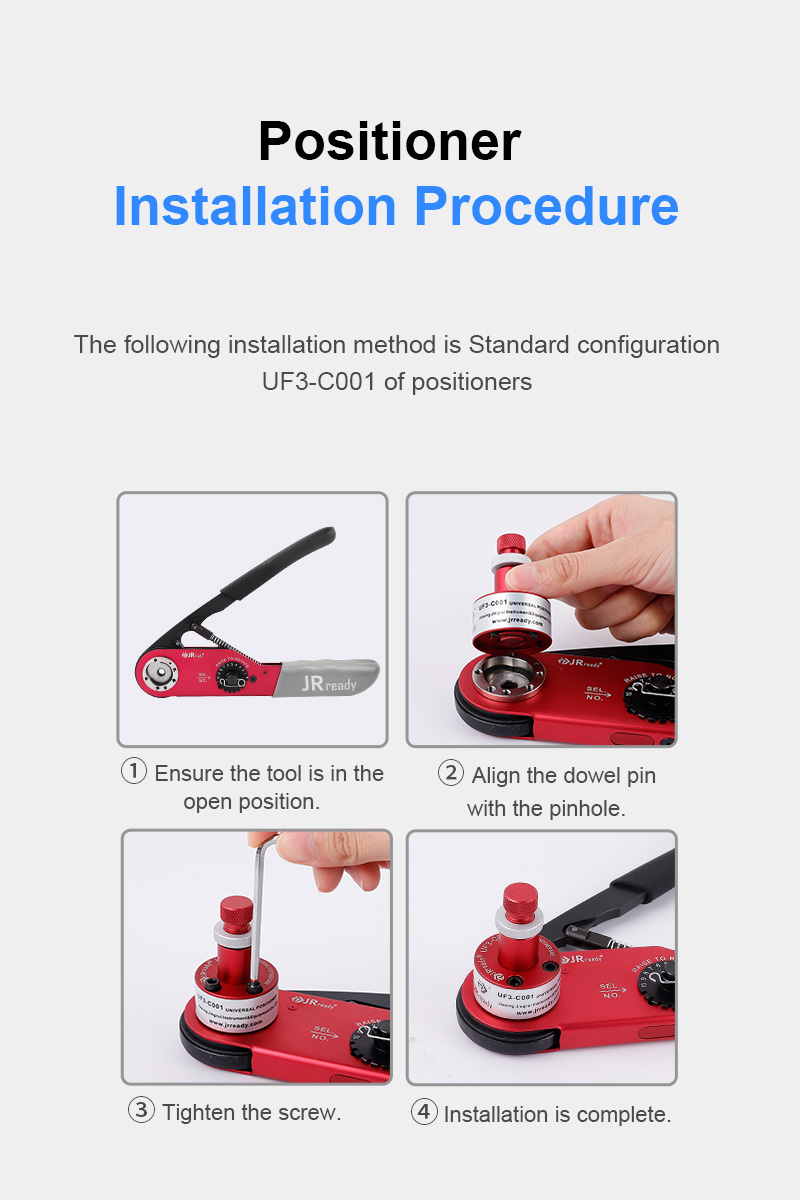

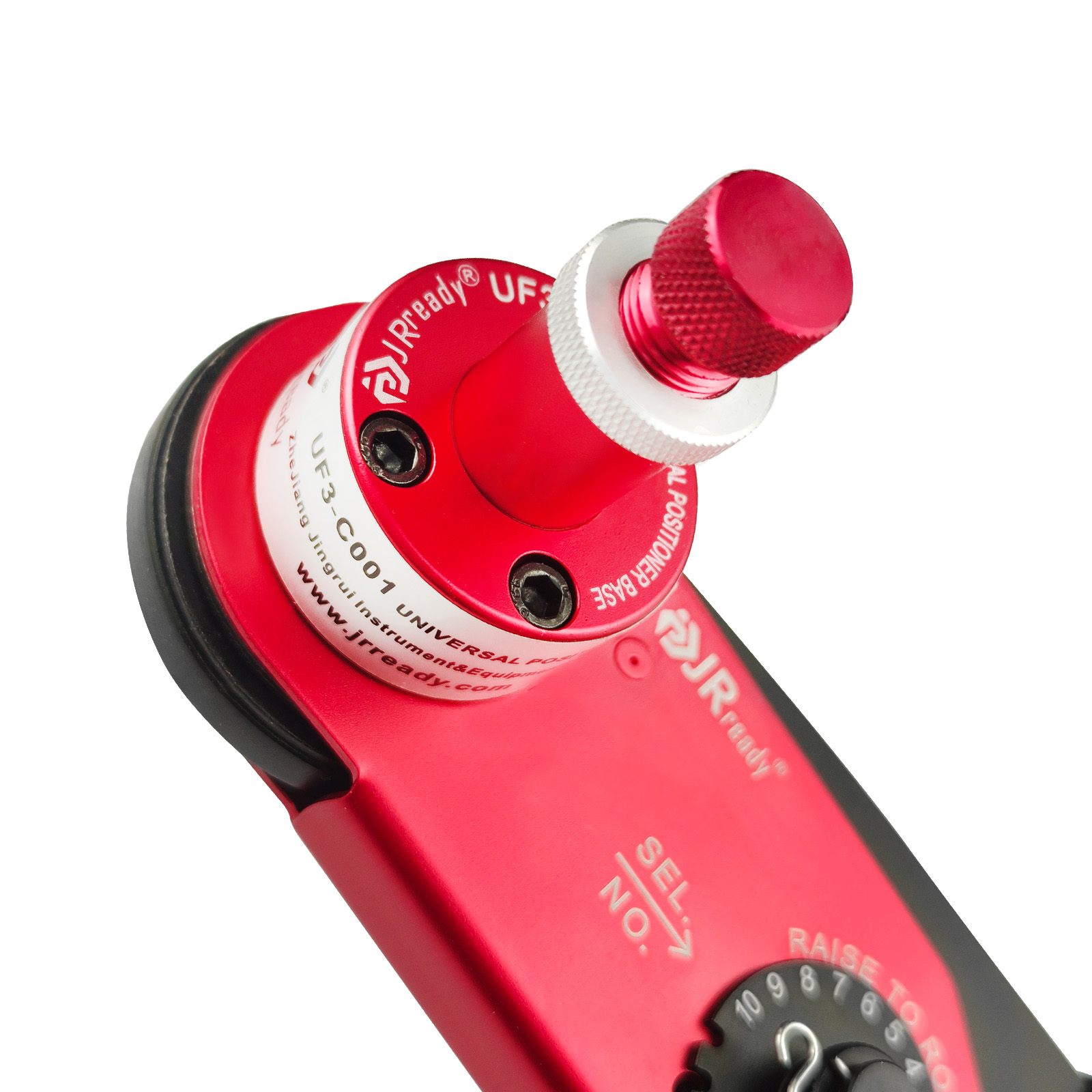

3、Standard equipped with locator UF3-C001; 10-position adjustable;
4、Through-hole diameter φ6.5mm.
2、Suitable for crimping 12#, 16#, and 20# terminals in ZH8525 (GJB598) series, ZH83723 series, and JY27 (GJB599) series connectors;
3、Standard equipped with locator UF3-C001; 10-position adjustable;
4、Through-hole diameter φ6.5mm.
| Brand | JRready | Part Number | JRD-XCXY-02 |
| Category | Four-way Indent Manual Crimp Tool | Colour | RED |
| Material | Mold Steel | Dimension | 248*29*60mm |
| Country of Origin | China | Weight | 629.5g |
| Application | Suitable for crimping 12#, 16#, and 20# terminals in ZH8525 (GJB598) series, ZH83723 series, and JY27 (GJB599) series connectors | ||
