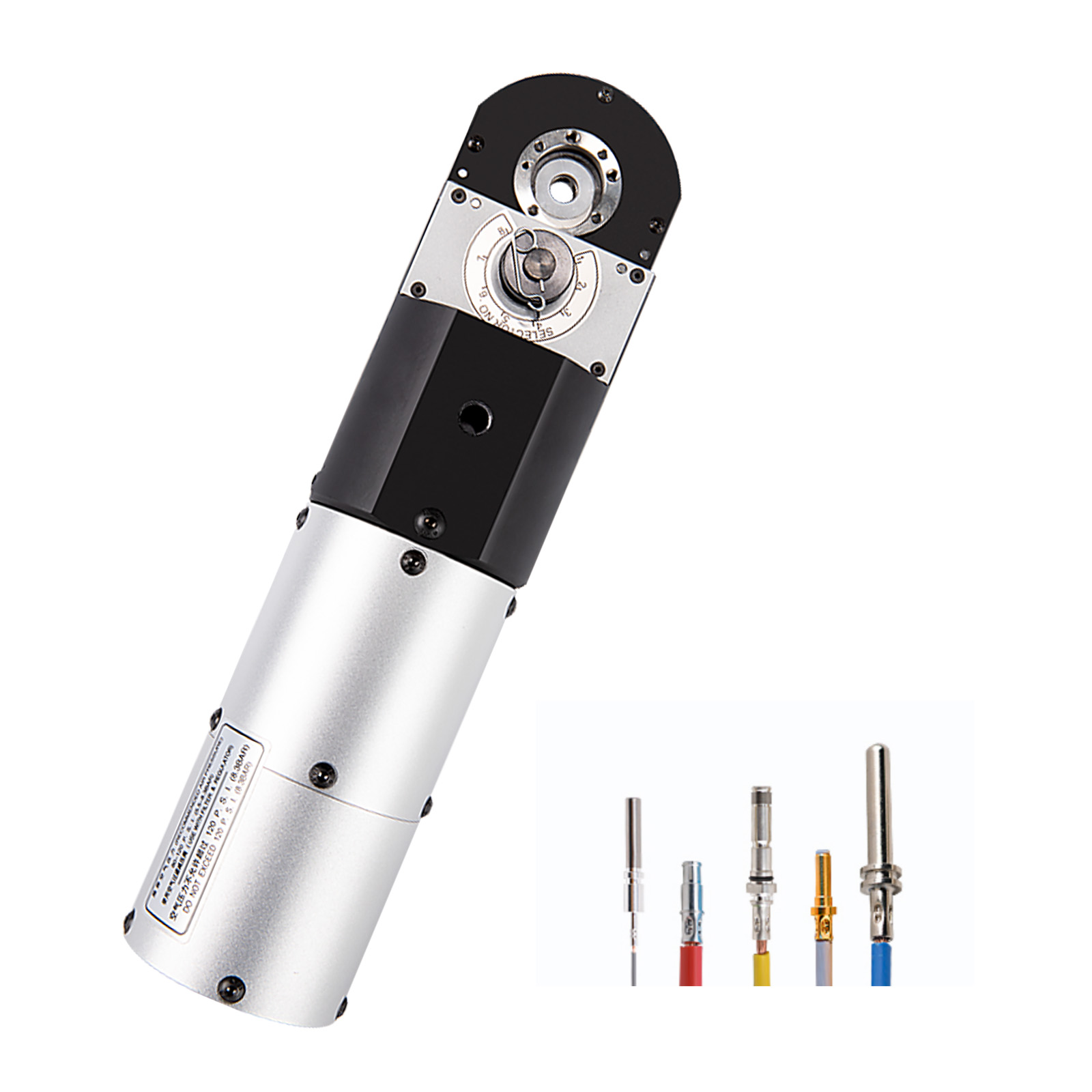

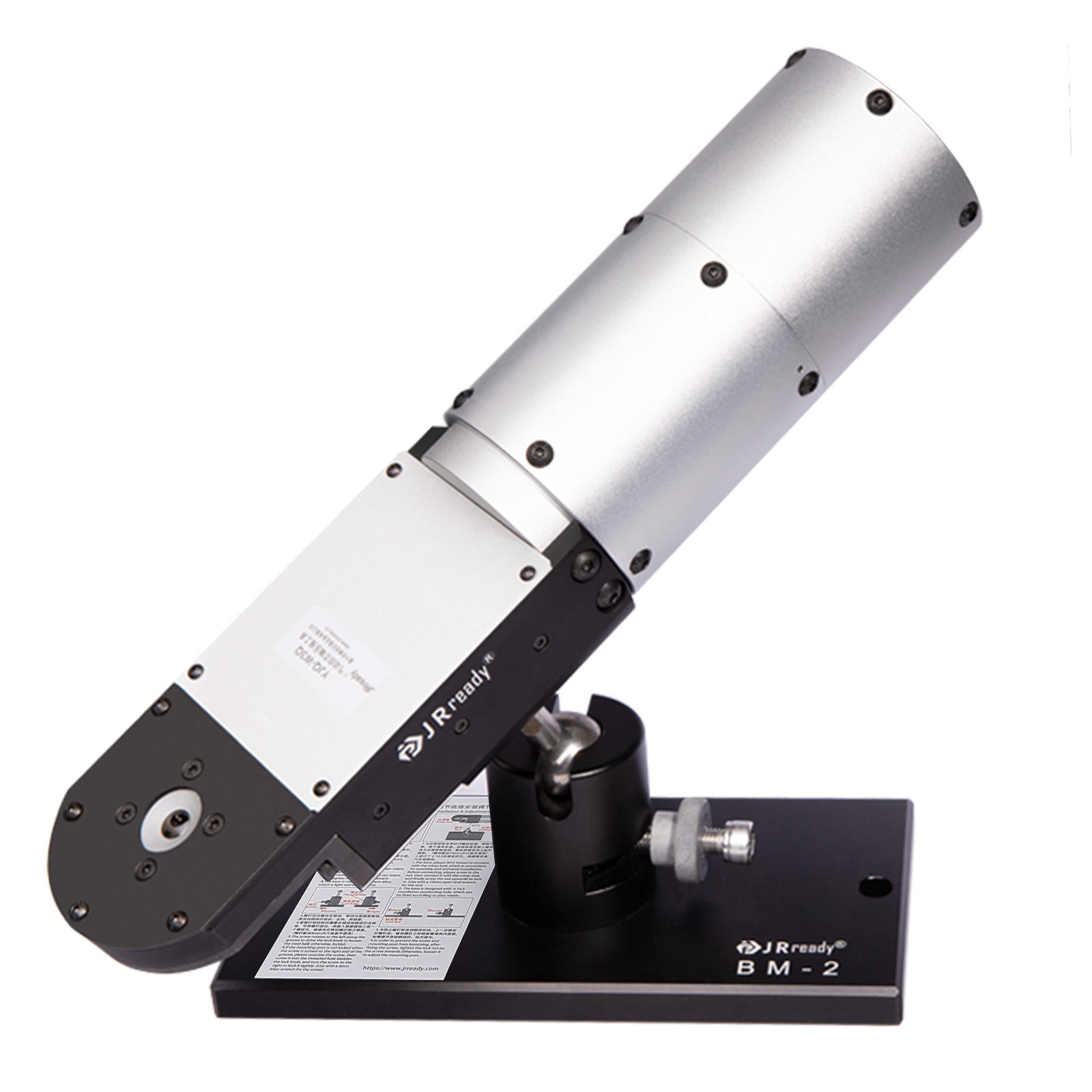

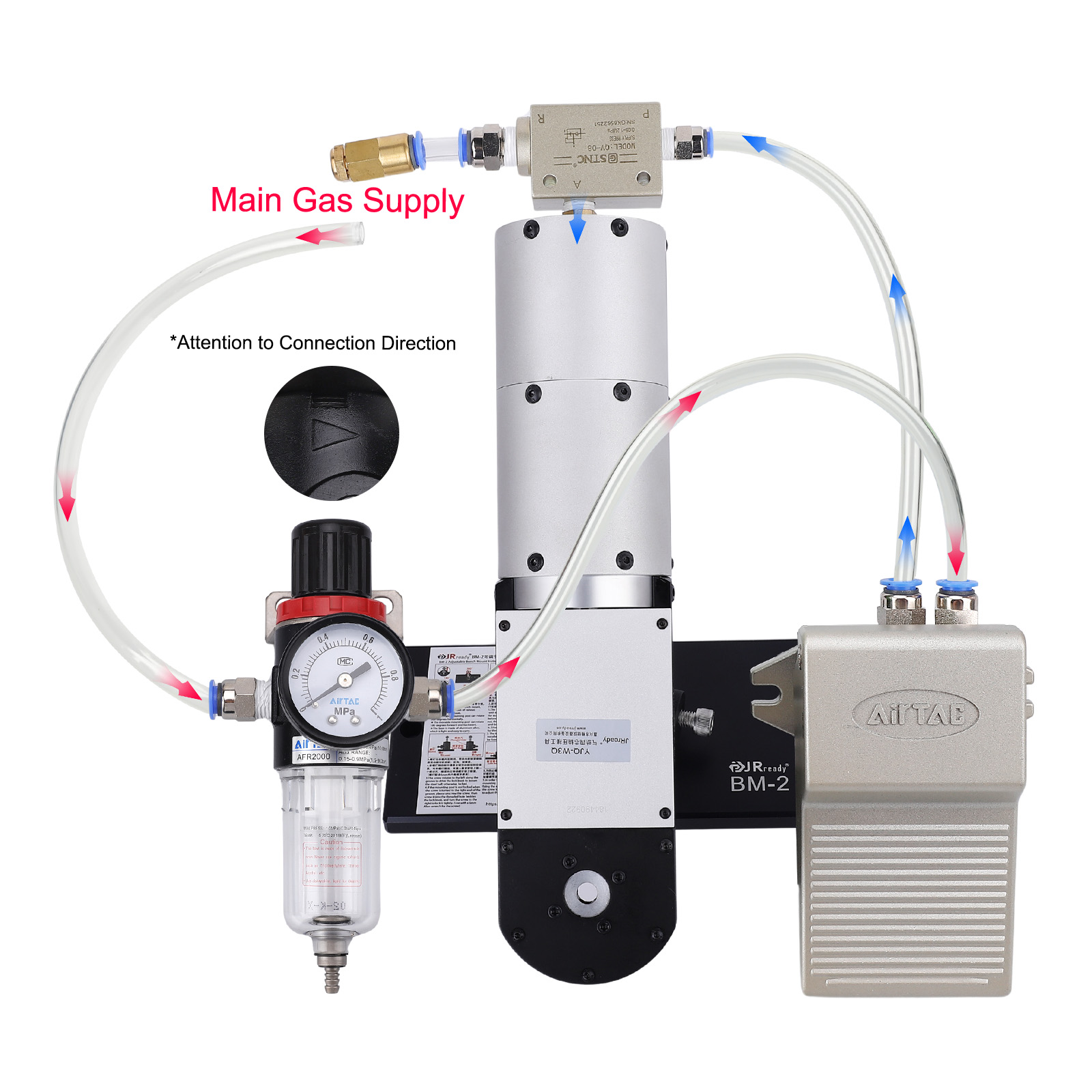

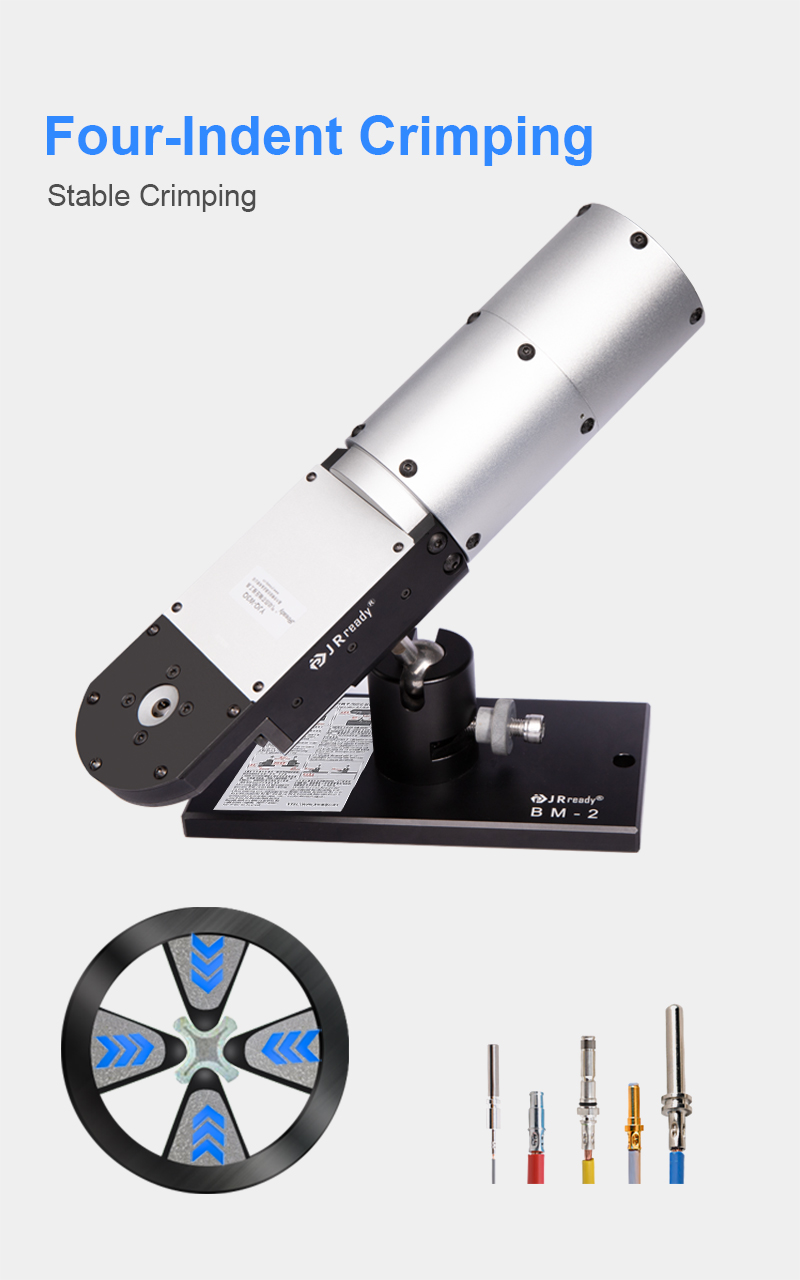

JRready YJQ-W3Q Pneumatic Four-indent Crimping Tool

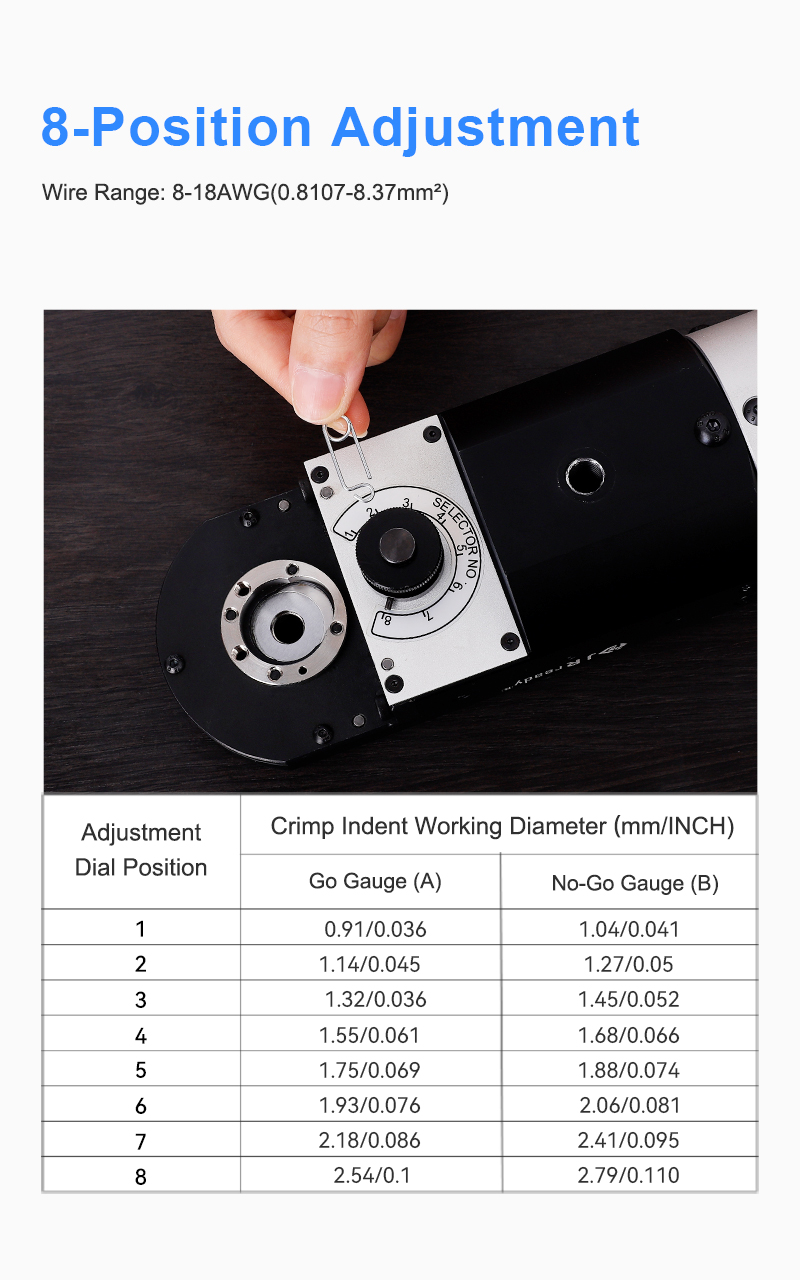

1.Applicable wire range for crimping: 8–18 AWG (0.8107–8.37 mm²);
2.Suitable for crimping machined terminals with a larger outer diameter;
3.Crimping of large-gauge automotive wiring harnesses;

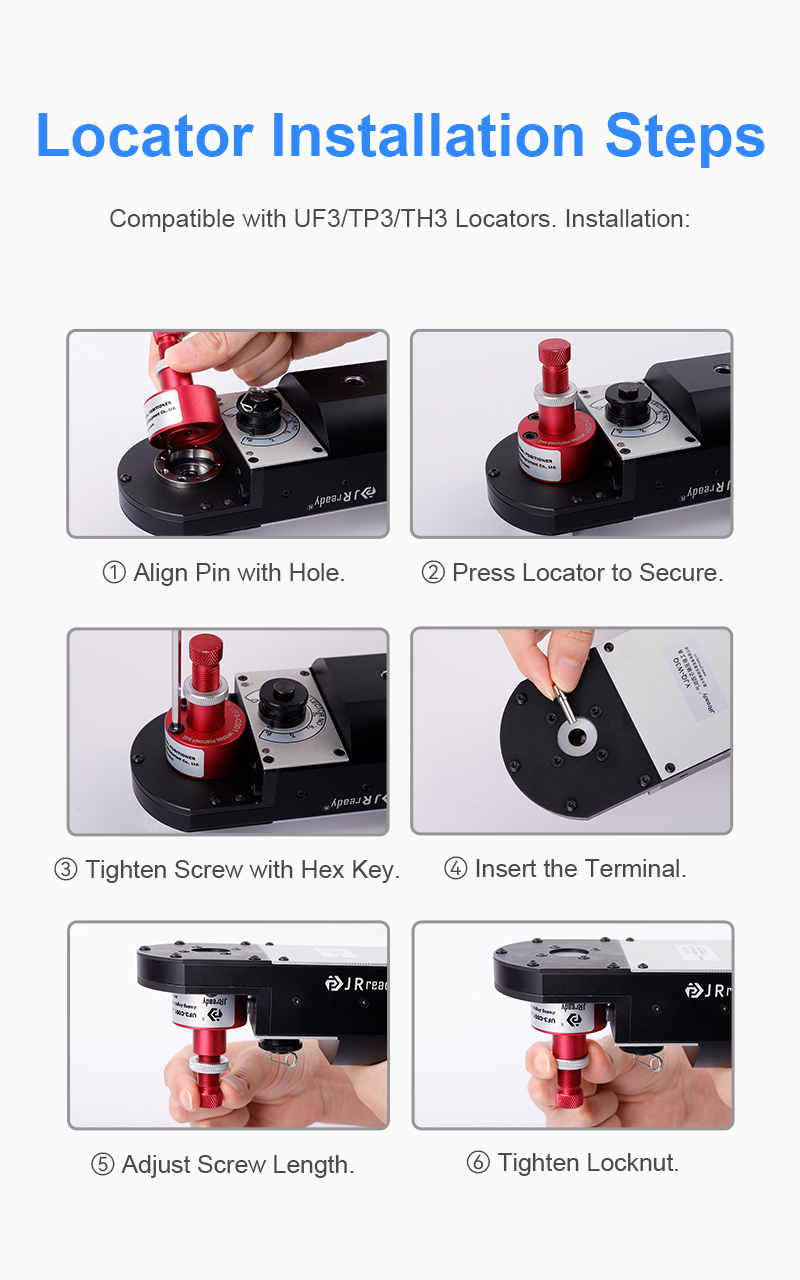

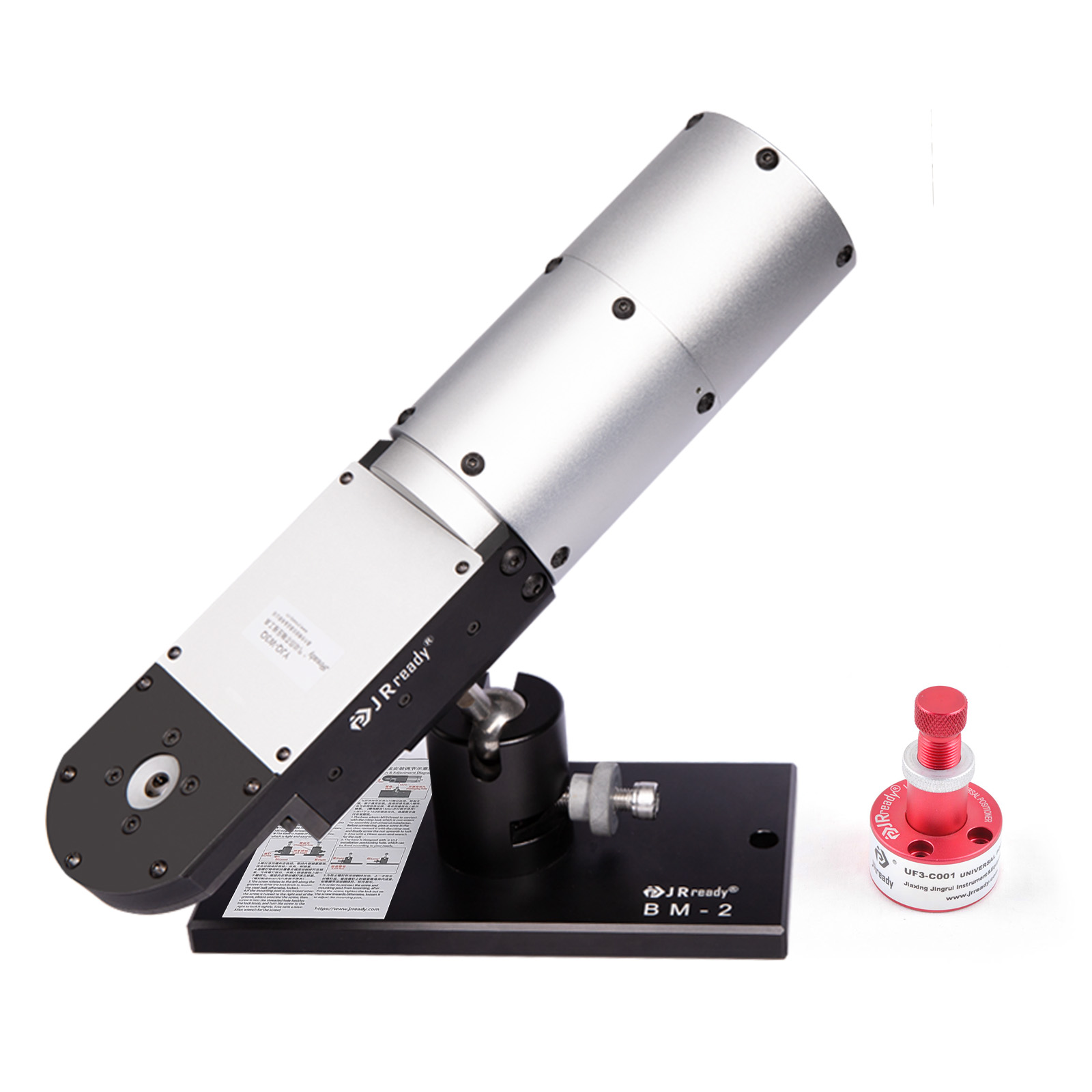

4.Compatible with positioners from the UL3 series, UF3 series, and TP3 series.
2.Suitable for crimping machined terminals with a larger outer diameter;
3.Crimping of large-gauge automotive wiring harnesses;
4.Compatible with positioners from the UL3 series, UF3 series, and TP3 series.
| Brand | JRready | Part Number |
YJQ-W3Q (including base, pneumatic control) |
| Category | Large Square Wire Crimp Tools | Colour | Silver |

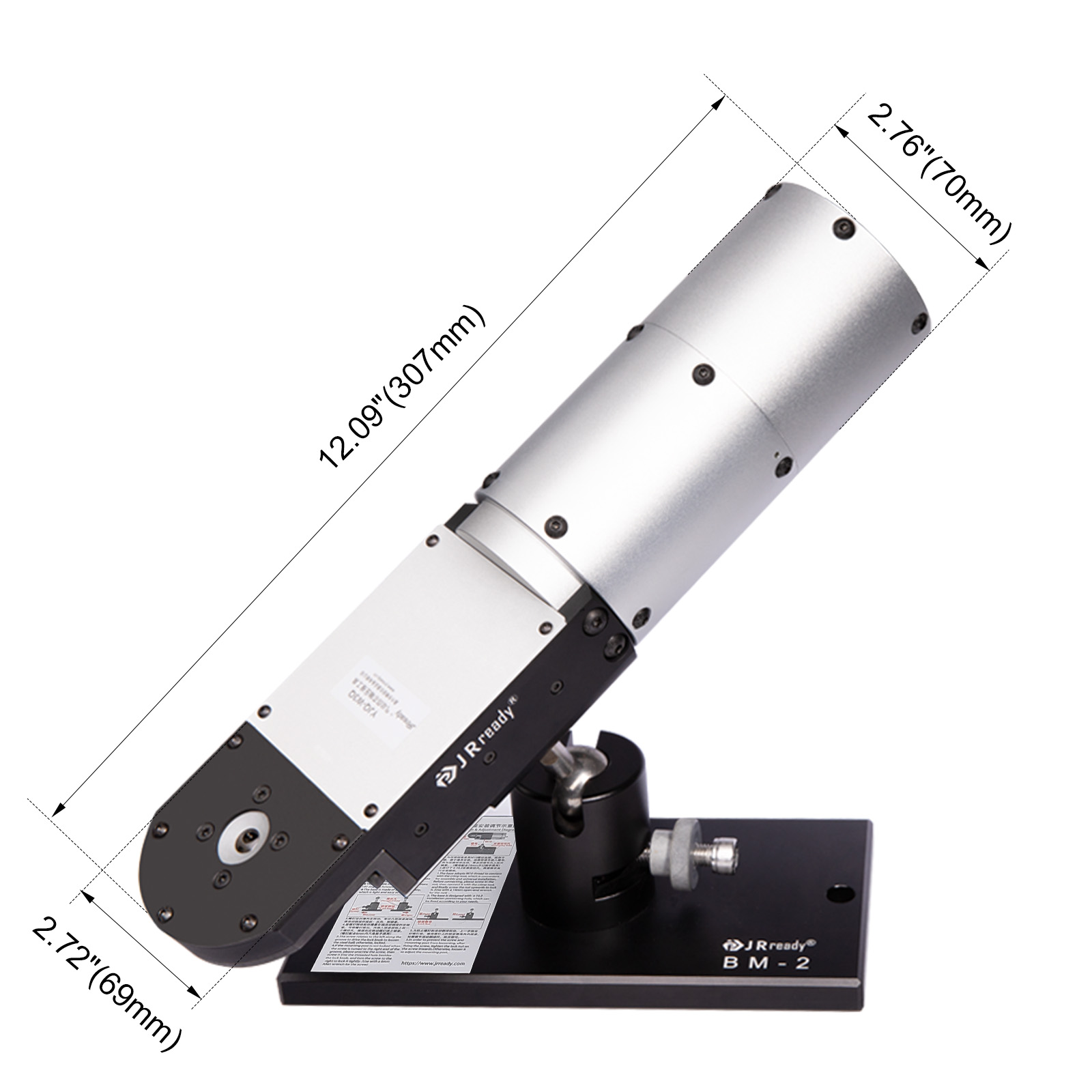

| Material | Mold Steel | Dimension | 307*70*69mm |
| Country of Origin | China | Weight | 2218g |
| Application | Suitable for crimping applications in batch wiring harness production and new product prototyping | ||

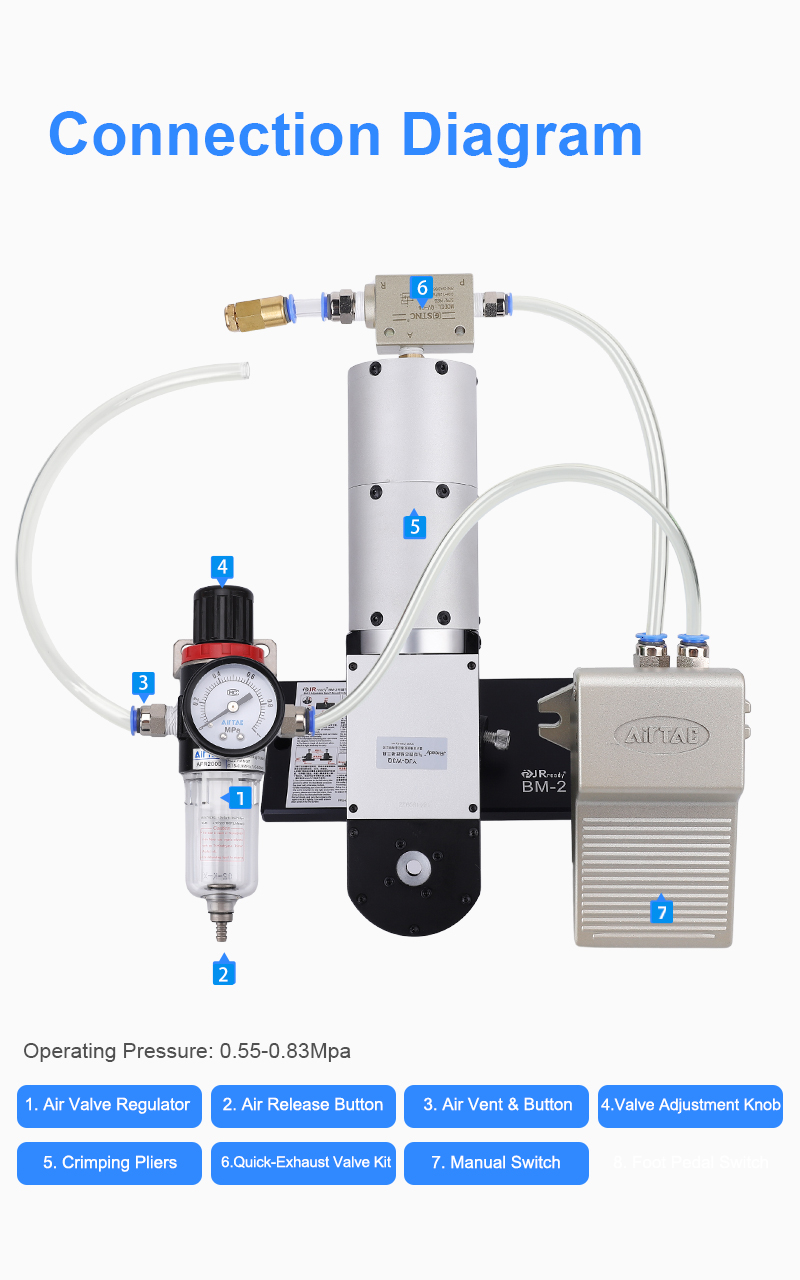

| Working Temperature | / | Working Pressure | 5.5-8.3Bar |
| Rated Voltage | / | Rated Current | / |
