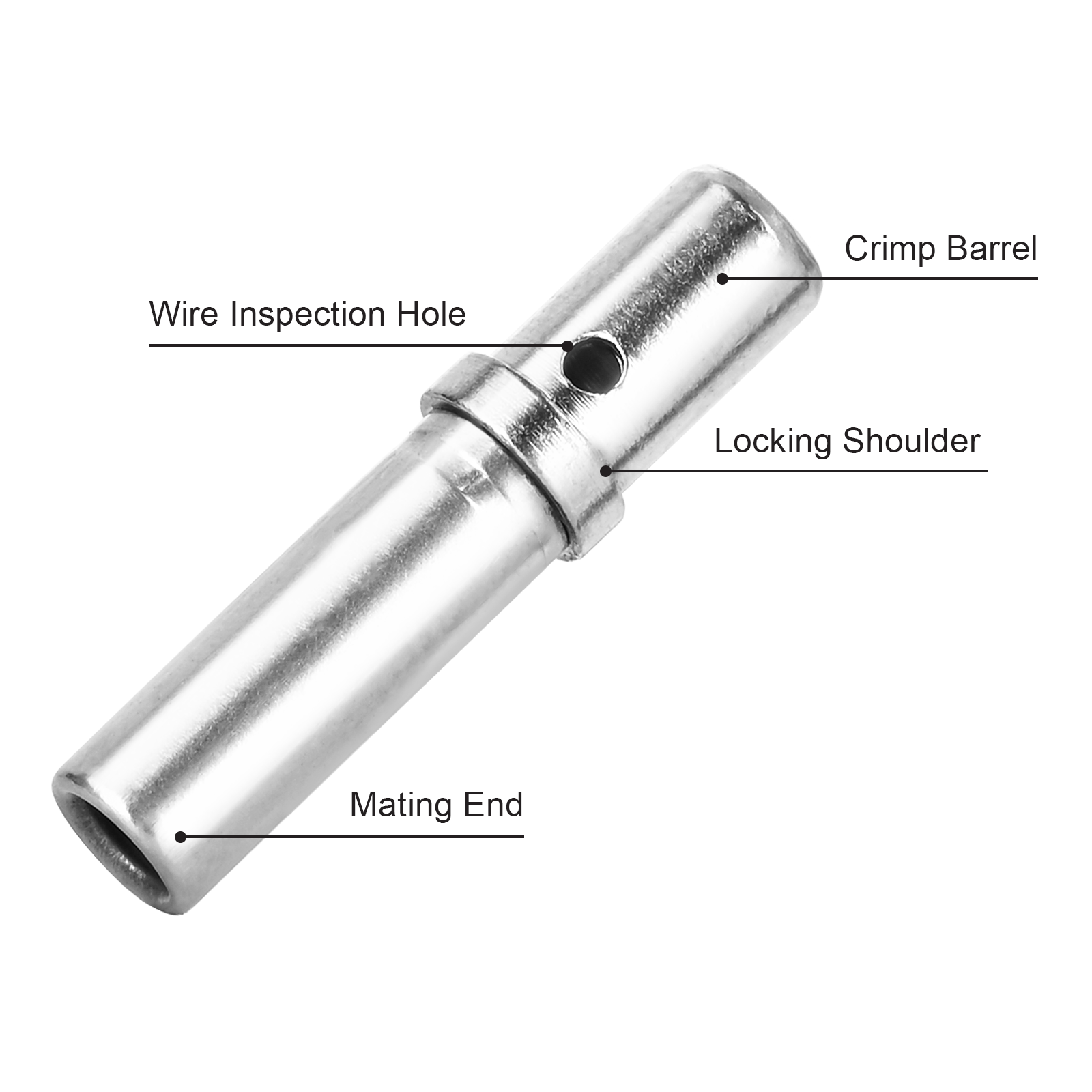

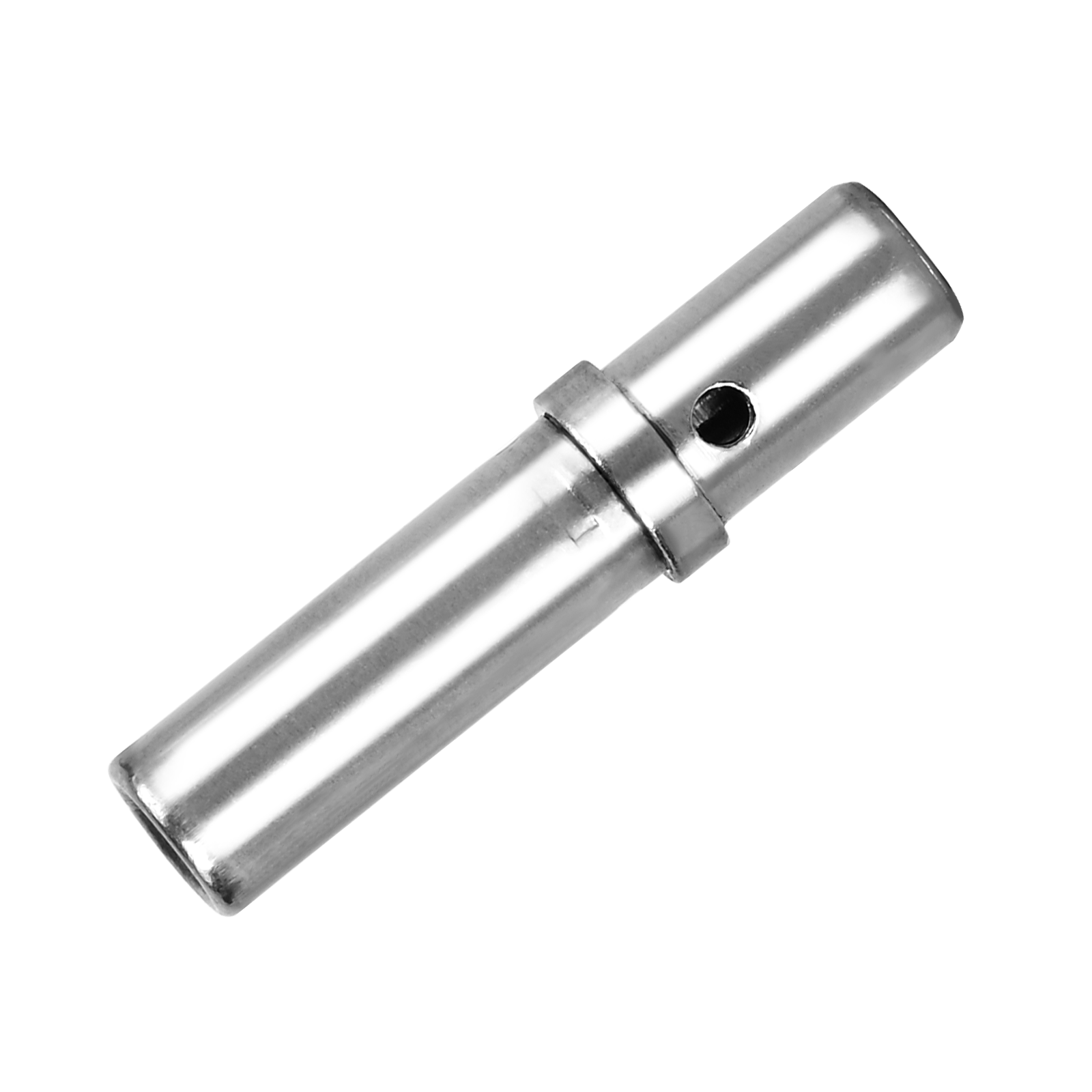

JRready 0462-203-12141 12#Socket
1. Wire Range: 12-16AWG(3.0-1.0mm²)；
2. Matches Machined Pin 0460-204-12141；
3. Compatible with other brands' equivalent specifications.
4. Nickel-plated overall
5. Rated Current: 25A
2. Matches Machined Pin 0460-204-12141；
3. Compatible with other brands' equivalent specifications.
4. Nickel-plated overall
5. Rated Current: 25A
| Brand | JRready | Part Number | 0462-203-12141 |
| Category | DT Series | Colour | Silver |

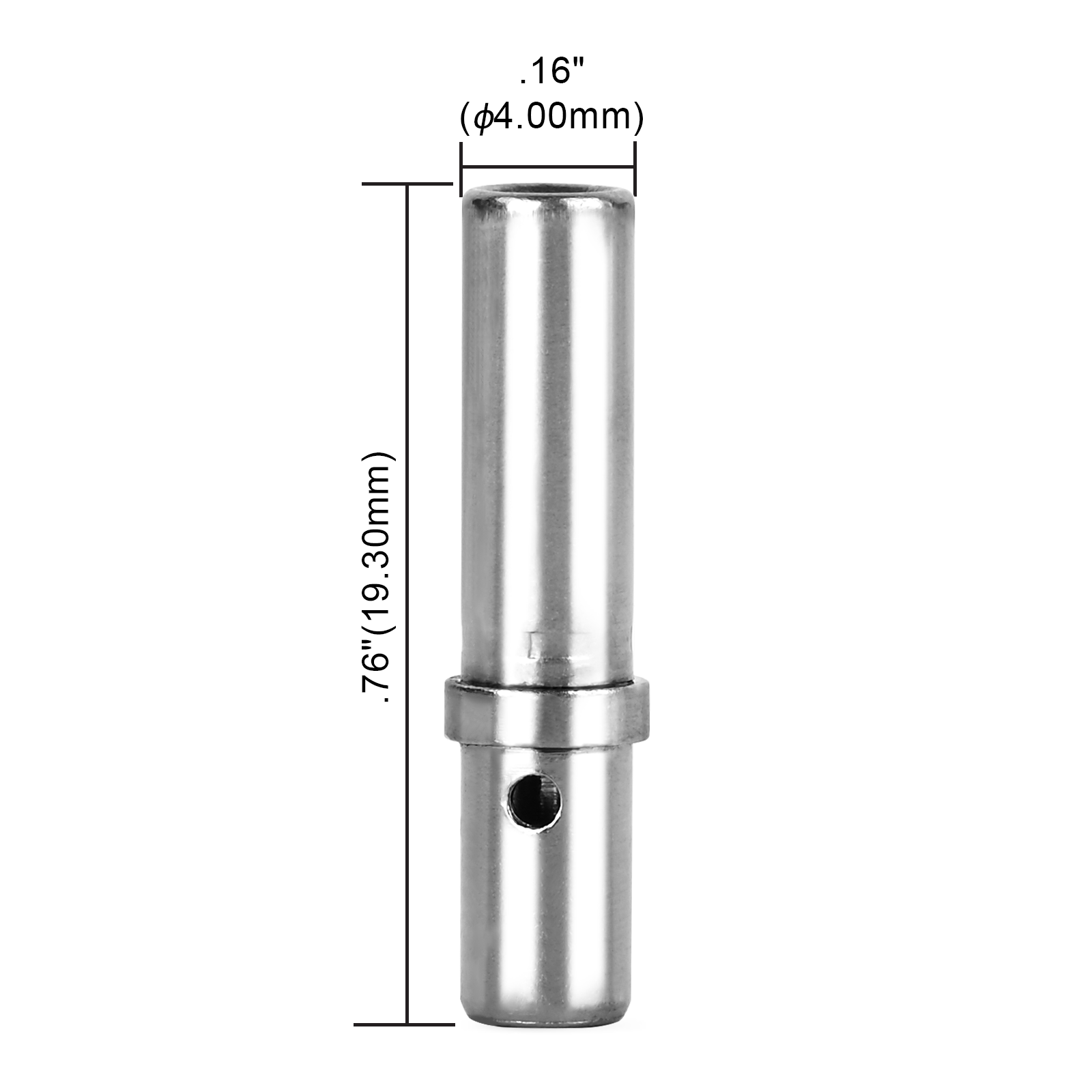

| Material | Tin Bronze | Dimension | Length: 19.30mm, Diameter: 4mm |
| Country of Origin | China | Weight | 1.3g |
| Application | Compatible with DTP, HD10, HDP20, HD30, DRC, DRB, and STRIKE series connectors. | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 25A |
