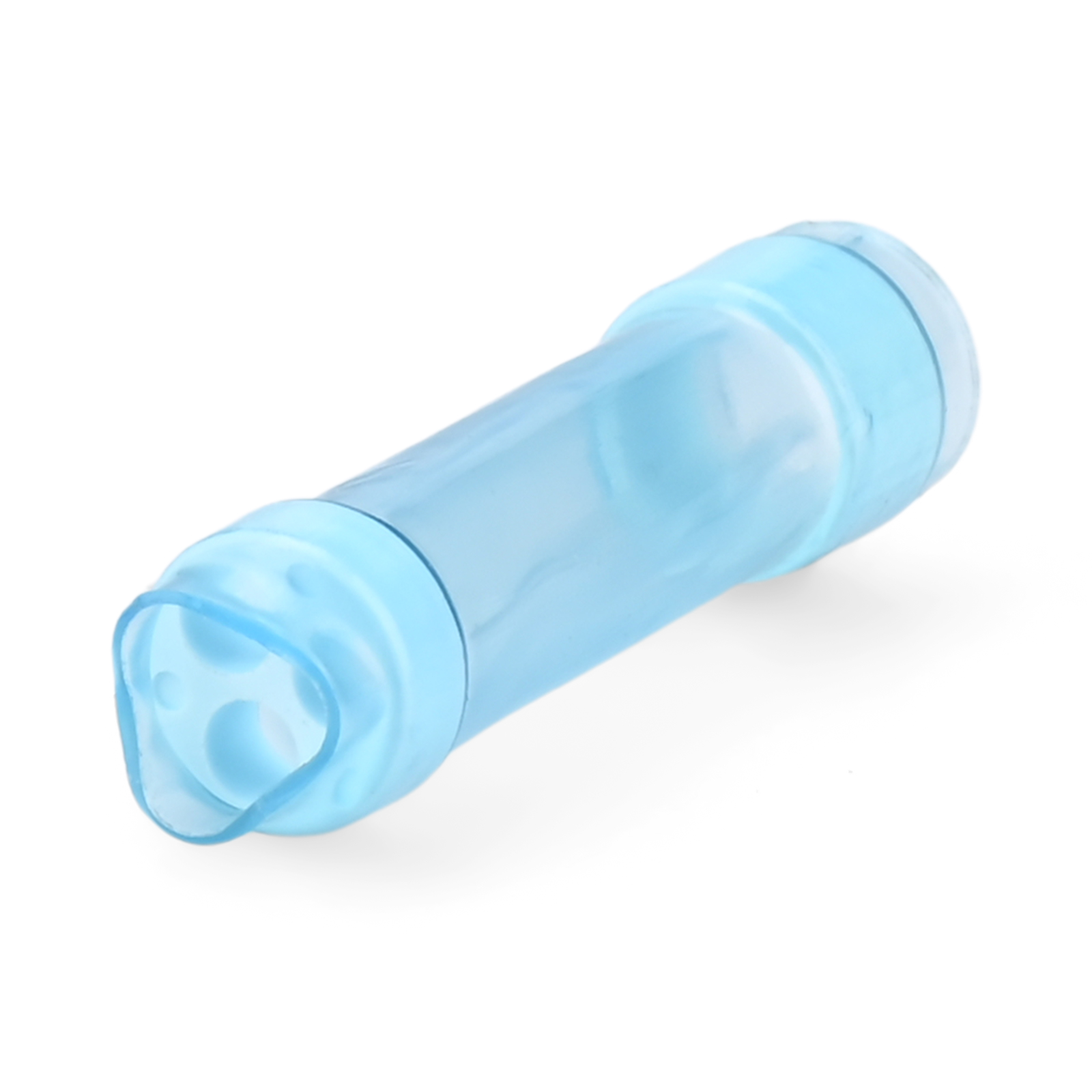

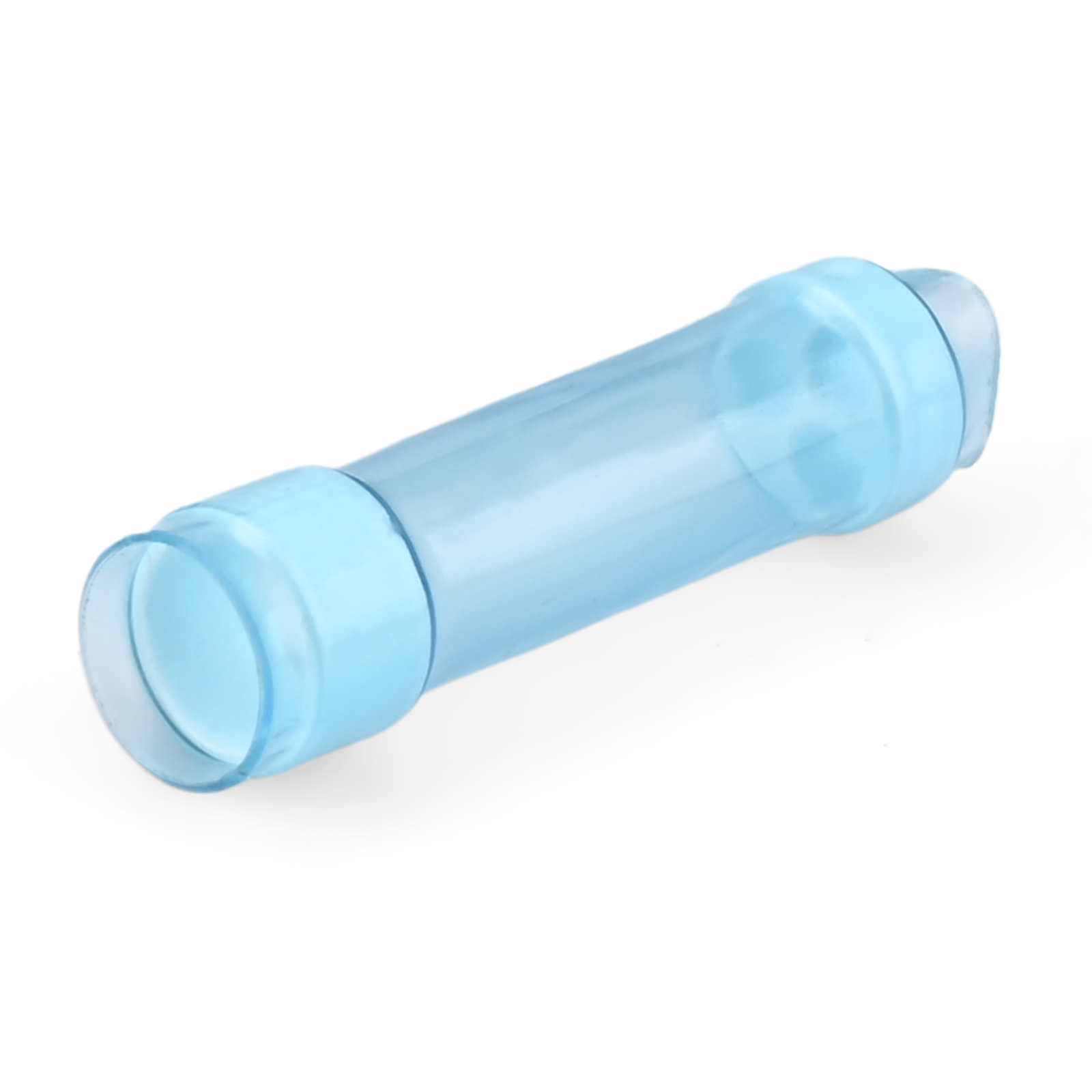

JRready JSS81824/7H Heat Shrink connector
1. Suitable wire range: 12–26 AWG
2. Operating temperature range: -55 ℃ to 150 ℃
3. Compatible with intermediate splices
4. Ingress protection rating: IP68
5. Designed for field wire connection and electrical maintenance with intermediate splices
2. Operating temperature range: -55 ℃ to 150 ℃
3. Compatible with intermediate splices
4. Ingress protection rating: IP68
5. Designed for field wire connection and electrical maintenance with intermediate splices
| Brand | JRready | Part Number | JSS81824/7H |
| Category | Heat Shrink Tubing | Colour | Blue |

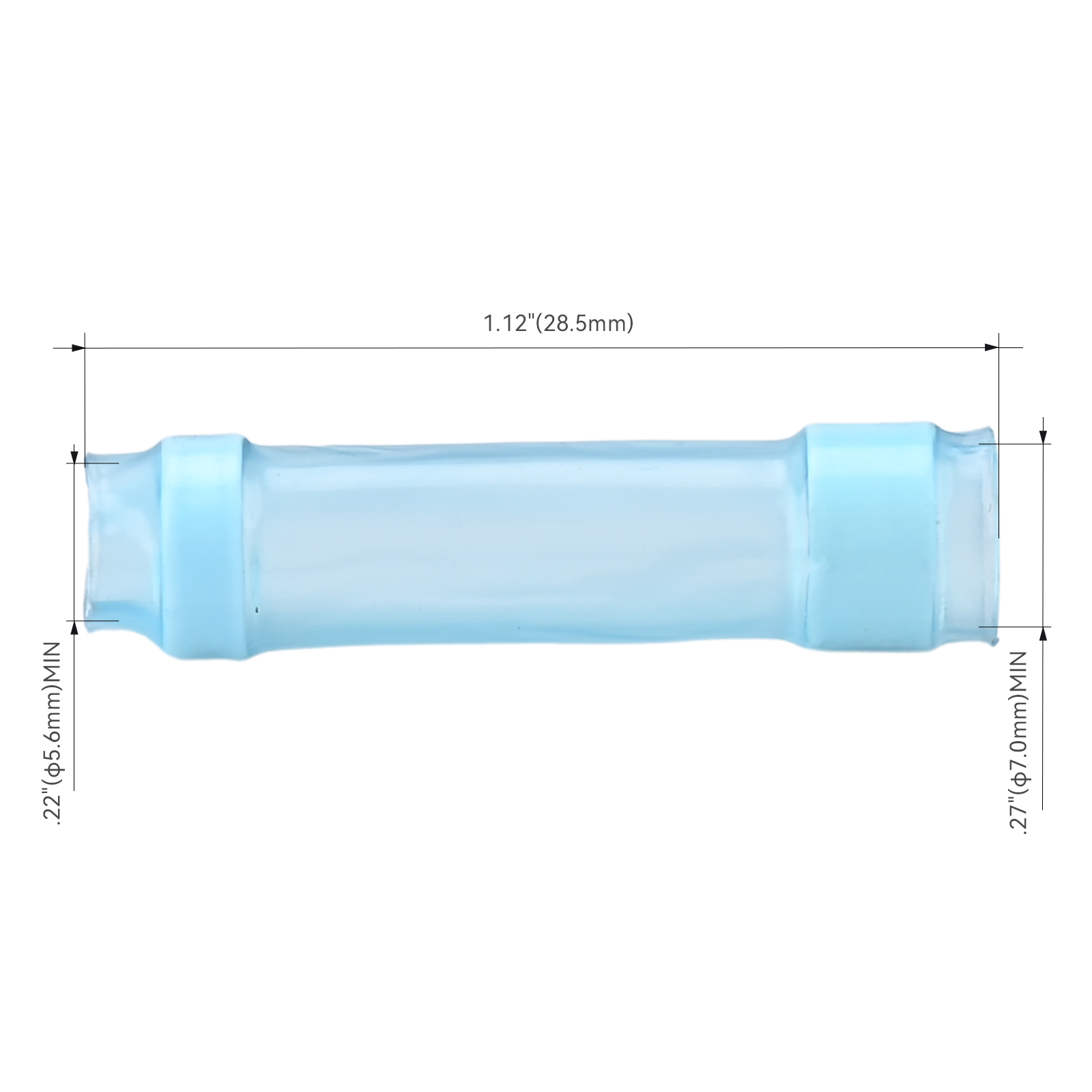

| Material | PVDF | Dimension | 22.8*7*5.6mm |
| Country of Origin | China | Weight | 0.47g |
| Application | Applicable to industries including railways, marine, automotive, aerospace, power, and electronics | ||
| Working Temperature | -55℃-150℃ | Working Pressure | / |
| Rated Voltage | / | Rated Current | / |
