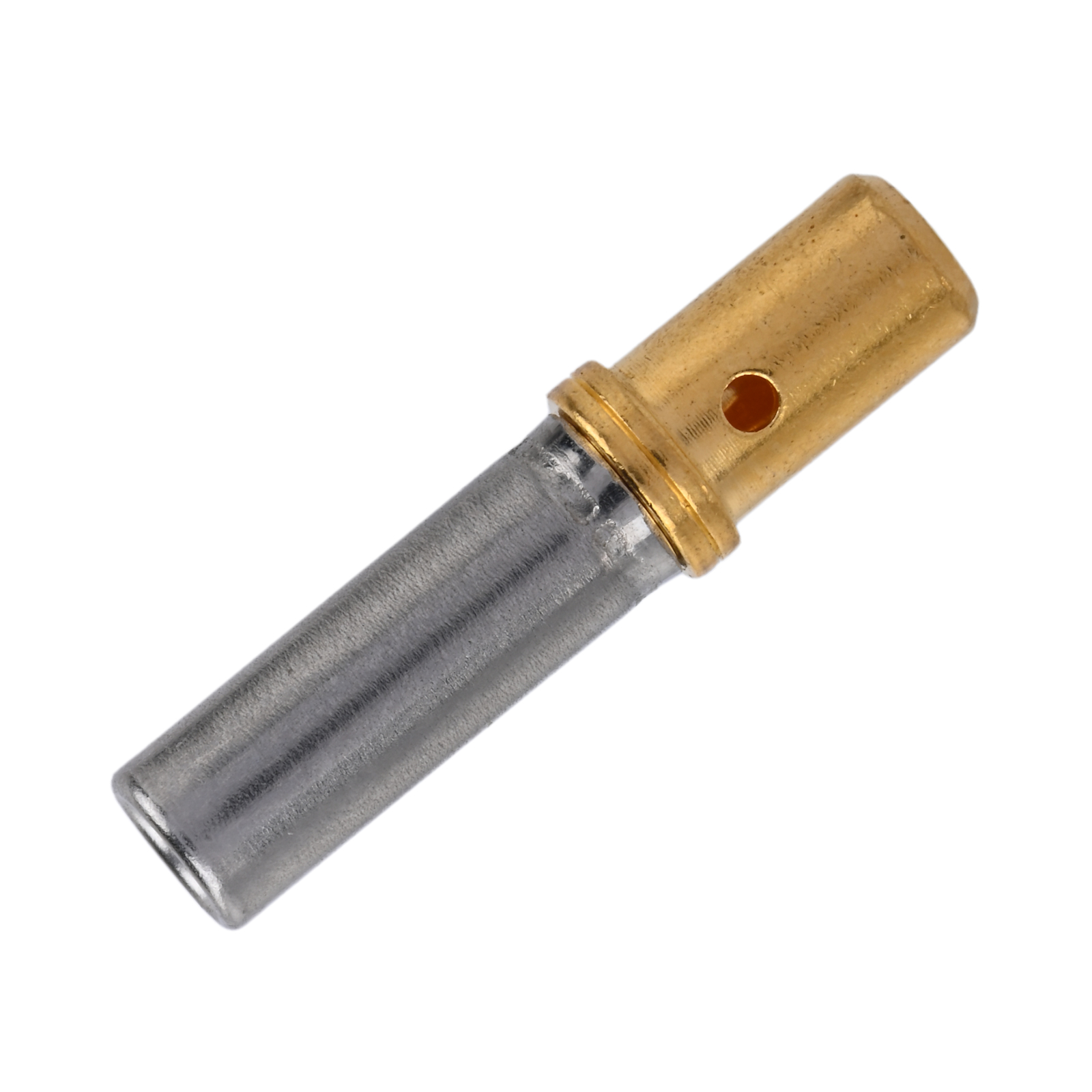

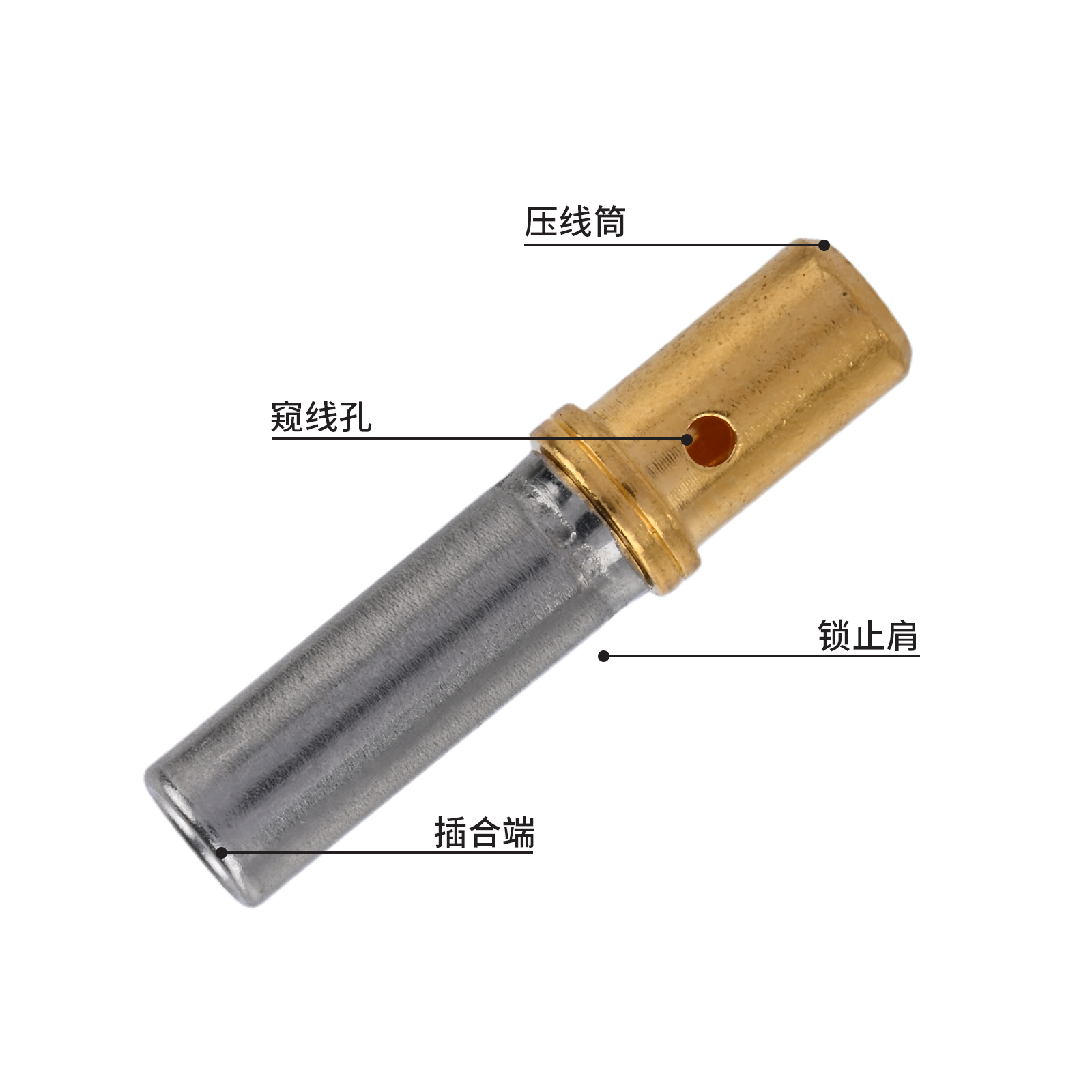

JRready 0462-210-1231 Socket Terminal
1. Compatible with wire range 12-16AWG（3.0-1.0mm²）；
2. Mating Machined Pin 0462-220-1231
3. Compatible with same-spec products from other brands on the market
4. Gold Plating
5. Rated Current: 25A
2. Mating Machined Pin 0462-220-1231
3. Compatible with same-spec products from other brands on the market
4. Gold Plating
5. Rated Current: 25A
| Brand | JRready | Part Number | 0462-210-1231 |
| Category | DT Series | Colour | Gold |
| Material | Tin Bronze | Dimension | Length: 19.20 mm, Diameter: 2.80 mm |
| Country of Origin | China | Weight | 1.3g |
| Application | Compatible with DTP, HD10, HDP20, HD30, DRB, and STRIKE series connectors | ||
| Working Temperature | -40-125℃ | Working Pressure | / |
| Rated Voltage | 250V | Rated Current | 13A |
