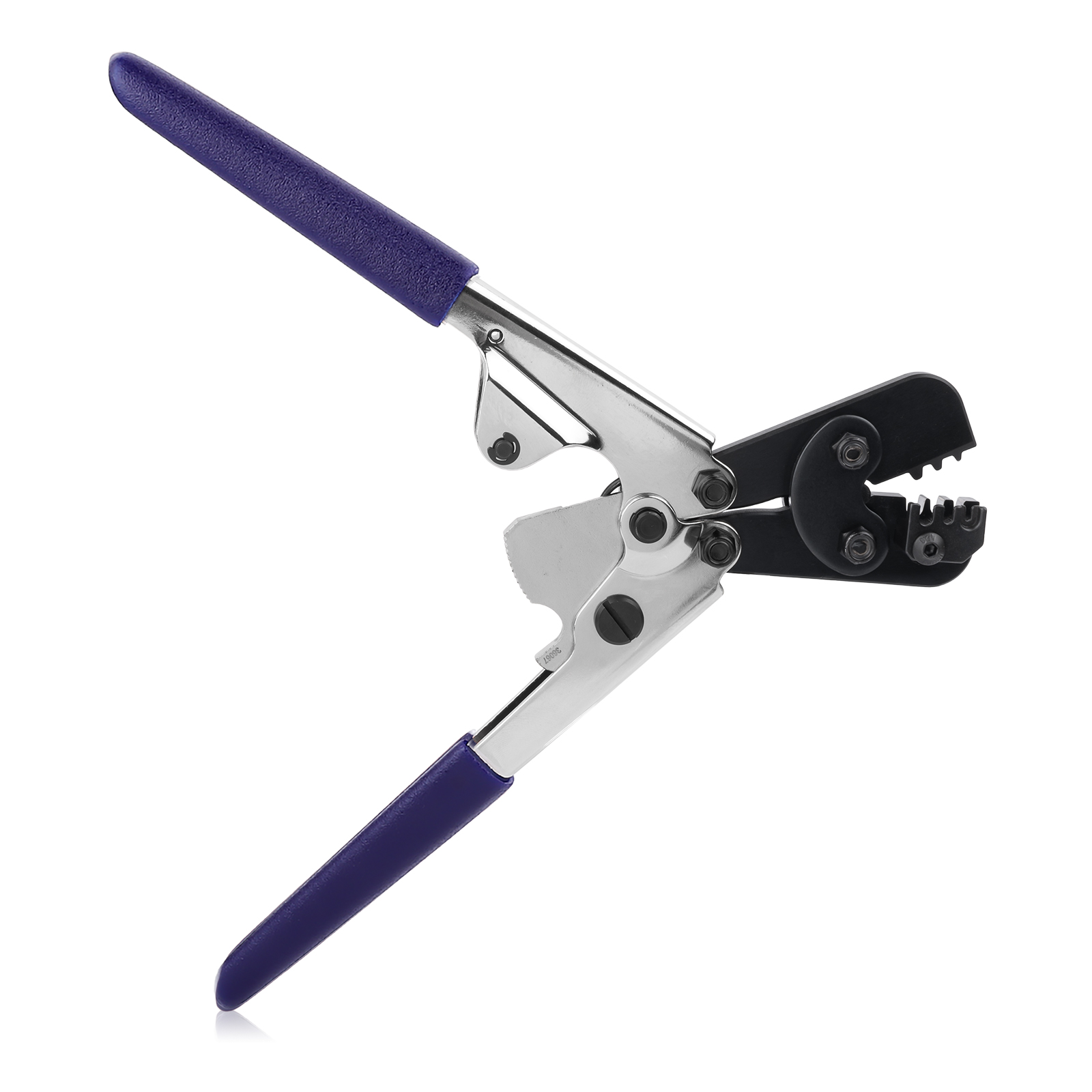

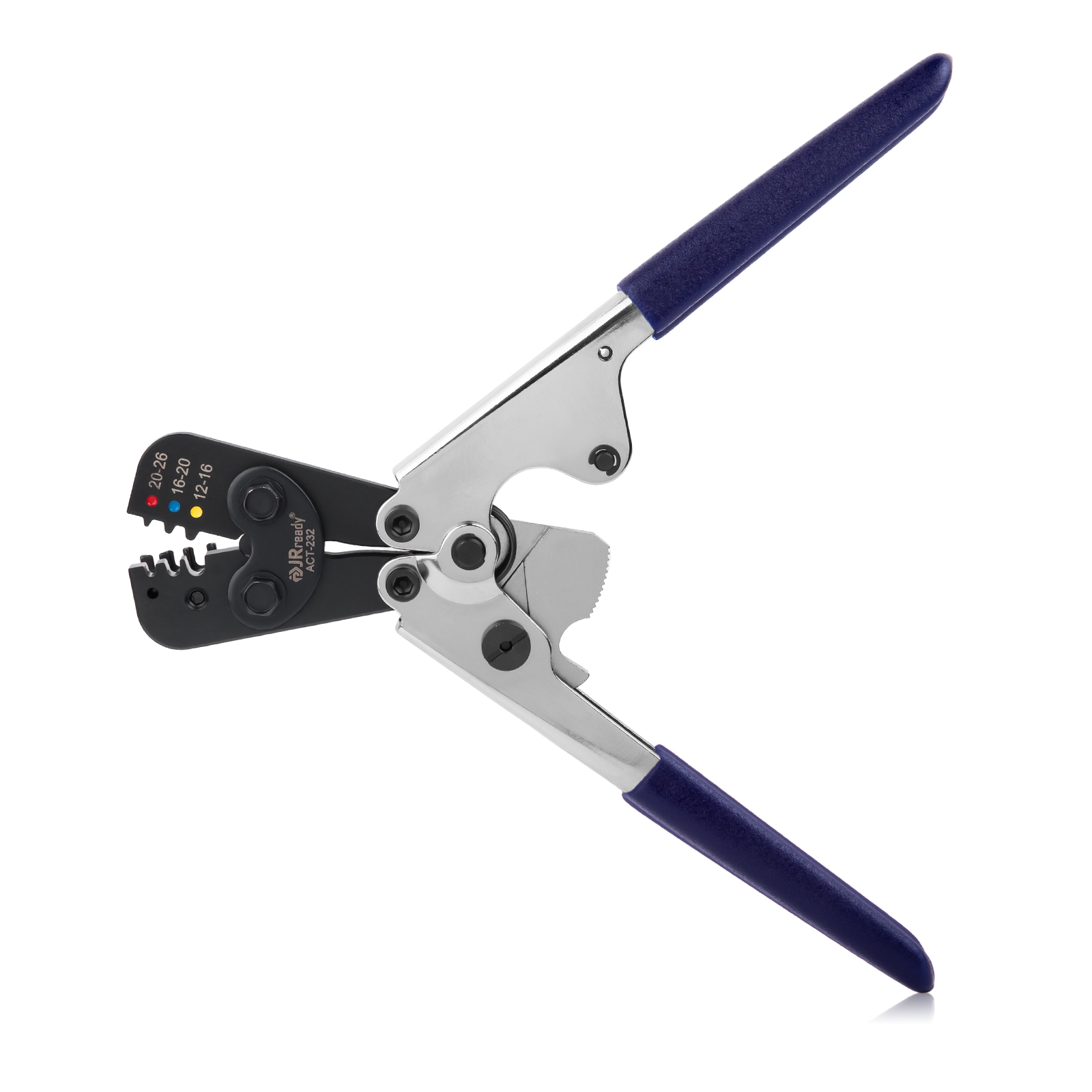

JRready ACT-232 Manual Open Frame Crimping Tool
1. Designed with reference to military standard M22520/37-01;
2. Suitable for crimping of M81824/1,6,7,8,9,10,11,13,14 series heat shrink splices (dead end splices);
3. Applicable wire range: 12-26AWG (0.128-4.0mm²);

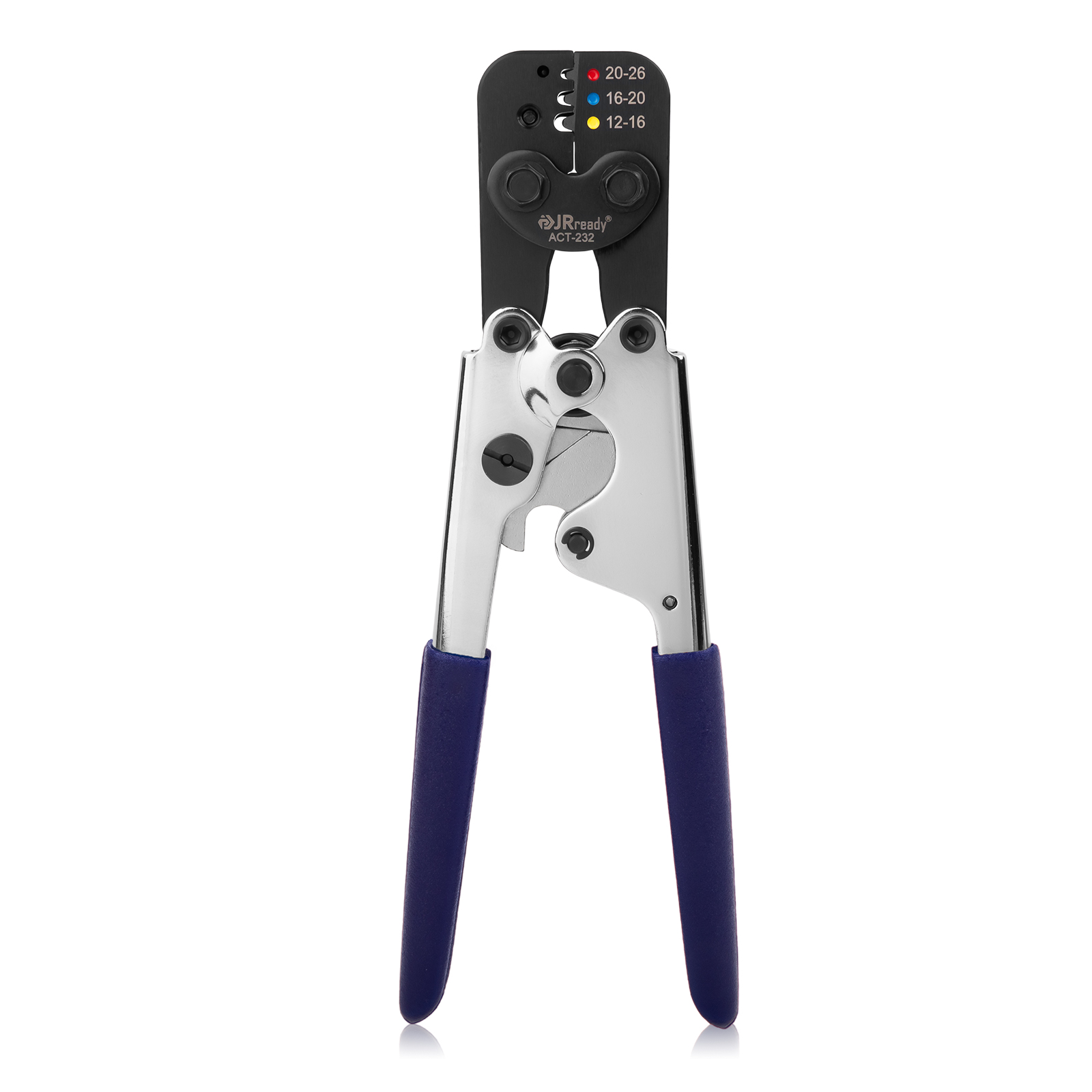

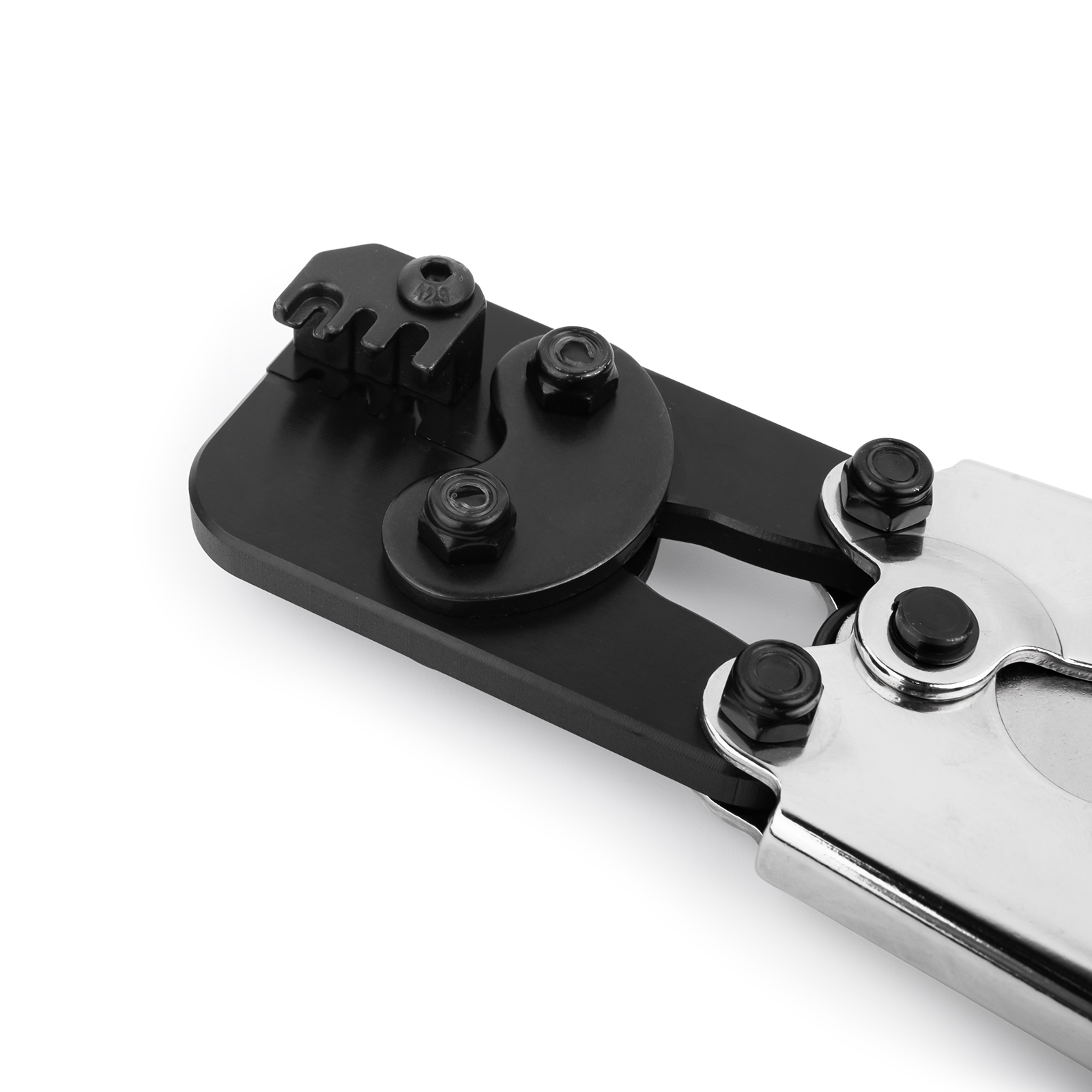

4. Equipped with 3 die openings marked in red, yellow and blue, corresponding to 12# (yellow), 16# (blue), 20# (red) splices respectively;
5. The crimping plier comes with one positioner to ensure consistent crimping position;

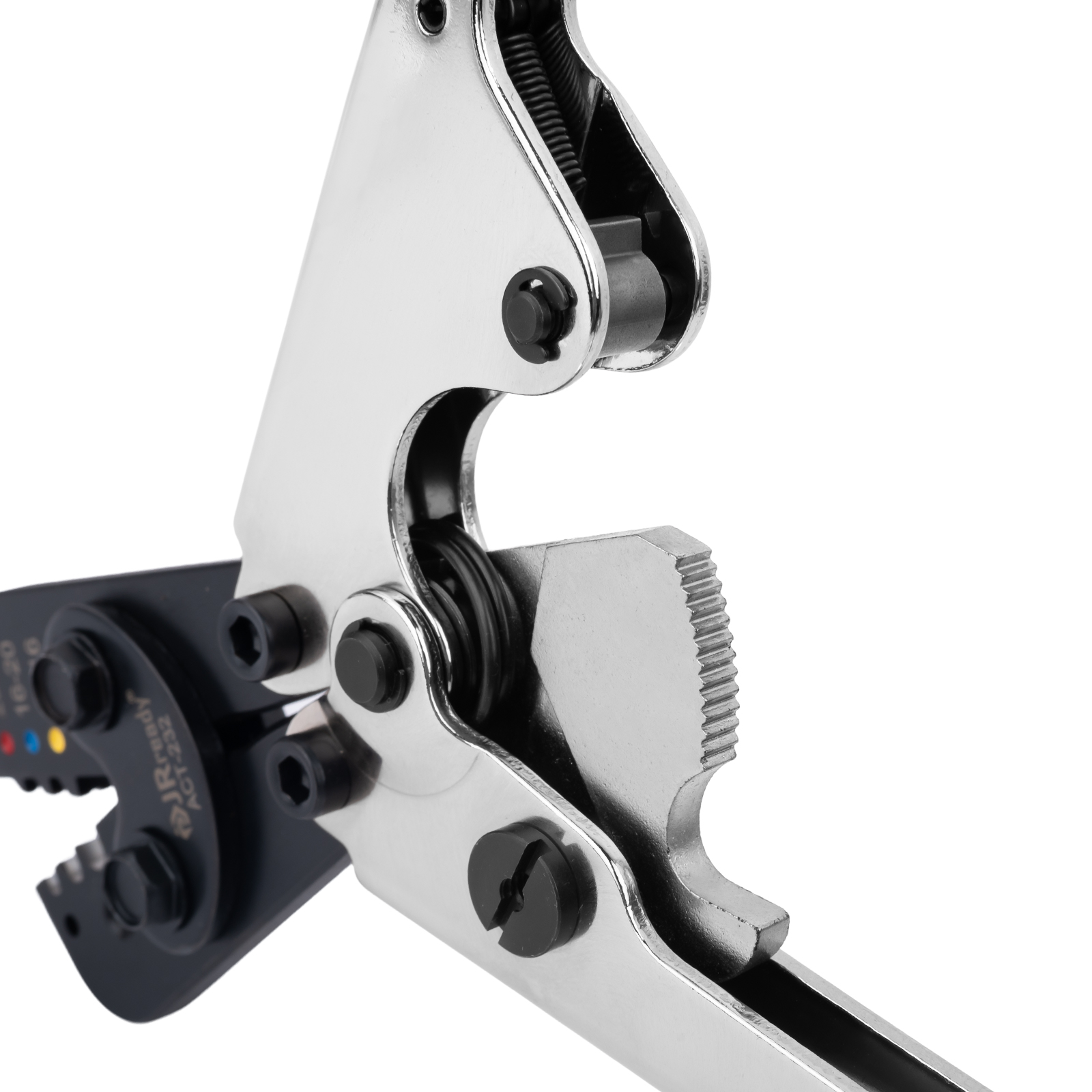

6. Built-in ratchet crimping cycle system to guarantee s
2. Suitable for crimping of M81824/1,6,7,8,9,10,11,13,14 series heat shrink splices (dead end splices);
3. Applicable wire range: 12-26AWG (0.128-4.0mm²);
4. Equipped with 3 die openings marked in red, yellow and blue, corresponding to 12# (yellow), 16# (blue), 20# (red) splices respectively;
5. The crimping plier comes with one positioner to ensure consistent crimping position;
6. Built-in ratchet crimping cycle system to guarantee s
| Brand | JRready | Part Number | ACT-232 |
| Category | Manual Frame-style Crimping Tool | Colour | Blue |

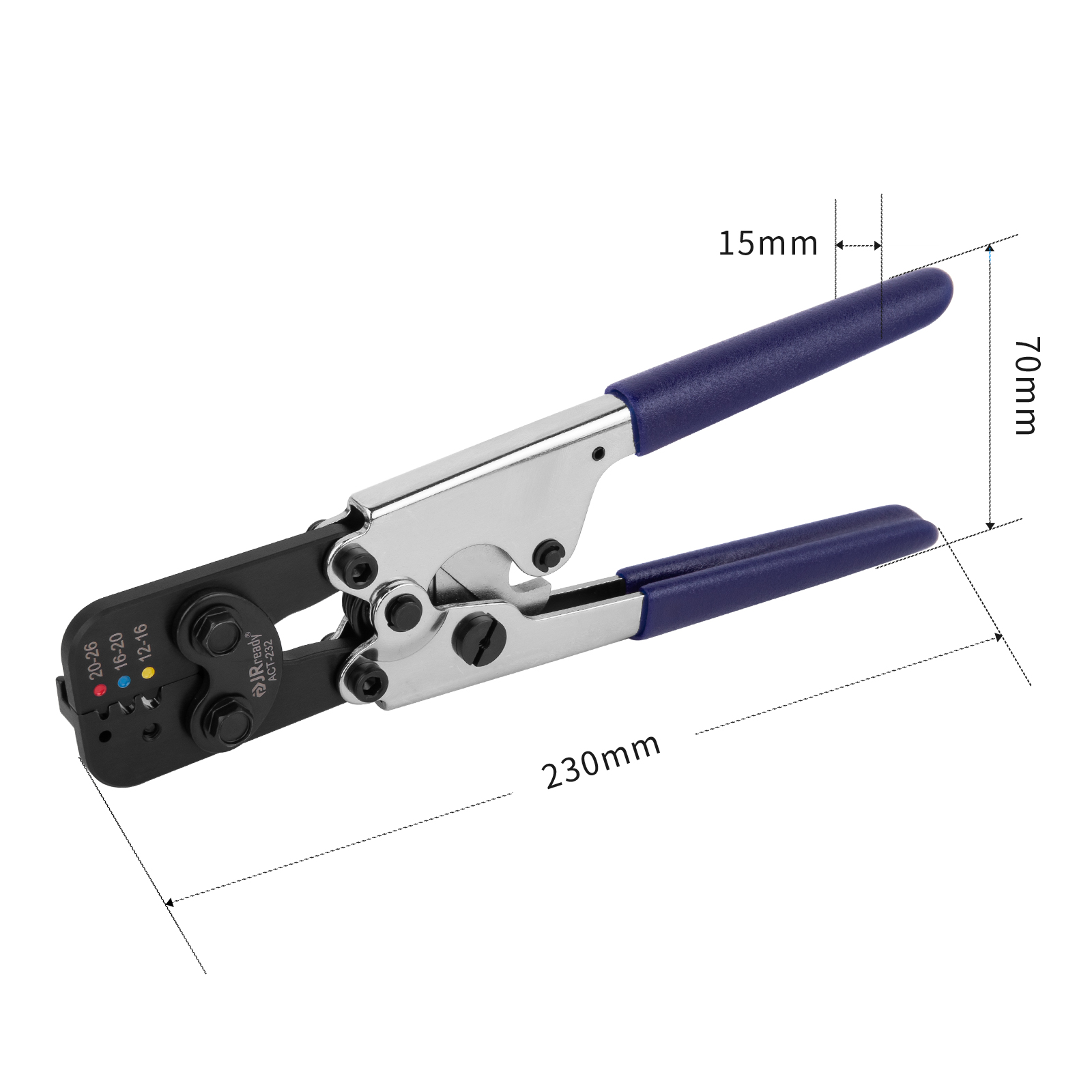

| Material | High Carbon Steel | Dimension | 230*15*70mm |
| Country of Origin | China | Weight | 350g |
| Application | Compatible with M81824/1,6,7,8,9,10,11,13,14 series heat-shrink splice connectors (closed-end) | ||
