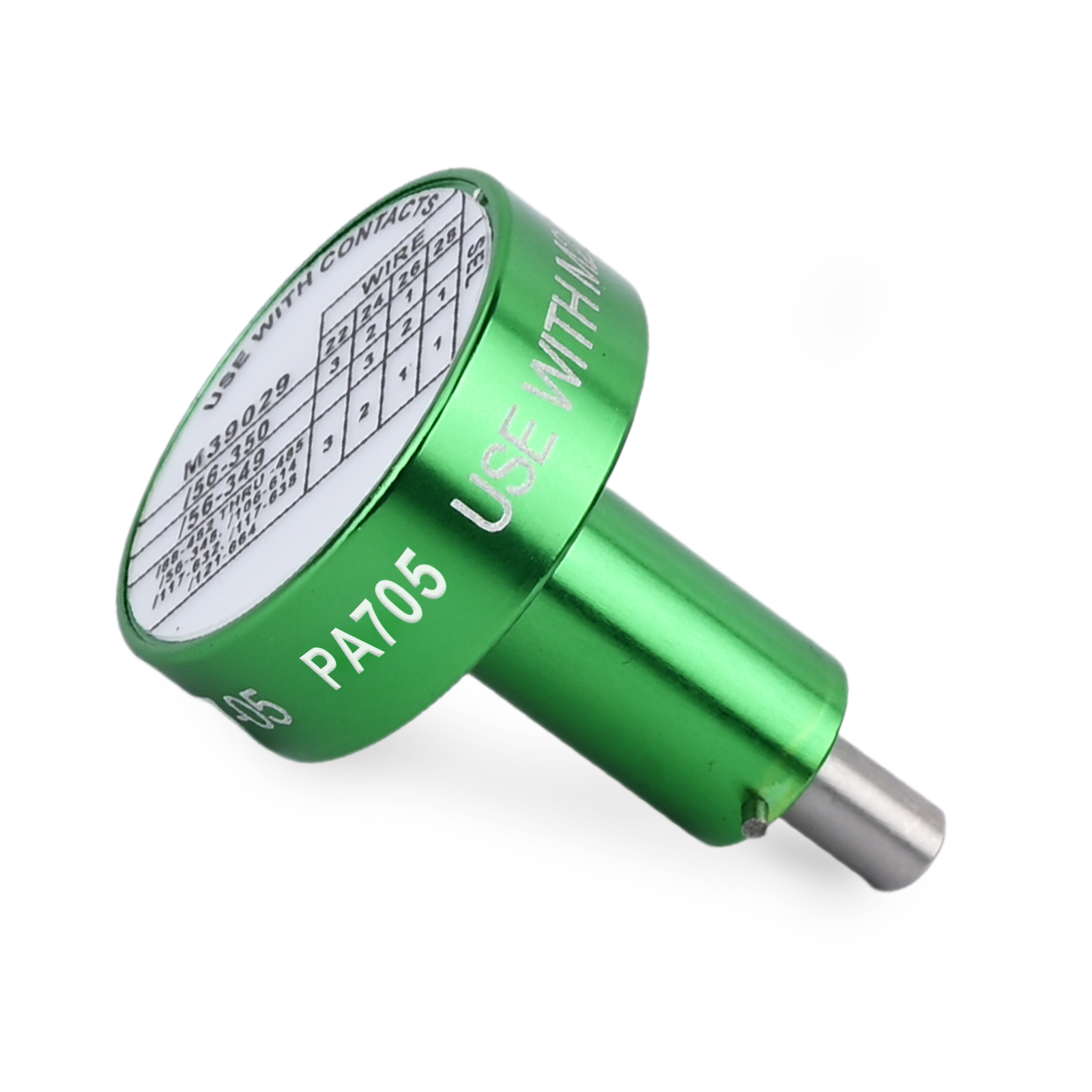

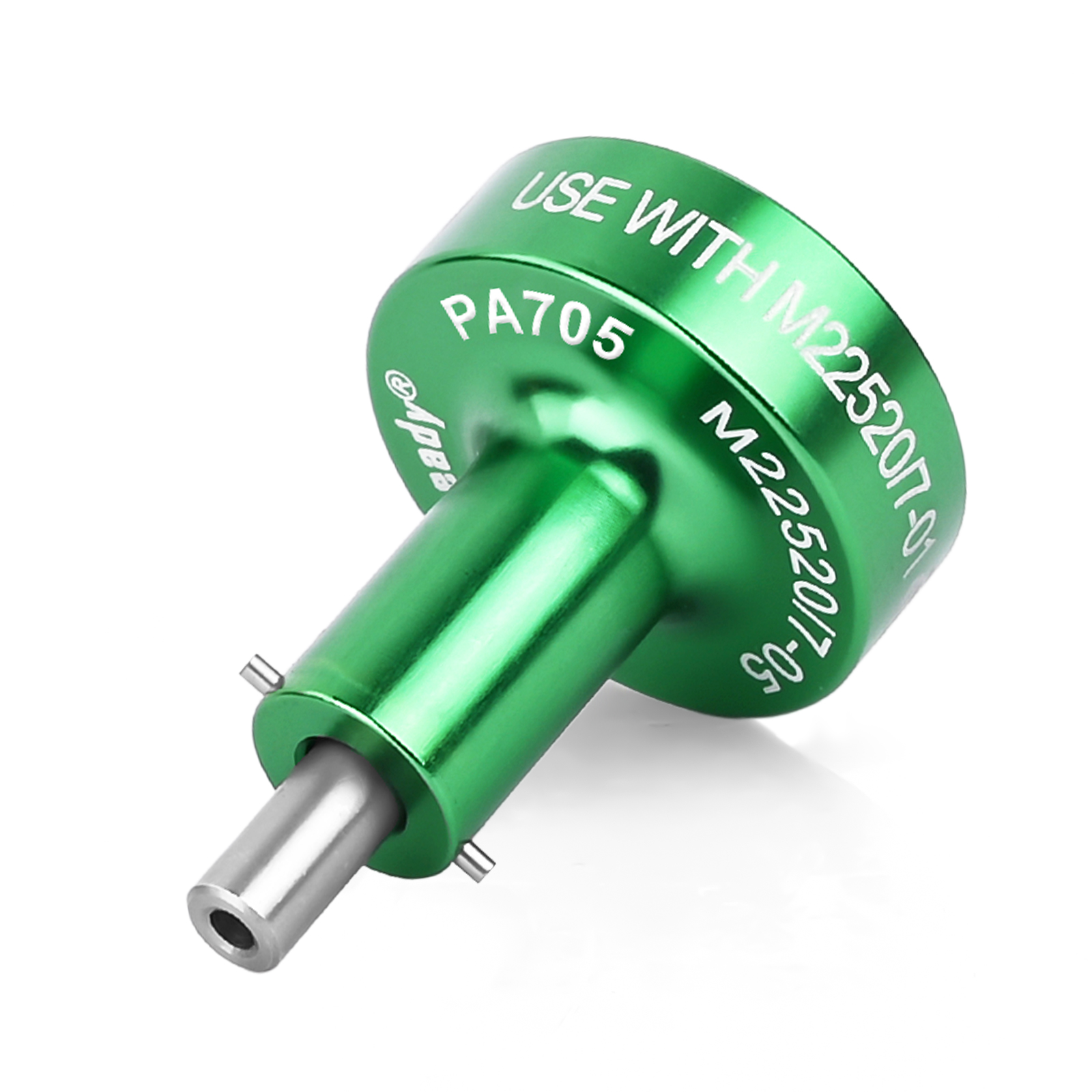

JRready PA705（86-4）（M22520/7-05） Fixed Locator

1. Positioners in various specifications for military standard M22520/7 series
2. Matched for use with military standard M22520/7-01 crimping pliers
3. Standard specifications for standardized precision crimping
Contact Us
Brand JRready Part Number PA705（86-4）（M22520/7-05）
Category M22520/7 Series Positioner Colour Green

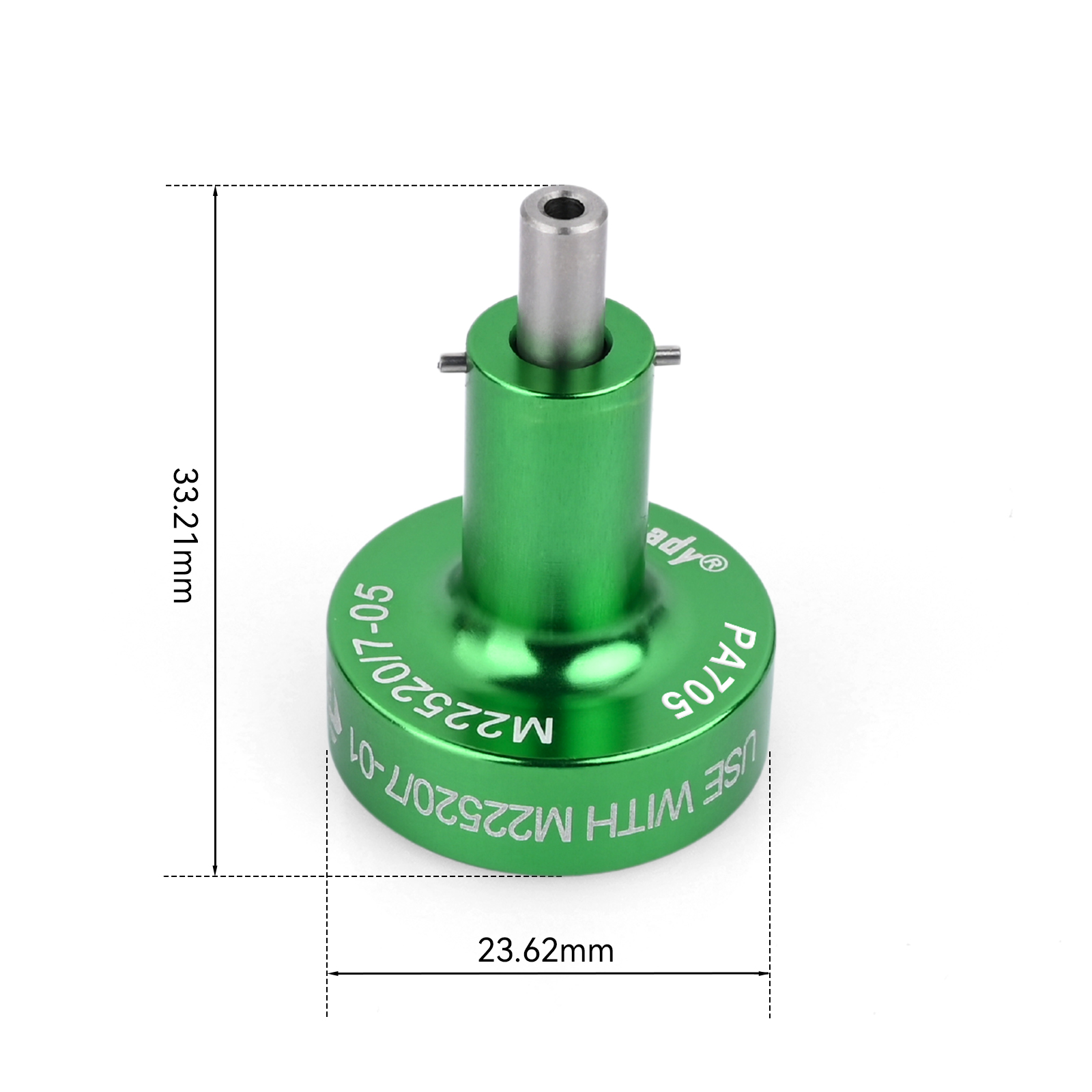

Material Stainless Steel Dimension Ø23.62*33.21mm
Country of Origin China Weight 13.87g

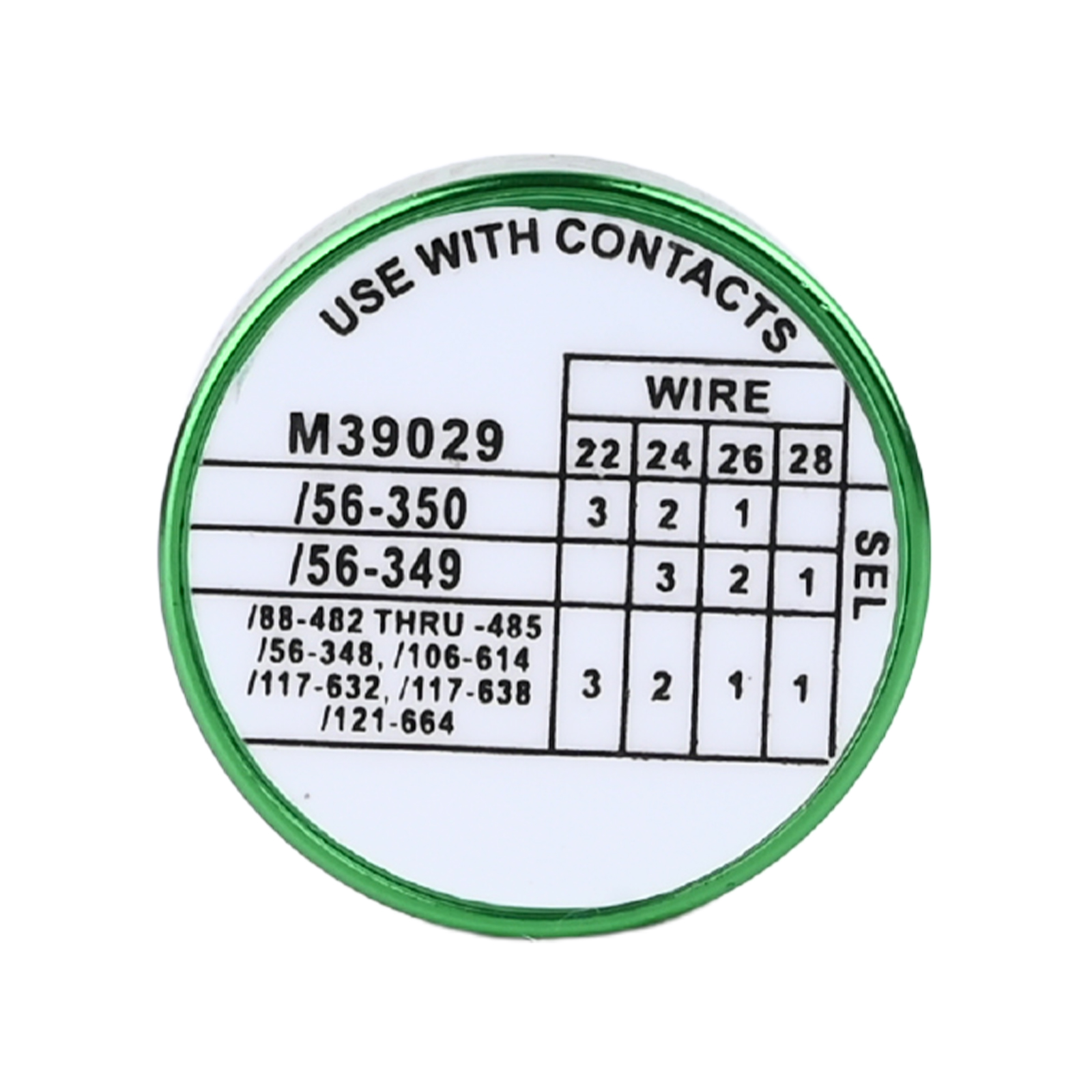

Application Compatible with terminals M39029/56-350, /56-349, /88-482 THRU -485, /56-348, /106-614, /117-632, /117-638, /121-664



Product Introduction
