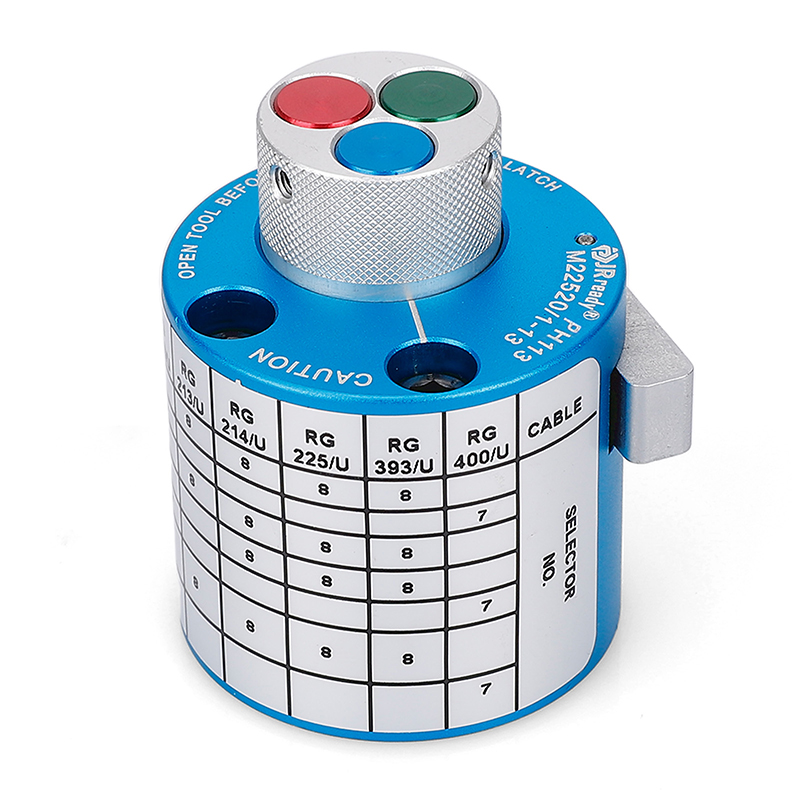

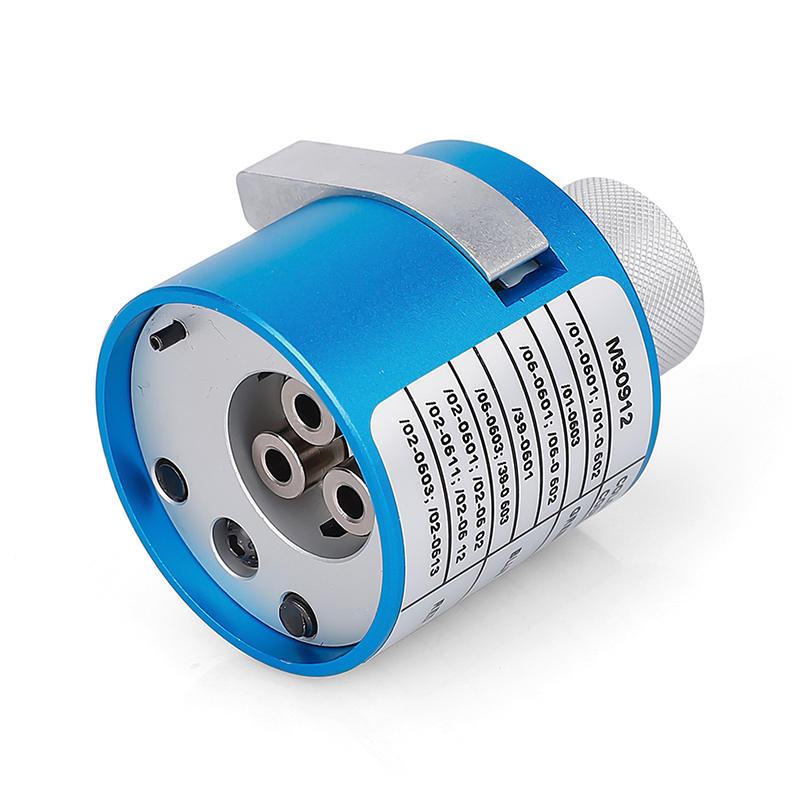

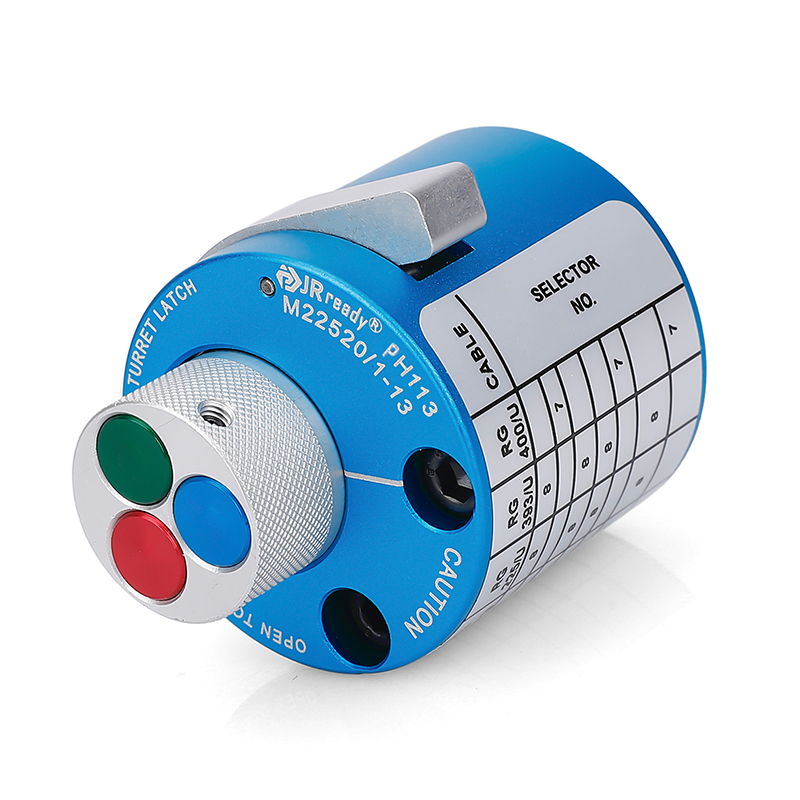

JRready PH113 (TH285) (M22520/1-13) Turret Positioner
1. Designed in accordance with military standard M22520/1-13.
2. Compatible with crimping tools: NEW-AS1, NEW-ASF1, JRD-AF8, JRD-FT8, ACT-M201, YJQ-W2Q; also compatible with M22520/1-01 series crimping tools.

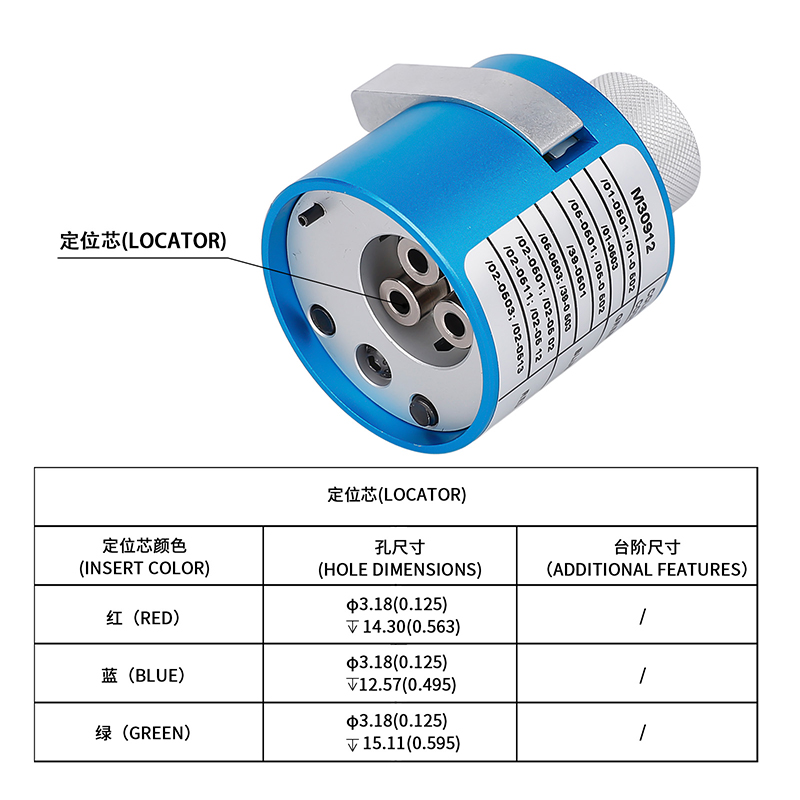

3. Suitable for terminals: M39012/01-0501, /01-0502, /01-0503, /05-0501, /05-0502, /39-0501, /05-0503, /39-0503, /02-0501, /02-0502, /02-0511, /02-0512, /02-0503, /02-0513.
4. Number of positioning cavities: 3.
2. Compatible with crimping tools: NEW-AS1, NEW-ASF1, JRD-AF8, JRD-FT8, ACT-M201, YJQ-W2Q; also compatible with M22520/1-01 series crimping tools.
3. Suitable for terminals: M39012/01-0501, /01-0502, /01-0503, /05-0501, /05-0502, /39-0501, /05-0503, /39-0503, /02-0501, /02-0502, /02-0511, /02-0512, /02-0503, /02-0513.
4. Number of positioning cavities: 3.
| Brand | JRready | Part Number | PH113（TH285）（M22520/1-13) |
| Category | Positioner & Die Set for MIL Standard | Colour | Blue |

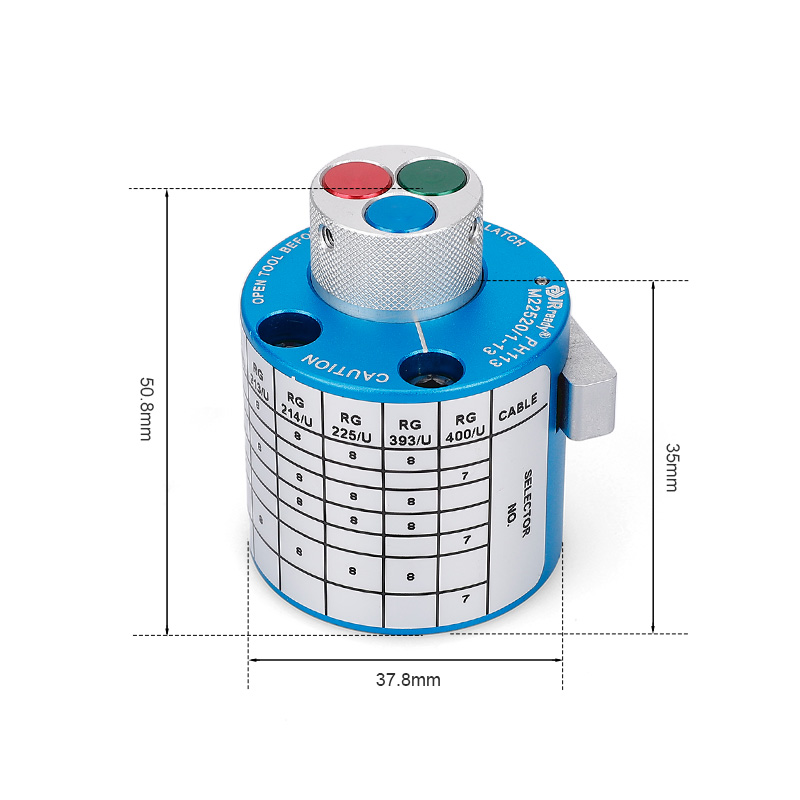

| Material | Stainless Steel | Dimension | 50.8*37.80mm |
| Country of Origin | China | Weight | 110g |
| Application | Suitable for terminals: M39012/01-0501, /01-0502, /01-0503, /05-0501, /05-0502, /39-0501, /05-0503, /39-0503, /02-0501, /02-0502, /02-0511, /02-0512, /02-0503, /02-0513 | ||
