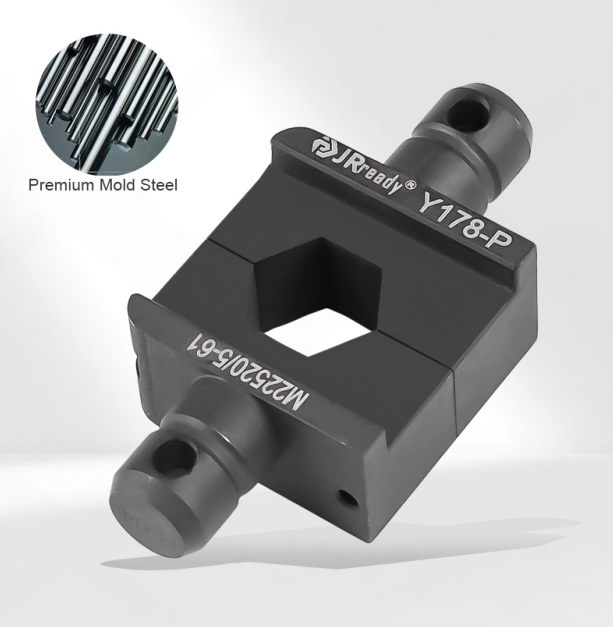

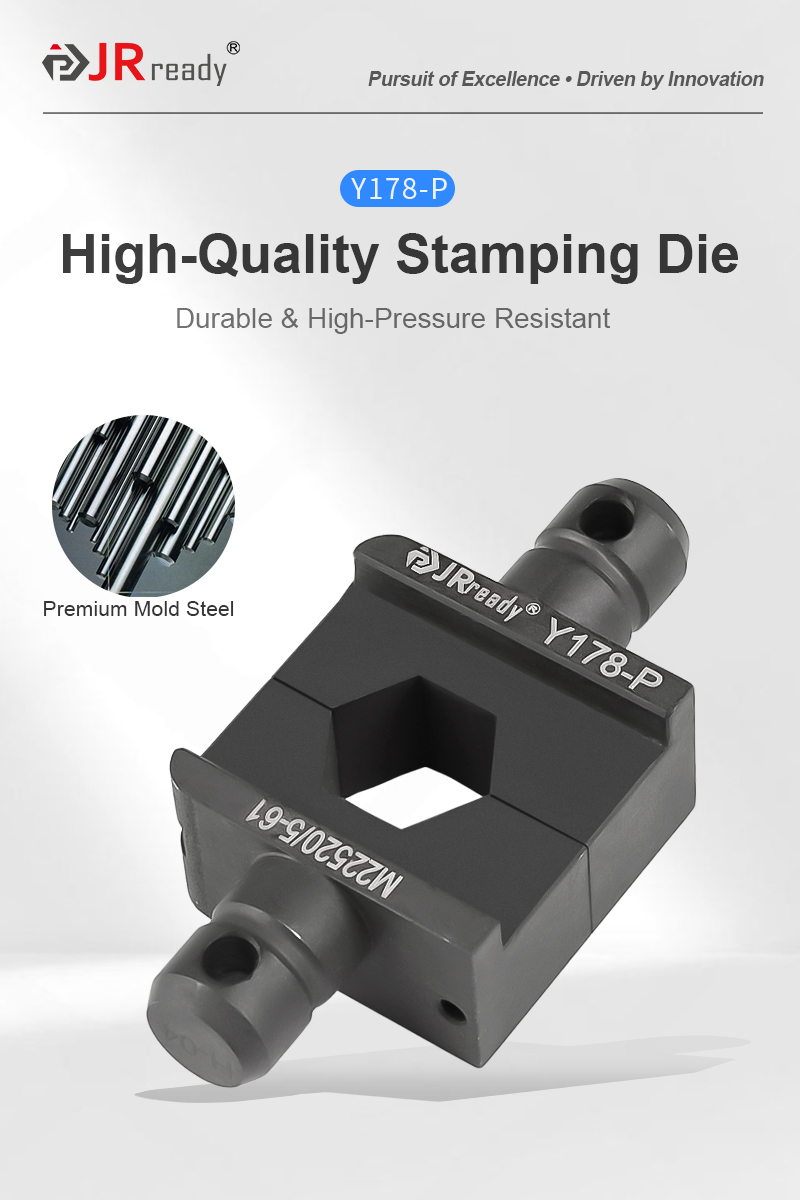

JRready Y178-P (M22520/5-61) Die​ Set

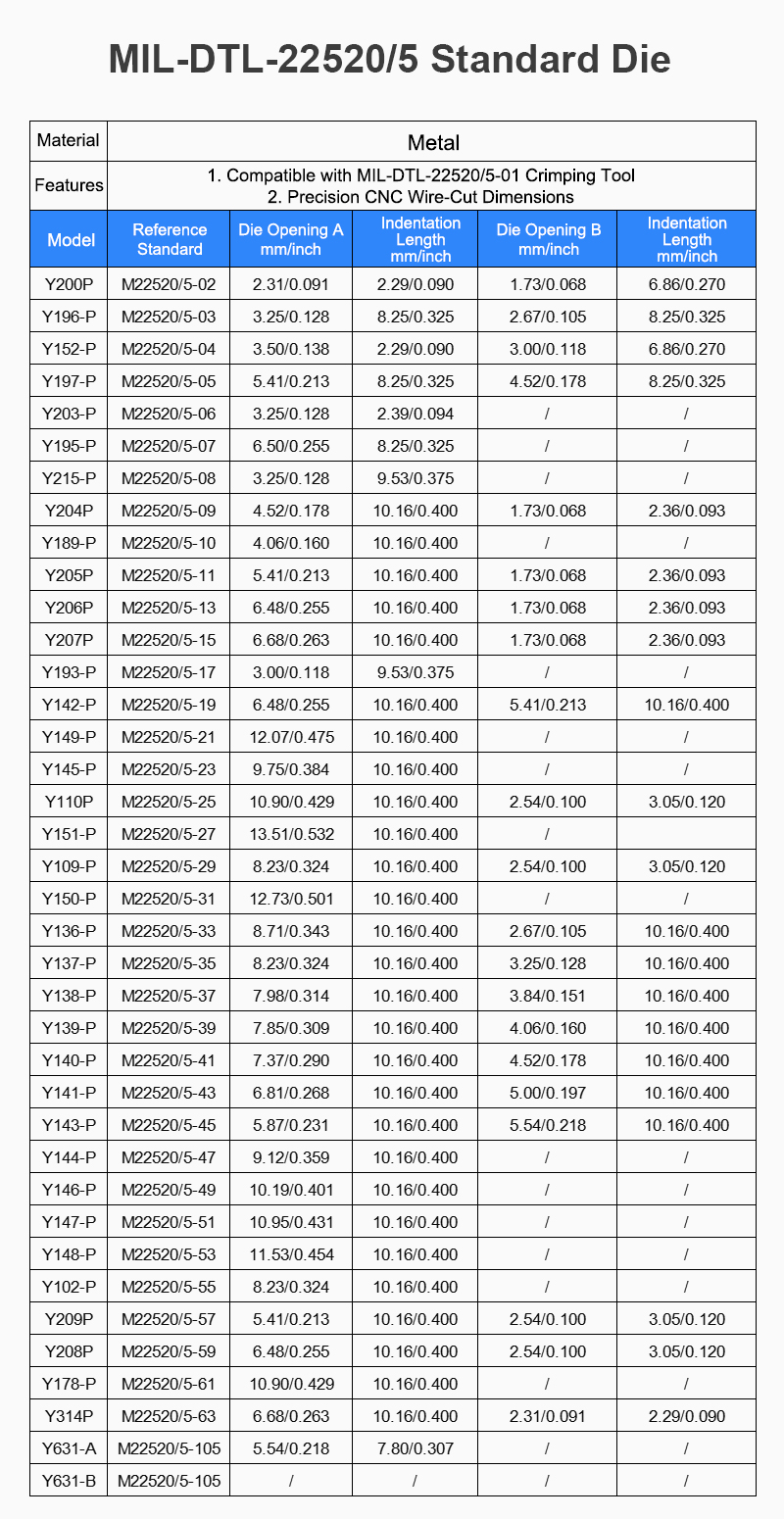

1. Suitable for military standard M22520/5-01 series crimping pliers.
2. CNC wire cutting for precise dimensions.

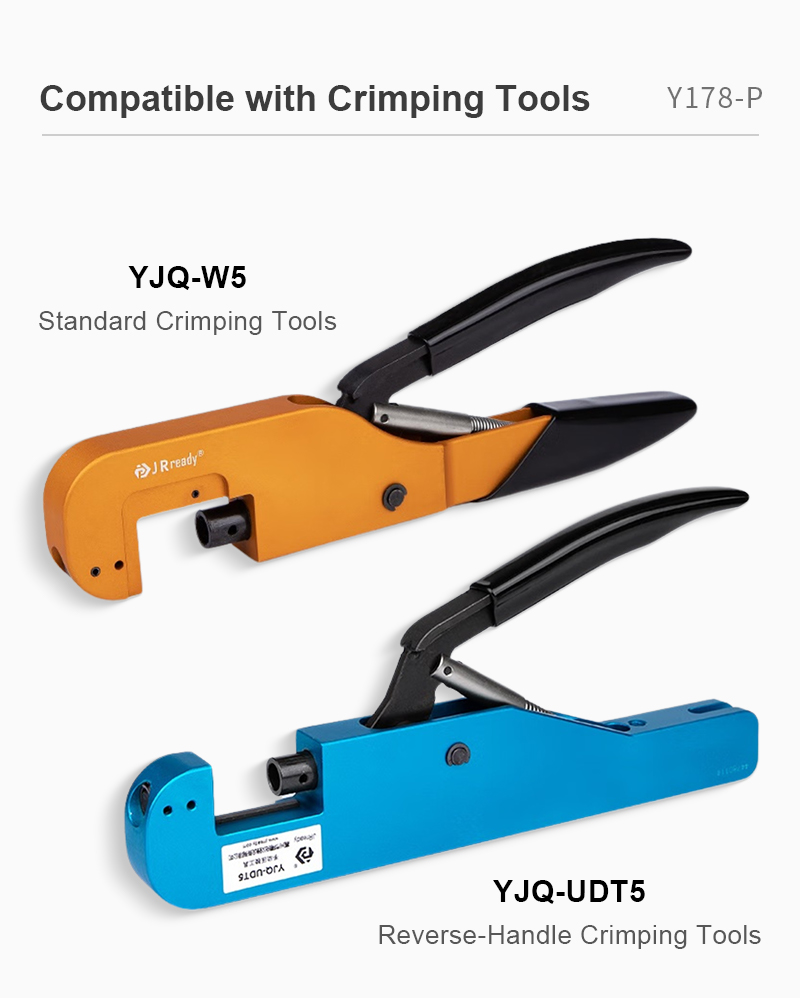

3. Compatible with our YJQ-W5 crimping pliers and YJQ-UDT5 crimping pliers.
4. A die cavity: 10.90/0.429, indentation length 10.16/0.400.
Contact Us
Brand JRready Part Number Y178-P (M22520/5-61)
Category MIL-Spec Positioner & Die Set​ Colour black
Material Mold Steel​ Dimension 50.80*25.40*13.39mm
Country of Origin China Weight 60g
Application ​Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath​



Product Introduction
