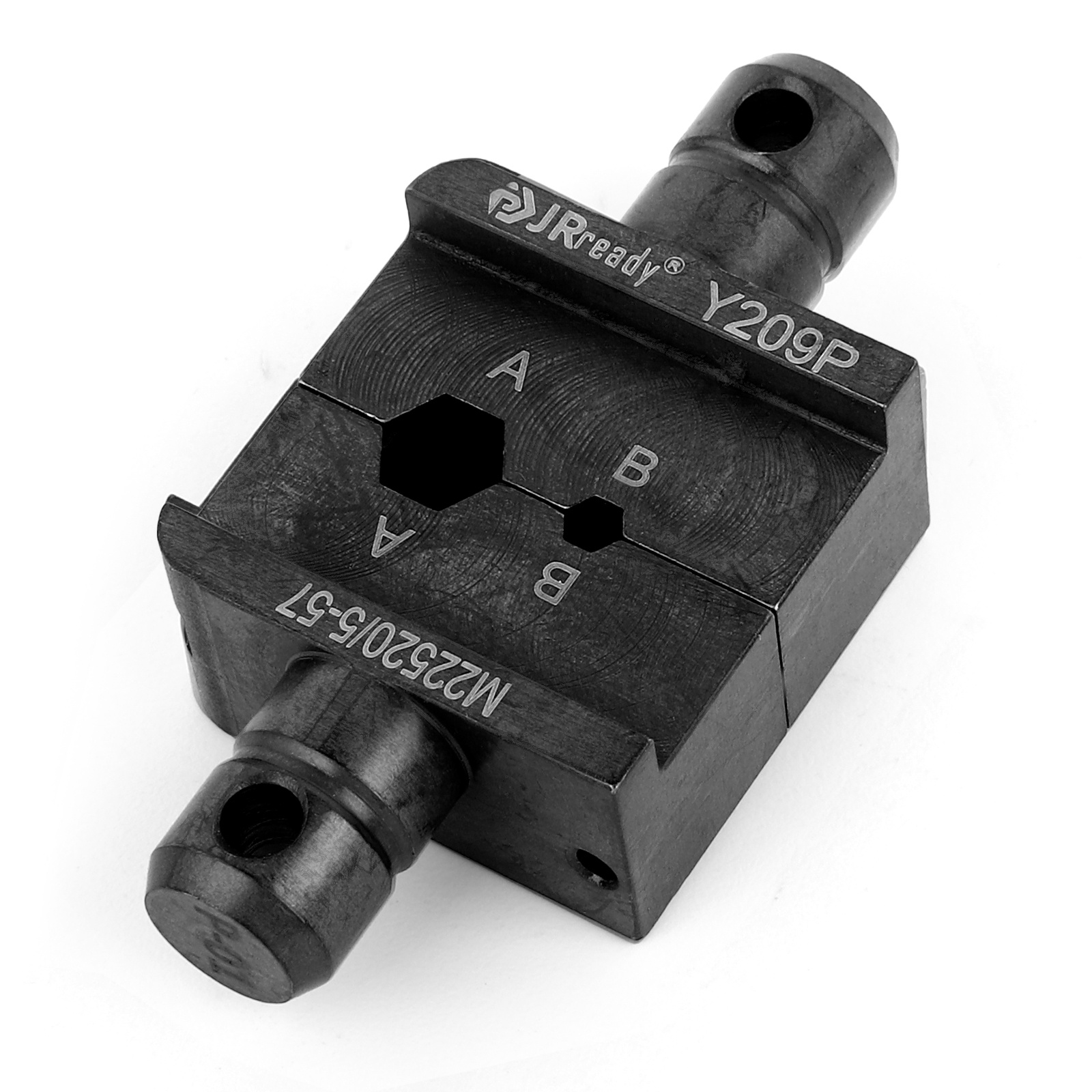

JRready Y209P (M22520/5-57) Crimp Die

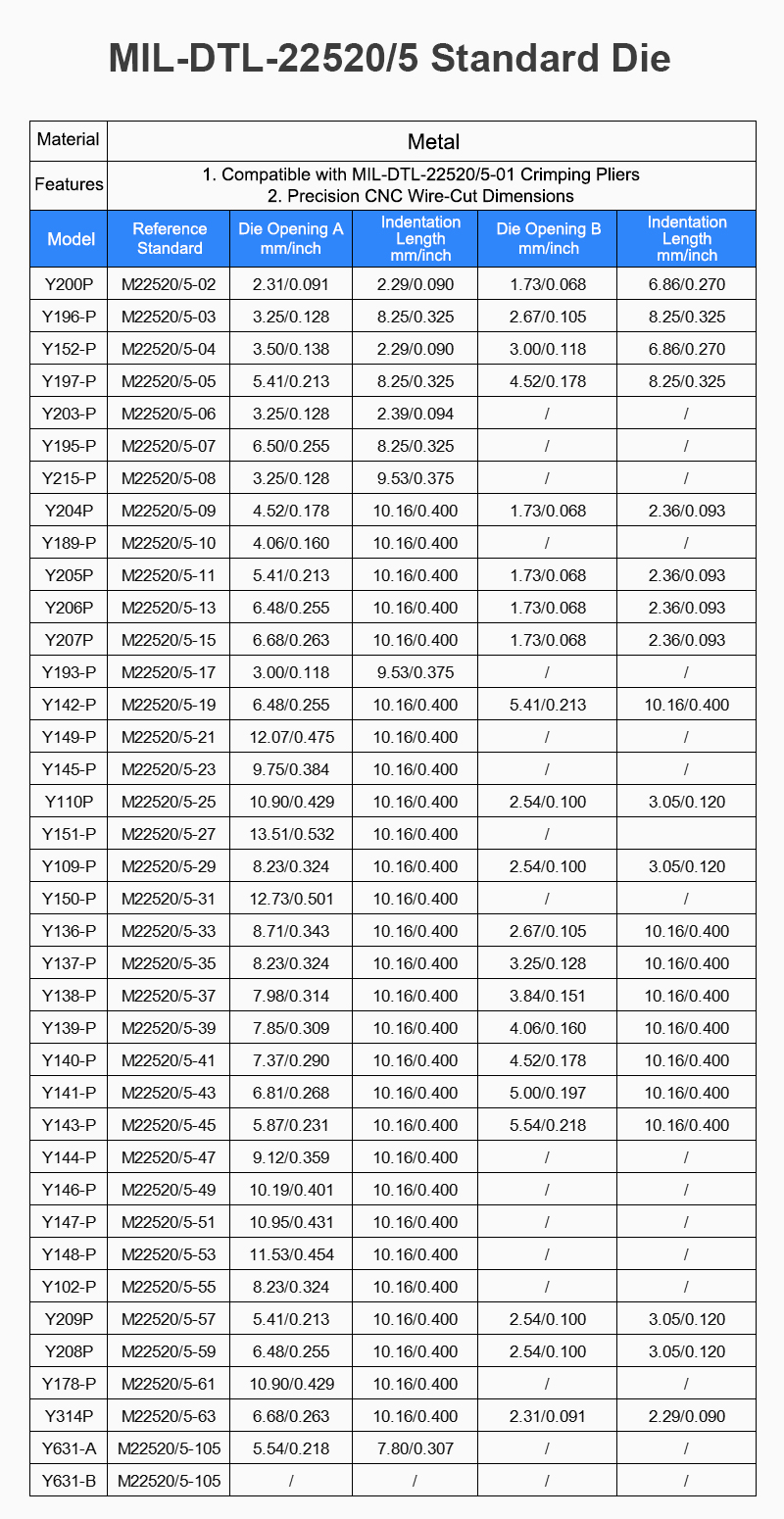

1. Designed according to U.S. Military StandardM22520/5-57;

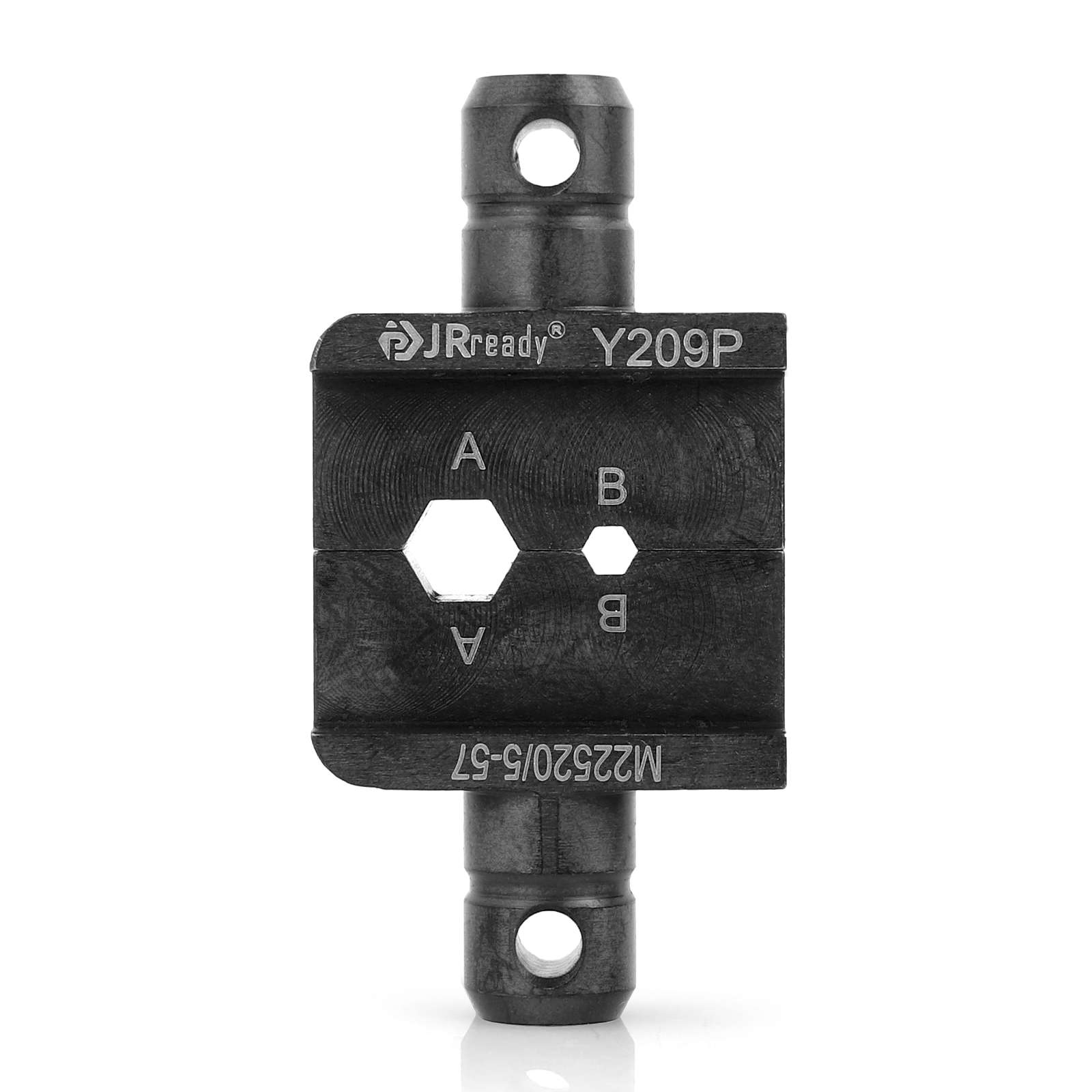

2. Cavity A: 5.41mm opening, 10.16mm indentation length;Cavity B: 2.54mm opening, 10.16mm indentation length;

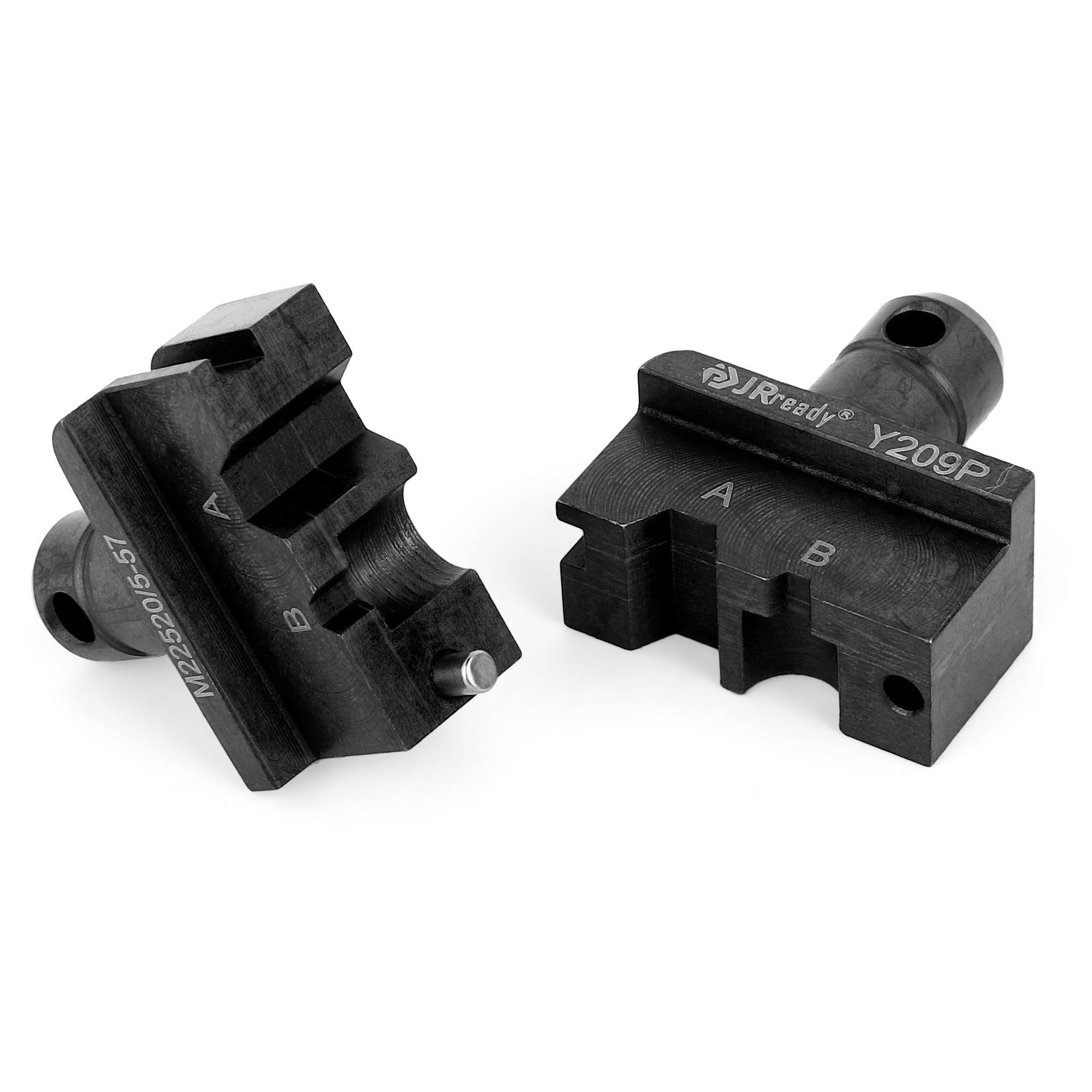

3. Equipped with guiding pins to ensure consistent alignment during die closure;

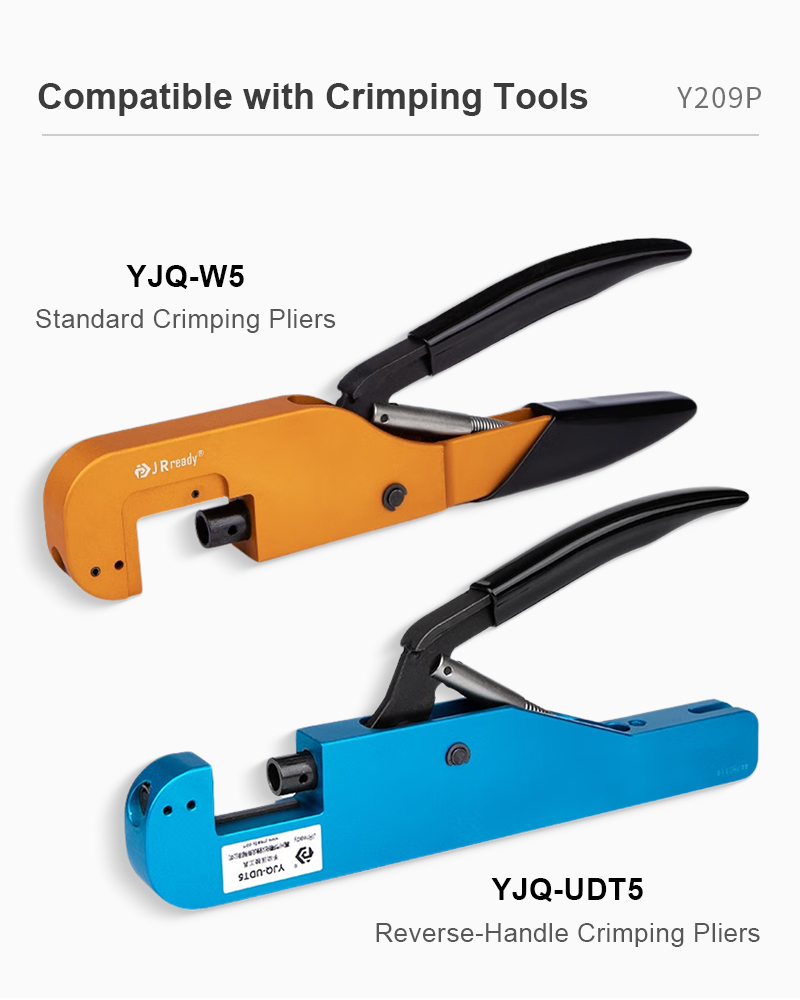

4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
2. Cavity A: 5.41mm opening, 10.16mm indentation length;Cavity B: 2.54mm opening, 10.16mm indentation length;
3. Equipped with guiding pins to ensure consistent alignment during die closure;
4. Compatible with crimp tools YJQ-W5 and YJQ-UDT5.
| Brand | JRready | Part Number | Y209P |
| Category | MIL-Spec Positioner & Crimp Die | Colour | 黑色 |

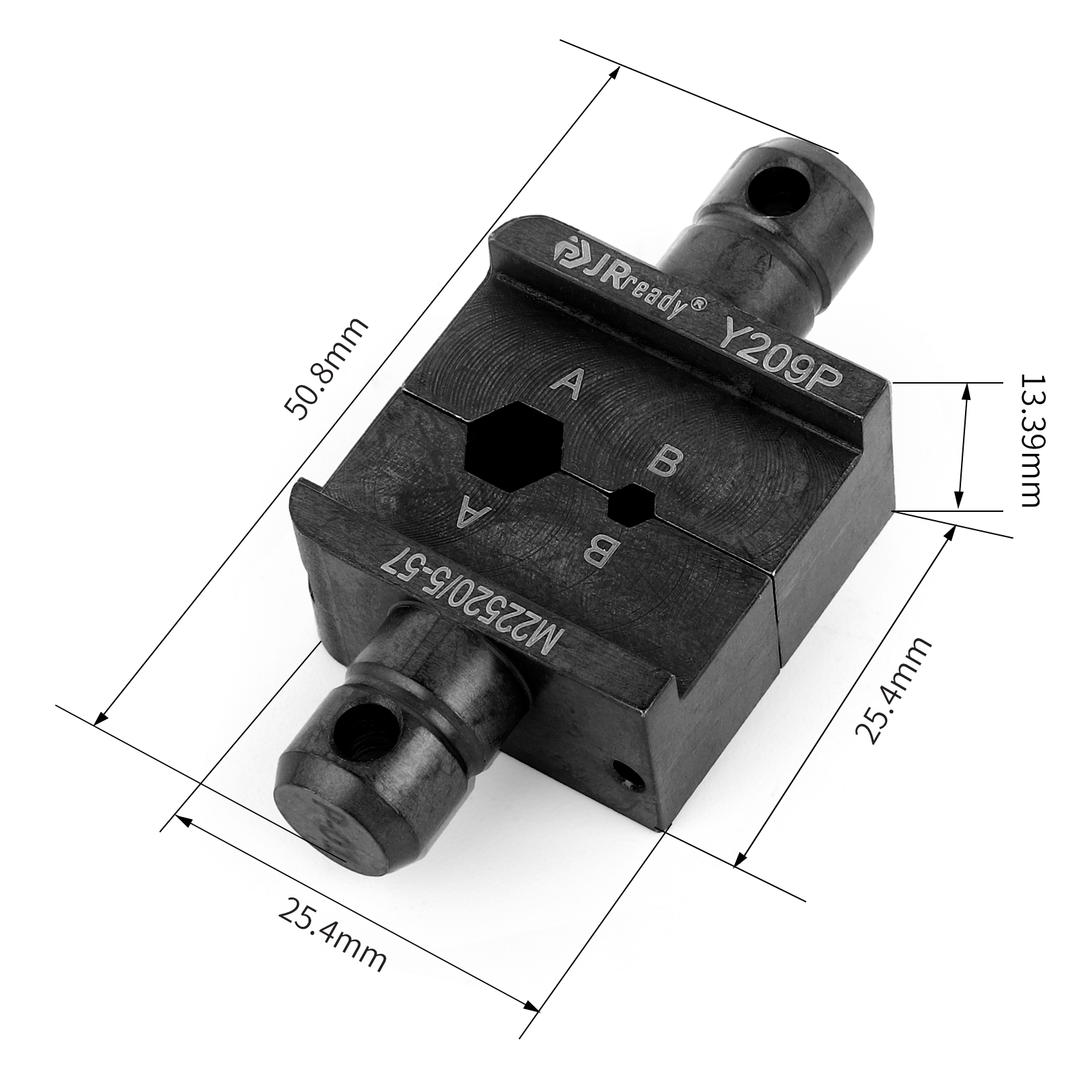

| Material | 模具钢 | Dimension | 50.8*25.4*13.39mm |
| Country of Origin | 深圳/浙江嘉兴 | Weight | 60g |
| Application | Coaxial Cable, Insulated Shielded Wire, Elastic Protective Sheath | ||
