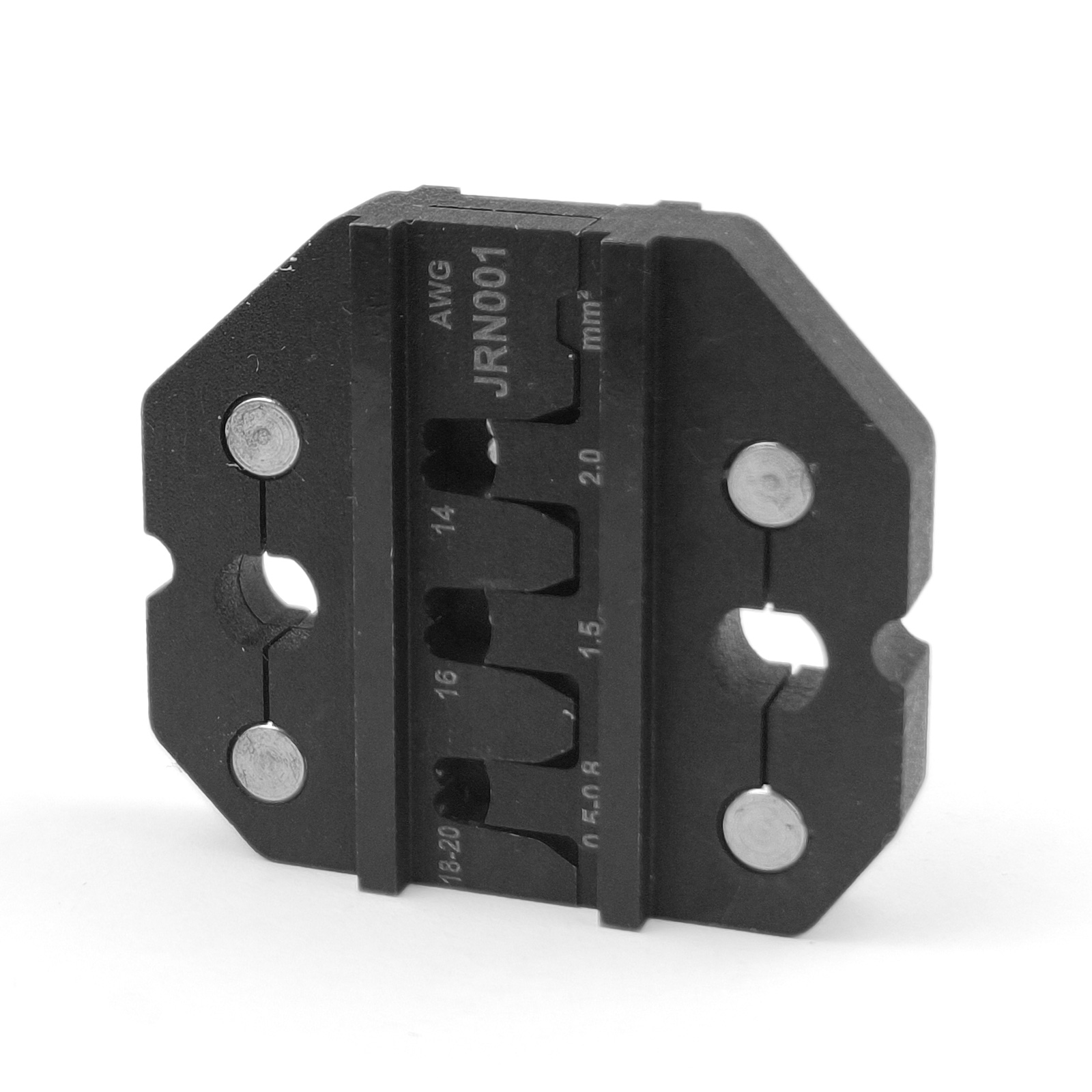

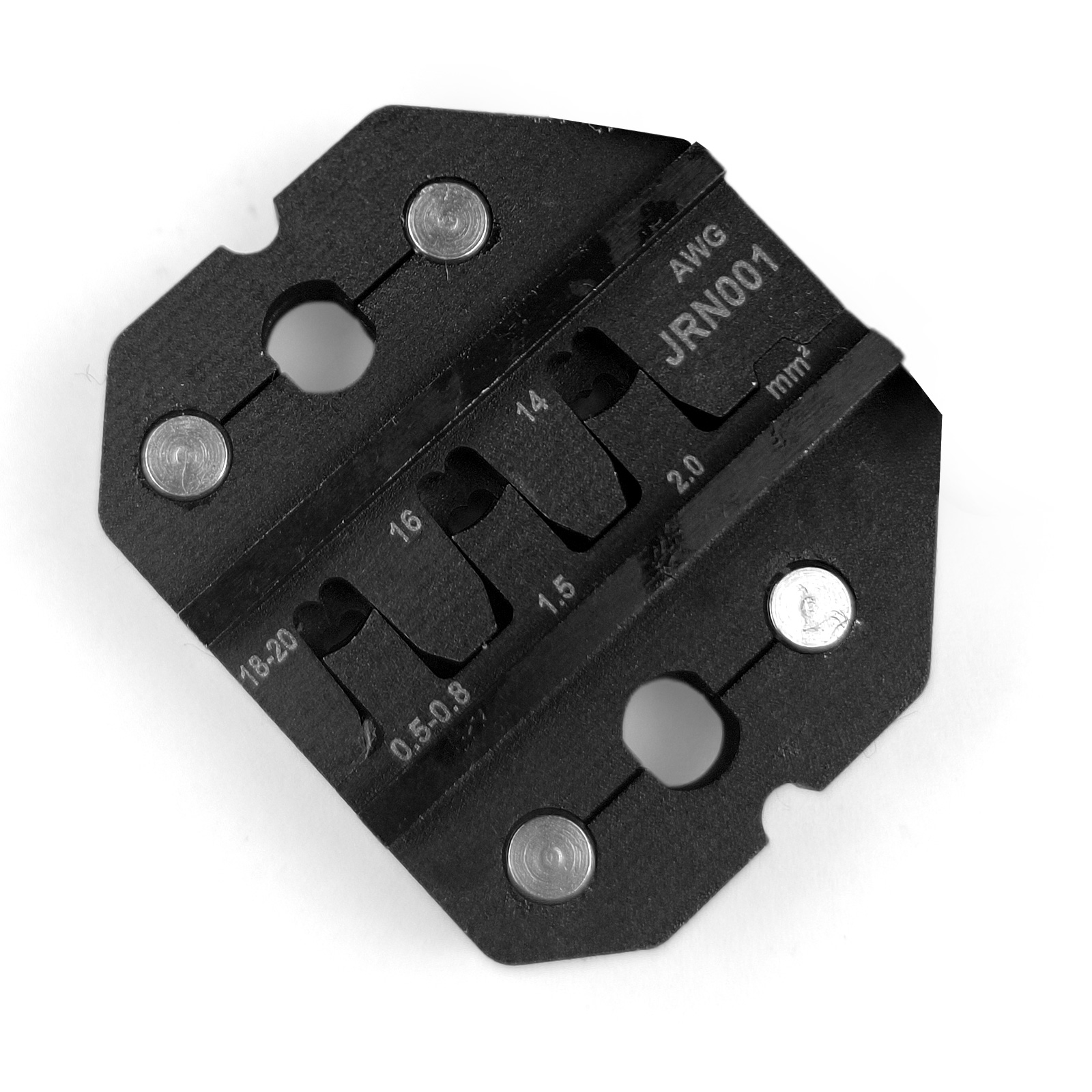

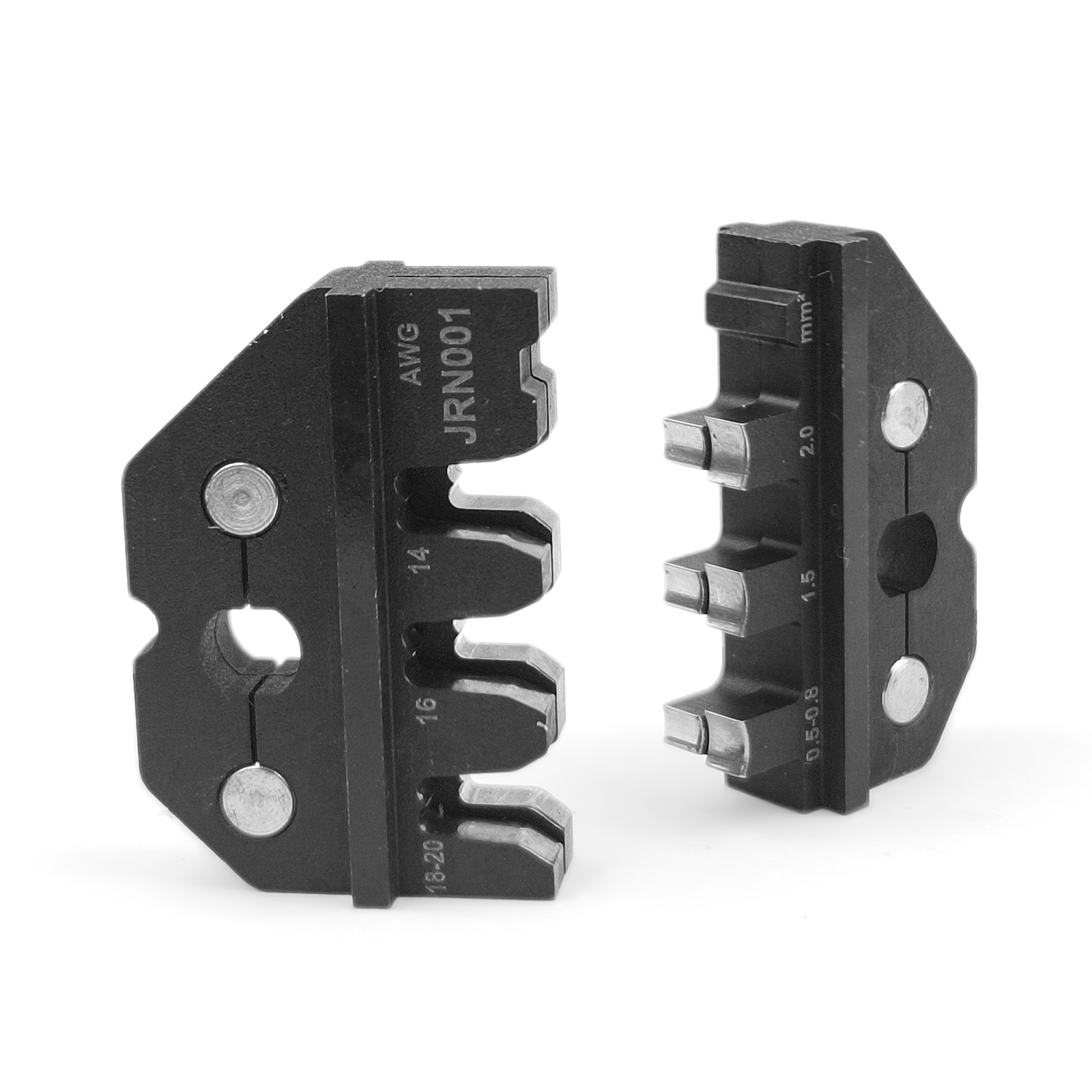

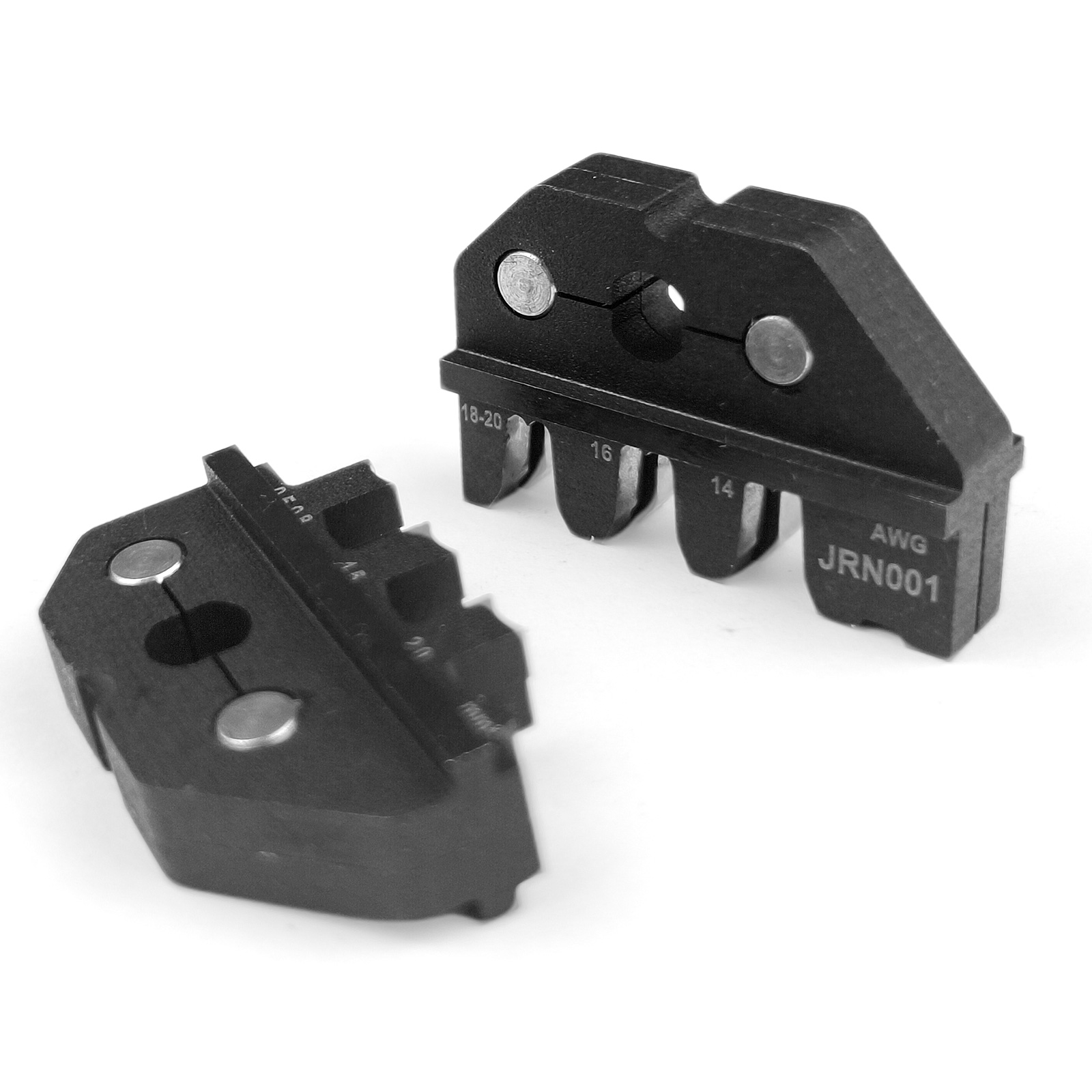

JRready ACT-JRN001（ACT-C6351） Die Set
1. 3 die cavities, wire range: 14AWG~20AWG;
2. Compatible with our LY, SY and SN series crimping tool frames.
3. Compatible terminal models:
JRready original terminals: JRN001-TBM, JRN001-TBF.
Molex original terminals (MLX series): 02062020 / 02062024, 02010208 / 02010102.
CJT Changjiang Connector domestic substitute terminals (C6351 series): C6351MA-TB, C6351F-TB / C6351F-TP.
4. Compatible connectors:
JRready JRN001 series housings (1P/2P/3P/4P/6P/9P/12P), Molex MLX 6.35mm power connector housi
2. Compatible with our LY, SY and SN series crimping tool frames.
3. Compatible terminal models:
JRready original terminals: JRN001-TBM, JRN001-TBF.
Molex original terminals (MLX series): 02062020 / 02062024, 02010208 / 02010102.
CJT Changjiang Connector domestic substitute terminals (C6351 series): C6351MA-TB, C6351F-TB / C6351F-TP.
4. Compatible connectors:
JRready JRN001 series housings (1P/2P/3P/4P/6P/9P/12P), Molex MLX 6.35mm power connector housi
| Brand | JRready | Part Number | ACT-JRN001（ACT-C6351） |
| Category | MIL-Spec Positioner & Die Set | Colour | black |

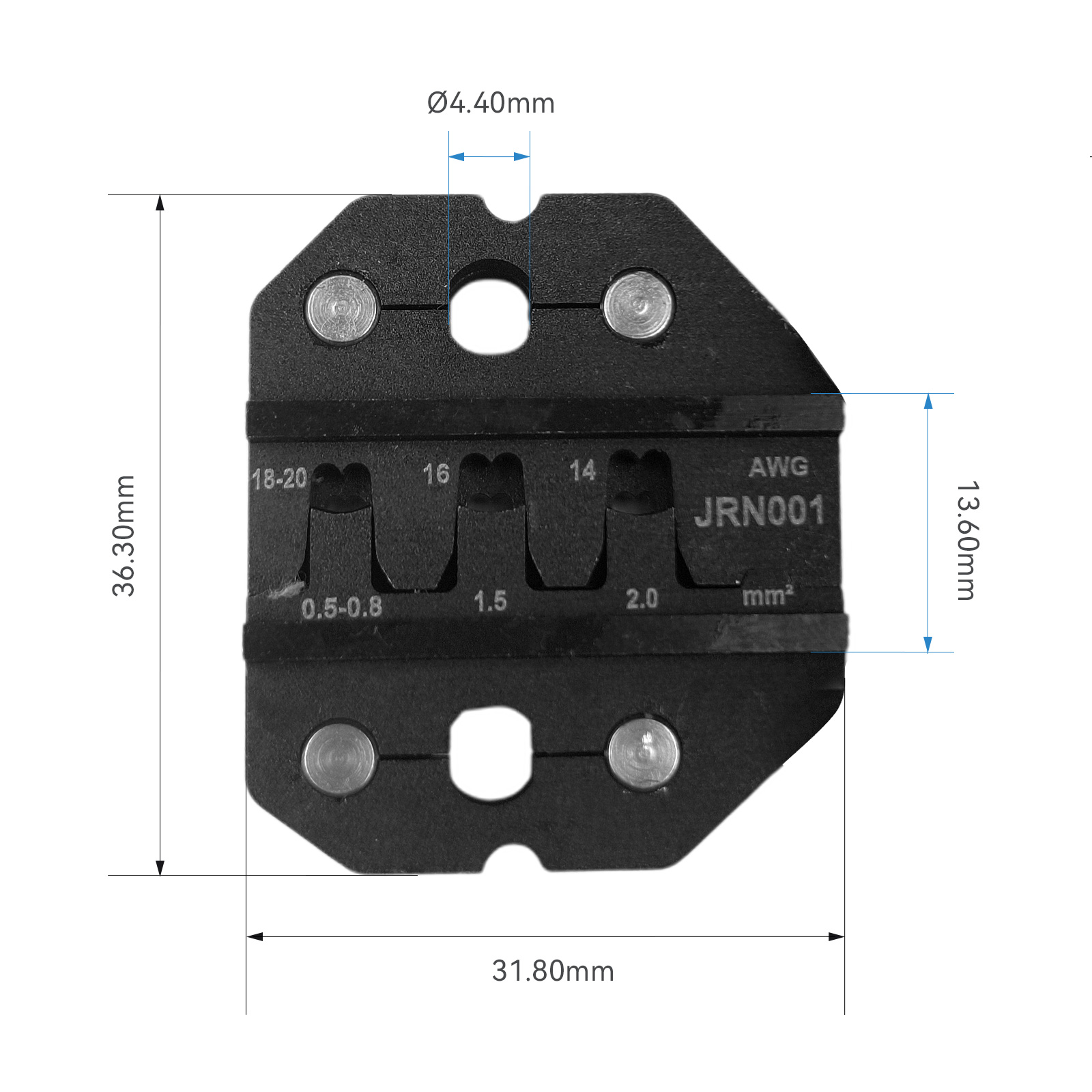

| Material | Mold Steel | Dimension | 31.8*36.3mm |
| Country of Origin | China | Weight | 46g |
| Application | Compatible with our LY, SY and SN series tool bodies. | ||
