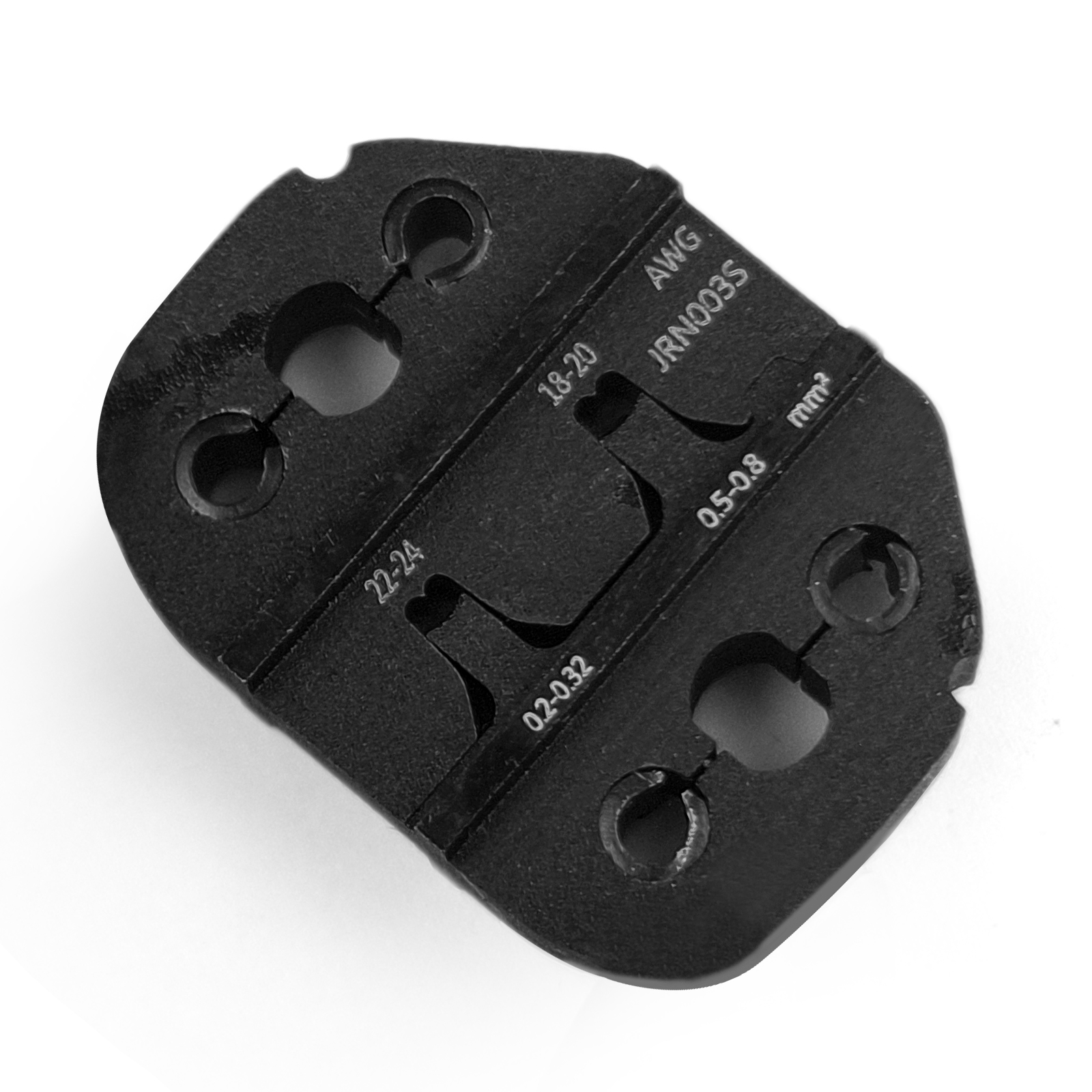

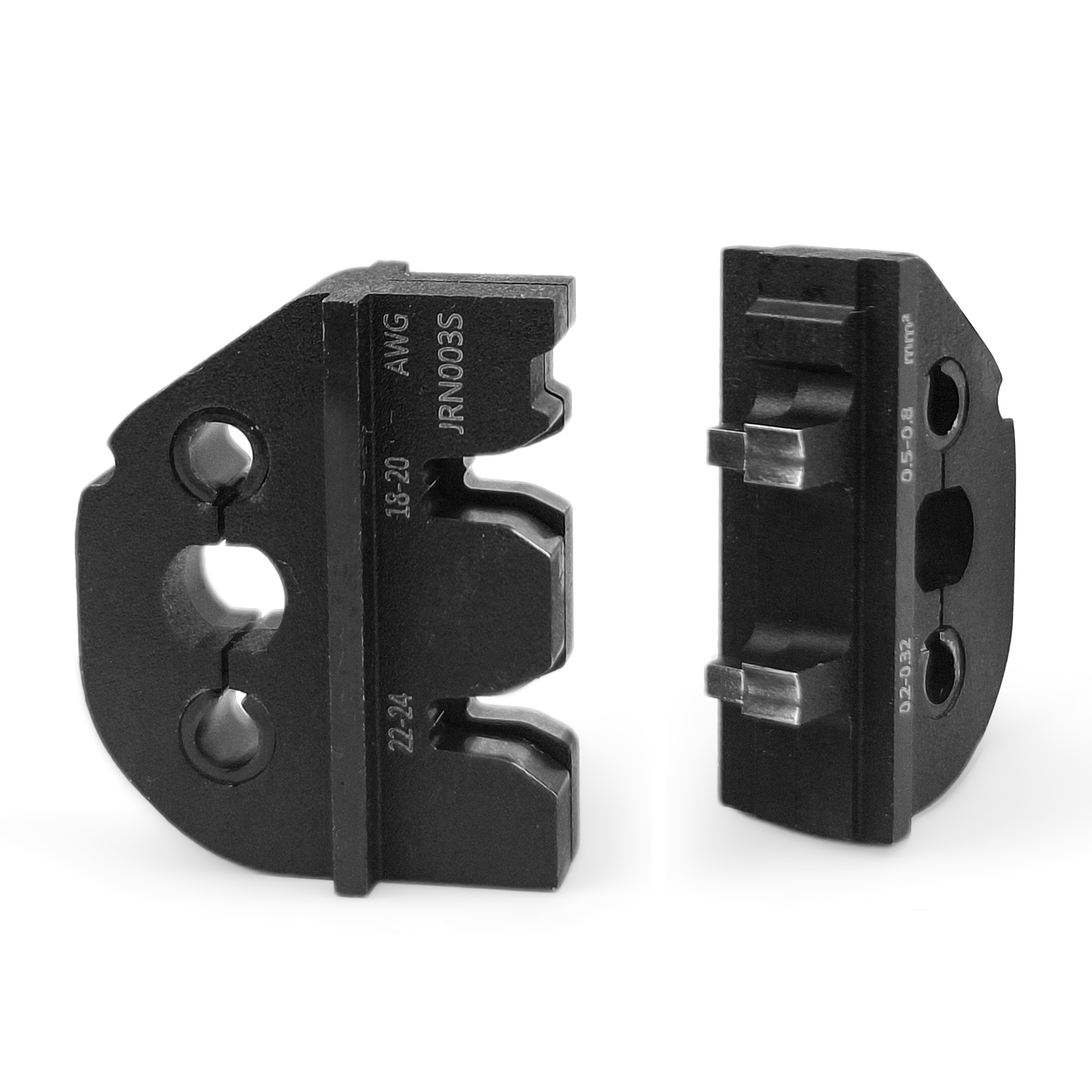

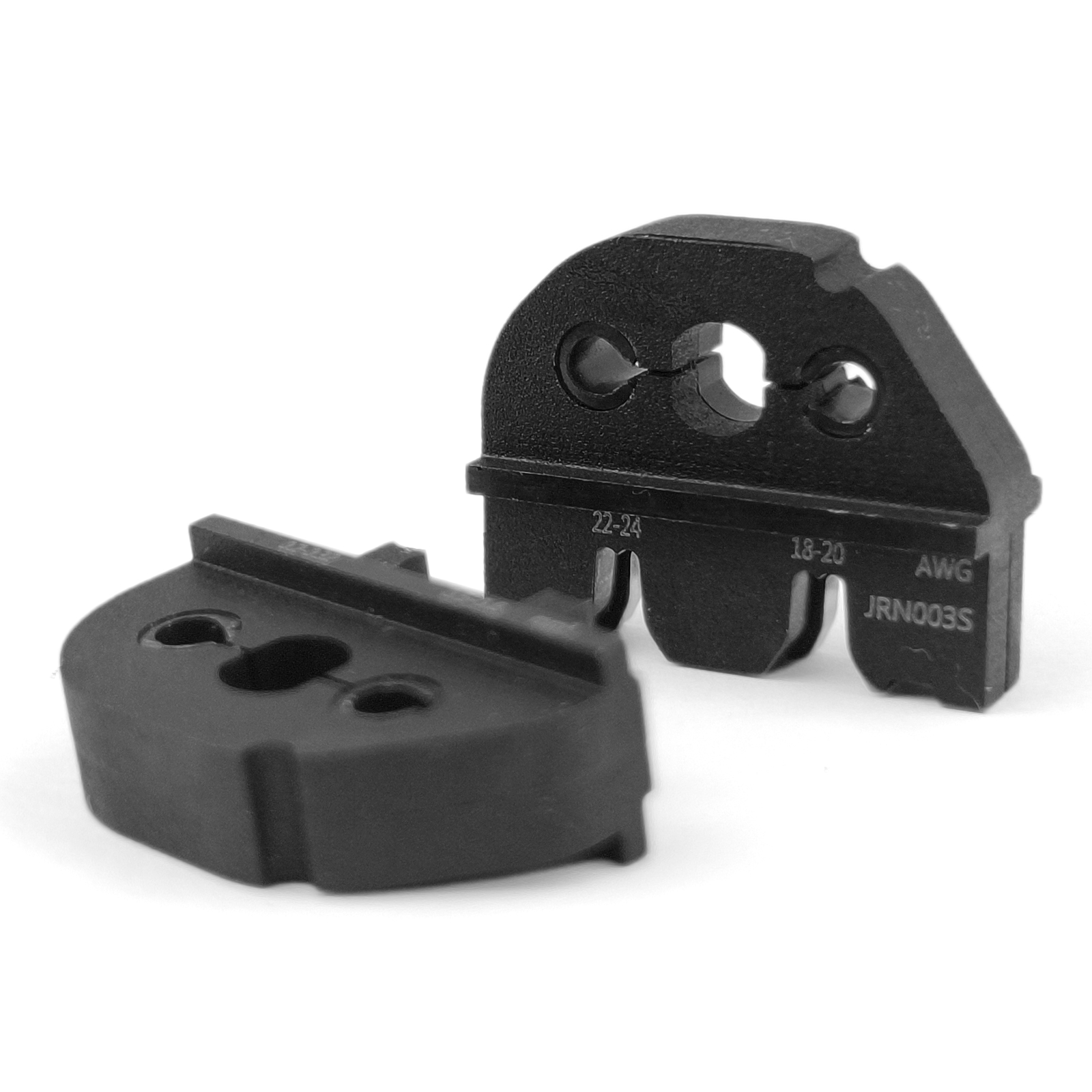

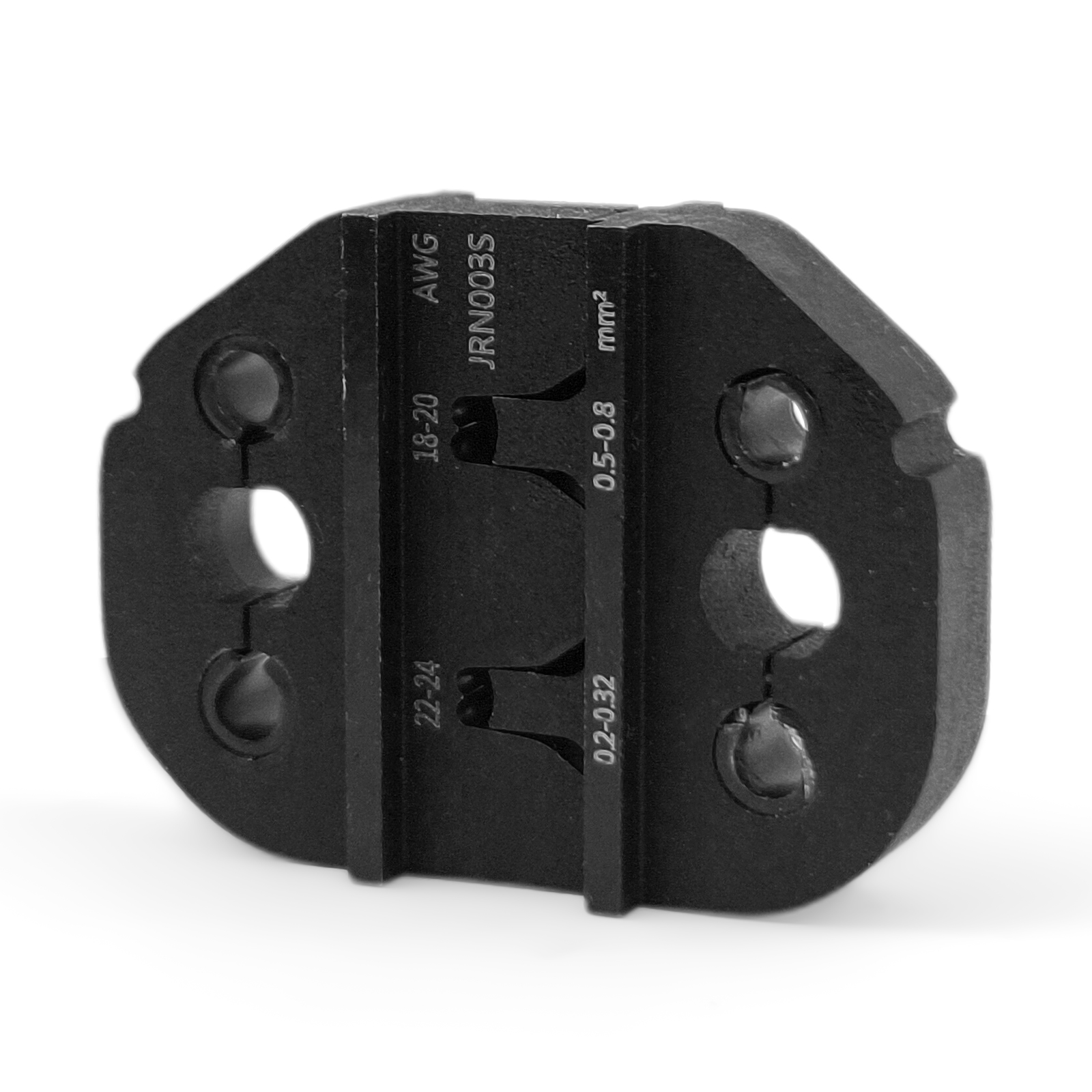

JRready ACT-JRN003S Die Set

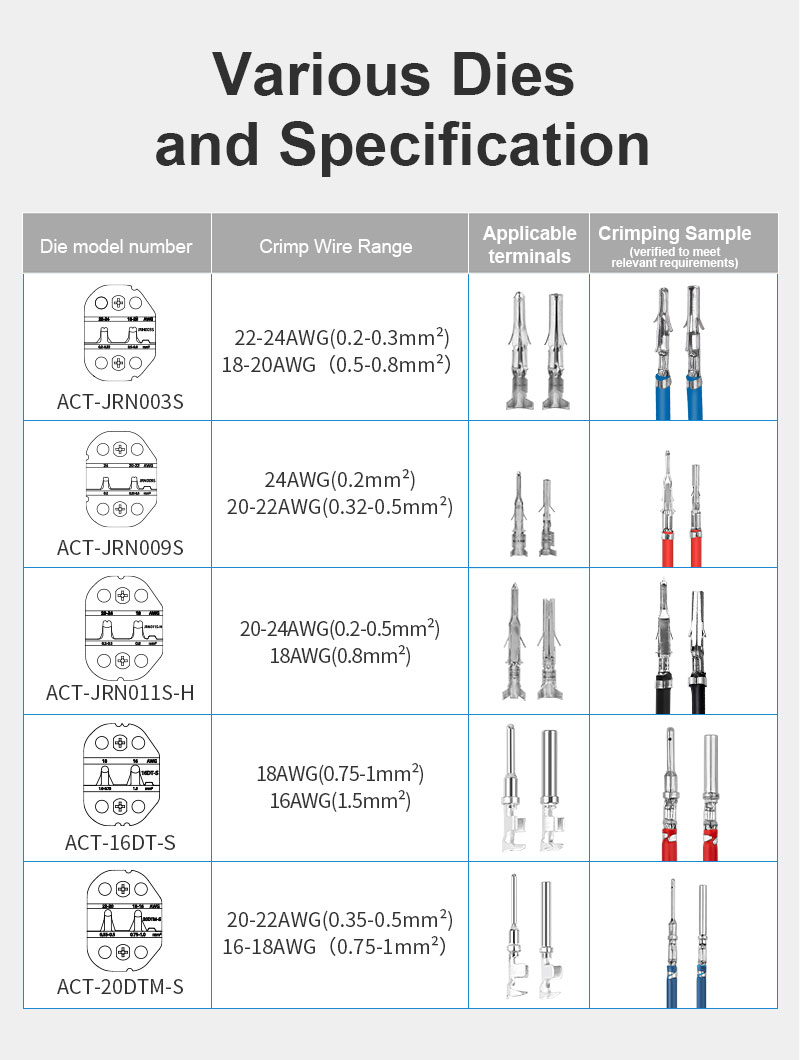

1. 2 die cavities, wire range: 18AWG~24AWG.
2. Compatible with our LY, SY and SN series crimping tool frames.
3. Compatible terminal models:
JRready original terminals: JRN003-TBM, JRN003-TBF.
Molex original terminals (1625 / .062" series): Male terminal: 08-70-0041, Female terminal: 08-70-1041.
CJT Changjiang domestic substitutes (C1581 series): C1581M-TB (male terminal), C1581F-TB (female terminal).
4. Compatible connector housings:
JRready JRN003 housings JRN003-HMA-xxP (male housing, 1P/2P/3
2. Compatible with our LY, SY and SN series crimping tool frames.
3. Compatible terminal models:
JRready original terminals: JRN003-TBM, JRN003-TBF.
Molex original terminals (1625 / .062" series): Male terminal: 08-70-0041, Female terminal: 08-70-1041.
CJT Changjiang domestic substitutes (C1581 series): C1581M-TB (male terminal), C1581F-TB (female terminal).
4. Compatible connector housings:
JRready JRN003 housings JRN003-HMA-xxP (male housing, 1P/2P/3
| Brand | JRready | Part Number | ACT-JRN003S |
| Category | MIL-Spec Positioner & Die Set | Colour | black |
| Material | Mold Steel | Dimension | 31.8*36.3mm |
| Country of Origin | China | Weight | 30.4g |
| Application | Compatible with our LY, SY and SN series tool bodies. | ||
