JRready 0462-209-16141 ​16# Socket​

1. Wire Range: 20-14AWG (0.5-2.0mm²)
2. Matches Machined Pin 0460-215-16141
3. Nickel-plated with Green band
4. Rated Current: 13A
Contact Us
Brand JRready Part Number 0462-209-16141
Category DT Series Colour ​Silver​

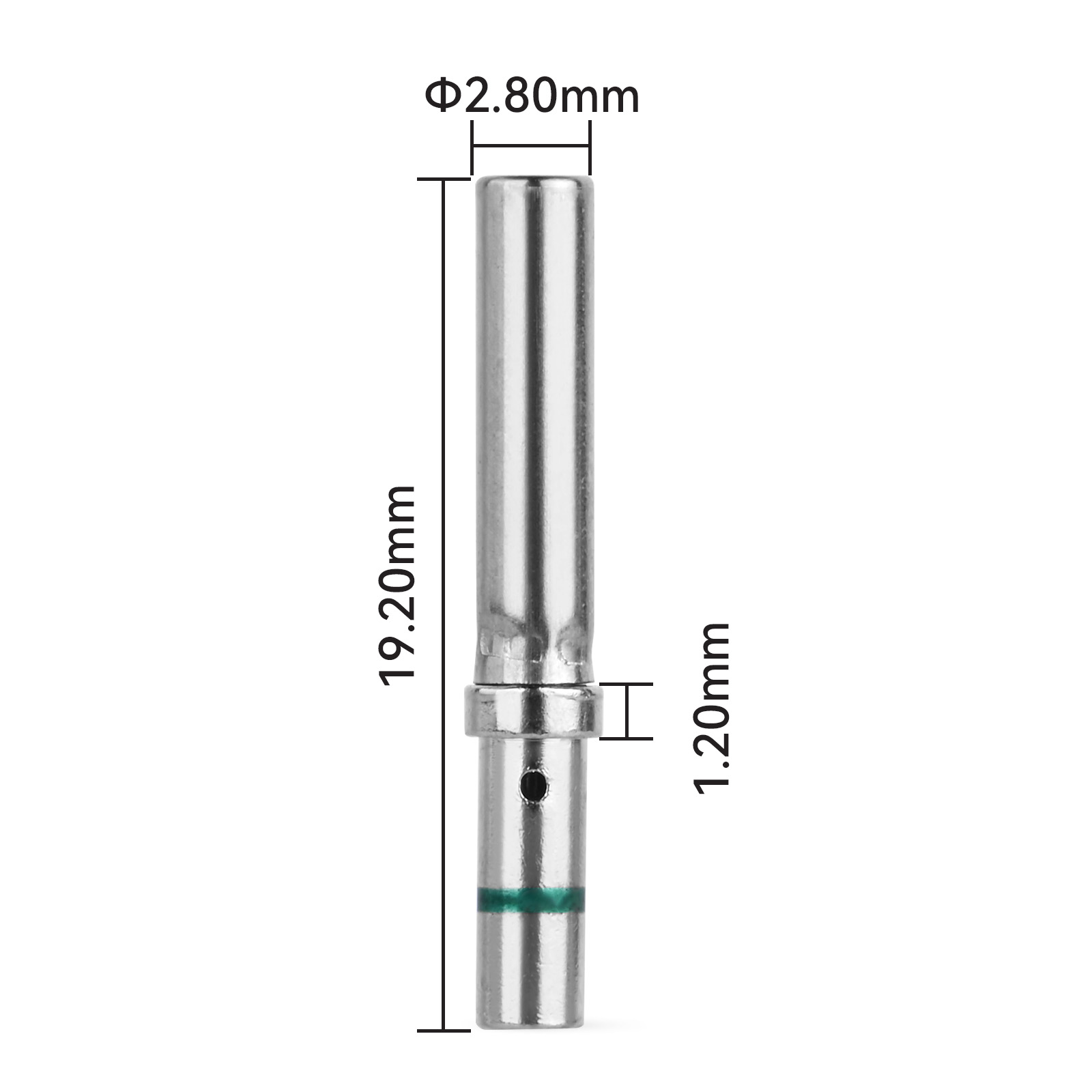

Material ​Tin Bronze​     Dimension Length: 19.20mm, Diameter: 2.80mm
Country of Origin China Weight   0.6g
Application ​Compatible with DT, HDP20, HD30, HD10, DRC, Jiffy Splice Connectors​
Working Temperature -40-125℃ Working Pressure /
Rated Voltage 250V Rated Current 13A

Product Introduction
